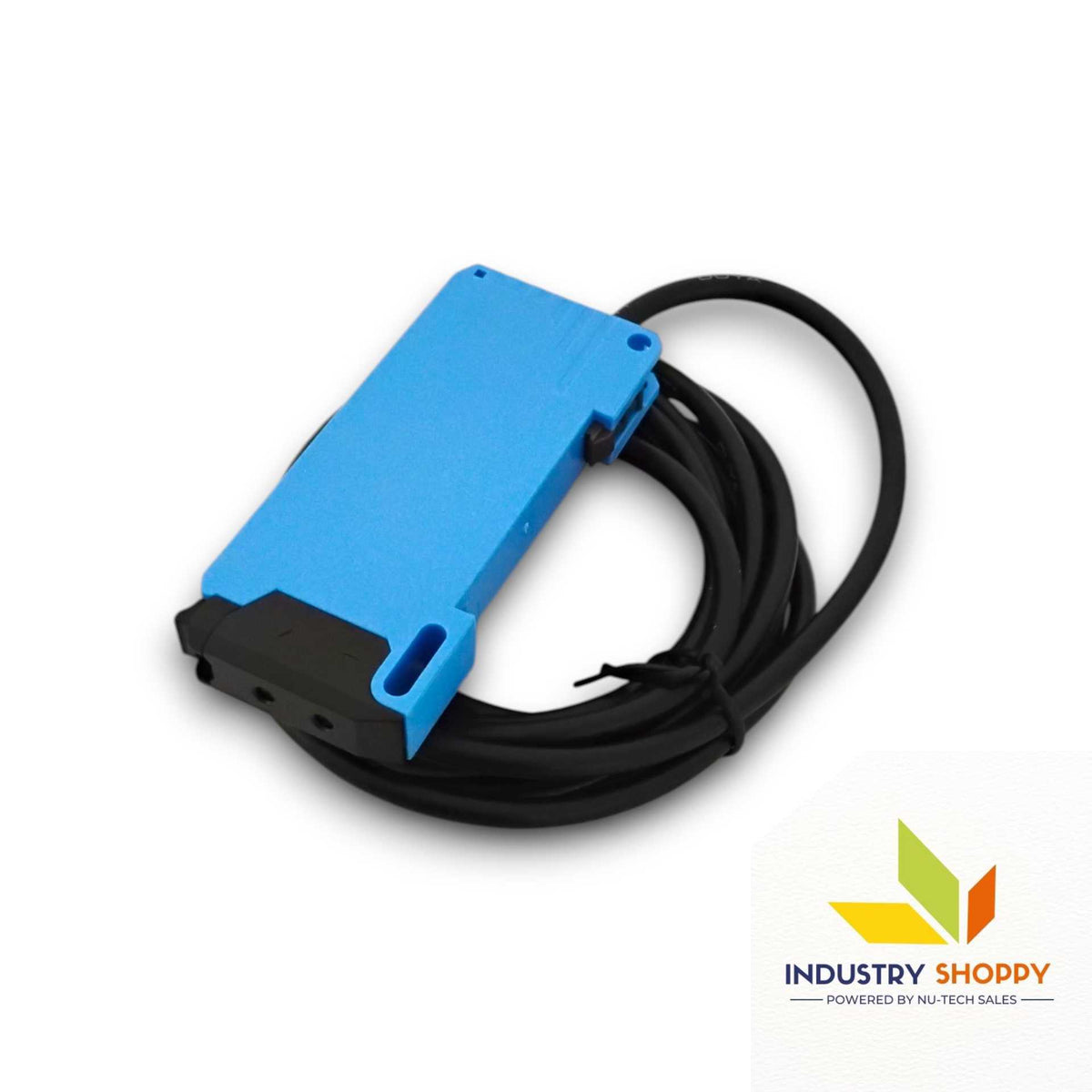

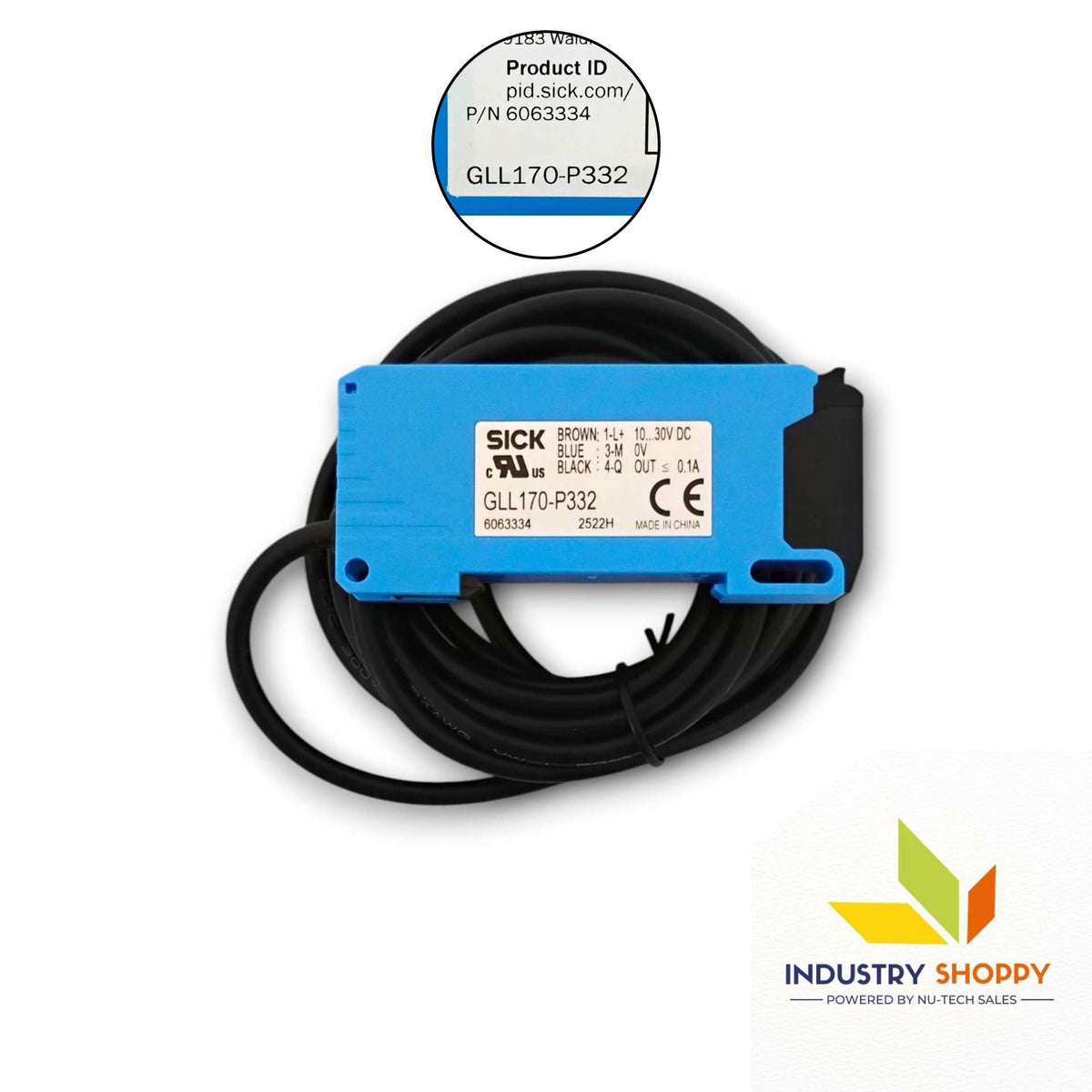

Sick GLL170-P332 Fiber Optic Sensor Amplifier
Sick GLL170-P332 Fiber Optic Sensor Amplifier
Sick GLL170-P332 Fiber Optic Sensor Amplifier
Sick GLL170-P332 Fiber Optic Sensor Amplifier
Sick GLL170-P332 Fiber Optic Sensor Amplifier
Sick GLL170-P332 Fiber Optic Sensor Amplifier
Sick GLL170-P332 Fiber Optic Sensor Amplifier
Sick GLL170-P332 Fiber Optic Sensor Amplifier
SICK

Sick GLL170-P332 Fiber Optic Sensor Amplifier

Product SKU: NTSSEN00631
Available:
Only 14 items in stock
14 items in stock
In stock
Pre-order
Out of stock
  • Brand: Sick
  • Part No.: 6063334
  • Supply voltage: 10..30 VDC
  • Current consumption: < 30 mA
  • Output Type: PNP
  • Response Time:  ≤ 250 μs



Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$75.00
$160.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Sick GLL170-P332 Fiber Optic Sensor Amplifier

The Sick GLL170-P332 Fiber Optic Sensor Amplifier (Part No. 6063334) is a compact and highly reliable stand-alone fiber-optic amplifier engineered for fast, precise detection in industrial automation. It uses a visible red LED (632 nm) and supports multiple optical fiber types, enabling flexible sensing ranges depending on the connected cable.

Designed for long-term durability, it offers an impressive 100,000-hour service life and outstanding reliability with an MTTFD of 760 years. The amplifier provides rapid response with ≤250 µs switching time and a 2 kHz switching frequency, making it ideal for high-speed applications. It includes light/dark switching, potentiometer-based adjustment, and configurable digital output for adaptable operation.

Built with robust IP66 protection, shock and vibration resistance, and wide –25°C to +55°C operating temperature, it performs reliably even in harsh industrial environments. Safety and stability are ensured with reverse polarity, overcurrent, and short-circuit protection, making it a dependable solution for demanding sensing tasks.


Applications

  • High-speed object detection in packaging and assembly lines

  • Presence/absence detection in tight or complex spaces

  • Positioning and counting in automated machinery

  • Small-part detection using flexible fiber optics

  • Electronics, robotics, and semiconductor handling systems


Technical Precautions

  • Do not bend the cable below 0°C to avoid cracking.

  • Ensure correct 10–30 V DC supply with ≤10% ripple.

  • Avoid exceeding 100 mA output load.

  • Protect the sensor from excessive ambient light beyond its 60,000-lx sunlight limit.

  • Maintain proper sealing during installation to retain IP66 protection.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


ModelGLL170-P332
BrandSICK
Part No.6063334
Device TypeFiber-optic amplifier
Device Type DetailStand-alone
Functional PrincipleDepends on the optical fiber cable used
Sensing Range (Max.)Depends on the optical fiber cable used
Light SourceLED
Light TypeVisible red light
Wavelength632 nm
Normative ReferenceEN 62471:2008-09, IEC 62471:2006 (modified)
LED Risk GroupFree group
Average Service Life100,000 h at +25°C

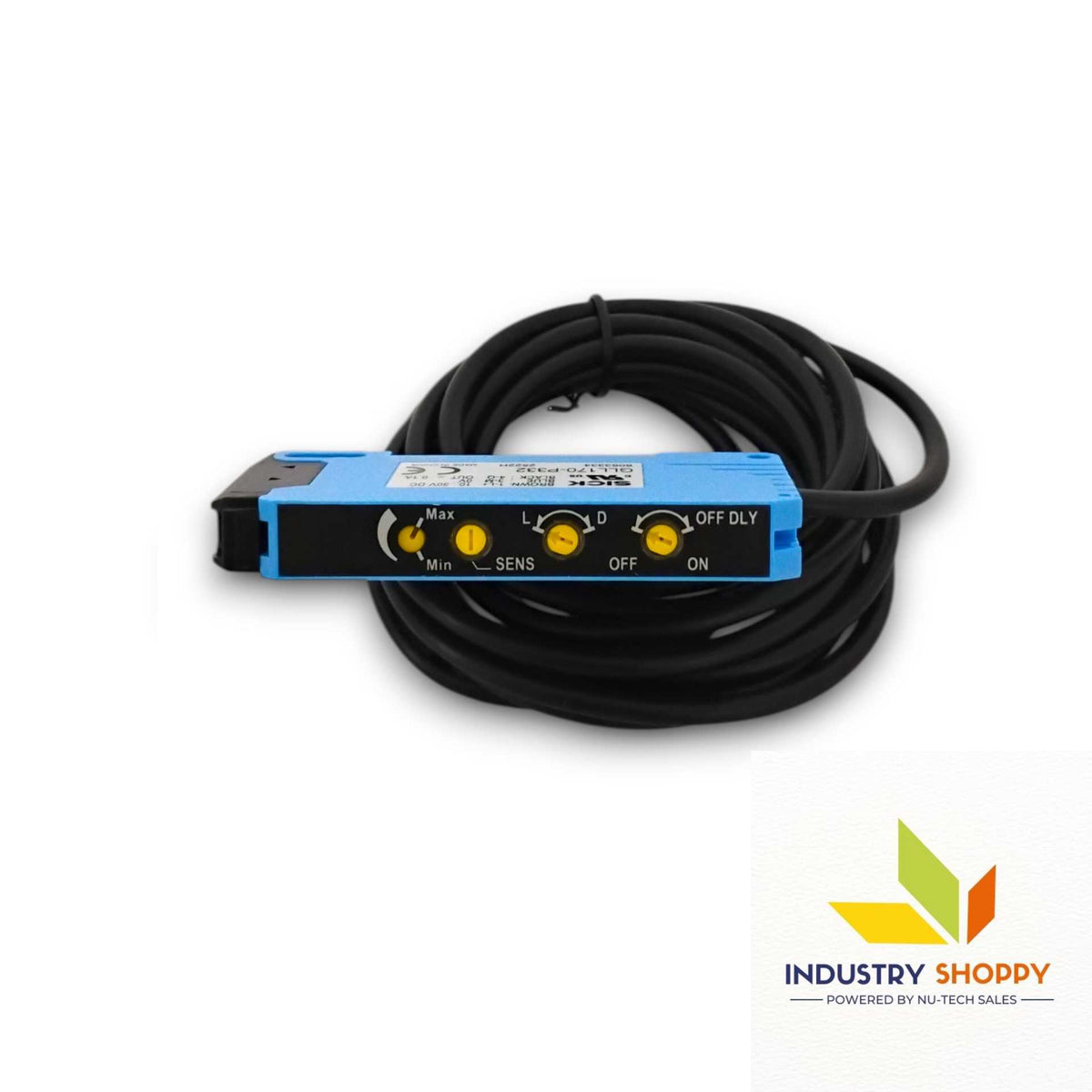

Potentiometer FunctionSet sensing range, switching mode, switch-off delay
LED GreenOperating indicator (Static: power on, Dimmed: ±10% of switching threshold)
LED YellowDigital output status (On: active, Off: inactive)
MTTFD760 years
DCavg0%
Mission Time (TM)20 years
Supply Voltage UB10–30 V DC
Ripple≤ 10%
Current Consumption≤ 30 mA
Number of Outputs1
Output TypePNP
Switching ModeLight/dark switching
Signal Voltage PNP (HIGH/LOW)UB-1.5 V / 0 V
Signal Voltage NPN (HIGH/LOW)UB / <1.5 V
Output Current Max.≤ 100 mA
ProtectionReverse polarity, Overcurrent, Short-circuit
Response Time≤ 250 μs
Switching Frequency2 kHz
Time FunctionsNo delay / Off-delay
Delay Time0–40 ms (via rotary switch)
Pin 4 FunctionDigital output (Q1 HIGH in received light) – configurable
Housing DesignRectangular
Dimensions (W x H x D)10 × 31.7 × 72.5 mm
Connection3-wire cable
Deep-Freeze PropertyDo not bend below 0°C
Conductor Size0.2 mm²
Cable DiameterØ 3.8 mm
Cable Length2 m
Housing MaterialPlastic (PC/POM)
Cable MaterialPVC
Max. Screw Torque0.5 Nm
Enclosure RatingIP66 (EN 60529)
Operating Temperature–25°C to +55°C
Storage Temperature–40°C to +70°C
Ambient Light Immunity≤ 5,000 lx (artificial), ≤ 60,000 lx (sunlight)
Shock Resistance50 g, 11 ms (18 shocks, EN 60068-2-27)
Vibration Resistance10–55 Hz, 1 mm (3×30 min, EN60068-2-6)
Air Humidity35%–95% (non-condensing)
EMC ComplianceEN 60947-5-2
UL File No.NRKH2.E300503 & NRKH8.E300503
Country of originChina
