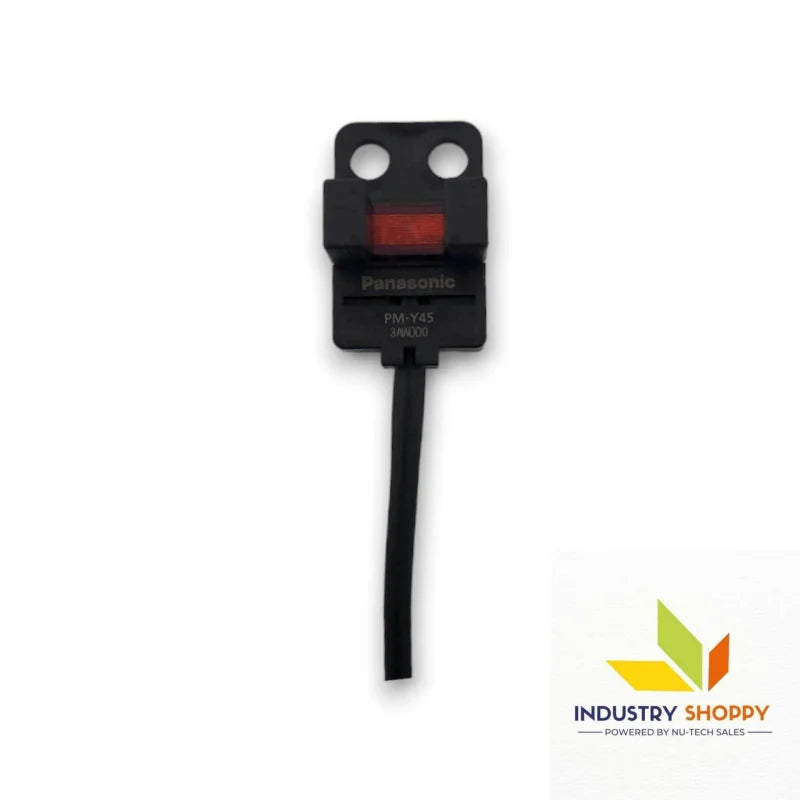

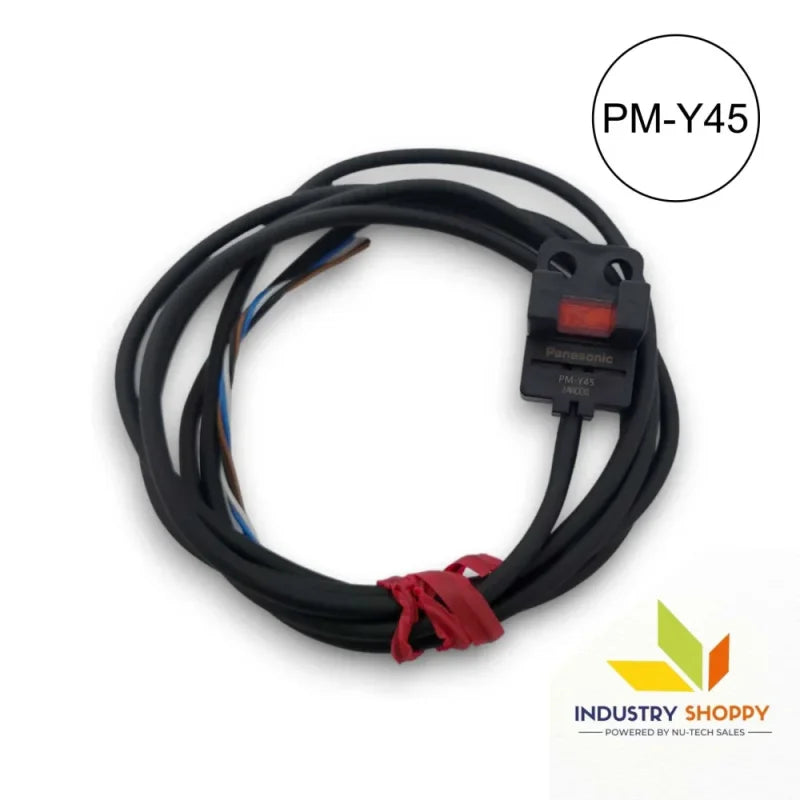

Panasonic PM-Y45 Photoelectric Sensor
Panasonic PM-Y45 Photoelectric Sensor
Panasonic PM-Y45 Photoelectric Sensor
Panasonic PM-Y45 Photoelectric Sensor
Panasonic PM-Y45 Photoelectric Sensor
Panasonic PM-Y45 Photoelectric Sensor
Panasonic

Panasonic PM-Y45 Photoelectric Sensor

Product SKU: NTSSEN00032
Available:
Only 24 items in stock
24 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  --
  • Type
:  Photoelectric Sensor
  • Output Type
:  NPN
  • Operating Type
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$25.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic PM-Y45 Photoelectric Sensor

The Panasonic PM-Y45 area sensor is a compact, high-precision solution designed for detecting extremely small opaque objects with outstanding speed and reliability. It features a fixed sensing range of 6 mm and can detect objects as small as 0.8 × 1.2 mm, making it ideal for high-accuracy industrial environments. With a hysteresis of just 0.05 mm and repeatability under 0.01 mm, this sensor ensures consistent and dependable performance.

Its dual output configuration supports both Light-ON and Dark-ON modes, with fast response times—20 μs under light received and 80 μs under light interrupted conditions. Engineered with short-circuit protection, IP64-rated enclosure, and NPN open-collector outputs, the sensor integrates safely and easily into existing systems. An orange LED indicator signals active detection.

The Panasonic PM-Y45 area sensor is built to withstand challenging environments, with excellent shock and vibration resistance, and operates in ambient humidity from 5% to 85% RH. Its infrared LED emitter and rugged housing deliver reliable performance in tight, high-speed applications, including micro-part detection and positioning systems.

Key features :-

Brand Panasonic
Product Number PM-Y45
Part Number PMY45
Item Performance characteristics
CE Marking Directives EMC Directive, RoHS Directive
Sensing Range 6 mm 0.236 in (fixed)
Minimum Sensing Object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis 0.05 mm 0.002 in or less
Repeatability 0.01 mm 0.0004 in or less
Supply Voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current Consumption 15 mA or less
Output NPN open-collector transistor
・Maximum sink current: 50 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Incorporated with 2 outputs: Light-ON / Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time Under light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz)(Note)(Note) : The response frequency is the value when the disc, given in the figure below, is rotated.
Operation Indicator Orange LED (lights up under light received condition)
Pollution Degree 3
Protection IP64 (IEC)
Ambient Humidity 5 to 85 % RH, Storage: 5 to 95 % RH
Ambient Illuminance Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock Resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Material Enclosure: PBT
Display section: Polycarbonate

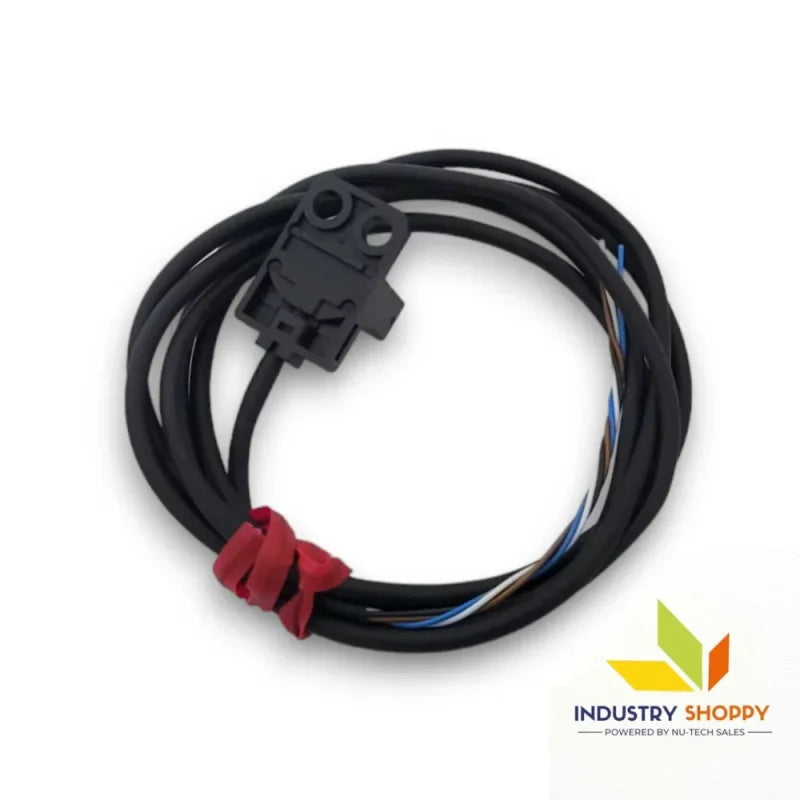

Cable 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long
Wiring length Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.
(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.
(Note 2) : For safety applications, do not exceed 30 m 98.425 ft.



Applications :-

  • Industrial Automation: Perfect for detecting objects in automated production lines with limited space, improving sorting and positioning accuracy.
  • Material Handling: Ideal for detecting small or transparent objects on conveyor systems, enhancing sorting and tracking efficiency.
  • Packaging Industry: Used in packaging systems for precise detection of small or irregularly shaped items, increasing operational accuracy.
  • Quality Control: Ensures accurate inspection and quality control of small parts or transparent materials in production lines.
  • Logistics and Warehouse: Suitable for detecting and sorting small objects in warehouse systems, ensuring efficient material handling and tracking.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
