Panasonic PM-T65-P Photoelectric Sensor
Panasonic PM-T65-P Photoelectric Sensor
Panasonic PM-T65-P Photoelectric Sensor
Panasonic PM-T65-P Photoelectric Sensor
Panasonic PM-T65-P Photoelectric Sensor
Panasonic PM-T65-P Photoelectric Sensor
Panasonic PM-T65-P Photoelectric Sensor
Panasonic PM-T65-P Photoelectric Sensor
Panasonic PM-T65-P Photoelectric Sensor
Panasonic PM-T65-P Photoelectric Sensor
Panasonic

Panasonic PM-T65-P Photoelectric Sensor

Product SKU: NTSSEN00033
Available:
Only 29 items in stock
29 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Supply Voltage
:  5 to 24 V DC ±10 %, Ripple P-P 10 % or less
  • Type
:  Photoelectric Sensor
  • Output Type
:  PNP
  • Current Consumption
:  15 mA or less


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$28.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Panasonic PM-T65-P Photoelectric Sensor

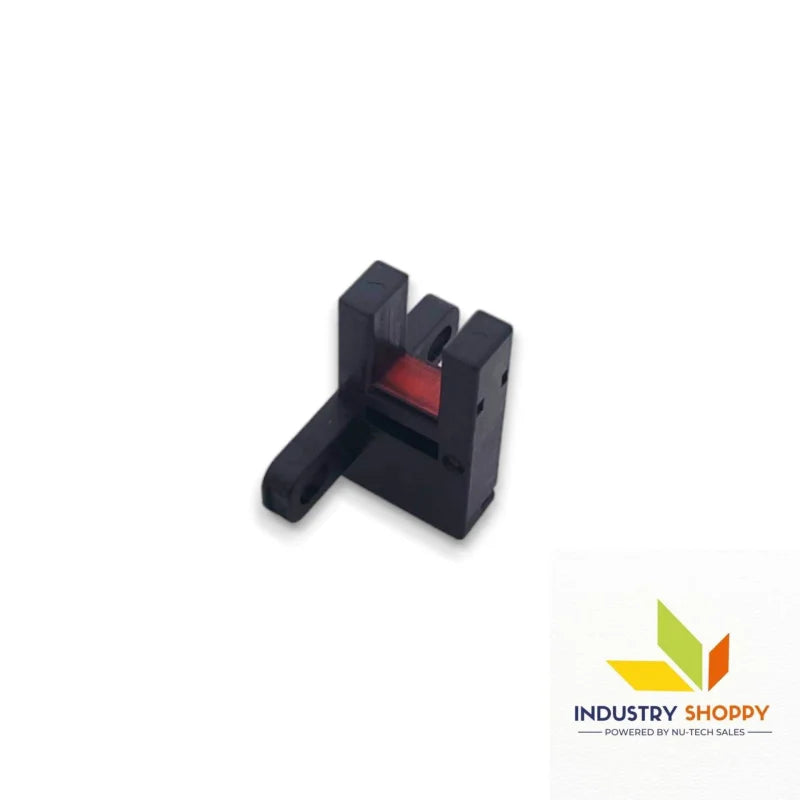

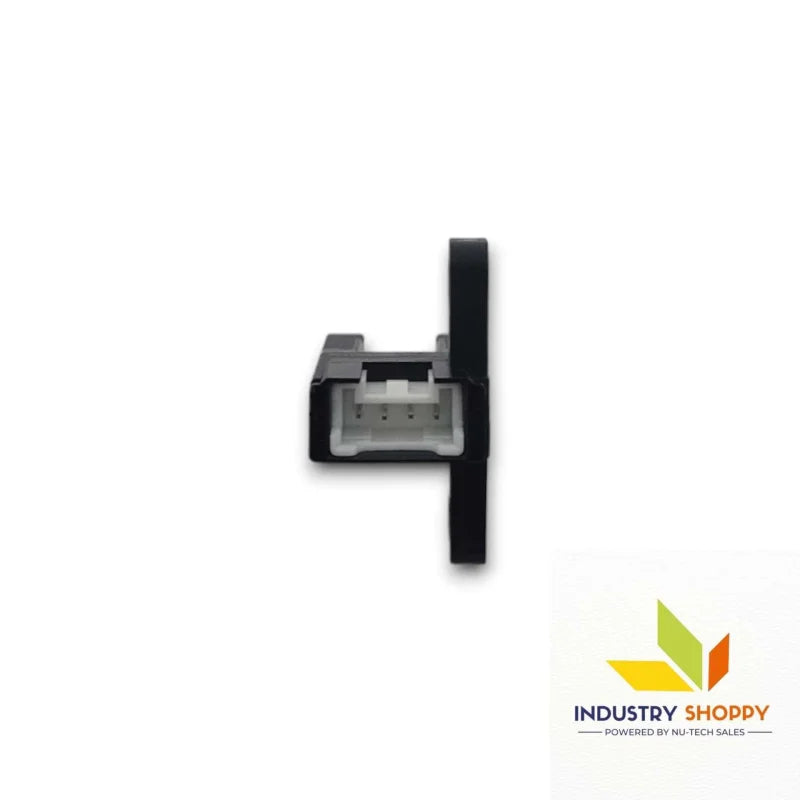

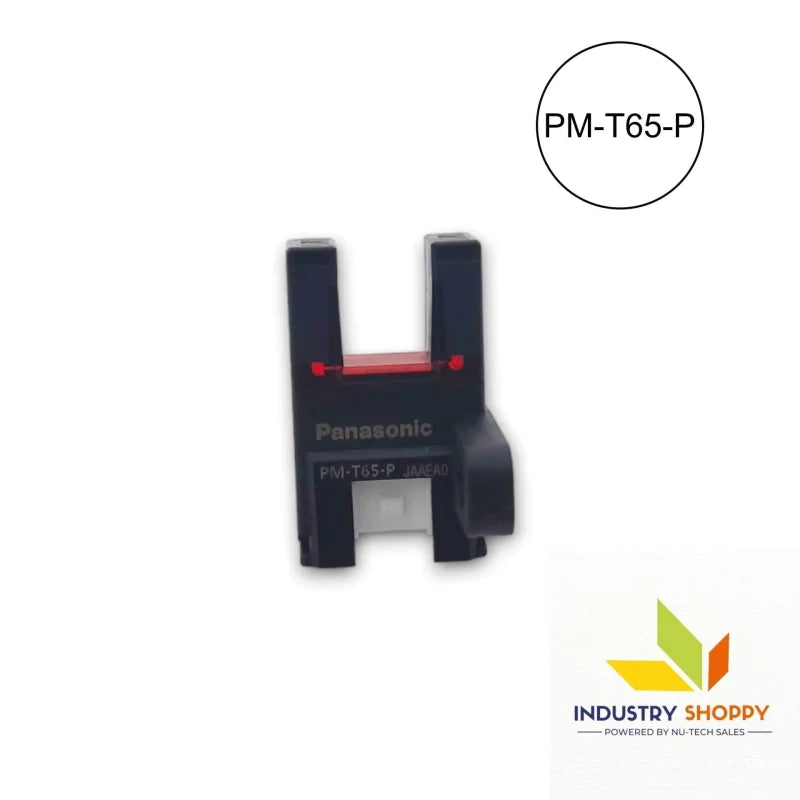

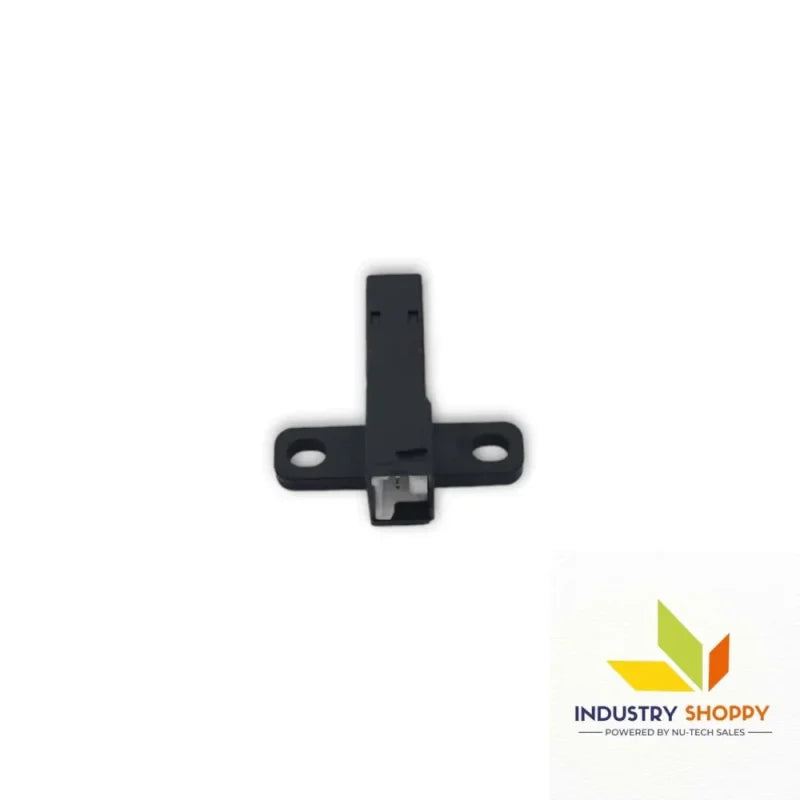

The Panasonic PM-T65-P Photoelectric sensor is a high-precision slot-type photoelectric sensor engineered for accurate detection of very small objects in compact automation setups. With a fixed sensing range of 6 mm, it can reliably detect tiny opaque objects as small as 0.8 × 1.2 mm, making it ideal for fine detection applications. Its excellent repeatability (≤ 0.01 mm) and low hysteresis (≤ 0.05 mm) ensure highly stable and consistent sensing performance.

This model features a PNP open-collector output with Light-ON/Dark-ON selectable operation, offering flexibility for various control systems. Powered by a 5–24 V DC supply, it consumes only ≤ 15 mA, making it energy-efficient. With a fast response time (≤ 20 µs) and high response frequency (up to 3 kHz), it performs efficiently in high-speed applications.

The sensor is built with a durable PBT enclosure and polycarbonate display section, providing strength and reliability. Its IP64 protection rating ensures resistance to dust and splashes, while built-in short-circuit protection enhances operational safety. The integrated orange LED indicator allows easy monitoring of sensor status during operation.


Applications

  • Precision part detection in electronics assembly

  • High-speed counting and positioning systems

  • Packaging and labeling machines

  • Small object sensing in automation lines


Technical Precautions

  • Ensure proper object alignment within slot for accurate detection.

  • Maintain 5–24 V DC supply voltage for stable operation.

  • Avoid excessive ambient light interference at sensing face.

  • Use proper cable size and length to prevent voltage drop issues.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberPM-T65-P
Part NumberPMT65P
CE Marking DirectivesEMC Directive, RoHS Directive
Sensing Range6 mm (0.236 in, fixed)
Minimum Sensing Object0.8 × 1.2 mm (0.031 × 0.047 in opaque object)
Hysteresis0.05 mm (0.002 in or less)
Repeatability0.01 mm (0.0004 in or less)
Supply Voltage5 to 24 V DC ±10 %, Ripple P-P 10 % or less
Current Consumption15 mA or less
OutputPNP open-collector transistor

Max sink current: 50 mA

Applied voltage: ≤30 V DC

Residual voltage: ≤2 V (50 mA), ≤1 V (16 mA)
Output OperationLight-ON / Dark-ON (2 outputs)
Short-Circuit ProtectionIncorporated
Response TimeLight received: ≤20 μs

Light interrupted: ≤80 μs

Max response frequency: 3 kHz
Operation IndicatorOrange LED (lights up under light received condition)
Pollution Degree3
ProtectionIP64 (IEC)
Ambient Humidity5–85 % RH (operating), 5–95 % RH (storage)
Ambient IlluminanceFluorescent light: 1,000 lx at light-receiving face
Voltage Withstandability1,000 V AC, 1 min between supply terminals and enclosure
Insulation Resistance≥20 MΩ with 250 V DC between supply terminals and enclosure
Vibration Resistance10–2,000 Hz, 1.5 mm double amplitude, 196 m/s², X/Y/Z directions, 2 hr each
Shock Resistance15,000 m/s² (1,500 G), X/Y/Z directions, 3 times each
Emitting ElementInfrared LED, peak wavelength 855 nm, non-modulated
MaterialEnclosure: PBT

Display section: Polycarbonate
Cable LengthUp to 100 m (328 ft) with ≥0.3 mm² cable

For ≥20 m, ensure voltage ≥4.5 V at sensor end
Country of OriginChina

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
