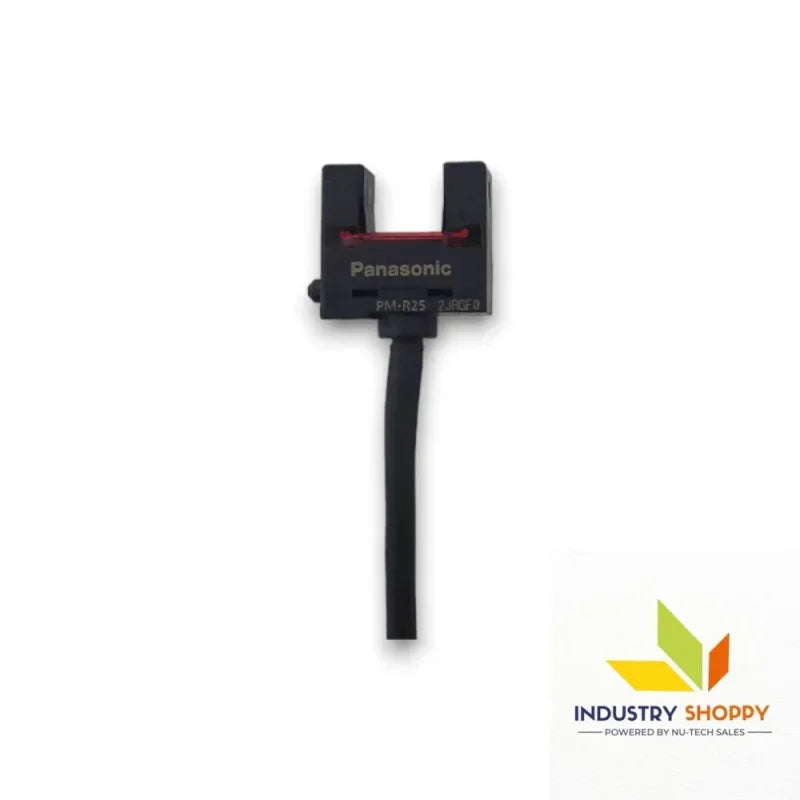

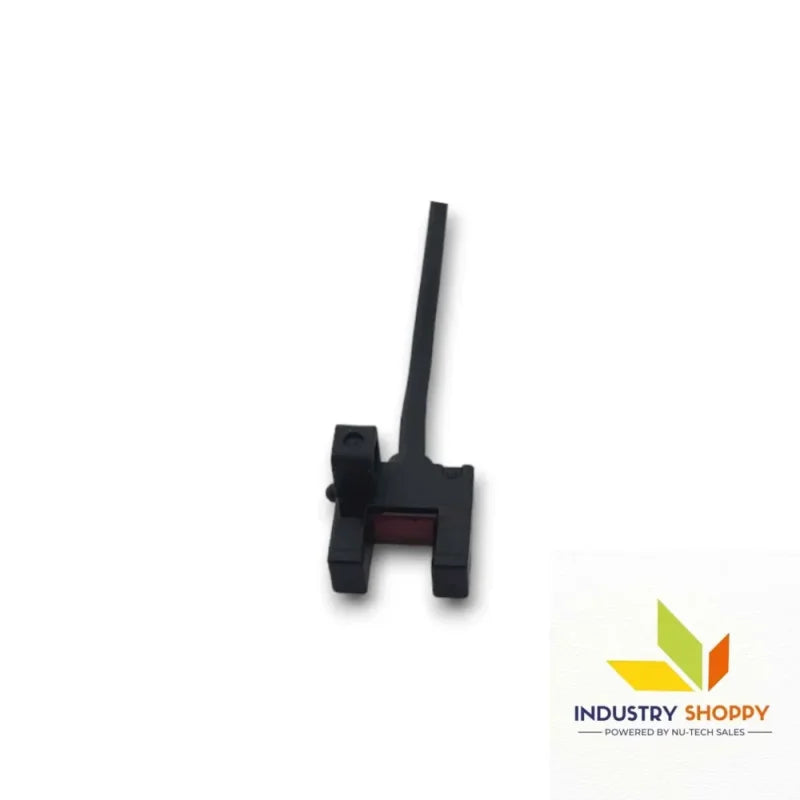

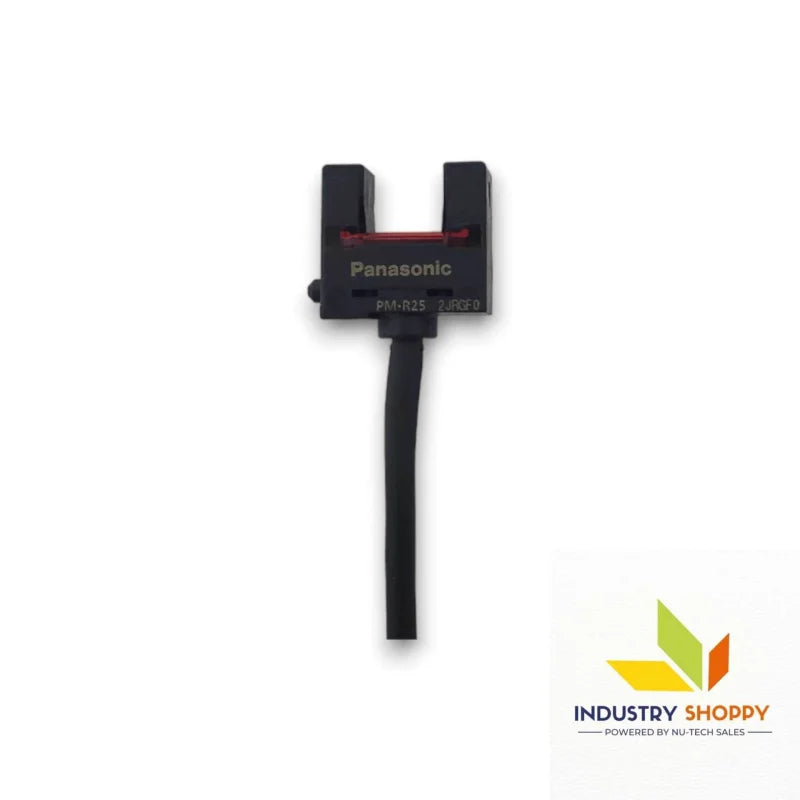

Panasonic PM-R25 Photoelectric Sensor
Panasonic PM-R25 Photoelectric Sensor
Panasonic PM-R25 Photoelectric Sensor
Panasonic PM-R25 Photoelectric Sensor
Panasonic PM-R25 Photoelectric Sensor
Panasonic PM-R25 Photoelectric Sensor
Panasonic PM-R25 Photoelectric Sensor
Panasonic PM-R25 Photoelectric Sensor
Panasonic

Panasonic PM-R25 Photoelectric Sensor

Product SKU: NTSSEN00389
Available:
Only 29 items in stock
29 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  --
  • Type
:  Photoelectric Sensor
  • Output Type
:  --
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

$25.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic PM-R25 Photoelectric Sensor :

The Panasonic PM-R25 is a high-performance photoelectric sensor designed for precise object detection in industrial environments. With a sensing range of up to 5 meters, it provides long-range detection, making it ideal for applications requiring high accuracy over larger distances. The sensor uses retro-reflective technology, allowing reliable detection of objects even in challenging conditions, such as transparent or highly reflective surfaces.

The PM-R25 sensor features an NPN output and offers a response time of less than 1 ms, ensuring quick detection for high-speed applications. It operates within a voltage range of 10-30 VDC and supports both light and dark operation. The IP67-rated housing ensures the sensor is protected against dust and water, making it highly durable and suitable for harsh industrial environments. Additionally, the M8 4-pin connector enables easy and secure installation.

The Panasonic PM-R25 is an excellent solution for industries requiring long-range, reliable detection with fast response time and durability.

Key features :-

Product Number PM-R25
Part Number PMR25
CE Marking Directives EMC Directive, RoHS Directive
Sensing Range 6 mm 0.236 in (fixed)
Minimum Sensing Object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis 0.05 mm 0.002 in or less
Repeatability 0.01 mm 0.0004 in or less
Supply Voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current Consumption 15 mA or less
Output NPN open-collector transistor
・Maximum sink current: 50 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Incorporated with 2 outputs: Light-ON / Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time Under light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz)(Note)
(Note) : The response frequency is the value when the disc, given in the figure below, is rotated.
Operation Indicator Orange LED (lights up under light received condition)
Pollution Degree 3
Protection IP64 (IEC)
Ambient Temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉
(Note) : In case is used at an ambient temperature of +50 ℃ +122 ℉, or more, make sure to mount it on a metal body.
Ambient Humidity 5 to 85 % RH, Storage: 5 to 95 % RH
Ambient Illuminance Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage Withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock Resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Material Enclosure: PBT
Display section: Polycarbonate

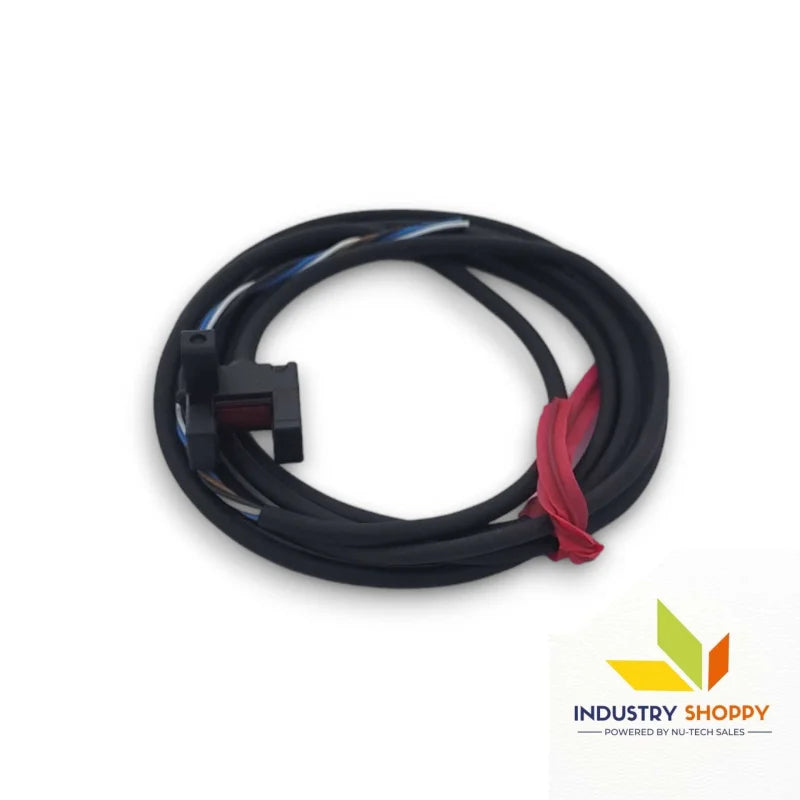

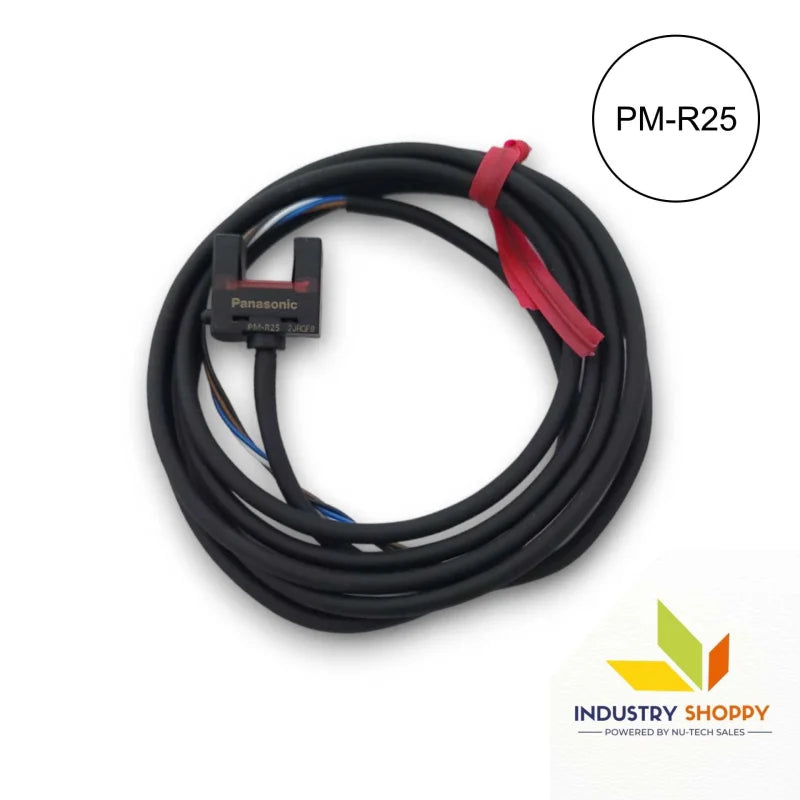

Cable 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long
Wiring Length Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.
(Note 2) : For safety applications, do not exceed 30 m 98.425 ft.



Applications :-

  • Industrial Automation: Ideal for detecting objects in automated production lines, improving sorting, positioning, and process control.
  • Material Handling: Suitable for detecting objects on conveyor systems, enhancing efficiency in sorting, tracking, and material handling.
  • Packaging Industry: Ensures reliable detection during packaging processes, increasing operational speed and accuracy.
  • Quality Control: Used for detecting objects in quality control systems to maintain consistent product quality in manufacturing.
  • Logistics and Warehouse: Perfect for material sorting and object detection in large warehouse systems, optimizing logistics and handling processes

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
