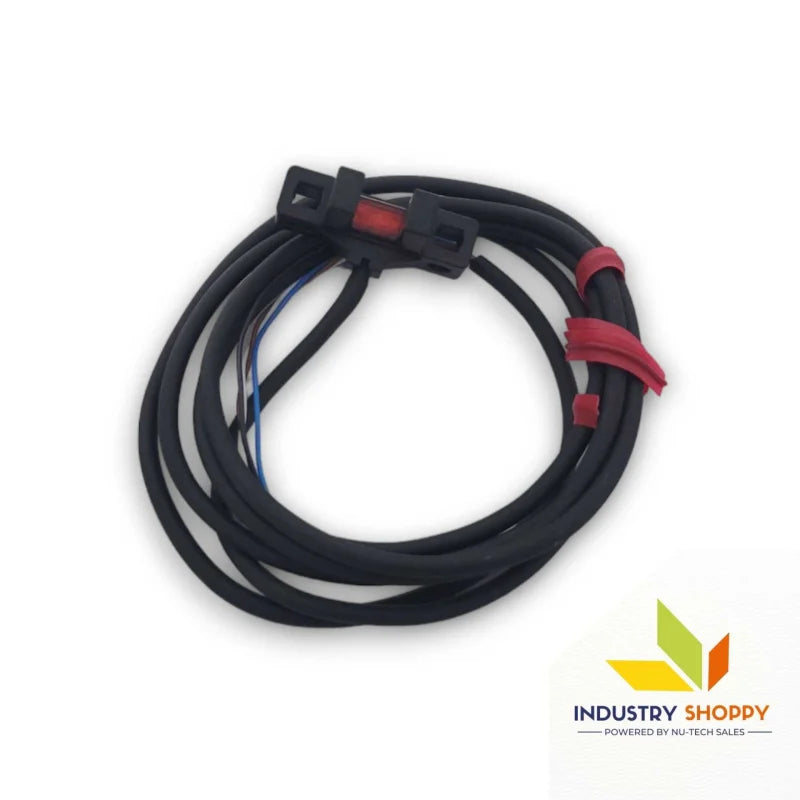

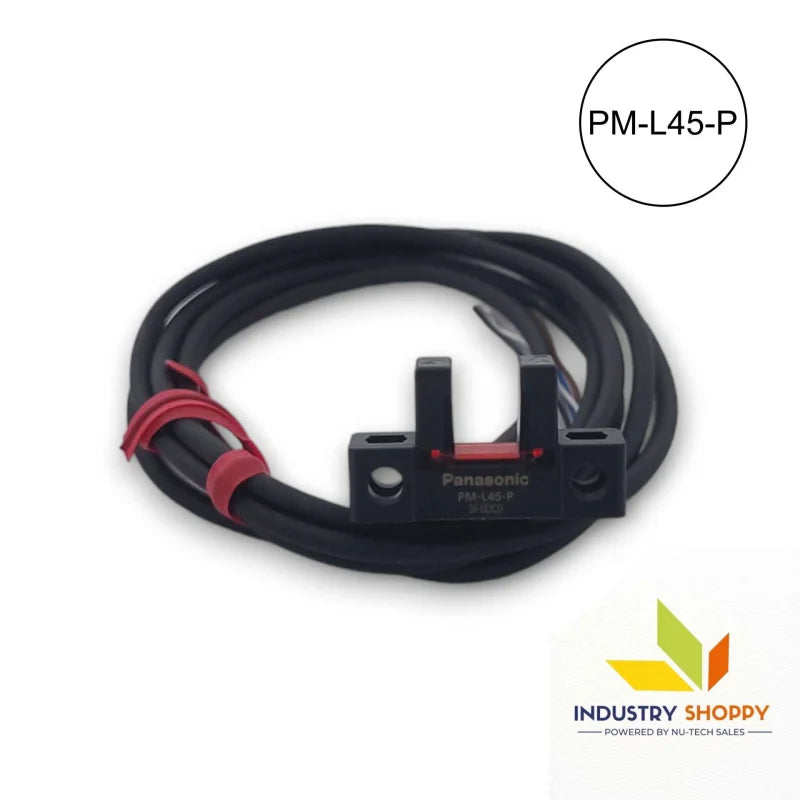

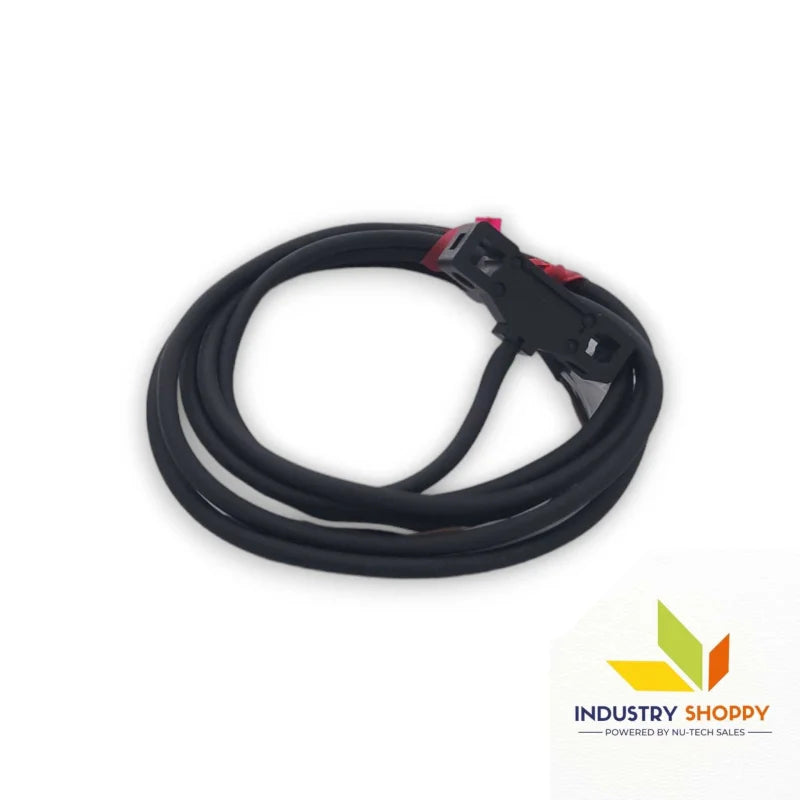

Panasonic PM-L45-P Photoelectric Sensor
Panasonic PM-L45-P Photoelectric Sensor
Panasonic PM-L45-P Photoelectric Sensor
Panasonic PM-L45-P Photoelectric Sensor
Panasonic PM-L45-P Photoelectric Sensor
Panasonic PM-L45-P Photoelectric Sensor
Panasonic

Panasonic PM-L45-P Photoelectric Sensor

Product SKU: NTSSEN00019
Available:
Only 41 items in stock
41 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  PML45P
  • Type
:  Photoelectric Sensor
  • Output Type
:  PNP
  • Current Consumption
: 15 mA or Less


Note : All tax and custom duty should be pay by buyer only.

$30.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Panasonic PM-L45-P Photoelectric Sensor

The Panasonic PM-L45-P is a high-performance photoelectric sensor designed for reliable and precise object detection in a wide range of industrial applications. This sensor features a sensing range of up to 2 meters, offering effective detection over short to medium distances.

It utilizes polarized retro-reflective technology, making it ideal for detecting objects in environments with varying reflectivity, such as shiny or transparent surfaces. The PM-L45-P sensor comes with an NPN output and offers a response time of less than 1 ms, ensuring quick and accurate detection for high-speed applications. It operates within a voltage range of 10-30 VDC and supports both light and dark operation.

The sensor is built with an IP67-rated housing, ensuring protection against dust and water, making it durable and reliable in harsh industrial conditions. The M8 3-pin connector ensures secure and easy installation. The Panasonic PM-L45-P is an excellent solution for industries that require precise and reliable object detection in demanding environments.


Applications

  • Precision detection in electronics and PCB assembly

  • High-speed counting and sorting systems

  • Packaging and labeling machinery

  • Small object detection in automated equipment


Technical Precautions

  • Ensure accurate alignment for detecting very small objects.

  • Operate within 5–24 V DC supply voltage limits.

  • Avoid strong ambient light interference beyond specified limits.

  • Maintain proper cable extension and voltage levels for stable operation.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberPM-L45-P
Part NumberPML45P
CE Marking DirectivesEMC Directive, RoHS Directive
Sensing Range6 mm / 0.236 in (fixed)
Minimum Sensing Object0.8 × 1.2 mm / 0.031 × 0.047 in opaque object
Hysteresis≤ 0.05 mm / 0.002 in
Repeatability≤ 0.01 mm / 0.0004 in
Supply Voltage5 to 24 V DC ±10 %, Ripple P-P 10 % or less
Current Consumption15 mA or less
OutputPNP open-collector transistor:

• Max. sink current: 50 mA

• Applied voltage: ≤ 30 V DC (between output and 0 V)

• Residual voltage: ≤ 2 V (50 mA), ≤ 1 V (16 mA)
Output Operation2 outputs: Light-ON / Dark-ON
Output Short-Circuit ProtectionIncorporated
Response TimeLight received: ≤ 20 µs

Light interrupted: ≤ 80 µs

Max. response frequency: 3 kHz (tested with rotating disc method)
Operation IndicatorOrange LED (lights up under light received condition)
Pollution Degree3
ProtectionIP64 (IEC)
Ambient Temperature-25 to +55 °C (-13 to +131 °F), Storage: -30 to +80 °C (-22 to +176 °F)
Ambient Humidity5–85 % RH, Storage: 5–95 % RH
Ambient IlluminanceFluorescent light: ≤ 1,000 lx at the light-receiving face
Voltage Withstandability1,000 V AC for 1 min (between all supply terminals and enclosure)
Insulation Resistance≥ 20 MΩ with 250 V DC megger (between all supply terminals and enclosure)
Vibration Resistance10–2,000 Hz, 1.5 mm (0.059 in) double amplitude, max. acceleration 196 m/s², X/Y/Z directions, 2 hrs each
Shock Resistance15,000 m/s² (≈1,500 G), X/Y/Z directions, 3 times each
Emitting ElementInfrared LED (Peak wavelength: 855 nm, non-modulated)
MaterialEnclosure: PBT

Display section: Polycarbonate
Cable0.09-mm² 4-core cabtyre cable, PVC, 1 m (3.281 ft) long
Wiring LengthExtension up to 100 m (328.084 ft) with ≥ 0.3 mm² cable

Note: If extended ≥ 20 m (65.617 ft), ensure voltage ≥ 4.5 V at sensor end; for safety applications, do not exceed 30 m (98.425 ft)
Country of OriginChina
