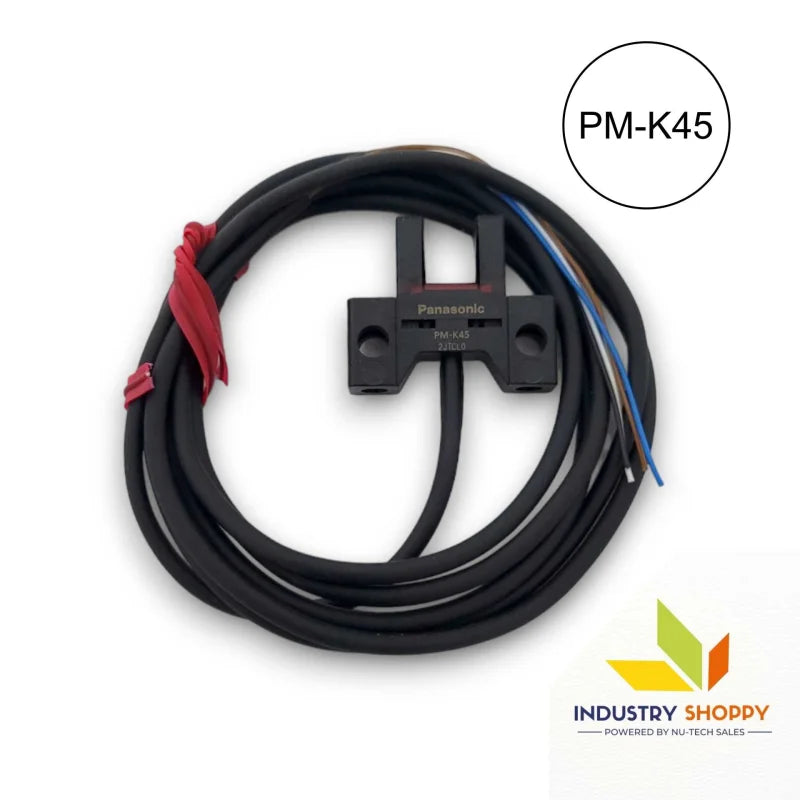

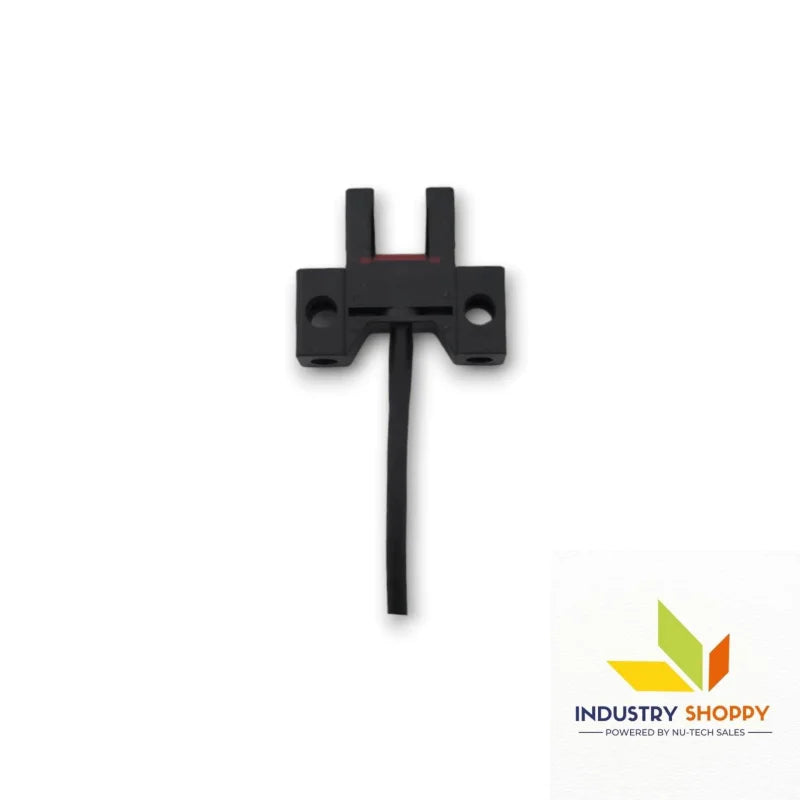

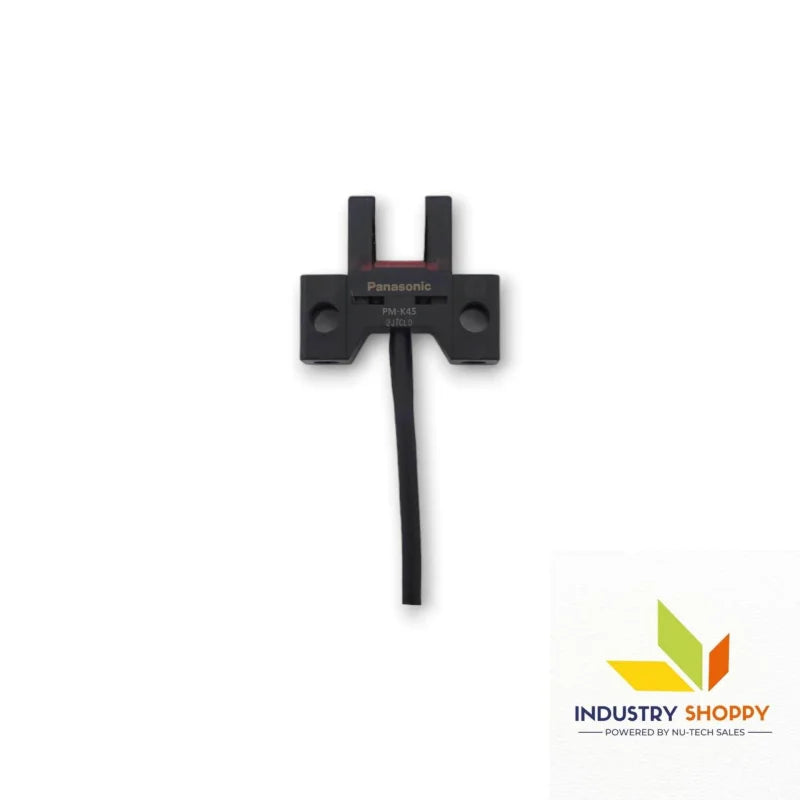

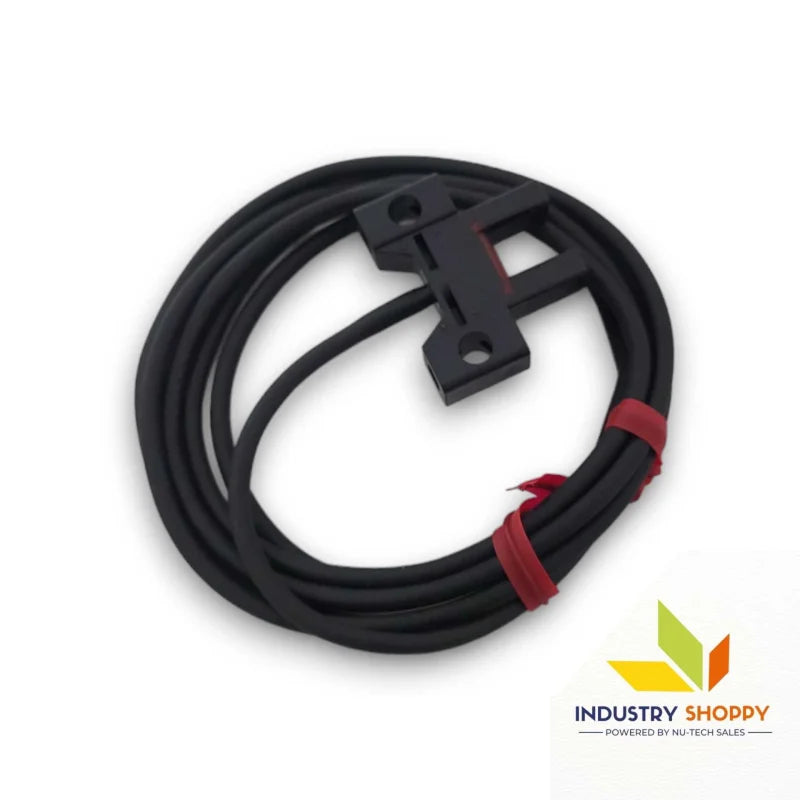

Panasonic PM-K45 Photoelectric Sensor

Product SKU: NTSSEN00111

Available:

Only 51 items in stock

51 items in stock

In stock

Pre-order

Out of stock

$20.00

Want it delivered by

Description
Declaration
Reviews

Panasonic PM-K45 Photoelectric Sensor :

The Panasonic PM-K45 is a high-performance photoelectric sensor designed for reliable and precise object detection in various industrial applications. With a sensing range of up to 3 meters, it is perfect for medium-range detection tasks. The sensor employs retro-reflective technology, ideal for detecting objects on reflective surfaces and in environments where materials may be transparent or highly reflective.

The PM-K45 sensor comes with an NPN output and offers a response time of less than 1 ms, ensuring rapid and precise detection, making it suitable for high-speed industrial operations. It operates within a voltage range of 10-30 VDC and supports both light and dark operation. The IP67-rated housing ensures the sensor is protected against dust and water, making it durable and reliable in harsh industrial environments. Additionally, the M8 3-pin connector ensures secure and easy installation.

The Panasonic PM-K45 is a versatile and robust sensor, ideal for industries needing reliable, long-range detection with fast response times in challenging environments.

Key features :-

Product Number	PM-K45
Part Number	PMK45
Item	Performance characteristics
CE Marking Directives	EMC Directive, RoHS Directive
Sensing Range	6 mm 0.236 in (fixed)
Minimum Sensing Object	0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis	0.05 mm 0.002 in or less
Repeatability	0.01 mm 0.0004 in or less
Supply Voltage	5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current Consumption	15 mA or less
Output	NPN open-collector transistor ・Maximum sink current: 50 mA ・Applied voltage: 30 V DC or less (between output and 0 V) ・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation	Incorporated with 2 outputs: Light-ON / Dark-ON
Output: Short-Circuit Protection	Incorporated
Response Time	Under light received condition: 20 μs or less Under light interrupted condition: 80 μs or less (Maximum response frequency: 3 kHz)(Note) (Note) The response frequency is the value when the disc, given in the figure below, is rotated.
Operation Indicator	Orange LED (lights up under light received condition)
Pollution Degree	3
Ambient Temperature	-25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉
Protection	IP64 (IEC)
Ambient Humidity	5 to 85 % RH, Storage: 5 to 95 % RH
Ambient Illuminance	Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage Withstandability	1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance	20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance	10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock Resistance	15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting Element	Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Material	Enclosure: PBT Display section: Polycarbonate
Cable	0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long
Wiring Length	Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher. (Note 2) : For safety applications, do not exceed 30 m 98.425 ft.

Applications :-

Industrial Automation: Perfect for detecting objects in automated production lines, enhancing sorting, positioning, and overall system control.
Material Handling: Ideal for detecting objects on conveyor systems, improving efficiency in sorting, tracking, and material handling.
Packaging Industry: Ensures precise detection of items in packaging processes, improving speed and operational accuracy.
Quality Control: Used in quality inspection systems to maintain consistent product quality in manufacturing lines.
Logistics and Warehouse: Optimizes material sorting and handling in warehouse systems, improving logistics and material tracking efficiency.

Precautions :-

Ensure Correct Wiring: Incorrect connections can cause sensor failure
Avoid Overvoltage: Operating within 10-30V DC prevents damage
Protect from Extreme Heat: Avoid installing near high-temperature sources
Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
