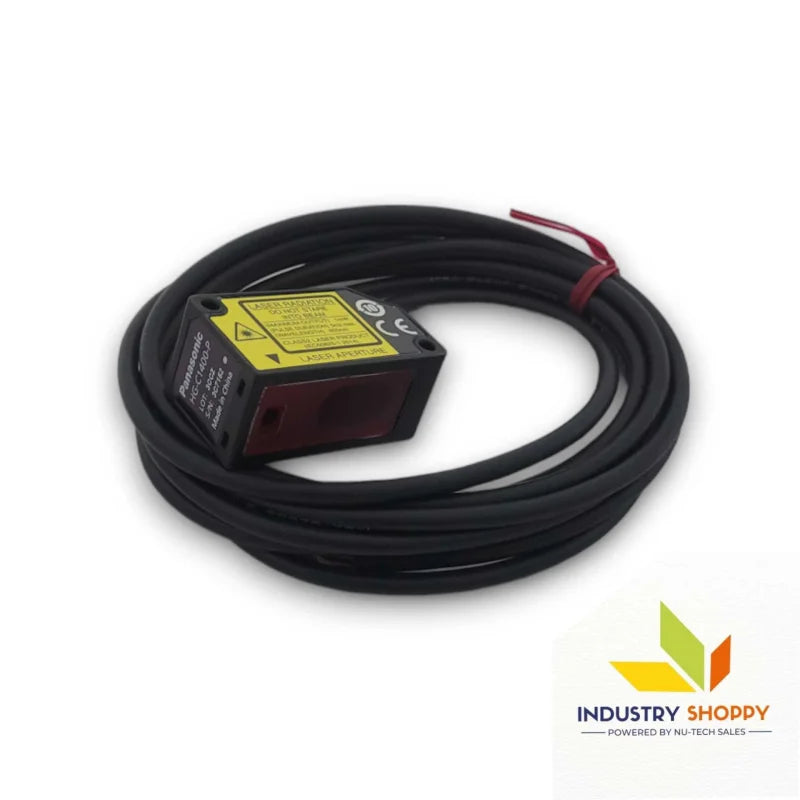

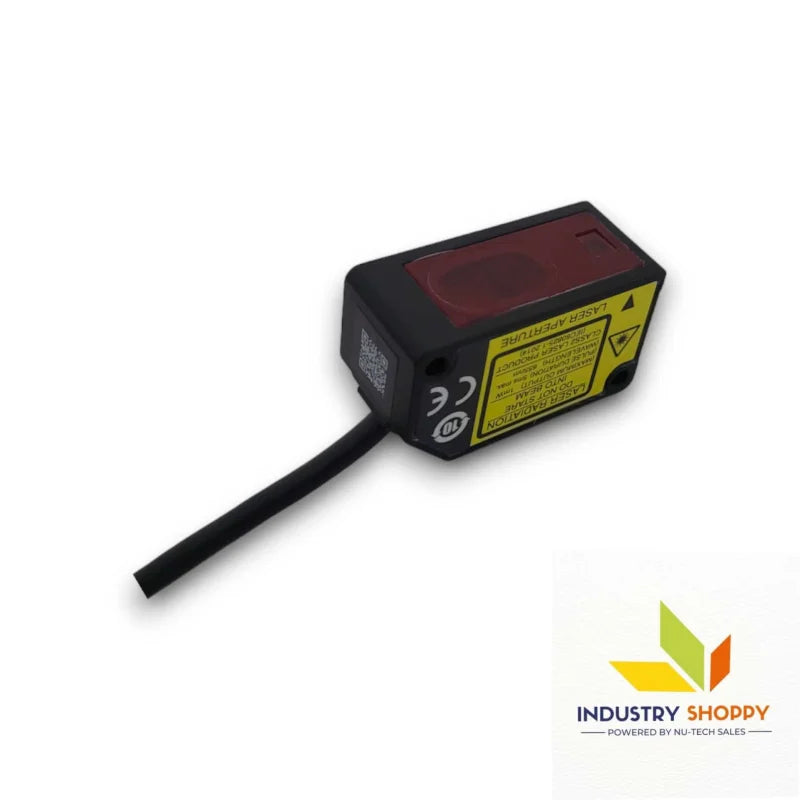

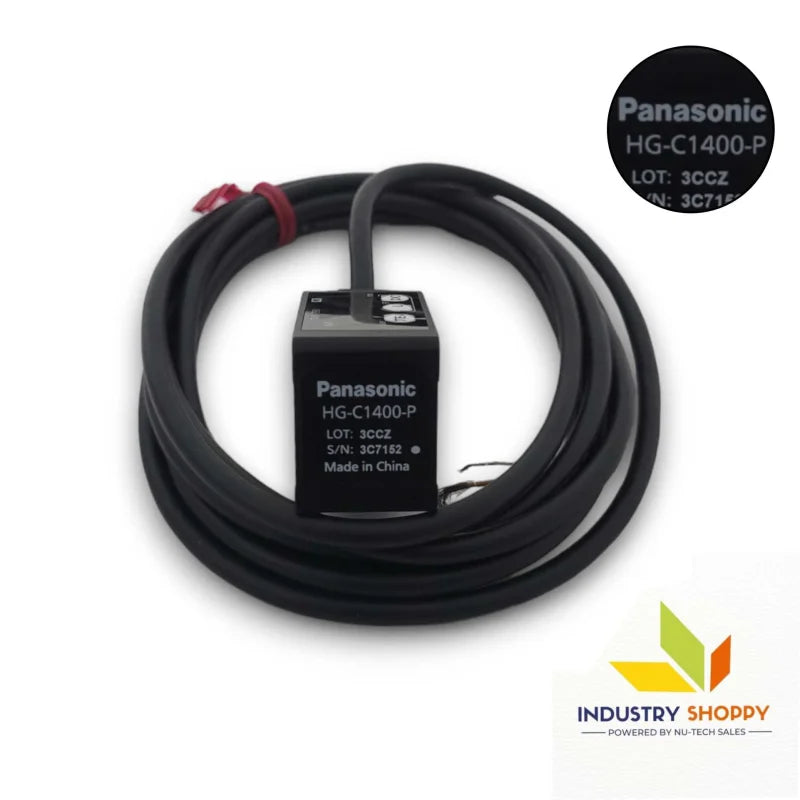

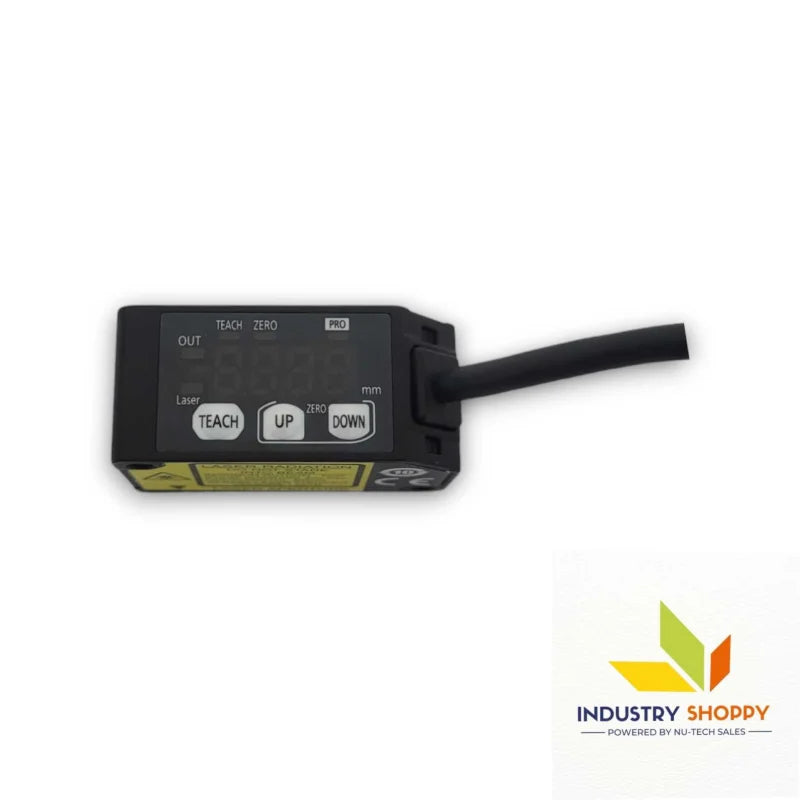

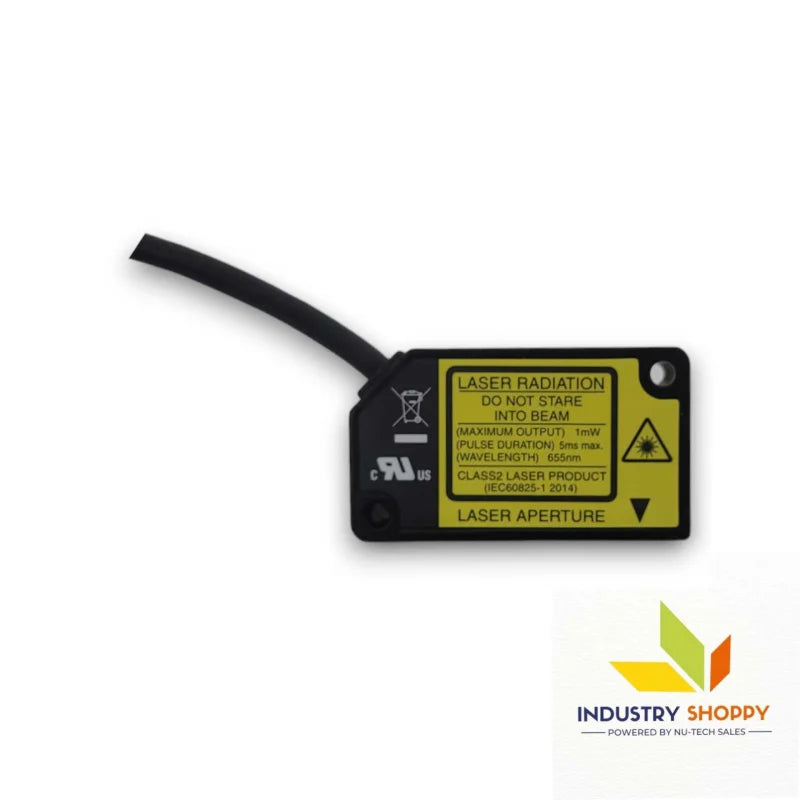

Panasonic HG-C1400-P Micro Laser Distance Sensor

Panasonic HG-C1400-P Micro Laser Distance Sensor

The Panasonic HG-C1400-P Micro Laser Distance Sensor is a compact, high-precision sensor designed for distance measurement and positioning applications. Utilizing laser triangulation technology, it delivers high accuracy with a measurement range of 0.1 to 500 mm and a resolution of up to 1 µm, making it ideal for applications that require high-precision distance measurement. Its small size and lightweight design make it suitable for integration into space-constrained environments and automated systems that require precise positioning or alignment.

The HG-C1400-P sensor features high-speed response with a sampling rate of up to 20 kHz, ensuring rapid and continuous measurement, which is essential for fast-moving production lines. With a wide measurement range, it can accommodate a variety of materials and surface conditions, including shiny or transparent objects, which are typically challenging for traditional distance sensors. The analog output provides real-time feedback, which can be integrated into control systems for seamless automation. The sensor operates on a 12-24 VDC power supply, providing compatibility with standard industrial equipment.

In addition to its technical specifications, the HG-C1400-P is equipped with a robust IP67-rated housing, ensuring durability and reliable operation in harsh environments where exposure to dust, moisture, and vibrations is common. Its easy-to-install interface and user-friendly setup ensure that integration into production lines is quick and efficient.

Key features :-

Applications :-

• Positioning and Alignment:
  Ideal for precise positioning and alignment in automated assembly lines, ensuring accurate placement of components during production.
• Quality Control:
  Ensures the correct distance between parts in quality inspection systems, improving product consistency and accuracy during manufacturing.
• Thickness Measurement:
  Used in applications where accurate thickness measurements of materials are required, ensuring high-quality product output in industries like metal and plastic processing.
• Level Detection:
  Provides reliable level detection for liquids or granular materials, ensuring consistency and preventing overflow or underfill in automated filling systems.
• Automation and Robotics:
  Enhances robotic systems with precise distance measurement for object detection, obstacle avoidance, and efficient material handling.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
