Panasonic EX-F1 Photoelectric Sensor

Panasonic EX-F1 Photoelectric Sensor

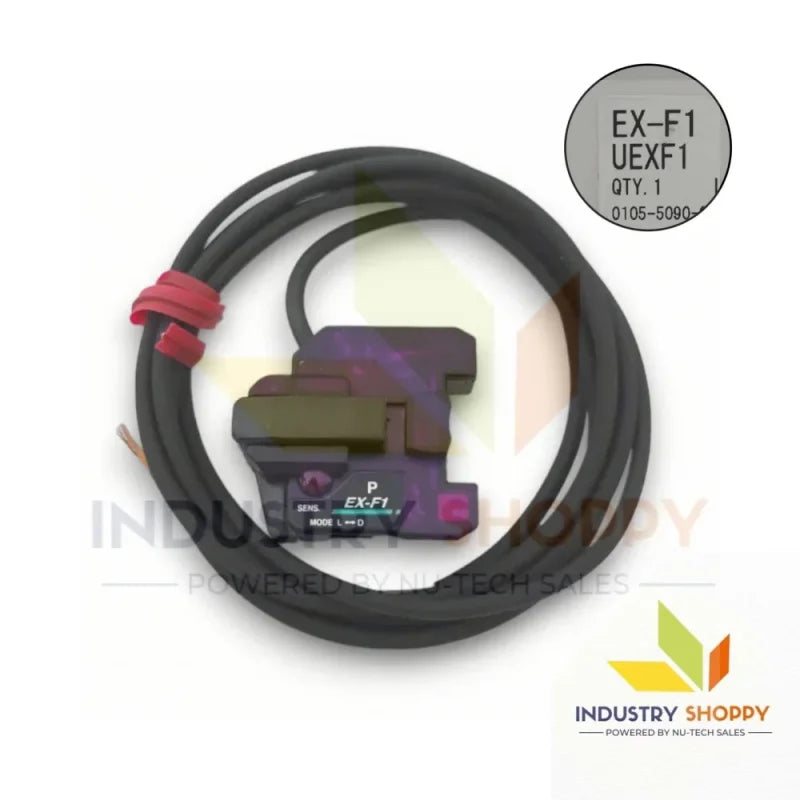

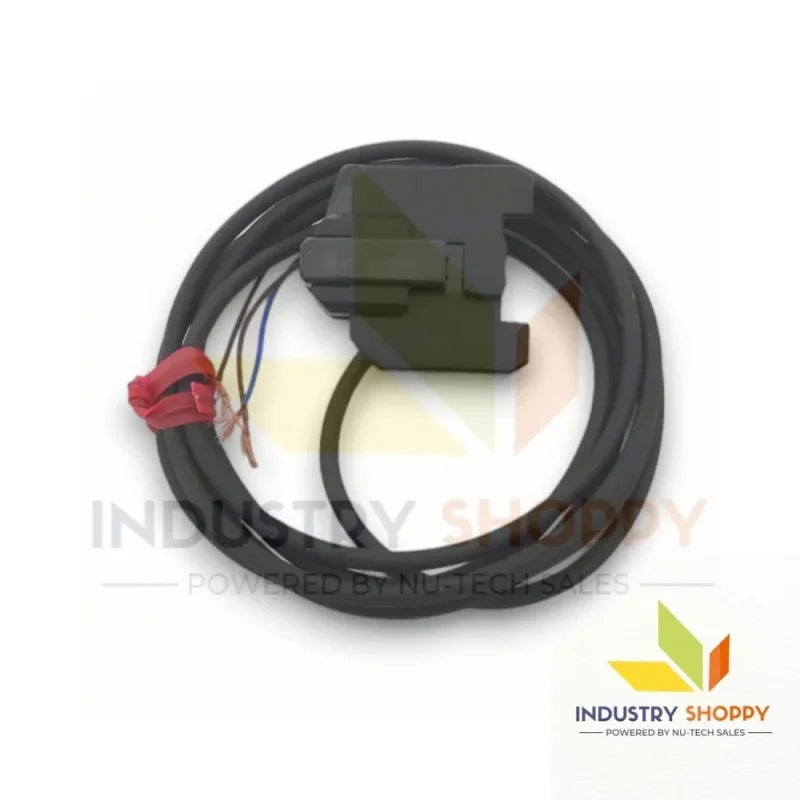

The Panasonic EX-F1 Liquid Sensor (Part Number: UEXF1) is an advanced sensor designed to detect the presence or absence of liquid within transparent resin pipes. With its infrared LED emission, it offers precise and reliable detection for applications involving liquid flow monitoring. This sensor is ideal for systems that require clear identification of liquid levels or flow in PFA (fluorine resin) or similarly transparent pipes, with a specified pipe diameter range from ø6 to ø13 mm (0.236 to 0.512 in).

The Panasonic EX-F1 Liquid Sensor features an NPN open-collector transistor output with a maximum sink current of 100 mA, providing a robust output signal that can integrate with control systems seamlessly. It also includes short-circuit protection and operates with a response time of 2 ms or less, making it suitable for applications where quick and reliable feedback is crucial.

The Panasonic EX-F1 Liquid Sensor is protected by a durable IP67-rated housing, and its compact design ensures it can withstand challenging environmental conditions, including vibration and shock resistance. It operates in a broad temperature range of -10°C to +55°C (14°F to 131°F), ensuring stable performance across various industries.

Key features :-

Applications :-

• Liquid Flow Monitoring: Ideal for detecting the presence of liquids in pipes, ensuring efficient operation of industrial fluid systems.
• Chemical Processing: Used in monitoring fluid levels and flow in chemical processes, ensuring accurate detection in transparent pipes.
• Food and Beverage: Helps in monitoring liquid flow in food production systems, ensuring quality control and proper operation.
• Water Treatment: Detects water or other liquids in pipes in water treatment plants or similar systems, ensuring system stability and process monitoring.
• Pharmaceuticals: Ensures proper flow of liquids in pharmaceutical manufacturing processes, maintaining accurate production levels.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
