Panasonic EX-13A Photoelectric Sensor

Panasonic EX-13A Photoelectric Sensor

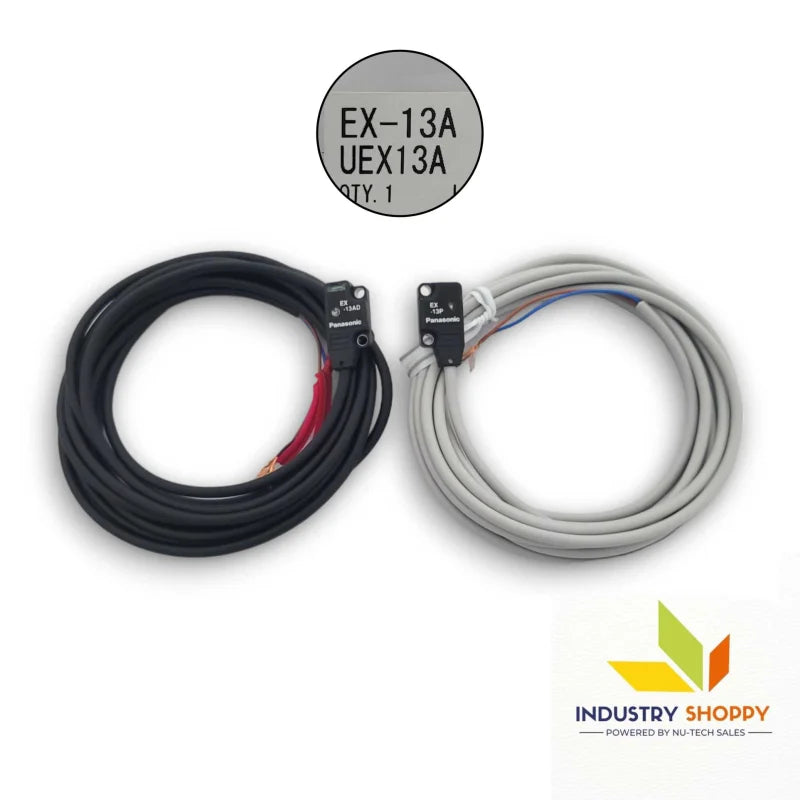

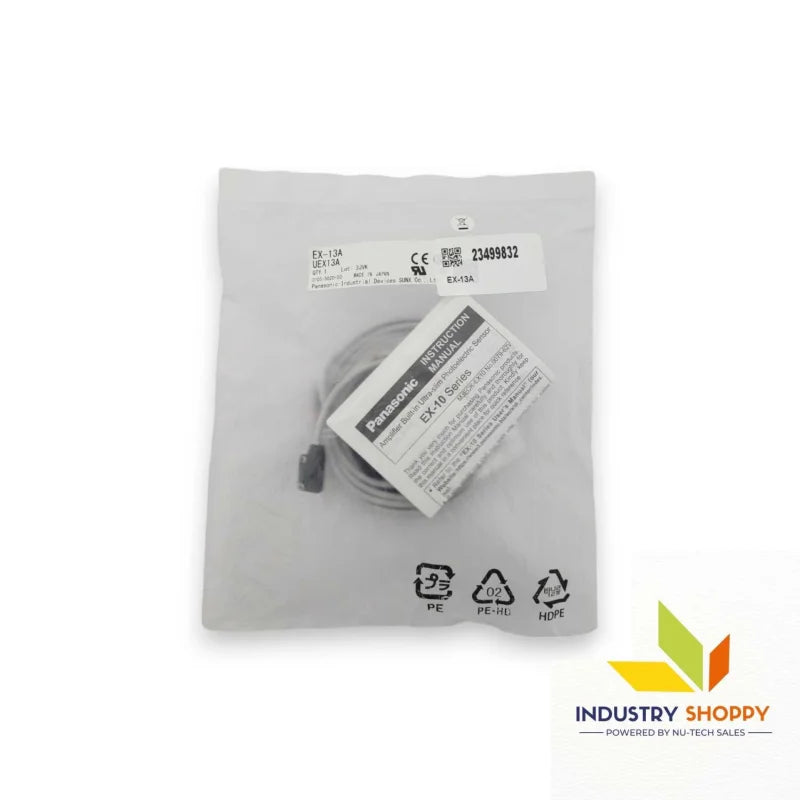

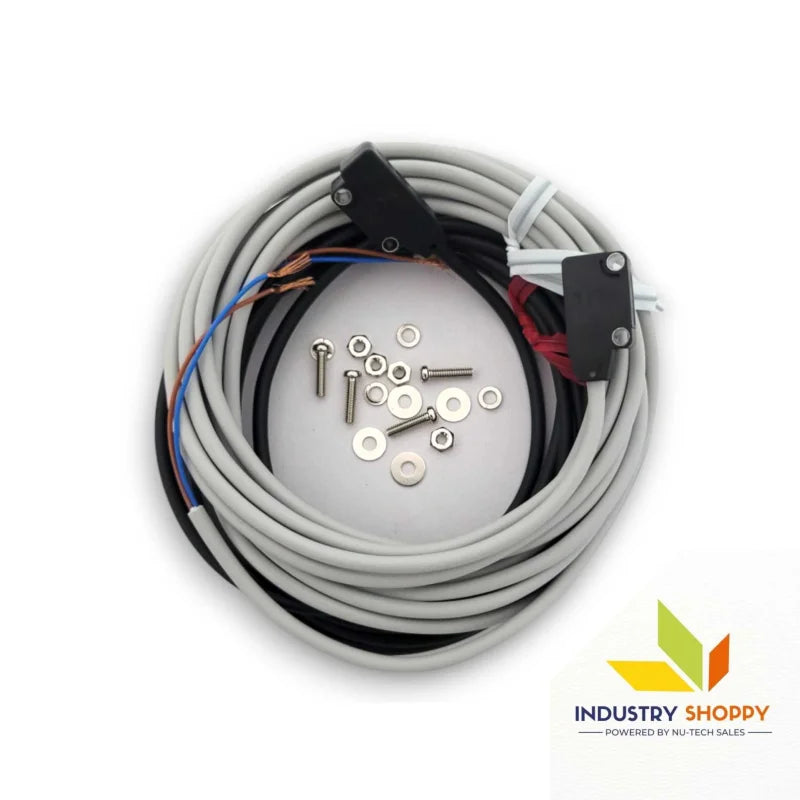

The Panasonic EX-13A Photoelectric Sensor (Part Number: UEX13A) is a high-performance photoelectric sensor designed for precise and reliable object detection in industrial settings. With an impressive sensing range of 500 mm (19.685 inches), this sensor is ideal for detecting opaque objects with a minimum object size of ø2 mm (0.079 inches). The NPN open-collector transistor output supports a maximum sink current of 50 mA, and comes with short-circuit protection to ensure safe and efficient operation in demanding applications.

The EX-13A sensor features repeatability of 0.05 mm (0.002 inches) or less, ensuring high precision in detecting small objects. Its response time of 0.5 ms guarantees fast and accurate detection, making it ideal for time-sensitive industrial processes. With its IP67 protection rating, the sensor is dust-tight and water-resistant, providing reliable operation even in harsh environments. The sensor can function within a wide ambient temperature range of -25°C to +55°C (-13°F to +131°F), and comes equipped with LED indicators for clear feedback on output status and stability.

Key features :-

Applications :-

• Automation Systems: Perfect for automated manufacturing lines where high-speed and precise object detection is required.
• Material Handling: Ideal for detecting opaque materials in conveyor systems, ensuring smooth material flow in industrial machinery.
• Quality Control: Used in quality inspection systems for monitoring the accurate positioning of items during production processes.
• Packaging and Assembly: Excellent for applications that require fast and reliable detection of small objects, such as in packaging and assembly operations.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
