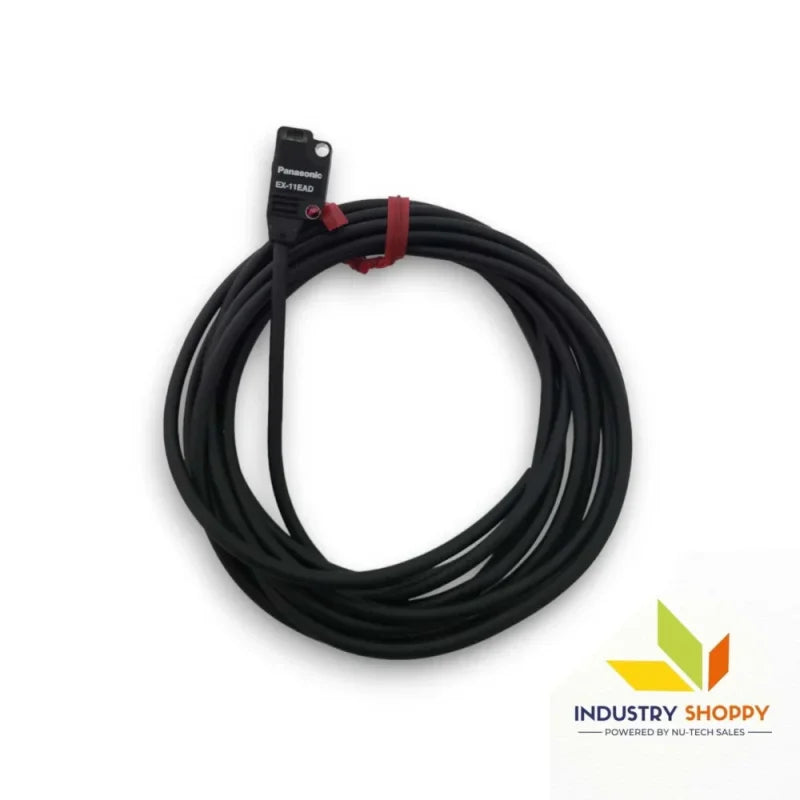

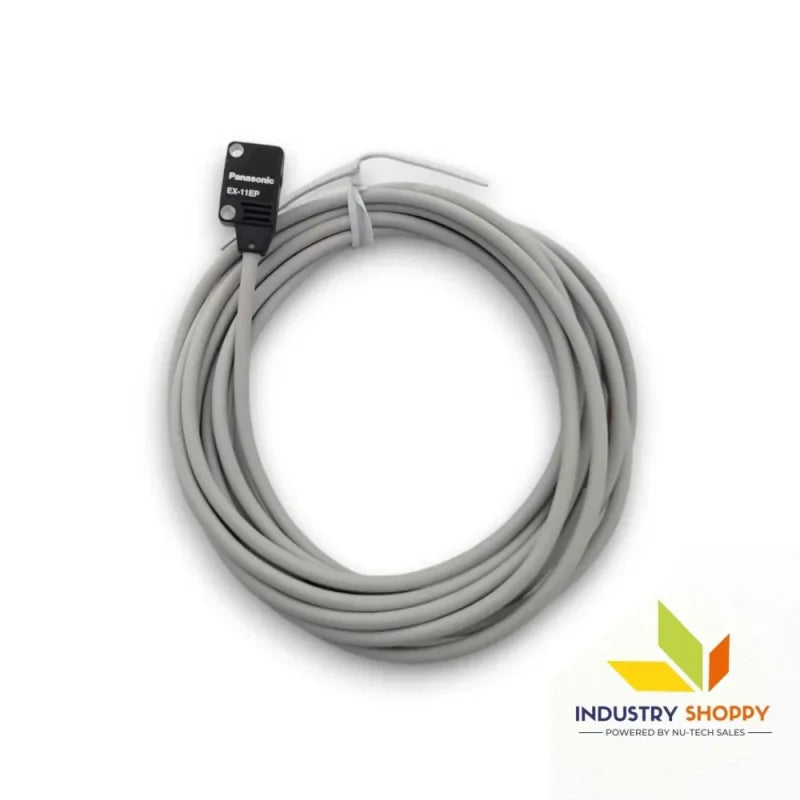

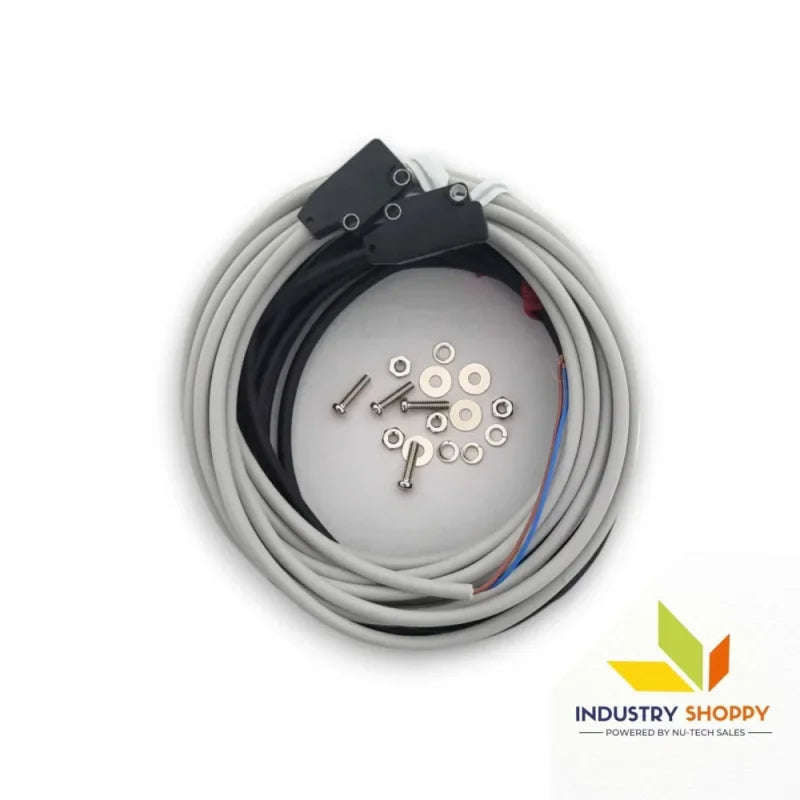

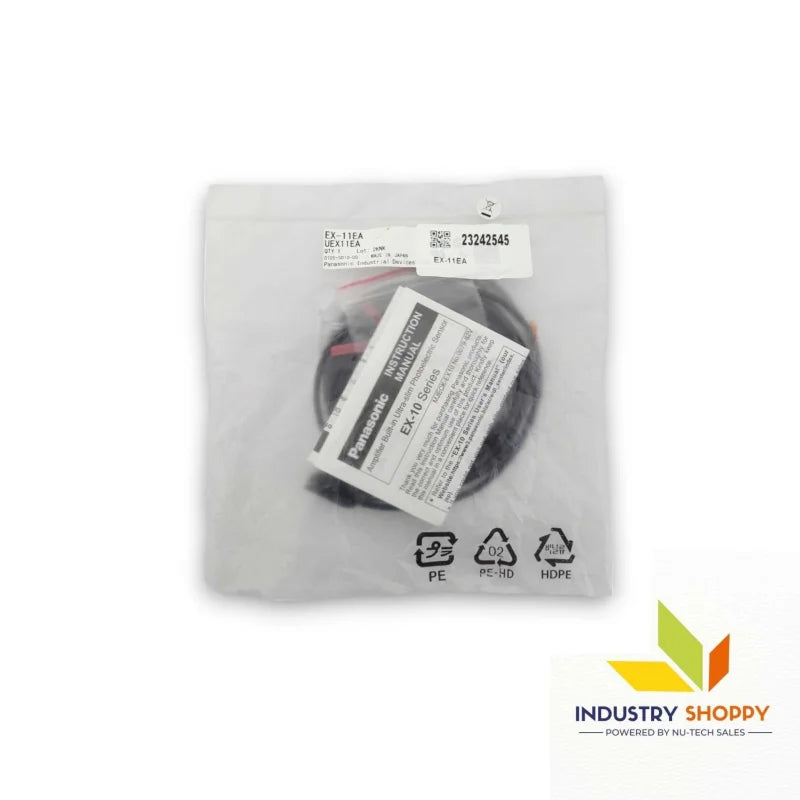

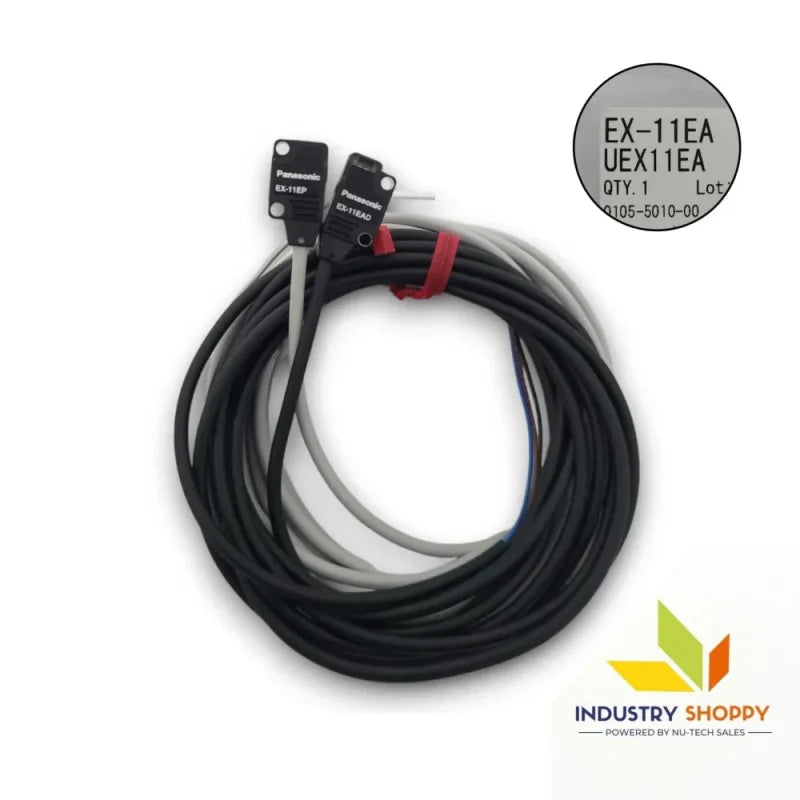

Panasonic EX-11EA Photoelectric Sensor

Panasonic EX-11EA Photoelectric Sensor

The Panasonic EX-11EA (Part Number: UEX11EA) is a precision photoelectric sensor designed for a variety of industrial applications. With a sensing range of 150 mm (5.906 inches), this sensor is capable of detecting opaque objects with a minimum sensing object size of ø1 mm (0.039 inches) when the beam is completely interrupted. The NPN open-collector transistor output provides a maximum sink current of 50 mA and includes short-circuit protection, ensuring safe and efficient performance.

This sensor boasts a repeatability of 0.05 mm (0.002 inches) or less, ensuring high accuracy, and a response time of 0.5 ms, making it ideal for time-sensitive operations. With an IP67 rating, it is dust-tight and waterproof, providing durability in harsh environments. The ambient temperature range of -25°C to +55°C (-13°F to +131°F) ensures it can perform reliably under various conditions. Additionally, it is equipped with LED indicators that provide visual feedback on output status and stability, simplifying monitoring and troubleshooting.

Key features :-

Applications :-

• Automation Systems: Ideal for precise and rapid object detection in automated manufacturing lines.
• Material Handling: Suitable for detecting small, opaque objects in conveyor systems and robotic material handling.
• Quality Control: Effective in quality inspection systems for verifying object positioning and consistency.
• Packaging and Assembly: Excellent for packaging and assembly operations that require fast and reliable detection of small items.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
