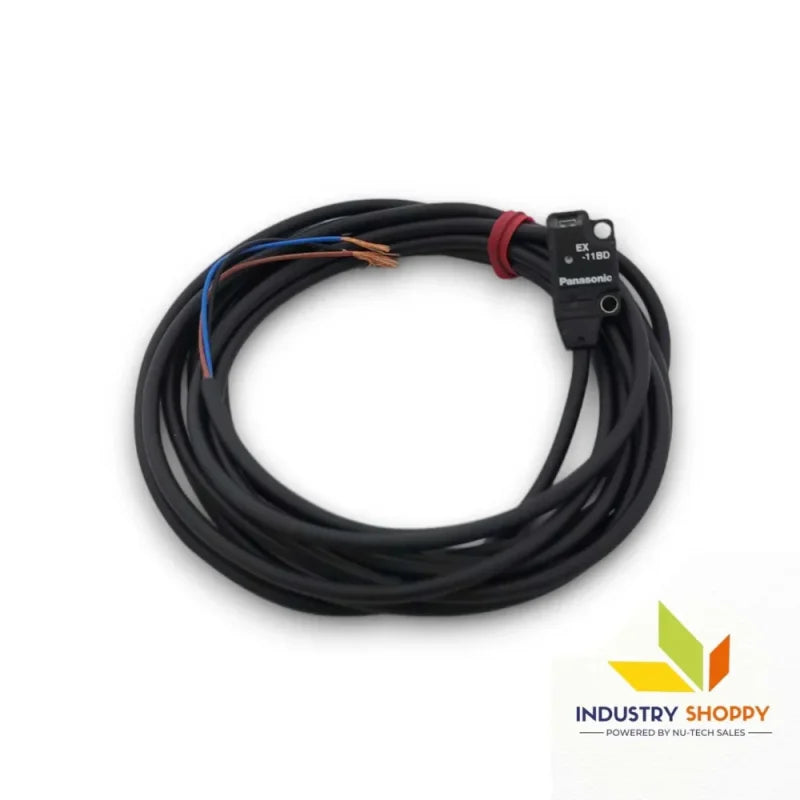

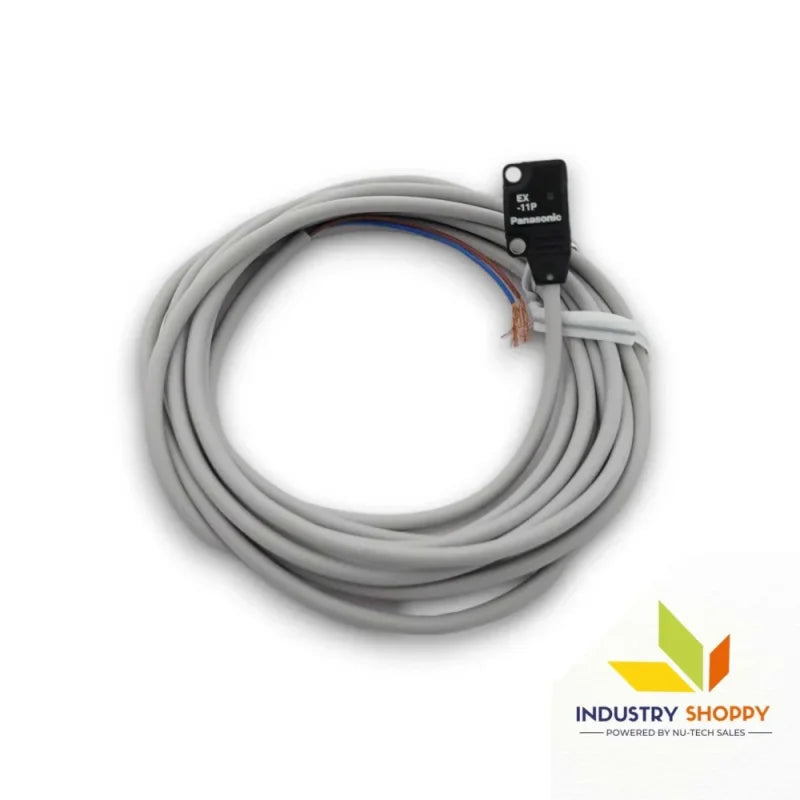

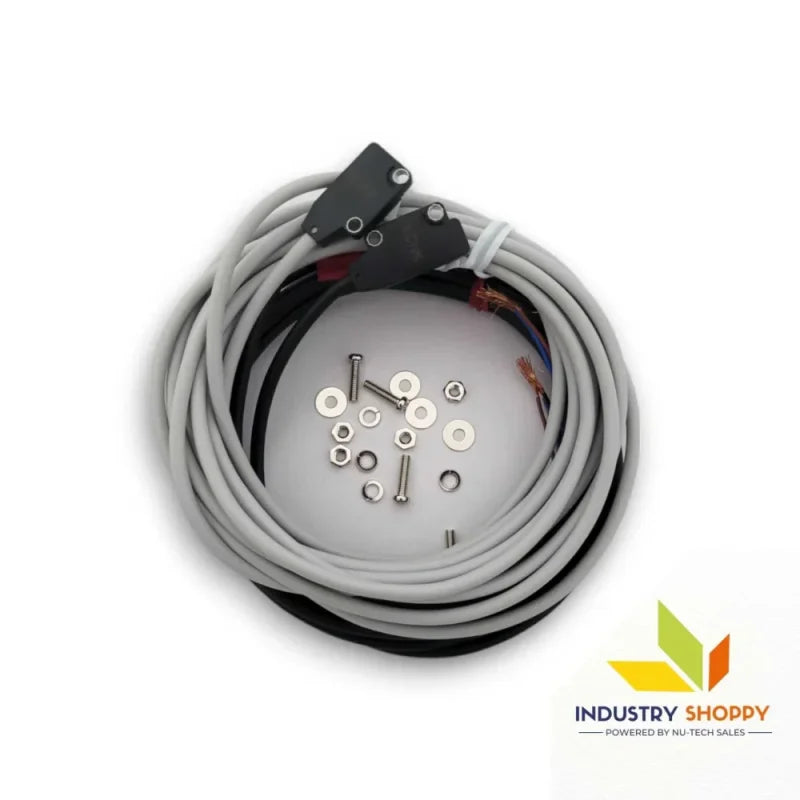

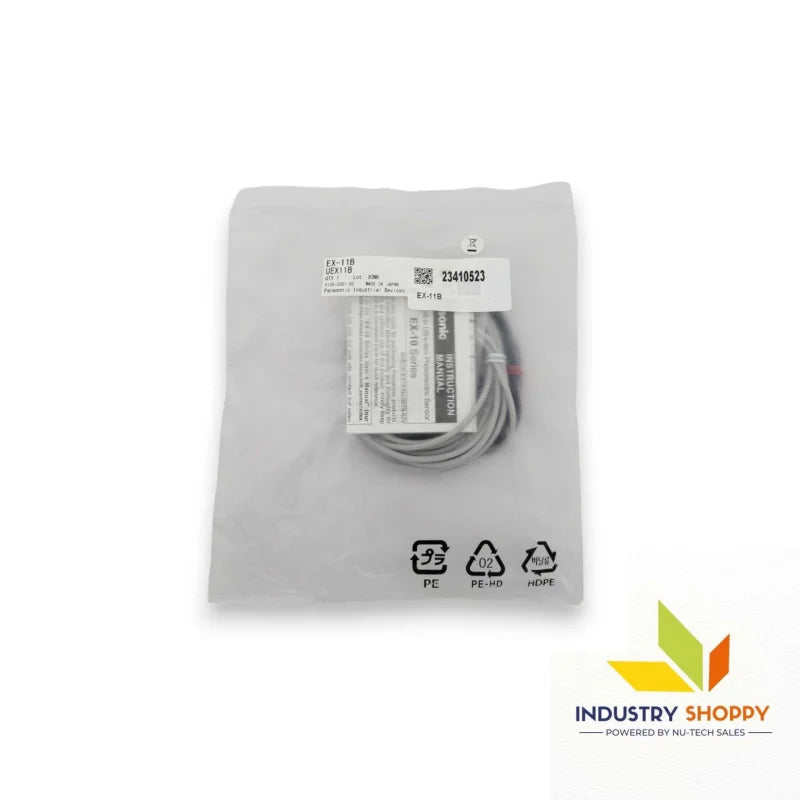

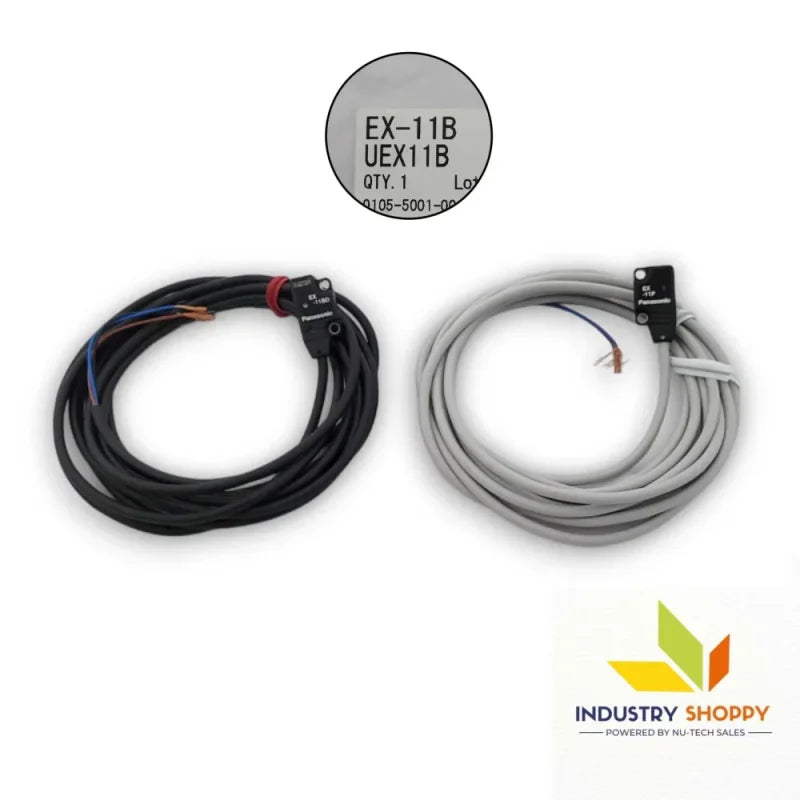

Panasonic EX-11B Photoelectric Sensor

Panasonic EX-11B Photoelectric Sensor

The Panasonic EX-11B (Part Number: UEX11B) is a high-performance photoelectric sensor engineered for a wide range of industrial applications. With a sensing range of 150 mm (5.906 inches), this sensor can detect small, opaque objects, such as those with a minimum sensing object size of ø1 mm (0.039 inches) when the beam is completely interrupted. The NPN open-collector transistor output is capable of sinking up to 50 mA, with short-circuit protection integrated to ensure reliable performance and safety.

This sensor offers a repeatability of 0.05 mm (0.002 inches) or less, ensuring precision even in high-speed applications. With a response time of 0.5 ms, it’s well-suited for fast-paced environments where quick object detection is critical. The IP67 protection rating ensures that the sensor is dust-tight and waterproof, allowing it to perform reliably in harsh environments. Additionally, it operates in a wide ambient temperature range from -25°C to +55°C (-13°F to +131°F) and is equipped with LED indicators to provide clear feedback on output status and detection stability.

Key features :-

Applications :-

• Industrial Automation: Used in automated manufacturing lines to detect small objects accurately.
• Material Handling: Ideal for detecting small components in conveyor systems or robotic arms.
• Quality Control: Ensures precise object placement in quality inspection processes.
• Packaging: Suitable for packaging systems where reliable object detection is essential.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
