Panasonic DP-102A Digital Pressure Sensor

The Panasonic DP-102A Digital Pressure Sensor (Part Number: UDP102A) is a gauge pressure sensor designed for precise pressure measurements in non-corrosive gas applications. With a rated pressure range of -0.100 to +1.000 MPa and a set pressure range of -0.101 to +1.010 MPa, this sensor offers flexibility and accuracy in pressure monitoring for industrial and process control applications. It comes equipped with a 4-digit LCD display and 3-color indicators to provide clear visual feedback.

The Panasonic DP-102A Digital Pressure Sensor supports both analog and digital outputs, with an analog current output (2.4 to 20 mA) and an analog voltage output (0.6 to 5 V), offering versatility in integration with various control systems. Additionally, the sensor provides a comparative output with NO/NC selectable output modes for a wide range of applications. The sensor’s response time can be configured from 2.5 ms to 5,000 ms, depending on the requirements.

For enhanced durability, the DP-102A is housed in a robust PBT (glass fiber reinforced) enclosure, and it has IP40 protection. It is capable of withstanding harsh environments with a shock resistance of 100 m/s² and vibration resistance of 10 to 500 Hz.

Brand Panasonic
Product Number DP-102A
Part Number UDP102A
Regulatory compliance and certification CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Type of pressure Gauge pressure
Rated pressure range -0.100 to +1.000 MPa
Set pressure range -0.101 to +1.010 MPa
-101 to +1,010 kPa
-1.03 to +10.30 kgf/cm2
-1.01 to +10.10 bar
-14.6 to +146.4 psi
Pressure withstand ability 1.5 MPa
Applicable fluid Non-corrosive gas
Supply voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power consumption Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)
ECO mode :
480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage)
360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage)
Comparative output
NPN open-collector transistor
- Applied voltage : 30 V DC or less (between comparative output and 0 V)
- Maximum sink current : 100 mA
- Residual voltage : 2 V or less (at 100 mA sink current)
Comparative output : Output operation NO / NC (selectable by key operation)
Comparative output : Output modes EASY mode / Hysteresis mode / Window comparator mode
Comparative output : Hysteresis Minimum 1 digit (variable)(however, 2 digits when using psi unit)
Comparative output : Repeatability ±0.2 % F.S.
(within ±2 digits)
Comparative output : Response time 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
Comparative output : Short-circuit protection Incorporated
External input
ON voltage : 0.4 V DC or less
OFF voltage : 5 to 30 V DC, or open Japan
Input impedance : 10 kΩ approx.
Input time : 1 ms or more
Analog voltage output Output voltage : 0.6 to 5 V
Zero point : within 1 V ±5 % F.S.
Span : within 4.4 V ±5 % F.S.
Linearity : within ±1 % F.S.
Output impedance : 1 kΩ approx.
Analog current output Output current : 2.4 to 20 mA
Zero point : 4 mA ±5 % F.S.
Span : 17.6 mA ±5 % F.S.
Linearity : within ±1 % F.S.
Load resistance : 250 Ω (max.)

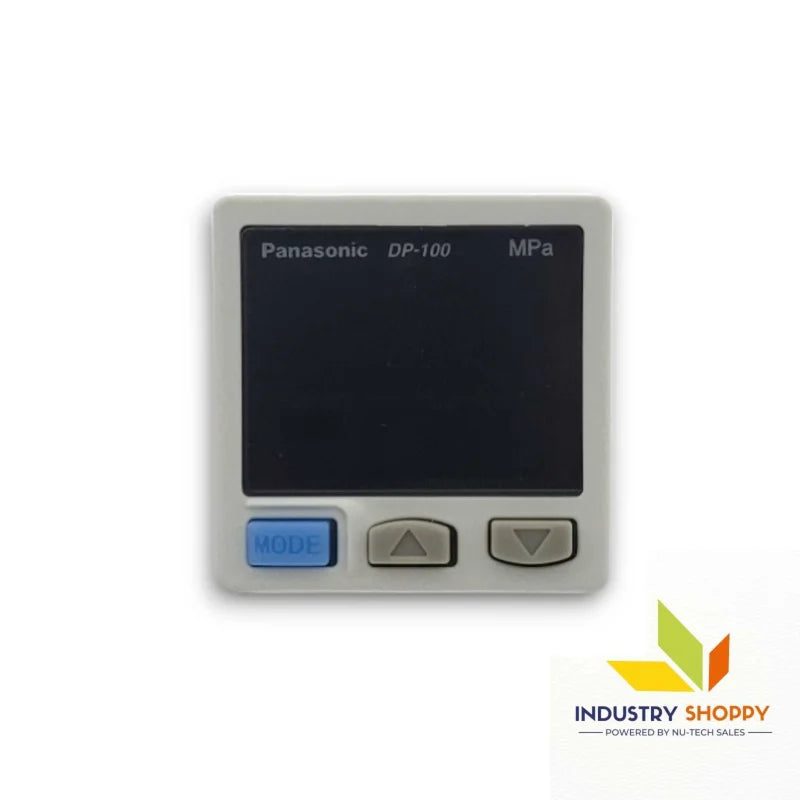

Display 4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation)
Display : Displayable pressure range -0.101 to +1.010 MPa
-101 to +1,010 kPa
-1.03 to +10.30 kgf/cm2
-1.01 to +10.10 bar
-14.6 to +146.4 psi
Indicator Orange LED
(Comparative output 1 operation indicator : Lights up when comparative output is ON, Analog voltage output operation indicator : Lights up when setting)
Protection IP40 (IEC)
Ambient temperature -10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
Ambient humidity 35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
Voltage withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each)
Shock resistance 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
Temperature characteristics Within ±1 % F.S.
(at +20 ℃ +68 ℉)

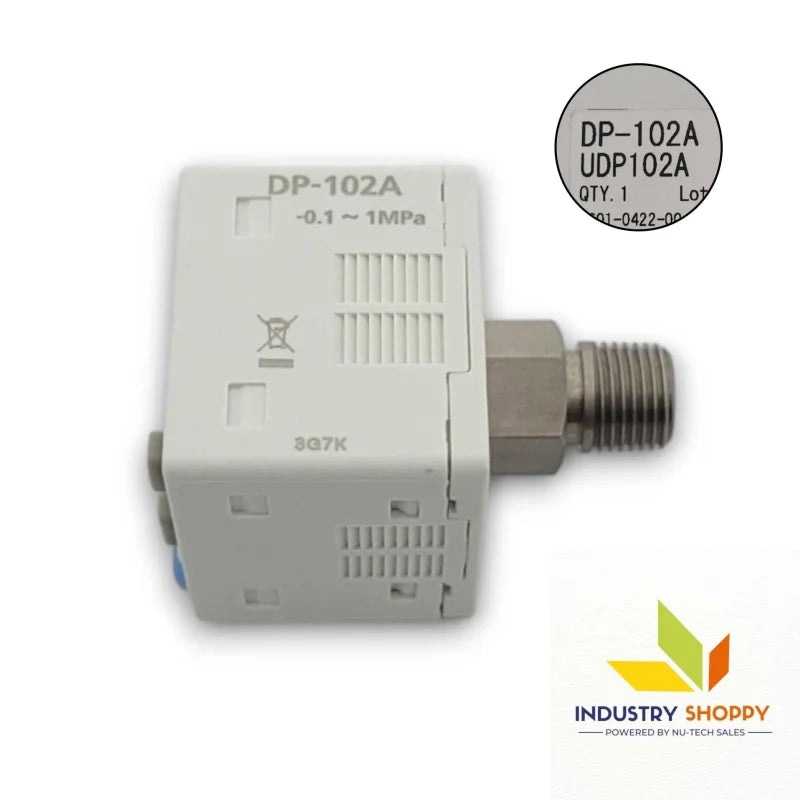

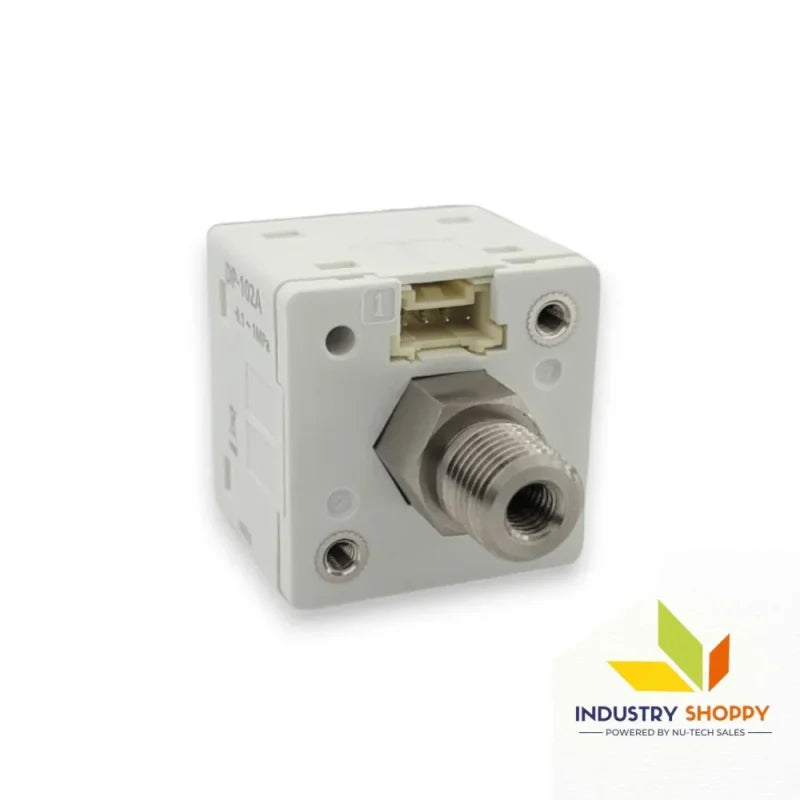

Pressure port M5 female thread + R (PT) 1/8 male thread
Material Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber

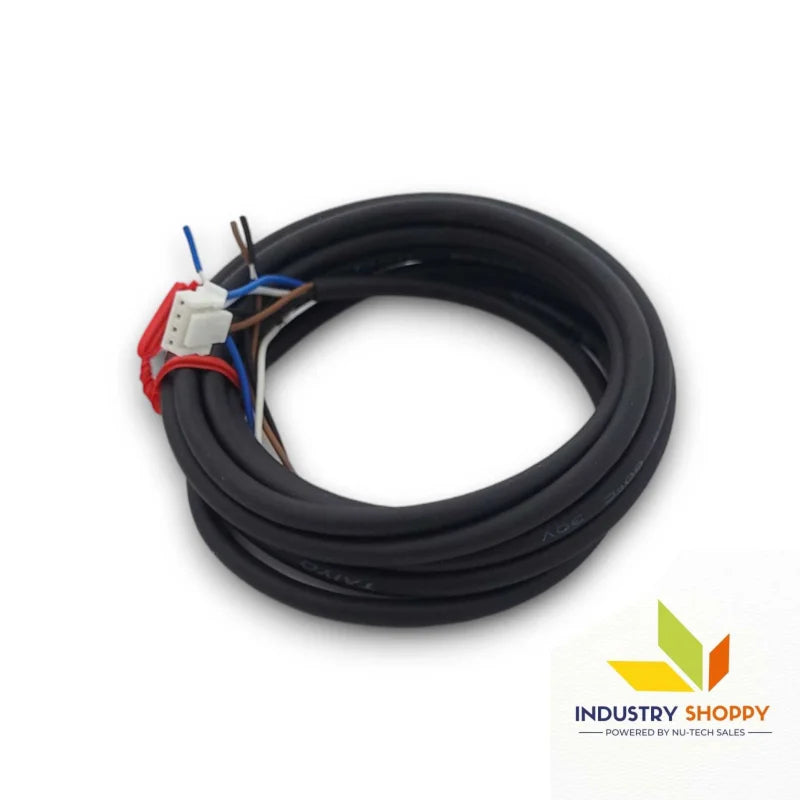

Connecting method Connector
Cable length Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable



Applications :-

  • Industrial Automation: Ideal for use in process control systems where precise pressure measurement is essential.
  • Non-Corrosive Gas Systems: Perfect for applications involving non-corrosive gases where accurate pressure monitoring is critical.
  • HVAC: Provides reliable pressure readings in heating, ventilation, and air conditioning systems.
  • Manufacturing: Used in equipment that requires consistent pressure control in pneumatic systems and more.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
