Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic DP-101-E-P Digital Pressure Sensor
Panasonic

Panasonic DP-101-E-P Digital Pressure Sensor

Product SKU: NTSSEN00360
Available:
Only 12 items in stock
12 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Brand
  • Condition
:  New
  • Part Number
:  UDP101EP
  • Type
:  Digital Pressure Sensor
  • Output Type
:  PNP
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$65.00
$100.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

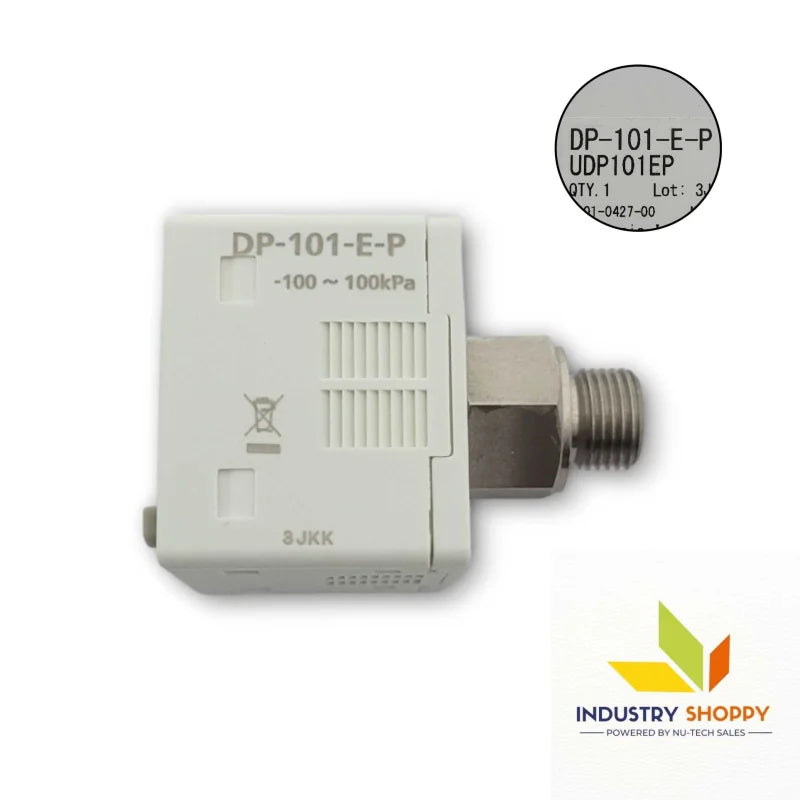

Panasonic DP-101-E-P Digital Pressure Sensor

The Panasonic DP-101-E-P Digital Pressure Sensor is engineered for precision gauge pressure measurement in non-corrosive gas environments. This high-performance sensor offers a wide rated pressure range of -100.0 to +100.0 kPa and withstands pressures up to 500 kPa. Ideal for various applications, it ensures accurate, reliable measurements with a high repeatability of ±0.1 % F.S. The sensor features a PNP open-collector transistor for comparative output, and it operates in multiple output modes including EASY mode, Hysteresis mode, and Window comparator mode. With a durable design, IP40 protection, and the ability to handle extreme ambient conditions (temperature range: -10 to +50°C), this sensor is versatile and highly reliable.

The DP-101-E-P model is also equipped with a 4-digit + 4-digit 3-color LCD display, which offers a quick and clear visual indication of the measured pressure. The sensor can be configured to output analog voltage or current signals, making it ideal for integration into automated systems. Additionally, it offers short-circuit protection and flexibility in output settings, including response times from 2.5 ms to 5,000 ms. The Panasonic DP-101-E-P Pressure Sensor is built to meet CE compliance (EMC and RoHS directives), ensuring safe, efficient, and environmentally friendly operations.

Key features :-

Brand Panasonic
Product Number DP-101-E-P
Part Number DP101EP
CE Marking Directive Compliance EMC Directive, RoHS Directive
Type of Pressure Gauge pressure
Rated Pressure Range -100.0 to +100.0 kPa
Set Pressure Range -101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2
-1.010 to +1.010 bar
-14.64 to +14.64 psi
-757 to +757 mmHg
-29.8 to 29.8 inHg
Pressure Withstand ability 500 kPa
Applicable Fluid Non-corrosive gas
Supply Voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power Consumption Normal operation :
720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)
ECO mode :
480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage)
360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage)
Comparative Output PNP open-collector transistor
- Maximum source current : 100 mA
- Applied voltage : 30 V DC or less (between comparative output and +V)
- Residual voltage : 2 V or less (at 100 mA source current)
Comparative Output: Output Operation NO / NC (selectable by key operation)
Comparative Output: Output Modes EASY mode / Hysteresis mode / Window comparator mode
Comparative output: Hysteresis Minimum 1 digit (variable)(however, 2 digits when using psi unit)
Comparative Output: Repeatability ±0.1 % F.S.
(within ±2 digits)
Comparative Output: Response Time 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation
Comparative Output: Short-Circuit Protection Incorporated
External Input -
Analog Current Output -
Analog Voltage Output -

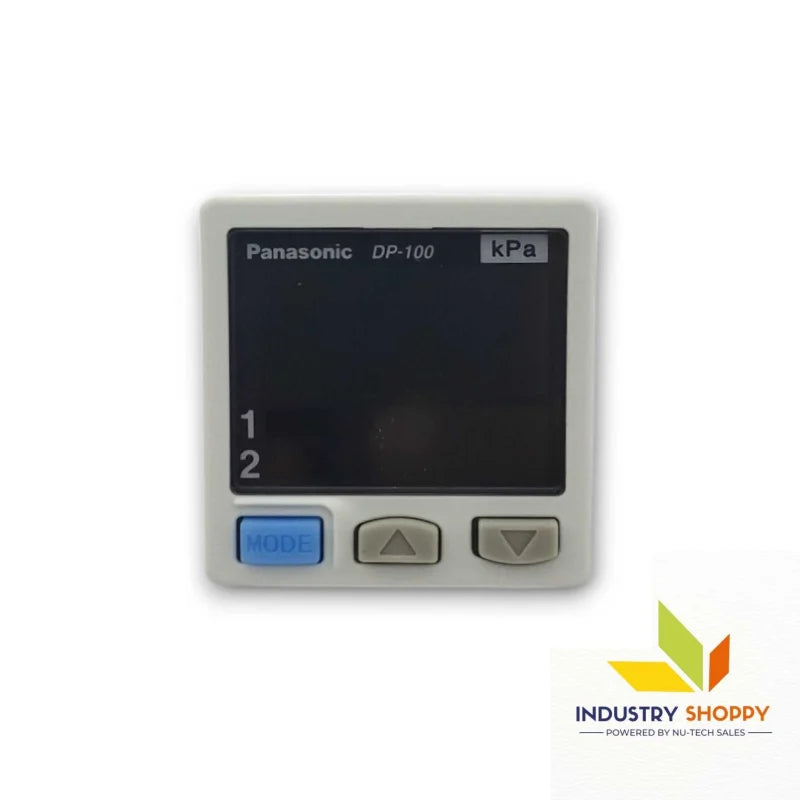

Display 4 digits + 4 digits 3-color LCD display
(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation)
Display: Displayable Pressure Range -101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm2
-1.010 to +1.010 bar
-14.64 to +14.64 psi
-757 to +757 mmHg
-29.8 to 29.8 inHg
Indicator Orange LED
(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON)
Protection IP40 (IEC)
Ambient Temperature -10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉
Ambient Humidity 35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each
(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each)
Shock Resistance 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each
Temperature Characteristics Within ±0.5 % F.S.
(at +20 ℃ +68 ℉)

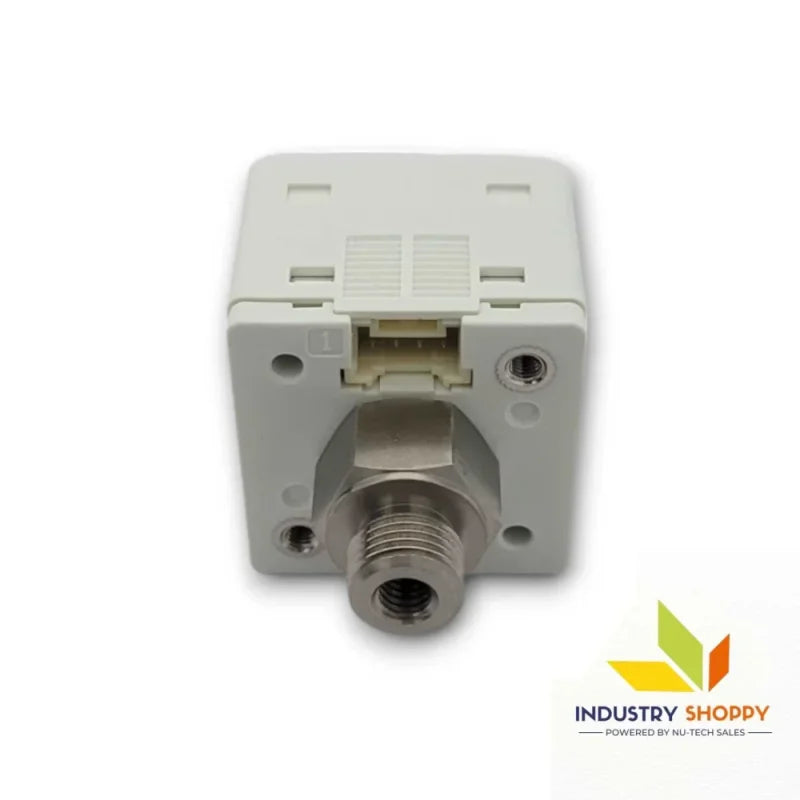

Pressure Port M5 female thread + G 1/8 male thread
Material Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber

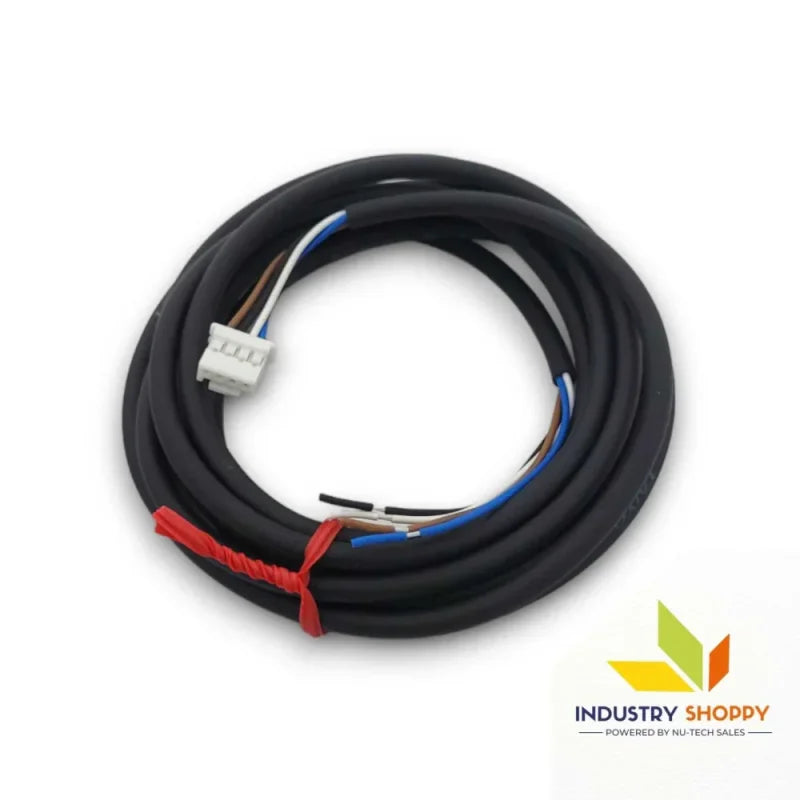

Connecting Method Connector
Cable Length Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable



Applications :-

  • Industrial Pressure Monitoring: Used in factories and industrial settings to accurately measure and control pressure within systems, ensuring operational efficiency and safety.
  • HVAC Systems: Helps regulate pressure within heating, ventilation, and air conditioning systems, improving system performance and energy efficiency.
  • Gas Flow Management: Ideal for applications involving non-corrosive gases, ensuring proper flow and pressure control for optimized gas delivery in various industries.
  • Automation Control Systems: Integrated into automated systems for precise pressure control, enhancing the functionality and reliability of automated industrial processes.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
