Panasonic CY-122A-P Photoelectric Sensor

Panasonic CY-122A-P Photoelectric Sensor

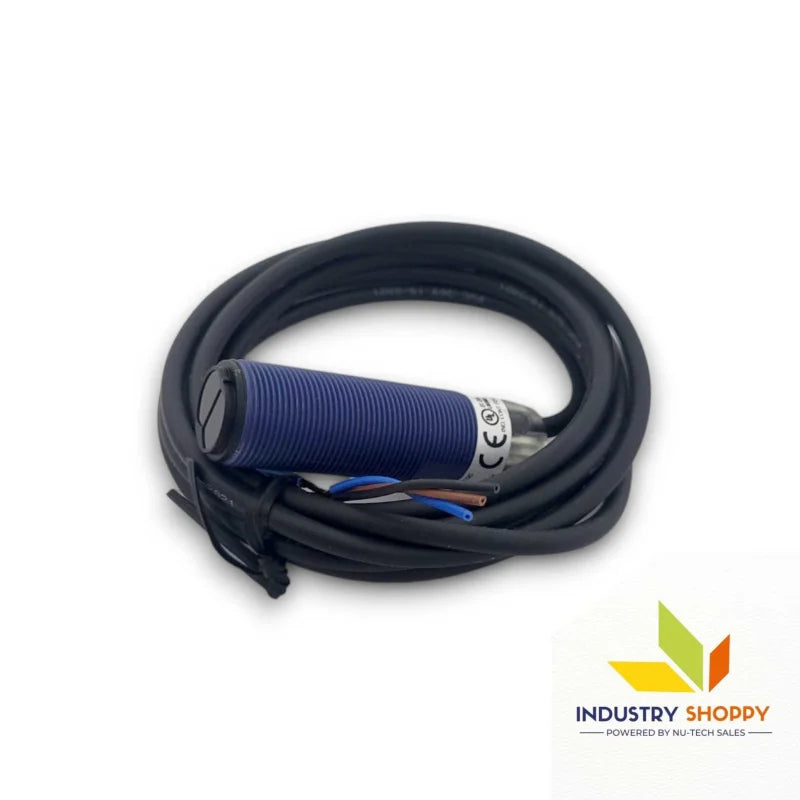

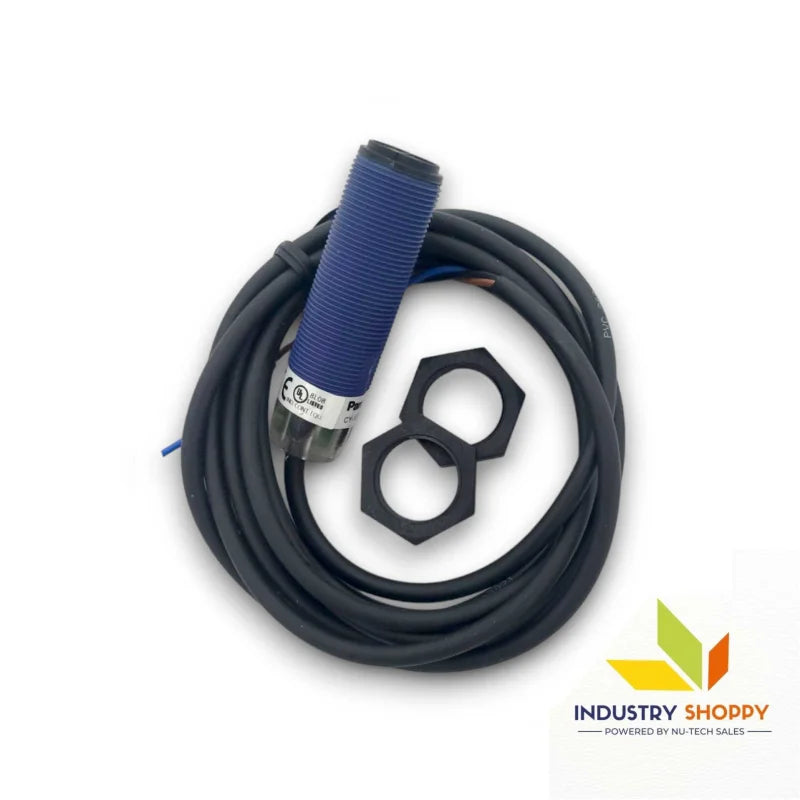

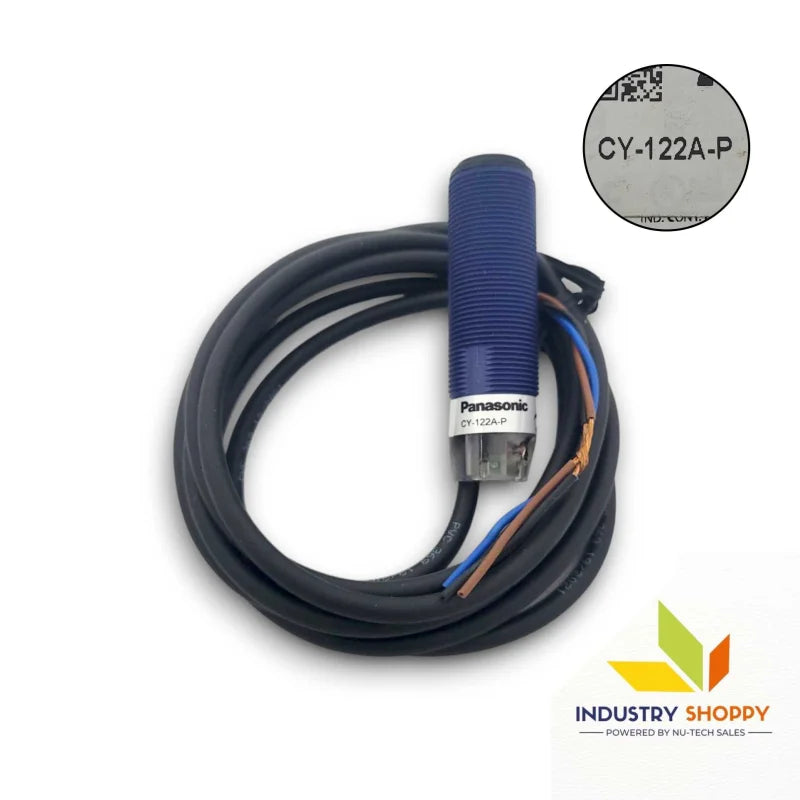

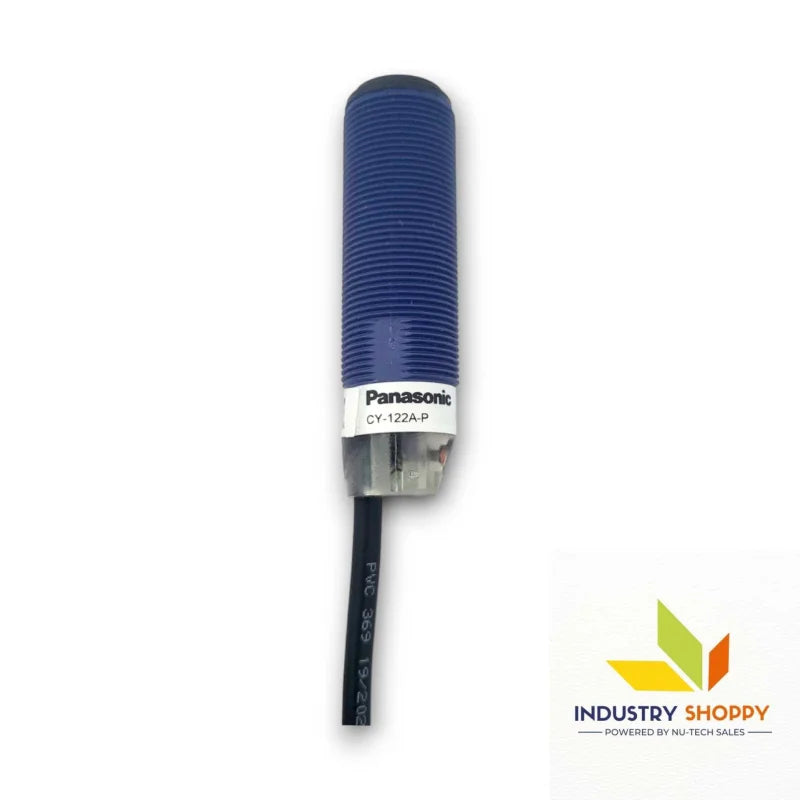

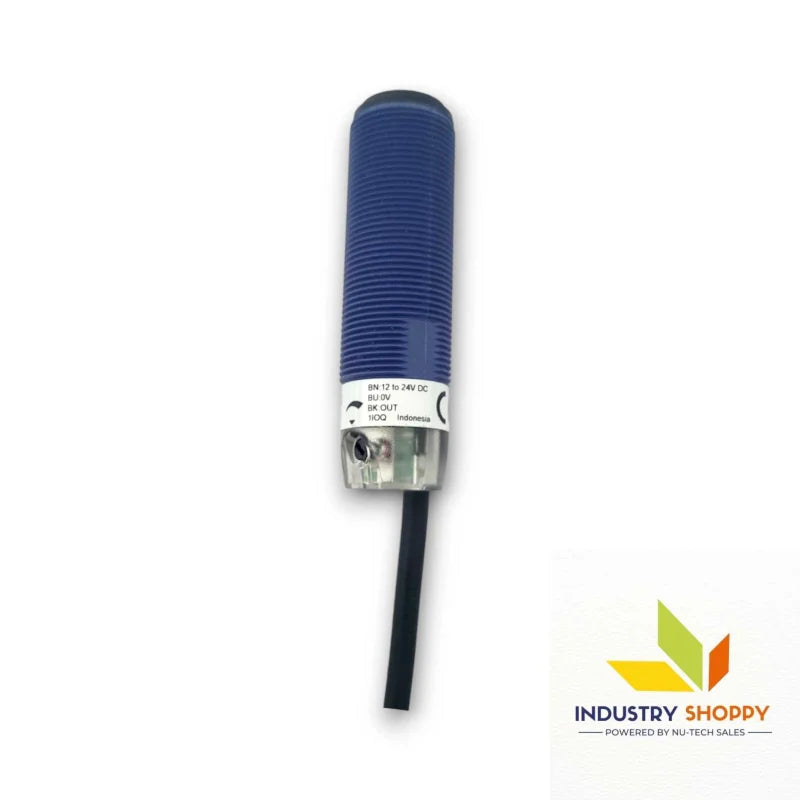

The Panasonic CY-122A-P Photoelectric Sensor (Part No. YCY122AP) is a high-sensitivity sensor from the CY100 series, using a diffuse reflective sensing method for detecting objects up to 60cm (23.6") away. With a 1ms response time and an infrared light source, it delivers quick and consistent detection, making it suitable for various industrial automation tasks. Its adjustable sensitivity allows for optimal performance across different object types and surface finishes.

Designed to endure harsh conditions, the CY-122A-P is protected by an IP67-rated enclosure and operates across a wide temperature range of -25°C to 55°C. It features a PNP open collector output, a 2-meter cable connection, and a 12V to 24V DC supply range, offering flexible integration into existing control systems. Although this model is now obsolete, it remains a dependable option for replacements in legacy automation setups.

Key features ;-

Applications :-

• Industrial conveyors: Detect items quickly and accurately with mid-range sensing.
• Packaging machinery: Identify product presence before packing or sealing.
• Automated workstations: Trigger machine actions with adjustable proximity sensing.
• Material sorting: Distinguish and detect various item types in motion.
• Dusty or damp environments: IP67 protection ensures reliable operation in harsh areas.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
