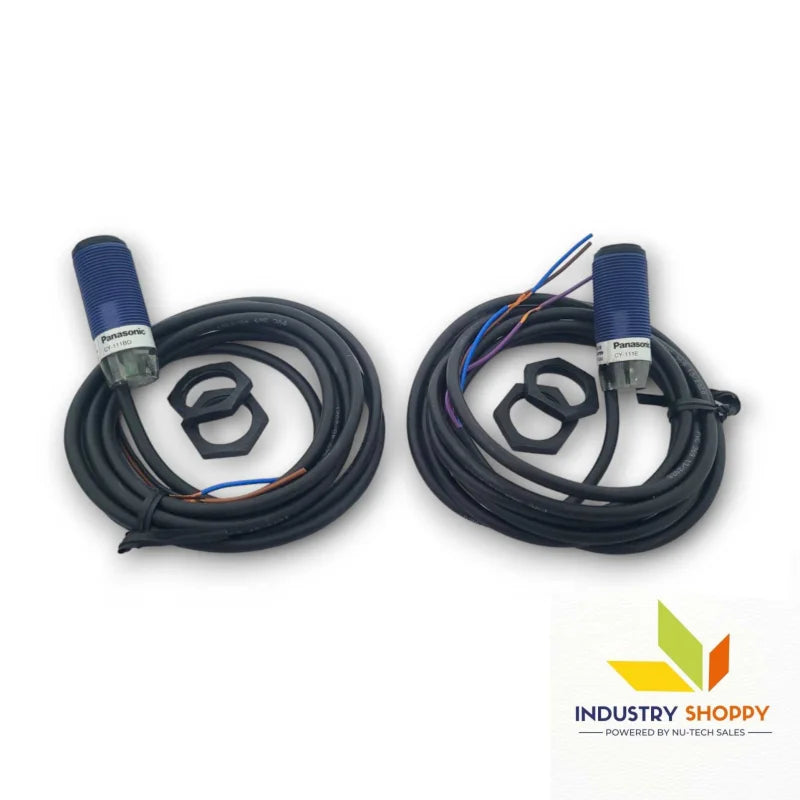

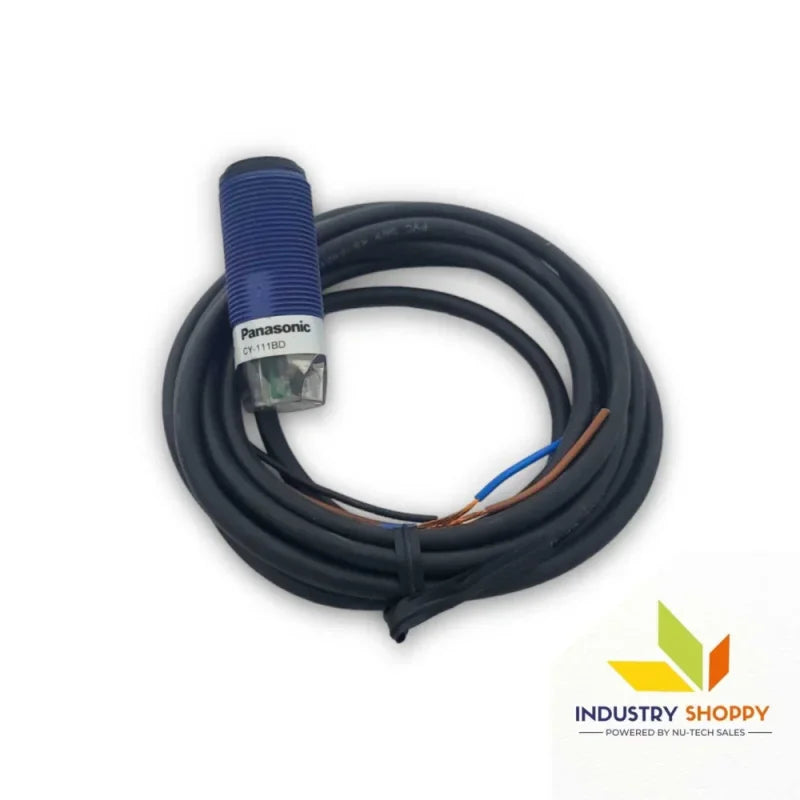

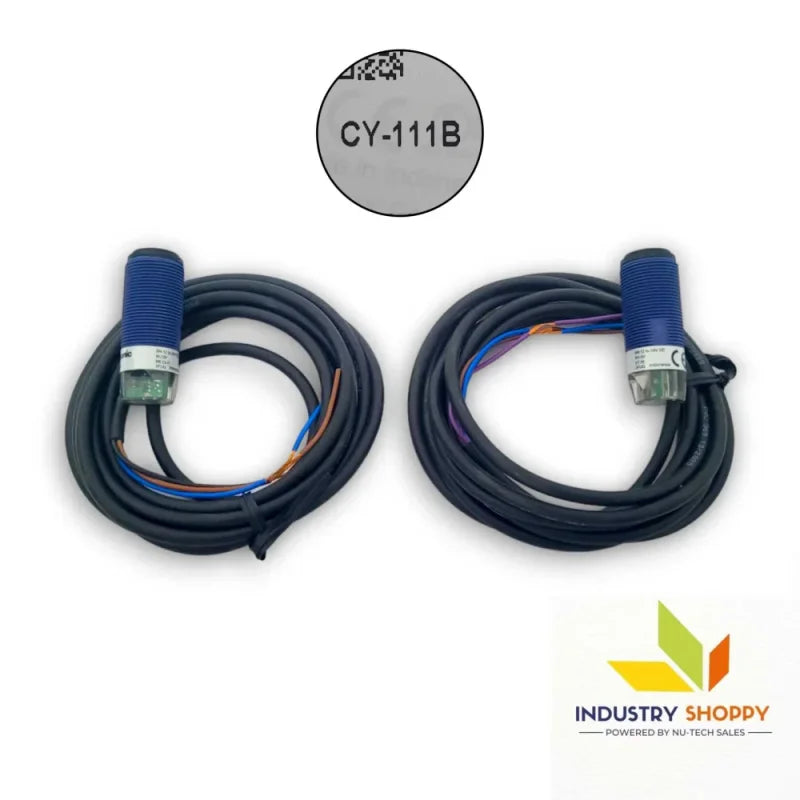

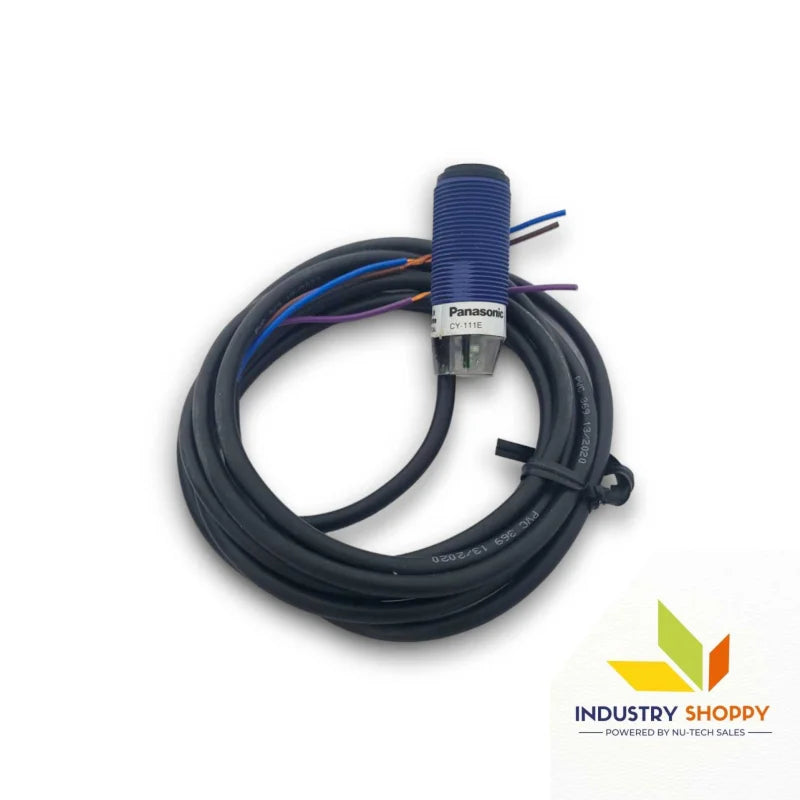

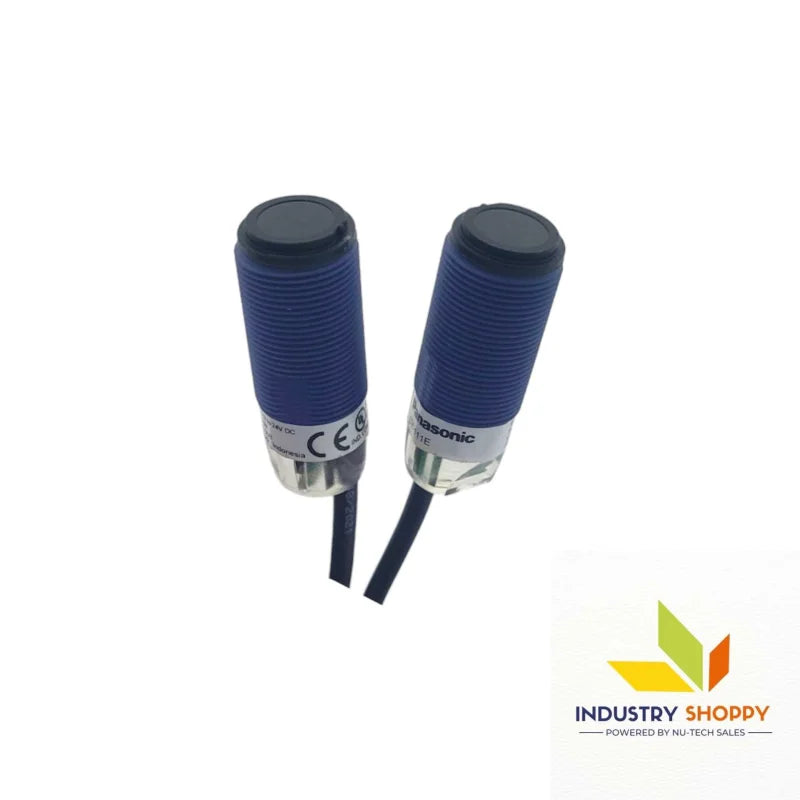

Panasonic CY-111B Photoelectric Sensor

Panasonic CY-111B Photoelectric Sensor

The Panasonic CY-111B Photoelectric Sensor (Part No. UCY111B) from the CY111 series is a highly reliable thru-beam type sensor designed for long-distance and high-precision detection in industrial environments. It offers a maximum sensing distance of 15 meters, making it ideal for applications requiring extended-range object detection. Featuring Dark ON switching mode, an infrared light source with 890nm peak wavelength, and a fast 1ms response time, it ensures dependable and responsive operation in fast-moving systems.

Built for durability, the CY-111B has a shock rating of 30g, supports ambient light resistance up to 5000 lux, and is enclosed in a polybutylene terephthalate housing with IP67 protection, making it resistant to dust and water. It operates within a 12V–24V DC range and uses an NPN output, with panel mounting and cable connection for easy installation. This model is RoHS compliant and actively supported, making it an excellent choice for current and future automation setups.

Key features :-

Applications ;-

• Automated conveyor systems: Long-range detection ensures consistent object monitoring.
• Access control & safety: Detects presence across gates or doors with thru-beam accuracy.
• Factory automation lines: High-speed response enables smooth material handling.
• Packaging and bottling lines: Monitors object flow with immunity to ambient light.
• Outdoor or harsh environments: Withstands dust, water, and vibration with IP67 and 30g shock rating

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
