MCGS TPC1061Ti HMI Operator Panel

MCGS TPC1061Ti HMI Operator Panel

The MCGS TPC1061Ti HMI Operator Panel is a robust and versatile human-machine interface designed for demanding industrial environments. Featuring a 10.2-inch TFT LCD with LED backlight, it delivers clear visuals with 1024×600 resolution and supports 65,535 true colors. The resistive touch screen ensures precise and responsive user interaction.

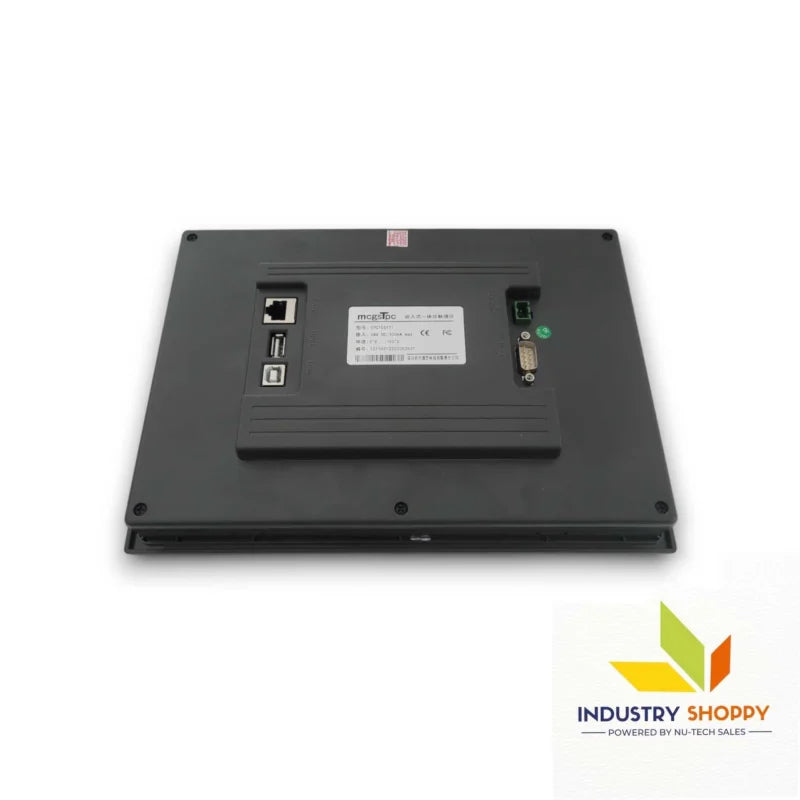

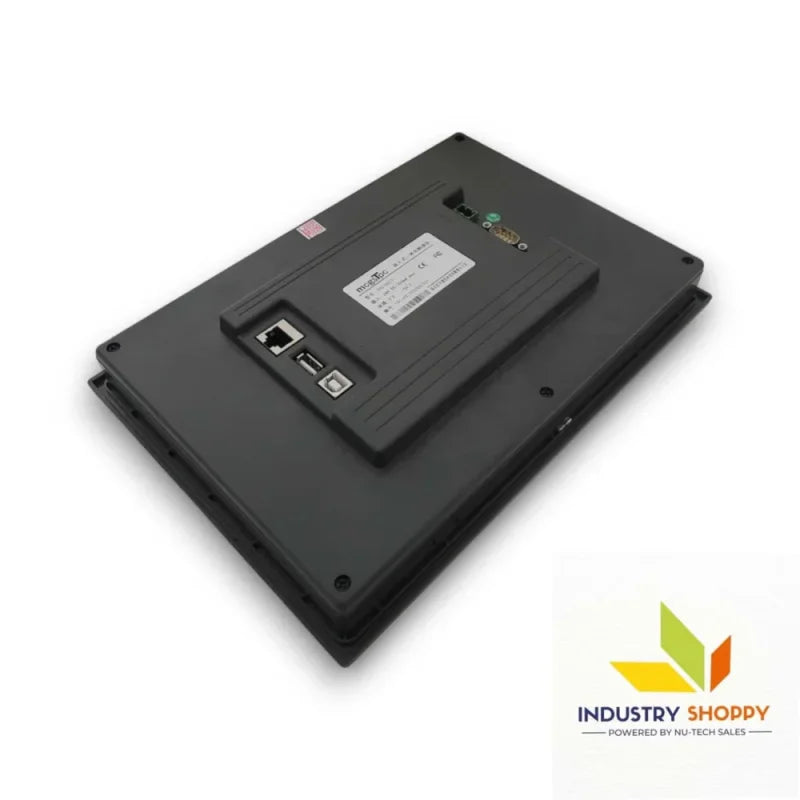

Powered by an ARM 600MHz CPU, the panel is equipped with 128MB of memory and 128MB of flash storage, providing ample space for complex applications. Its connectivity options include COM1 RS232, COM2 RS485, one USB host, one USB client, and a 10/100M Ethernet port for seamless integration with various industrial systems.

The TPC1061Ti operates reliably within a temperature range of 0°C to 45°C and humidity levels of 5% to 90%. Its rugged industrial plastic structure ensures durability, while its compact design (panel: 274mm × 193mm, openings: 261mm × 180mm) allows for easy installation. Certified with CE and FCC standards, this HMI panel is a dependable choice for automation.

Key features :-

Applications :-

• Industrial Automation: Streamlines control processes in manufacturing plants.
• Process Control: Monitors and manages complex industrial operations.
• Machine Interfaces: Provides intuitive control panels for machinery.
• Energy Management: Facilitates monitoring and control in power systems.
• Building Automation: Integrates control systems for HVAC, lighting, and security.

Precautions:

• Power Supply: Use a stable 24VDC source with proper grounding to prevent damage.
• Installation Environment: Avoid exposure to direct sunlight, excessive dust, or corrosive gases.
• Temperature & Humidity: Operate only within the specified 0°C–45°C temperature and 5%–90% humidity range.
• Wiring: Ensure all communication and power cables are properly shielded to avoid interference.
• Maintenance: Disconnect power before cleaning or performing any hardware adjustments.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
