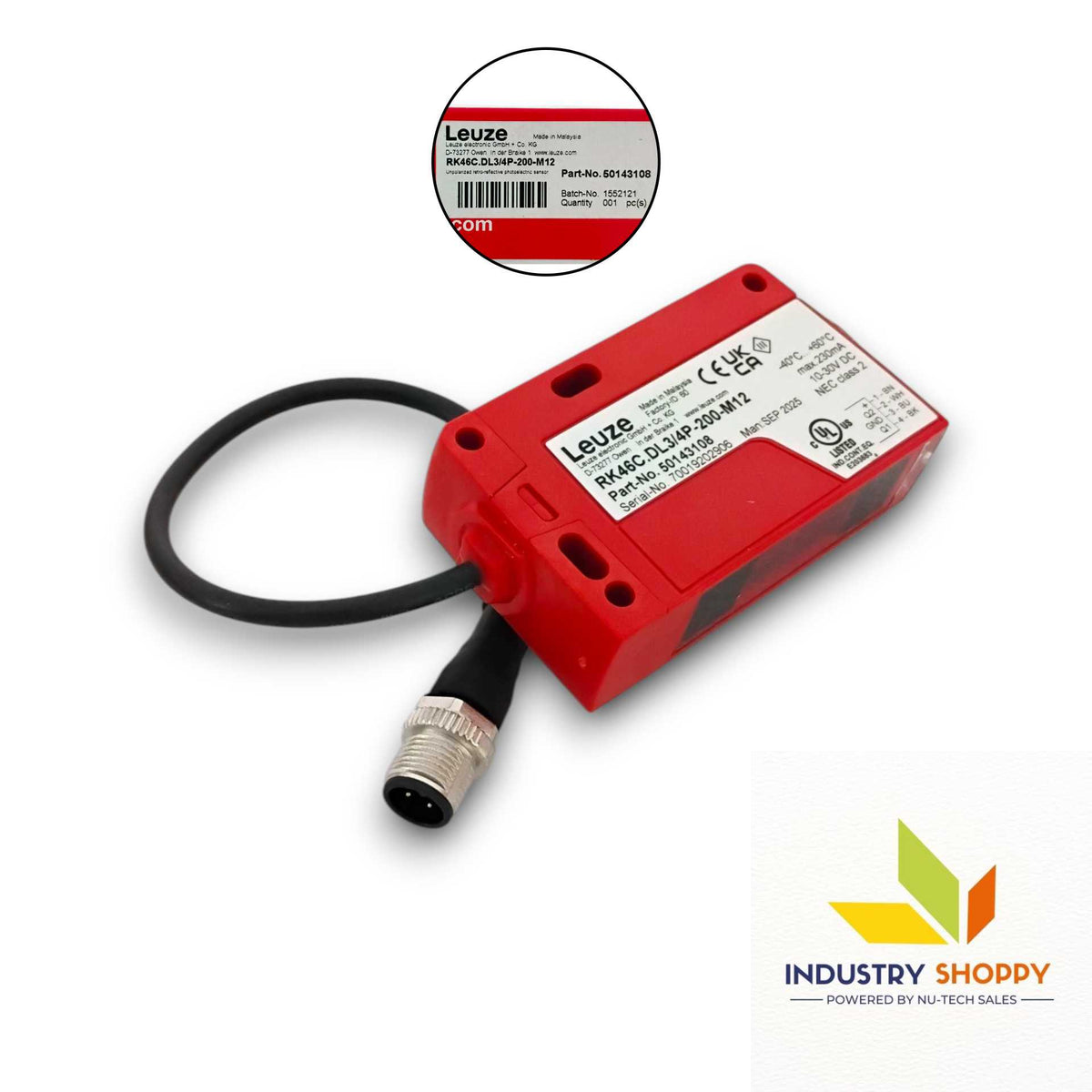

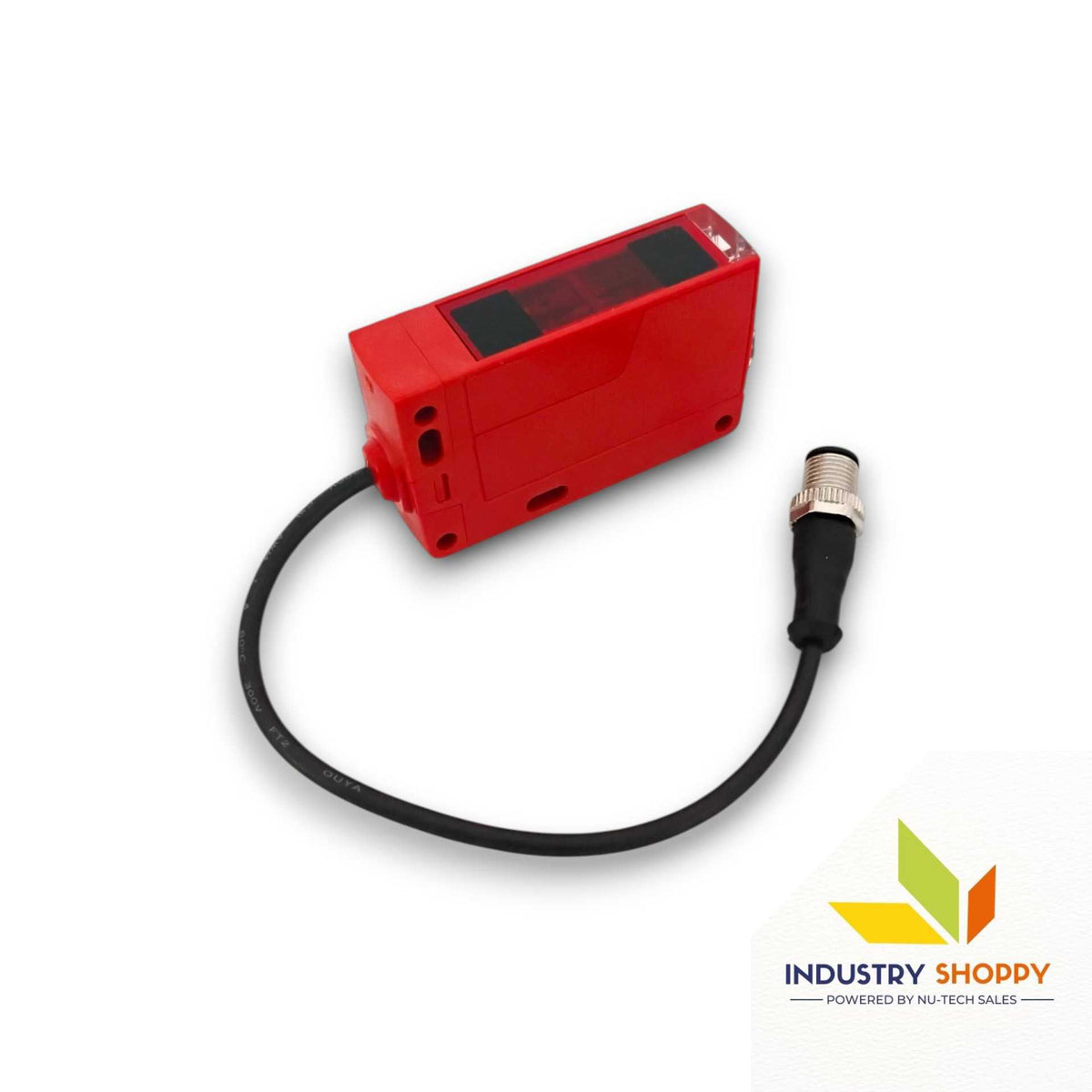

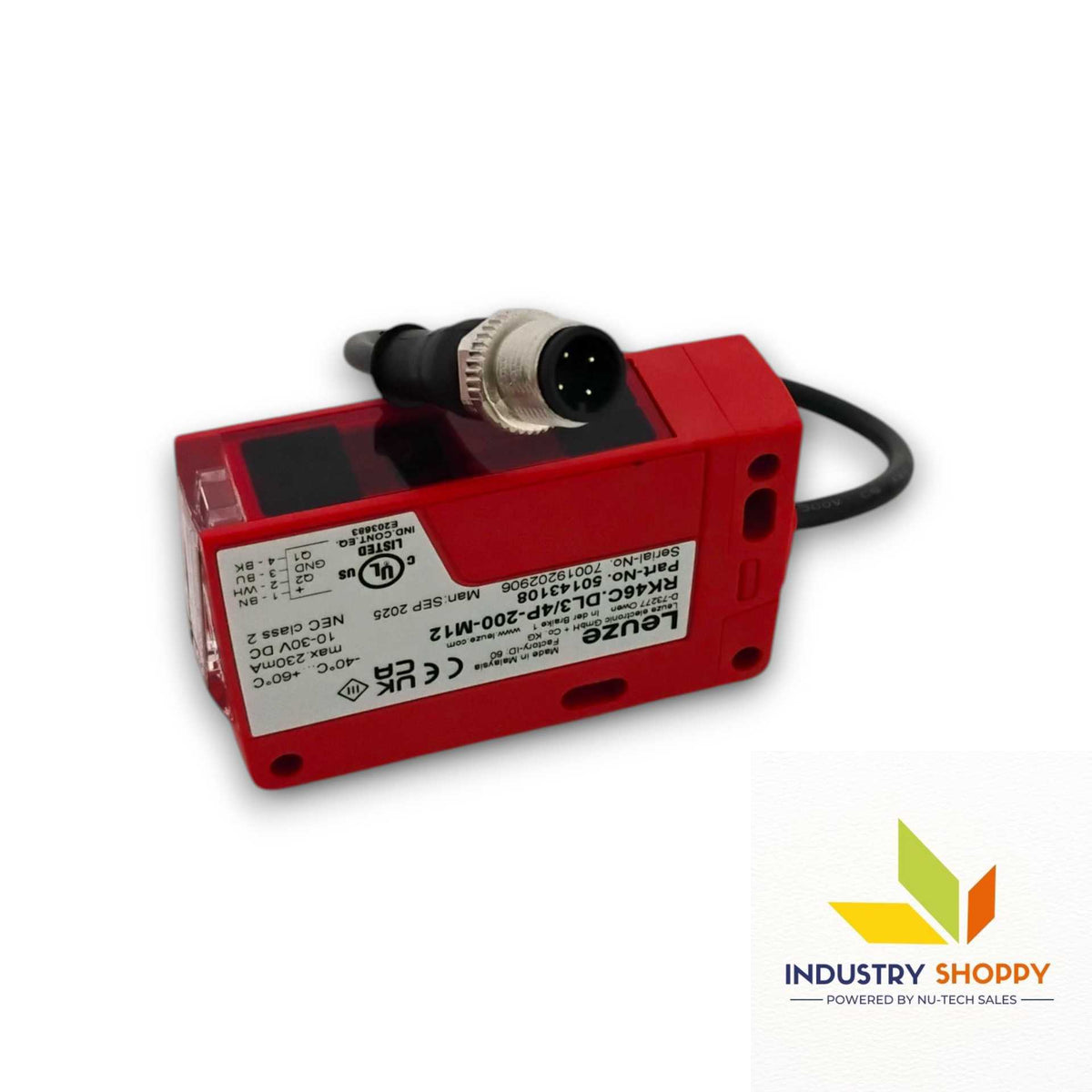

Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor
Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor
Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor
Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor
Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor
Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor
Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor
Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor
Leuze

Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor

Product SKU: NTSSEN00821
Available:
Only 20 items in stock
20 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Leuze
  • Supply Voltage (UB)
:  10 ... 30 V, DC, Incl. residual ripple
  • Part Number
:  50143108
  • Type
:  Photoelectric Sensor
  • Switching Element
:  Transistor, PNP
  • Type of Connection
:  Cable


Note :- Custom duty and local tax should be pay by buyer only.

$225.00
$350.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor

The Leuze RK46C.DL3/4P-200-M12 Photoelectric Sensor (50143108) from Leuze electronic is a high-performance photoelectric sensor designed for reliable detection of irregular objects and polybags on conveyor systems. It operates using a reflection principle with a special light-band, ensuring consistent detection across wider areas.

The rectangular light spot improves accuracy when detecting uneven or moving objects. With dual PNP switching outputs, it offers flexible integration into automation systems. The sensor features a teach button for easy setup and sensitivity adjustment, allowing quick adaptation to different applications.

Built with a durable PC-PBT housing, it withstands harsh industrial conditions including dust, moisture, and washdown environments. Its stable performance, wide detection range, and compact cubic design make it ideal for modern packaging, sorting, and conveyor-based automation processes requiring precision and reliability.


Applications

  • Conveyor belt systems

  • Polybag detection

  • Irregular object detection

  • Packaging and sorting lines


Technical Precautions

  • Conveyor belt systems

  • Polybag detection

  • Irregular object detection

  • Packaging and sorting lines


While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandLEUZE
Product NumberRK46C.DL3/4P-200-M12
Part Number50143108

Series

46C
Operating principalReflection principle
ApplicationDetection of irregular objects on conveyor belt

Detection of polybags on conveyor belt
Switching distance Sn0 ... 1,500 mm

Special version

Light-band

Operating range

0.55 ... 1.5 m (guaranteed operating range)
Operating range limit0.55 ... 1.5 m (typical operating range)
Measurement field length25 mm
Light sourceLED, Red
Wavelength620 nm
Transmitted-signal shapePulsed
LED groupExempt group (in acc. with EN 62471)
Light spot size [at sensor distance]25 mm x 19 mm [1,000 mm]
Type of light spot geometryRectangular

Minimum object size

3 mm, with optimum alignment and use. (see 'Further information').

Supply voltage UB

10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 20 mA

Number of digital switching outputs

2 Piece(s)

Type

Digital switching output
Voltage typeDC
Switching current, max.100 mA
Switching voltagehigh: ≥(UB-2V) low: ≤ 2 V

Switching element

Transistor, PNP
Switching principleLight switching

Switching element

Transistor, PNP
Switching principleDark switching

Switching frequency

250 Hz
Response time2 ms
Readiness delay300 ms

Number of connections

1 Piece(s)

Function

Signal OUT Voltage supply
Type of connectionCable with connector
Cable length200 mm
Sheathing materialPUR
Cable colorBlack
Number of conductors4 -wire
Wire cross section0.2 mm²
Thread sizeM12
TypeMale
MaterialPlastic
No. of pins4 -pin
EncodingA-coded

Design

Cubic
Dimension (W x H x L)20.5 mm x 76.3 mm x 44 mm
Housing materialPlastic
Plastic housingPC-PBT
Lens cover materialPlastic / PMMA
Housing colorRed
Type of fasteningThrough-hole mounting Via optional mounting device
Recommended tightening torque for M3 fastening0.9 N·m
Recommended tightening torque for M4 fastening1.4 N·m
Compatibility of materialsECOLAB

Type of display

LED
Number of LEDs2 Piece(s)
Operational controlsTeach button
Function of the operational controlLight/dark switching

Sensitivity adjustment

Ambient temperature, operation

-40 ... 60 °C
Ambient temperature, storage-40 ... 70 °C

Degree of protection

IP 67 IP 69K
Protection classIII
Approvalsc UL US
Standards appliedIEC 60947-5-2
Country of originMalaysia
