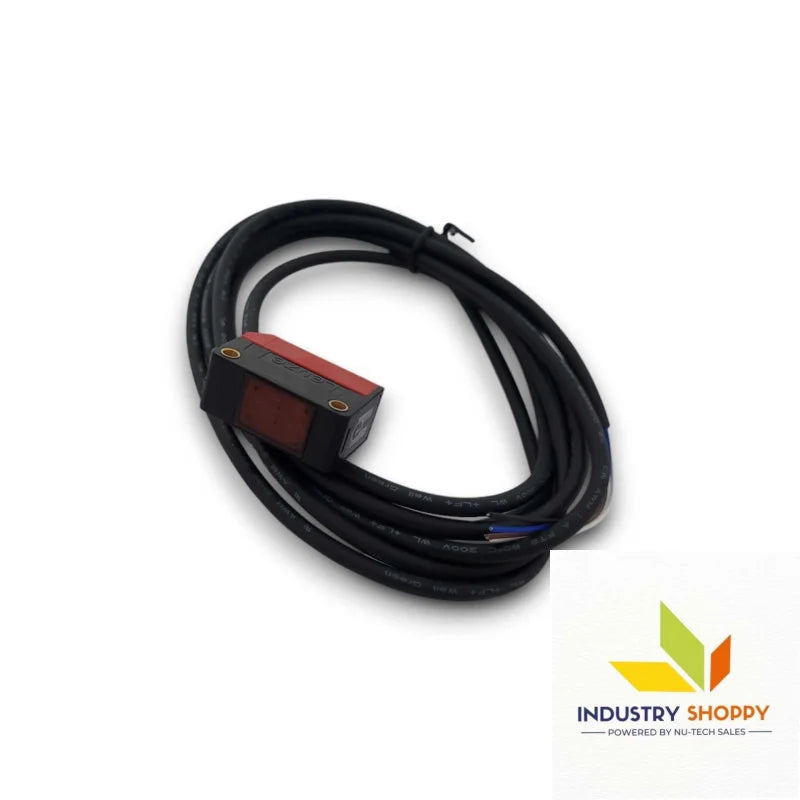

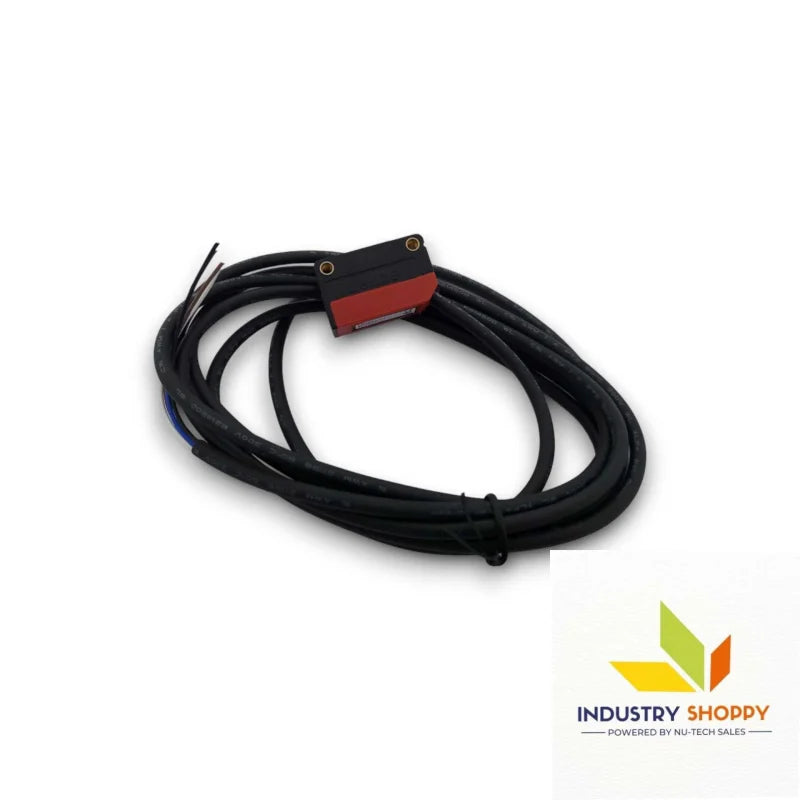

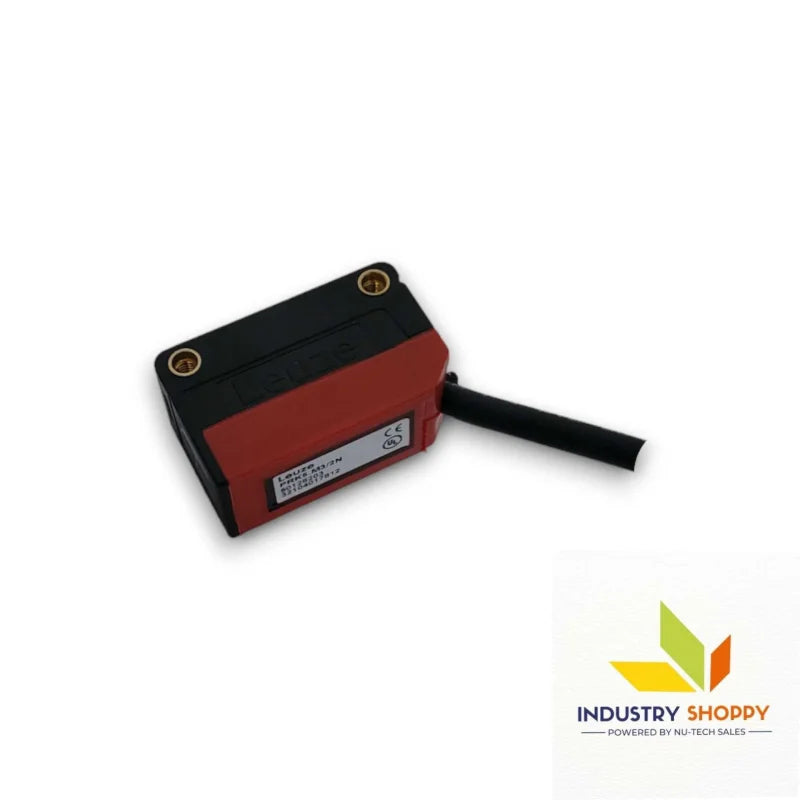

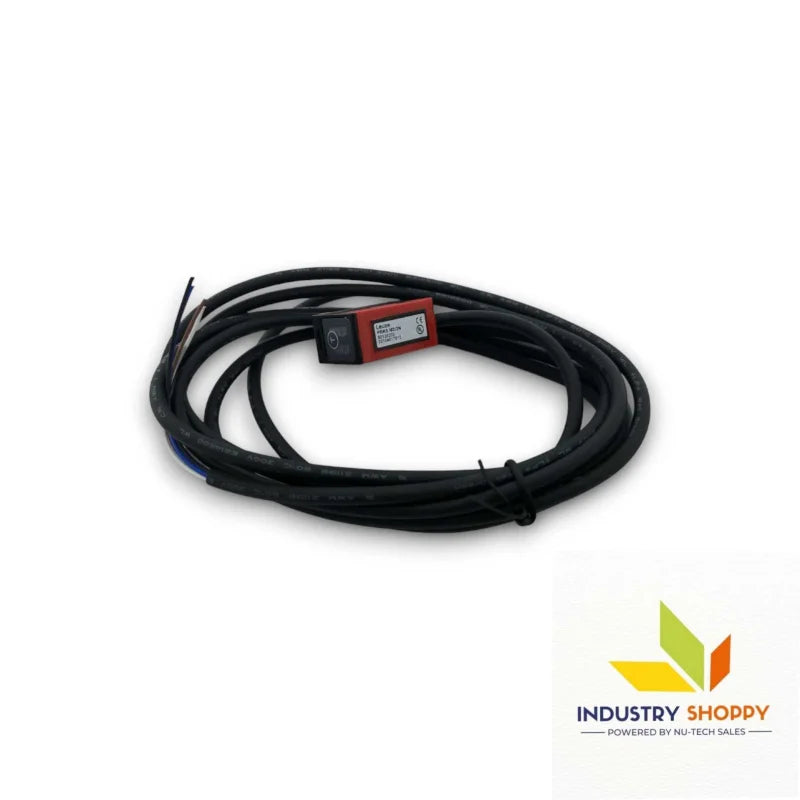

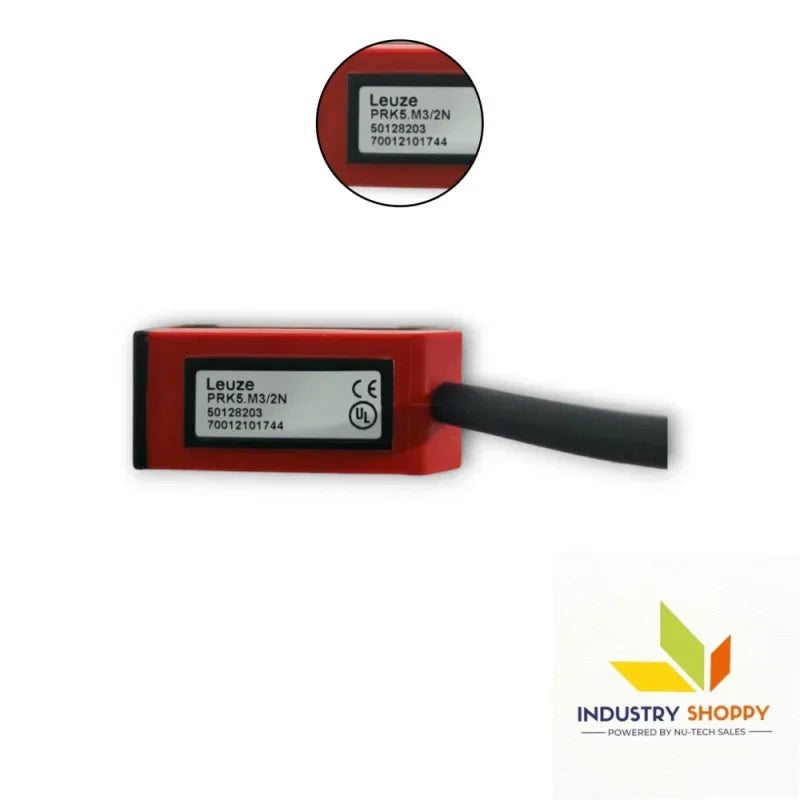

Leuze PRK5.M3/2N Photoelectric Sensor

Leuze PRK5.M3/2N Photoelectric Sensor

The Leuze PRK5/4P-200-M12 Photoelectric Sensor is a high-performance photoelectric sensor designed for precise object detection in various industrial applications. Operating on the reflection principle, this sensor offers a sensing range from 0.02 to 4.5 m (with reflector TK(S) 100x100), and a guaranteed operating range extending up to 6 m. It is optimized for applications like detection of bottle containers and semi-transparent media, ensuring accurate and reliable detection in challenging environments. The sensor uses a red LED light source with a 620 nm wavelength, providing robust and effective performance. The NPN transistor switching element supports both light switching and dark switching modes, providing versatile functionality. With a switching frequency of 500 Hz and a response time of 1 ms, the sensor is capable of rapid and accurate detection for high-speed industrial systems.

The sensor comes with a durable ABS plastic housing, ensuring IP67 protection for dust and water resistance. It operates in temperatures from -40 to 60°C, making it suitable for a variety of industrial conditions. Additionally, the teach button simplifies configuration, while the 2,000 mm cable length ensures flexible installation in complex setups.

Key features :-

Applications:

• Detection of Bottle Containers: Ideal for detecting bottles in production lines, ensuring proper alignment and sorting.
• Detection of Semi-Transparent Media: Suitable for detecting semi-transparent materials, such as bottles with liquid or glass containers.
• Material Handling: Accurately detects items moving on conveyor belts in warehouses or factories.
• Industrial Automation: Perfect for detecting objects in automated manufacturing or processing systems.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
