Leuze PRK5+BT205M+TKS40x60.A Photoelectric Sensor Set

Leuze PRK5+BT205M+TKS40x60.A Photoelectric Sensor Set

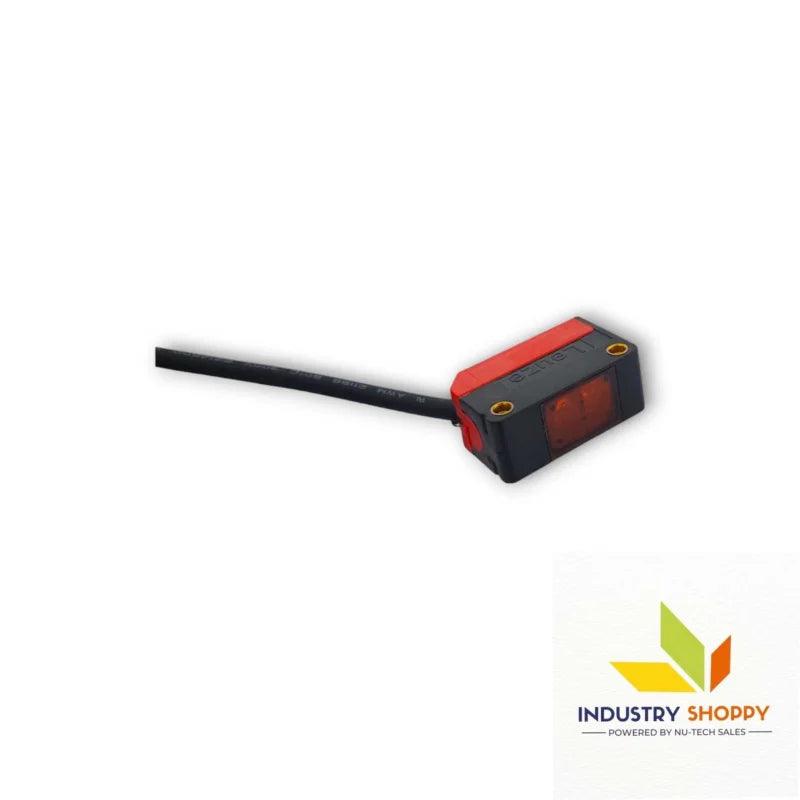

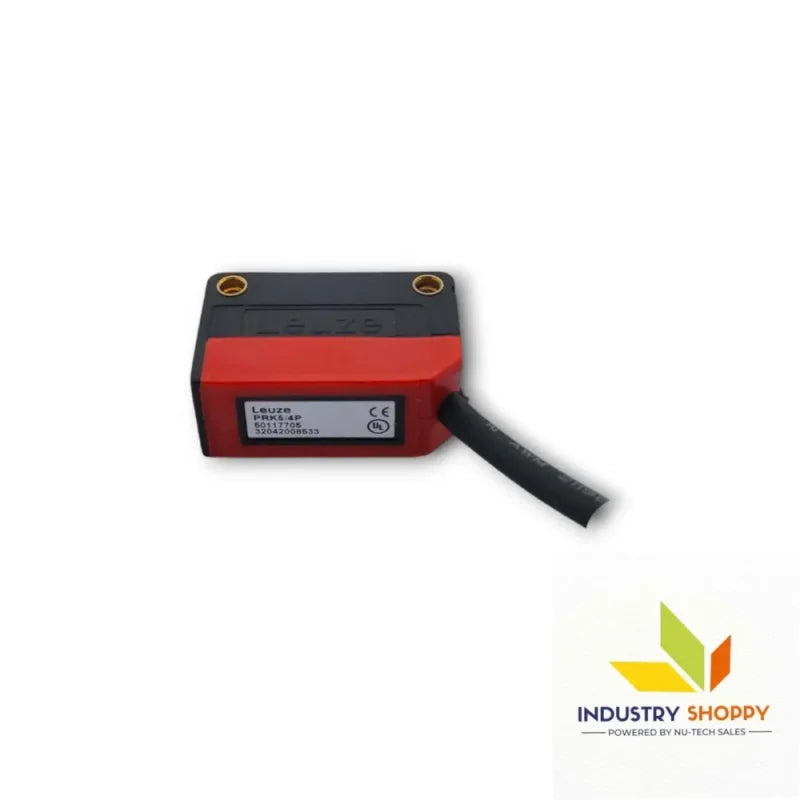

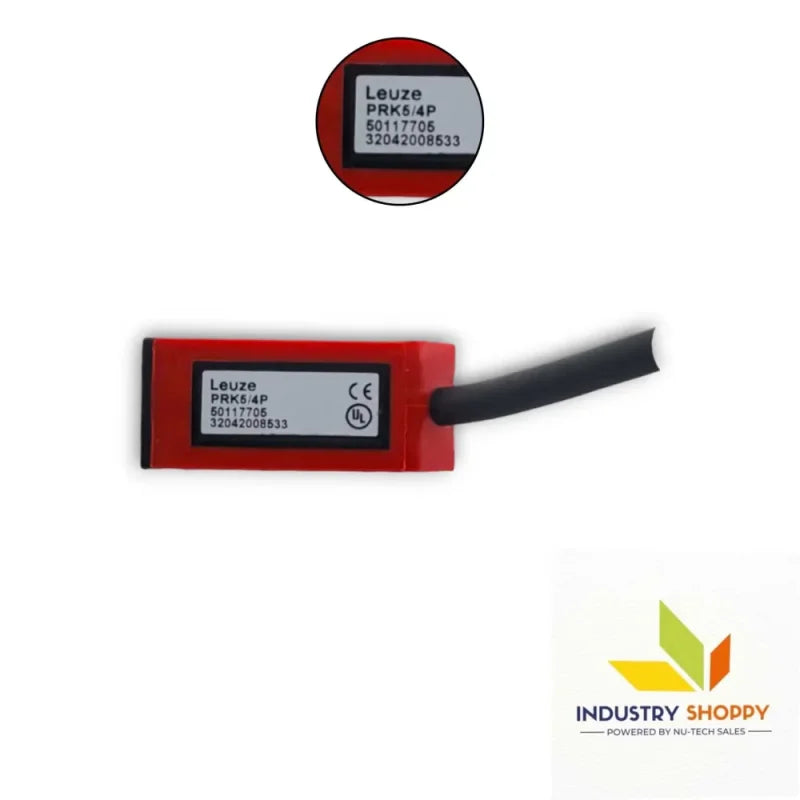

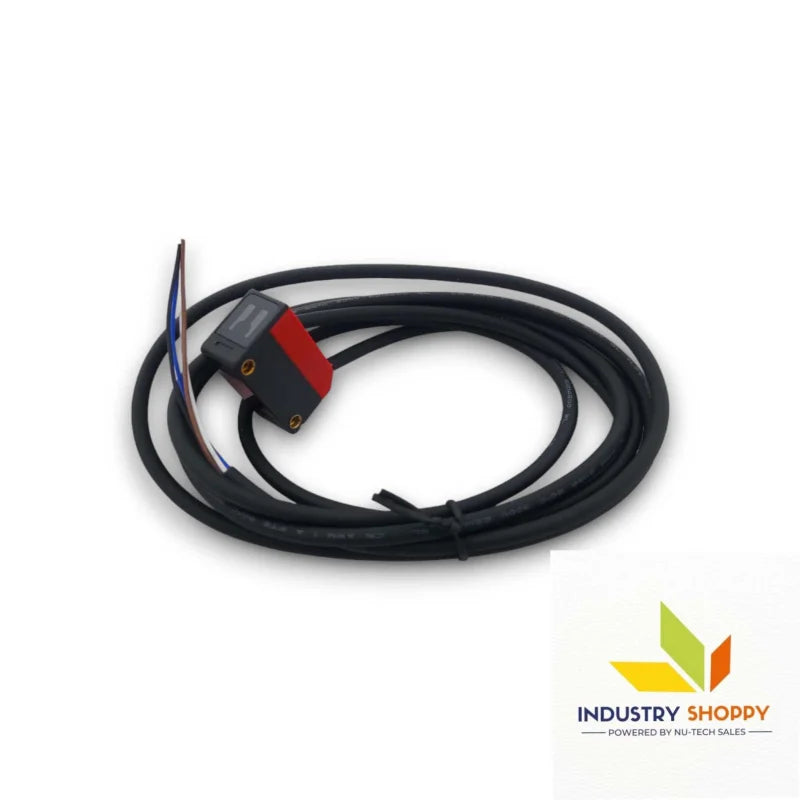

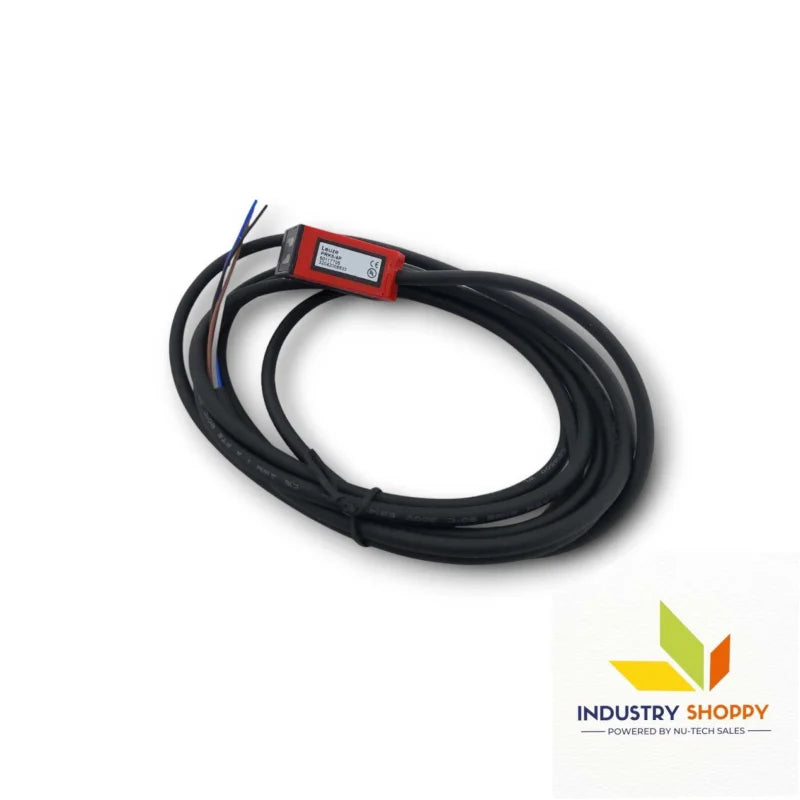

The BT 205M is a reflection principle sensor designed for use in industrial applications requiring precise distance measurements. This sensor has an operating range of 0.02 – 2.8 meters, and can extend up to 4.2 meters when paired with the Reflector TK 40×60.A. Powered by a Red LED light source with a wavelength of 620 nm, it delivers reliable performance even in demanding environments.

With 500 Hz switching frequency and a response time of just 1ms, the BT 205M ensures rapid and accurate detection. It features two PNP transistor outputs, one for light switching and the other for dark switching, offering flexibility for different control applications. The sensor operates in a wide voltage range of 10-30 V DC and includes protection features such as polarity reversal protection and short-circuit protection, ensuring durability in harsh conditions.

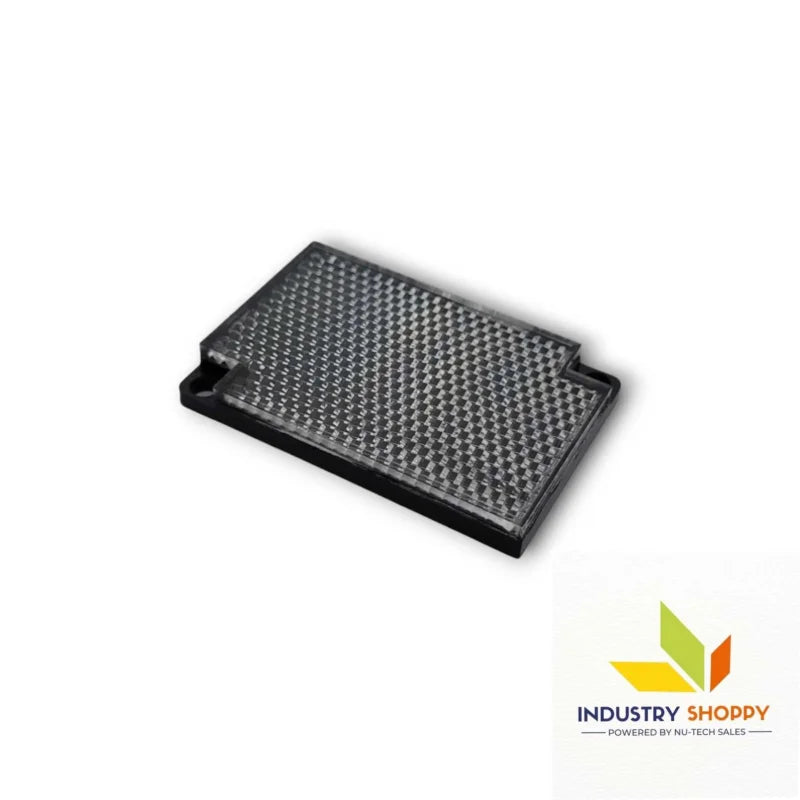

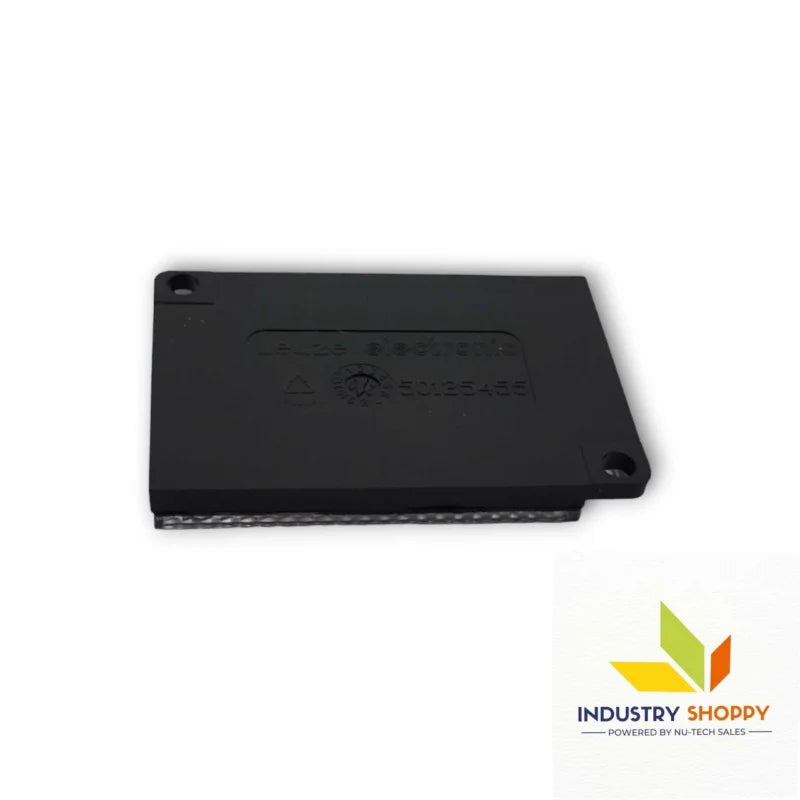

This model comes with an included set containing the BT 205M, TKS 40×60.A reflector, and 4 M3 x 8 screws for installation. Its compact dimensions (14 mm x 32.5 mm x 20.2 mm) and IP67 protection rating make it suitable for industrial environments with high levels of dust and water exposure.

Key features :-

Applications :-

• Industrial Automation: Ideal for proximity sensing applications in automated systems, ensuring precise control and monitoring.
• Material Handling: Used in conveyor systems to detect objects, ensuring smooth operations without interruptions.
• Robot Positioning: Perfect for use in robotic applications to detect the position of objects and aid in precise movement control.
• Assembly Lines: Helps in detecting the presence or absence of components on assembly lines, ensuring efficient and error-free manufacturing.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
