Leuze PRK46C.1/4P-M12 Photoelectric Sensor

Leuze PRK46C.1/4P-M12 Photoelectric Sensor

The Leuze PRK46C/4P-M12 Photoelectric Sensor is a high-performance photoelectric sensor utilizing the reflection principle for reliable object detection. This sensor provides a guaranteed operating range of 0.1 to 24 meters with the reflector TK(S) 100x100, and can achieve a typical operating range limit of up to 30 meters. Its LED light source (630 nm red) ensures high visibility and accurate performance.

Equipped with a PNP transistor and a light switching principle, this sensor operates with a switching frequency of 500 Hz and a fast response time of 1 ms, making it suitable for high-speed applications. The voltage supply of 10-30 V DC ensures compatibility with various automation systems. The IP67 and IP69K protection ratings guarantee reliability even in harsh environments exposed to dust and water.

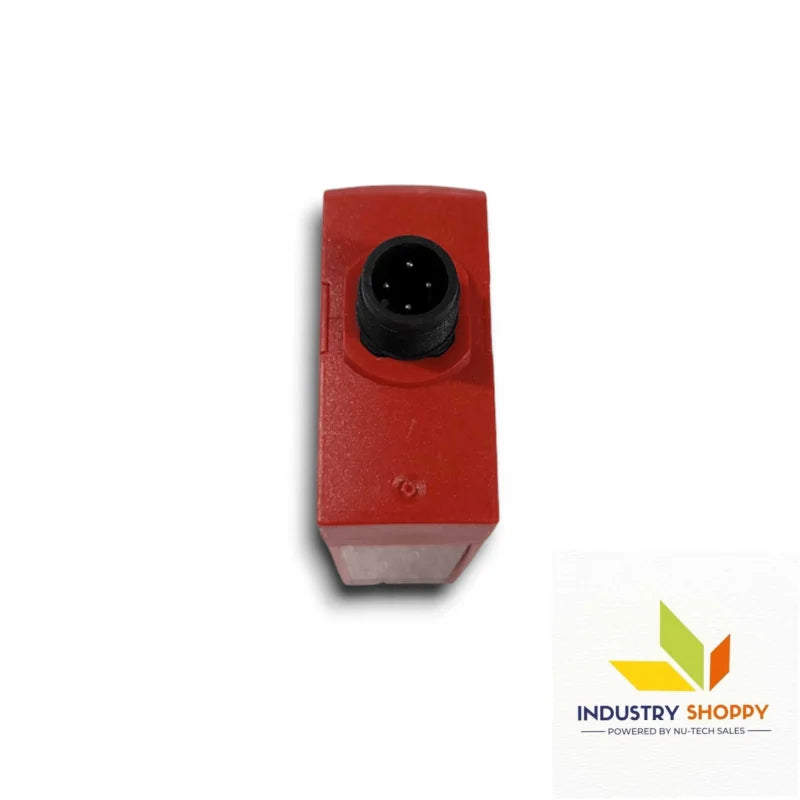

The M12 connector allows for easy integration, and the LED status indicator provides real-time feedback for operational monitoring. With an operating temperature range of -40°C to +60°C and a storage temperature range of -40°C to +70°C, the PRK46C/4P-M12 is built for challenging industrial conditions.

Key features :-

Applications :-

• Industrial Automation: Perfect for object detection and positioning in automated systems.
• Material Handling: Ideal for conveyor belt systems to detect and sort items.
• Packaging Systems: Ensures accurate object detection in packaging and sorting processes.
• Logistics and Warehousing: Applied for precise sorting and tracking of goods in warehouses.
• Security Systems: Used for intrusion detection in security applications.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
