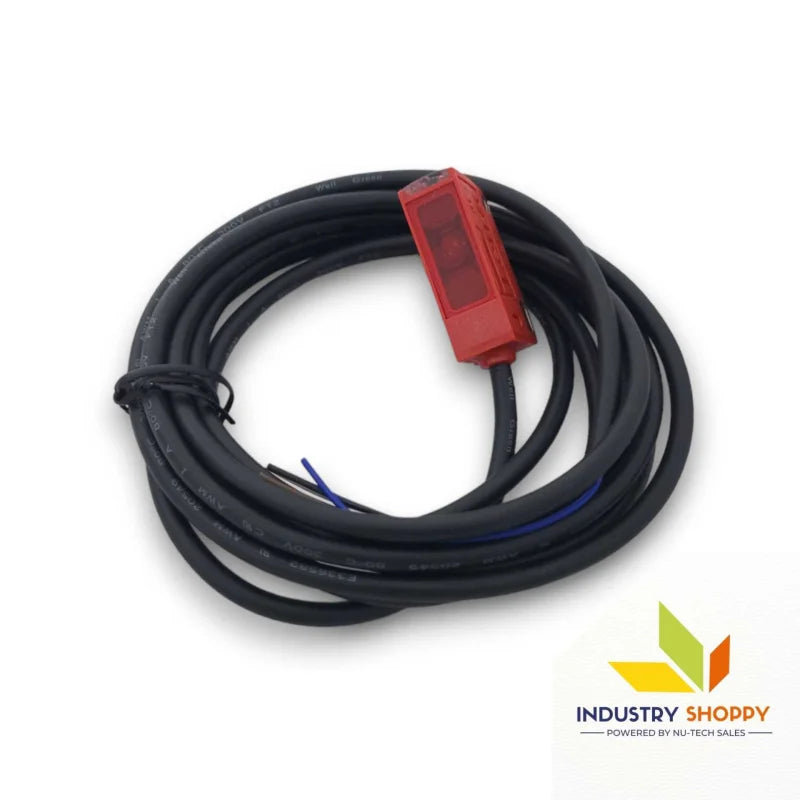

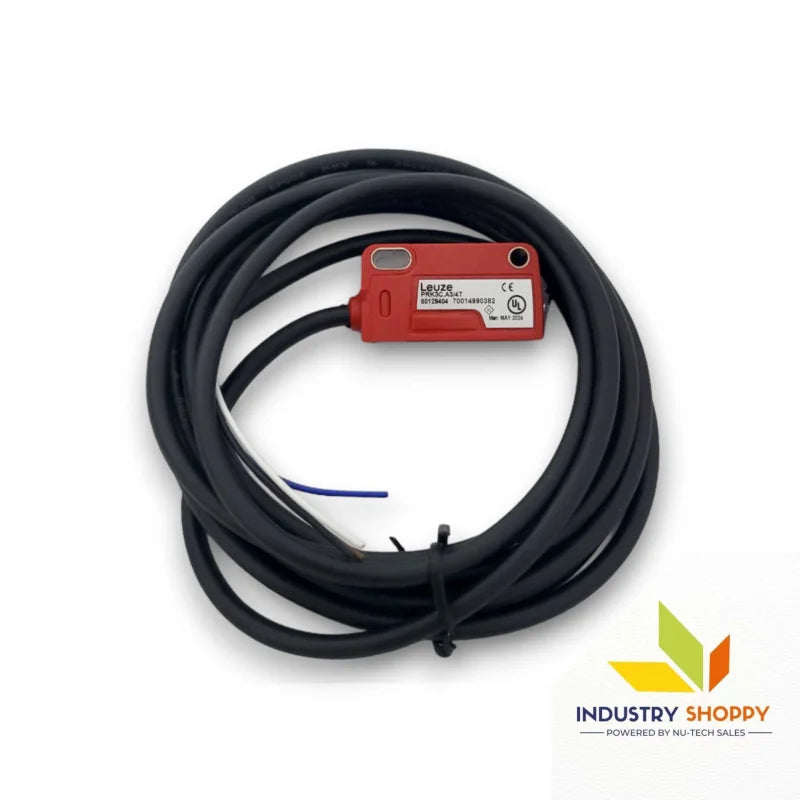

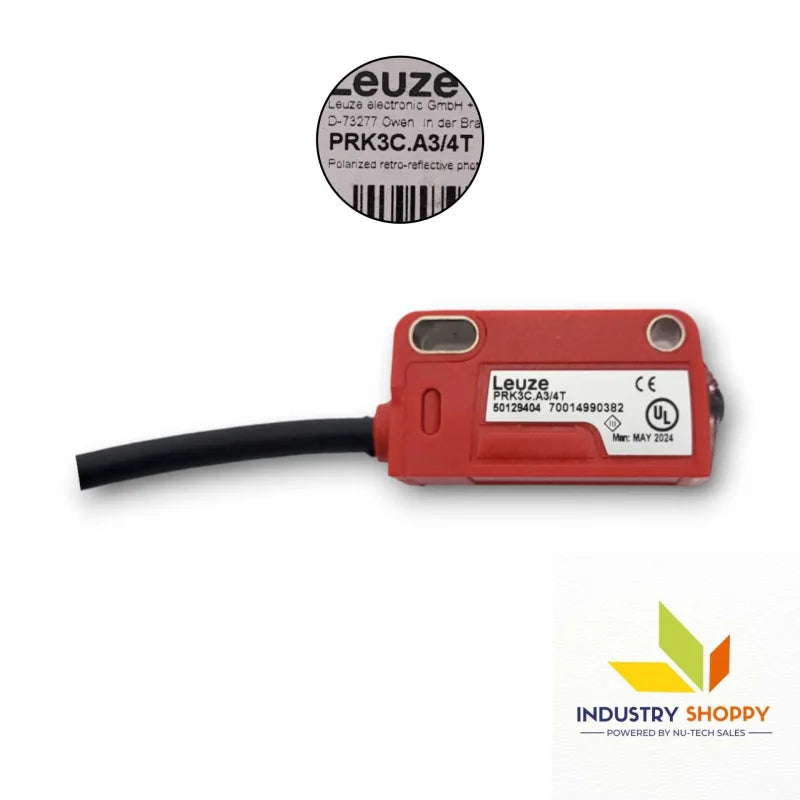

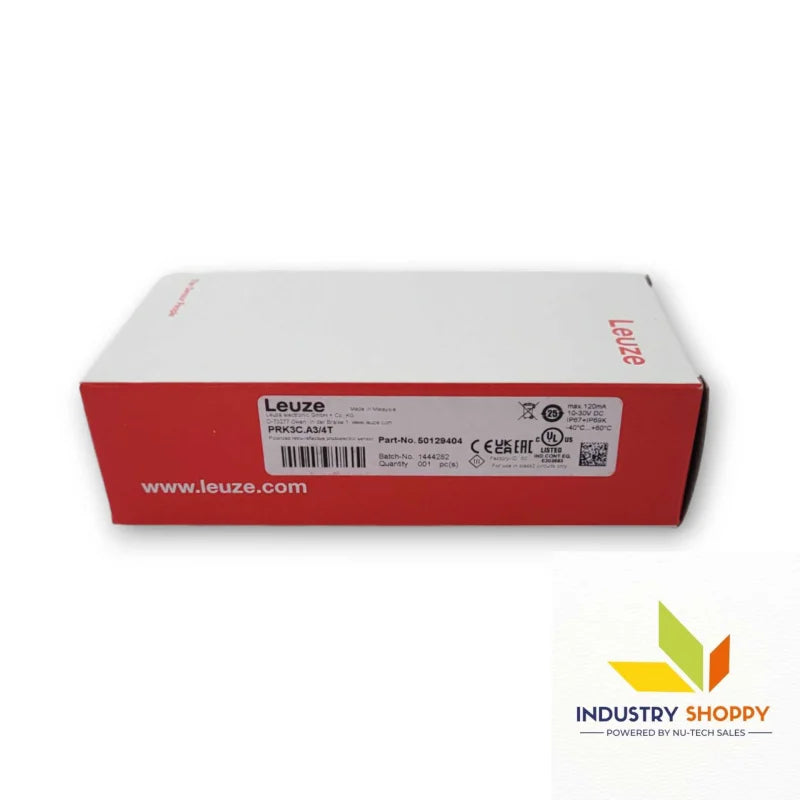

Leuze PRK3C.A3/4T Photoelectric Sensor
Leuze PRK3C.A3/4T Photoelectric Sensor
Leuze PRK3C.A3/4T Photoelectric Sensor
Leuze PRK3C.A3/4T Photoelectric Sensor
Leuze PRK3C.A3/4T Photoelectric Sensor
Leuze PRK3C.A3/4T Photoelectric Sensor
Leuze PRK3C.A3/4T Photoelectric Sensor
Leuze PRK3C.A3/4T Photoelectric Sensor
Leuze

Leuze PRK3C.A3/4T Photoelectric Sensor

Product SKU: NTSSEN00386
Available:
Only 24 items in stock
24 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Leuze
  • Supply Voltage (UB)
:  10 ... 30 V DC, incl. residual ripple
  • Part Number
:  50129404
  • Type
:  Photoelectric Sensor
  • Switching Element
:  Transistor, PNP
  • Type of Connection
:  Cable


Note :- Custom duty and local tax should be pay by buyer only.

$125.00
$235.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Leuze PRK3C.A3/4T Photoelectric Sensor

The Leuze PRK3C.A3/4T Photoelectric Sensor (50129404) from Leuze electronic (Series 3C) operates on the reflection principle with autocollimation for precise object detection. Offering an operating range up to 4 m (5 m typical) with TK(S) 100×100 reflector, it uses a red LED (635 nm) light source for accurate alignment.

The sensor features PNP transistor output, 1,500 Hz switching frequency, and a fast 0.33 ms response time, ensuring high-speed detection. Designed with a rugged PC-ABS housing and IP67/IP69K protection, it withstands harsh industrial and washdown environments.

The PUR cable (2 m) enhances durability and flexibility. With polarity reversal and short-circuit protection, plus Teach input for sensitivity adjustment, it ensures reliable operation. Operating temperature ranges from -40°C to 60°C, making it suitable for demanding automation applications.


Applications

  • Conveyor and material handling systems

  • Packaging and labeling machines

  • Food and beverage processing lines

  • Automated assembly equipment


Technical Precautions

  • Use specified TK(S) 100×100 reflector for full range

  • Operate within 10–30 V DC supply voltage

  • Avoid exceeding 60°C operating temperature

  • Ensure correct PNP wiring configuration



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberPRK3C.A3-4T
Part Number50129404
Series3C
Operating PrincipalReflection principle
Special VersionAutocollimation Teach input
Operating Range0 ... 4 m, With reflector TK(S) 100×100
Operating Range (Guaranteed)Yes
Operating Range Limit (Typical)0 ... 5 m, With reflector TK(S) 100×100
Light SourceLED, Red
Wavelength635 nm
LED GroupExempt group (in accordance with EN 62471)
Protective CircuitPolarity reversal protection; Short circuit protected
Supply Voltage (UB)10 ... 30 V DC, incl. residual ripple
Residual Ripple0 ... 15 %, from UB
Open-circuit Current0 ... 15 mA
Number of Teach Inputs1 Piece(s)
Function (Sensor)Keyboard lockout; Light/dark switching; Sensitivity adjustment
Number of Digital Switching Outputs1 Piece(s)
Switching ElementTransistor, PNP
Switching PrincipleLight switching
Switching Frequency1,500 Hz
Response Time0.33 ms
Readiness Delay300 ms
Additional FunctionSignal IN; Signal OUT; Voltage supply
Type of ConnectionCable
Cable Length2,000 mm
Sheathing MaterialPUR
Cable ColorBlack
Number of Conductors4-wire
Wire Cross Section0.2 mm²
Dimension (W × H × L)11.4 × 34.2 × 18.3 mm
Housing MaterialPlastic
Plastic HousingPC-ABS
Lens Cover MaterialPlastic / PMMA
Net Weight50 g
Housing ColorRed
Type of FasteningThrough-hole mounting; via optional mounting device
Compatibility of MaterialsECOLAB
Type of DisplayLED
Operational ControlsTeach button
Function of Operational ControlSensitivity adjustment
Ambient Temperature, Operation-40 ... 60 °C
Ambient Temperature, Storage-40 ... 70 °C
Degree of ProtectionIP67; IP69K
Protection ClassIII
Approvalsc UL US
Standards AppliedIEC 60947-5-2
Country of OriginMalaysia
