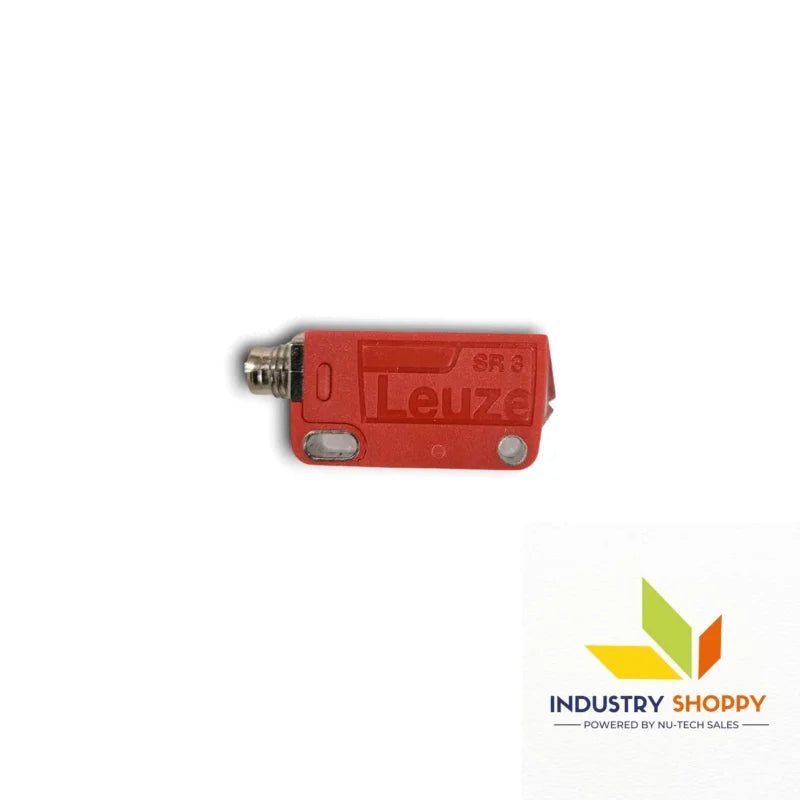

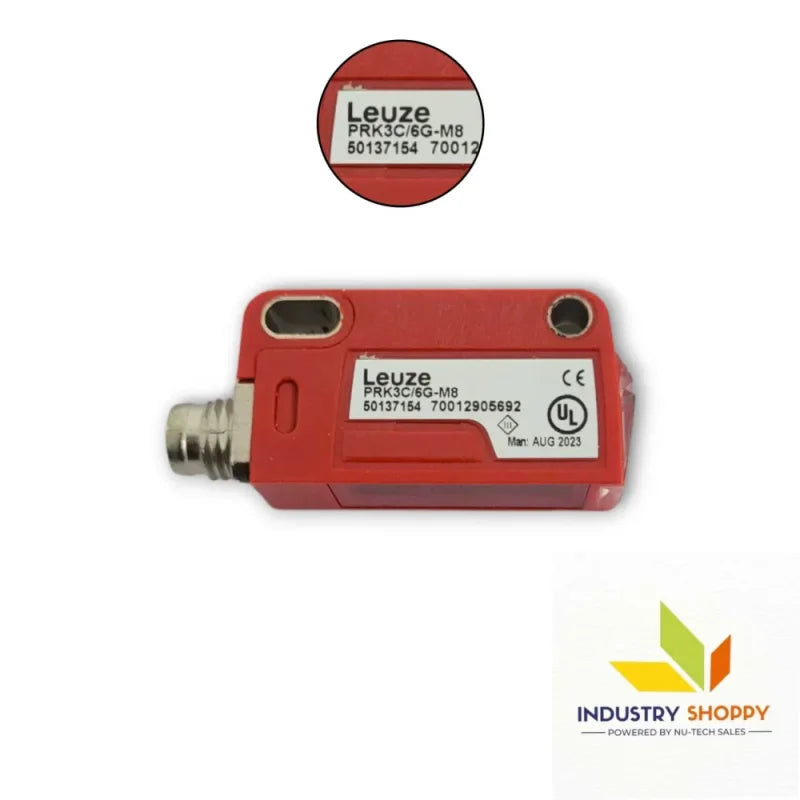

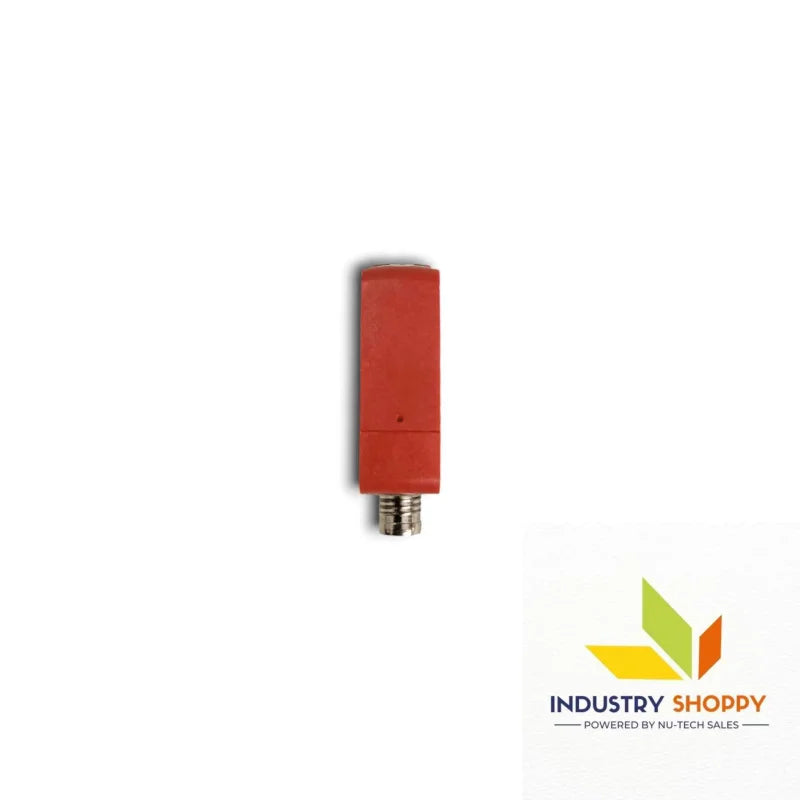

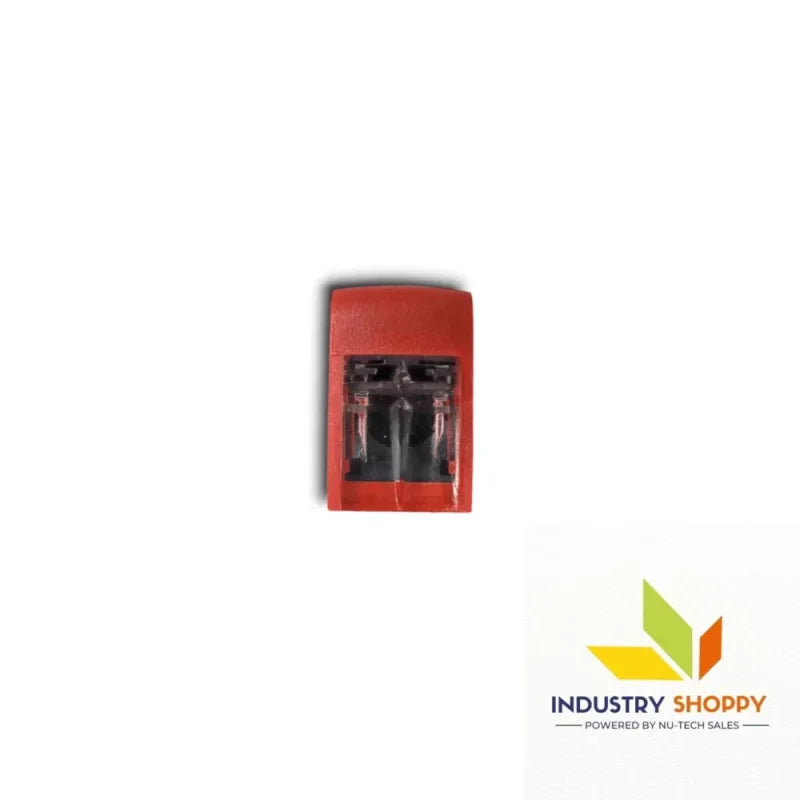

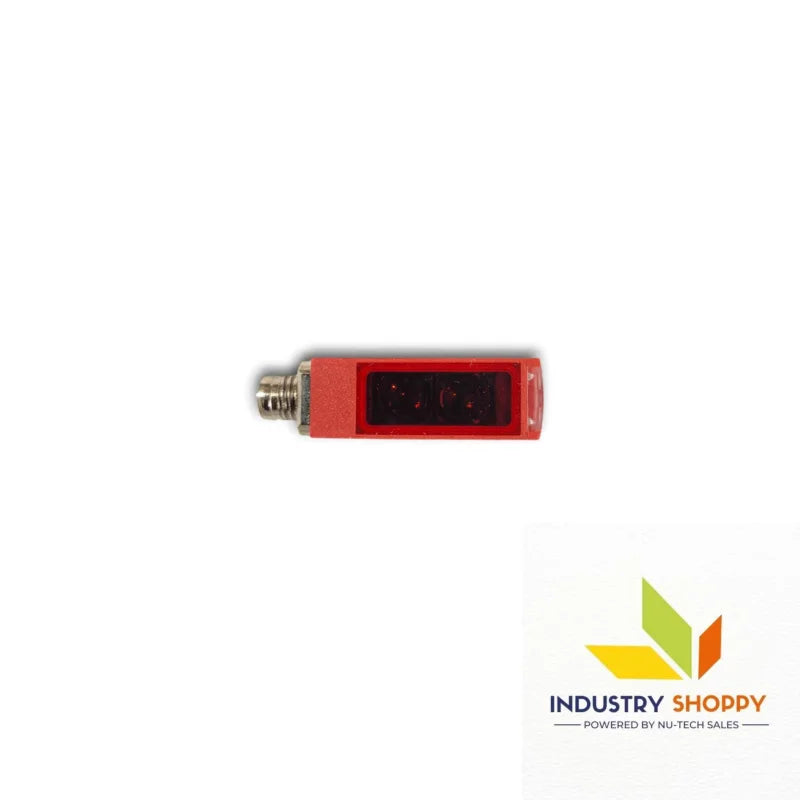

Leuze PRK3C/6G-M8 Photoelectric Sensor

Leuze PRK3C/6G-M8 Photoelectric Sensor

The Leuze PRK3C/6G-M8 Photoelectric Sensor is a highly reliable photoelectric sensor that uses the reflection principle for precise detection over a wide range. It offers a guaranteed operating range from 0.1 to 5 meters with the TK(S) 100x100 reflector, and a typical operating range limit of up to 6 meters. This sensor utilizes a red LED light source (633 nm), ensuring clear detection with excellent performance in various applications.

The Leuze PRK3C/6G-M8 Photoelectric Sensor is equipped with a push-pull transistor and provides light switching (PNP) or dark switching (NPN) options, making it adaptable for various system requirements. The switching frequency is 1,500 Hz, with a response time of 0.33 ms, which ensures fast and accurate detection in high-speed environments. With a voltage supply range of 10-30 V DC, it integrates easily with automation systems.

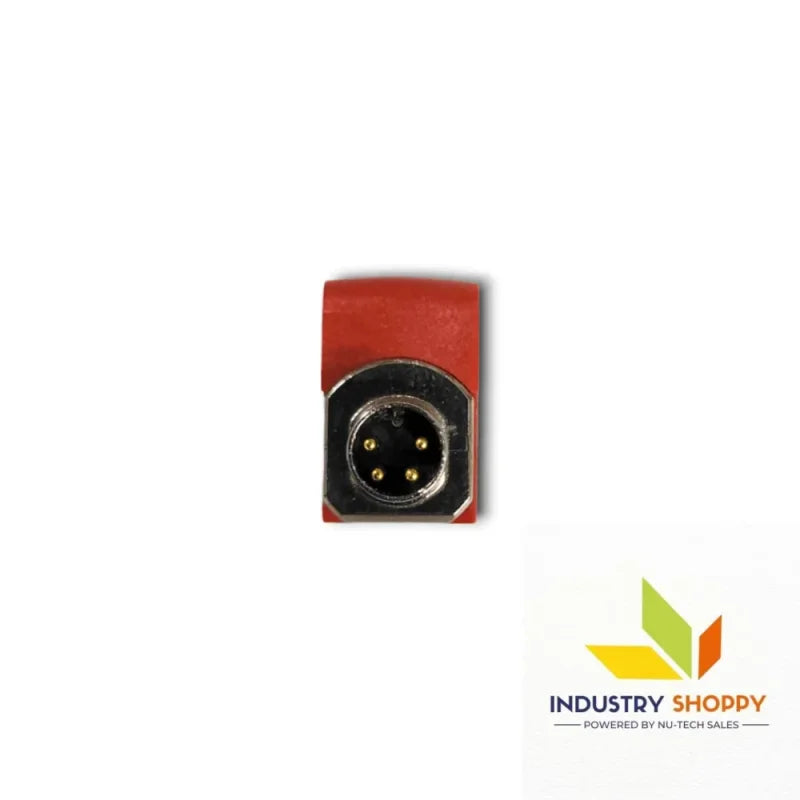

Designed for industrial environments, the PRK3C features an M8 male connector, IP67 and IP69K protection ratings, making it robust against dust, water, and high-pressure washing. The sensor operates in a wide temperature range of -40°C to +60°C, ensuring its durability in extreme conditions. Additionally, it offers a Teach button for easy sensitivity adjustment, allowing users to fine-tune the sensor for different detection needs.

Key features :-

Applications :-

• Industrial Automation: Ideal for object detection and position monitoring in automated production systems.
• Material Handling: Used in conveyor systems to detect items and ensure smooth operation.
• Packaging Systems: Provides reliable detection in packaging and sorting applications.
• Logistics and Warehousing: Facilitates efficient sorting and tracking of goods in warehouses.
• Security Systems: Effective for detecting irregularities or unauthorized entries in security applications.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
