Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor
Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor
Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor
Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor
Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor
Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor
Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor
Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor
Leuze

Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor

Product SKU: NTSSEN00818
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand
:  Leuze
  • Supply Voltage (UB)
:  10 ... 30 V, DC, Incl. residual ripple
  • Part Number
:  50137284
  • Type
:  Photoelectric Sensor
  • Switching Element
:  Transistor, PNP
  • Type of Connection
:  Cable with connector


Note :- Custom duty and local tax should be pay by buyer only.

$240.00
$385.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

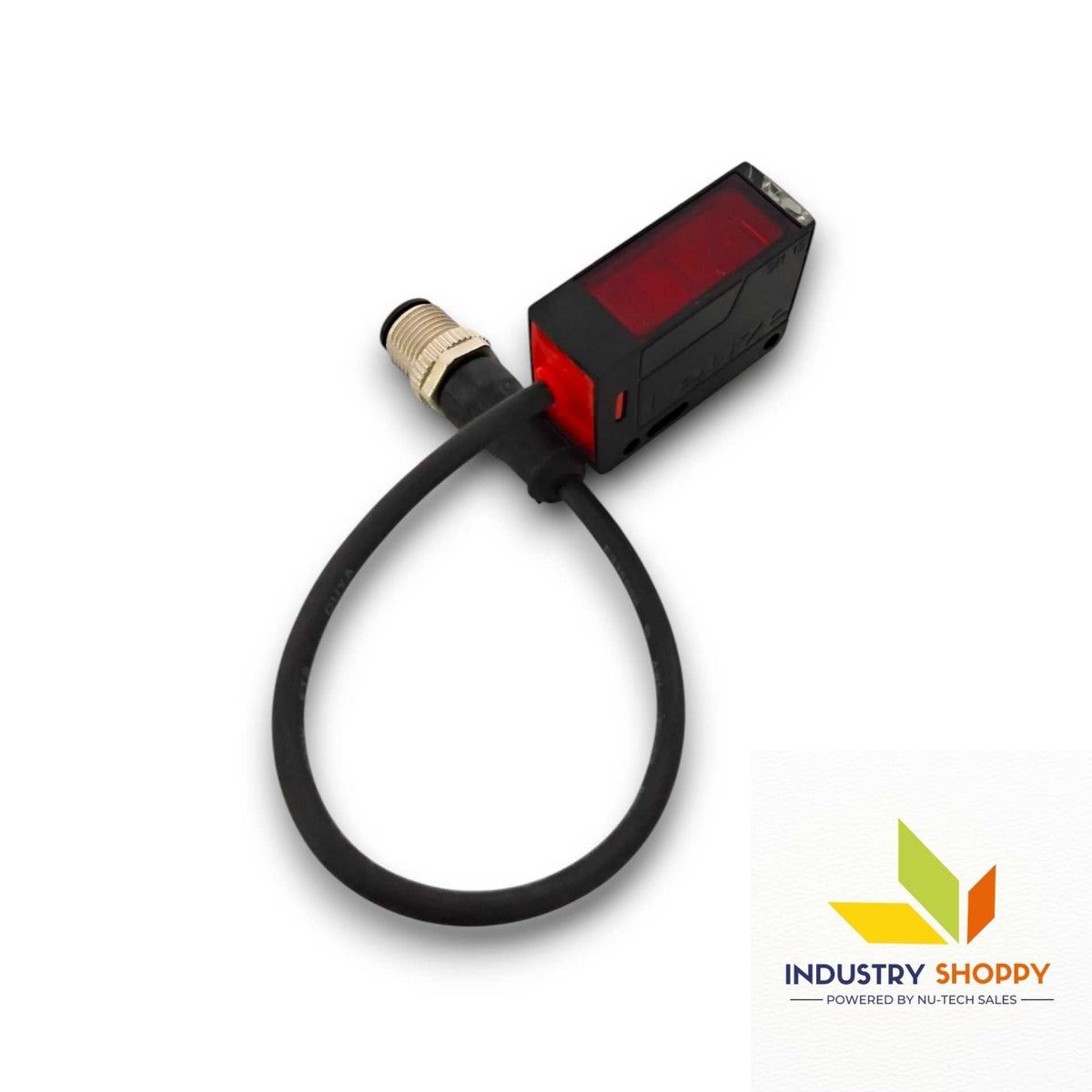

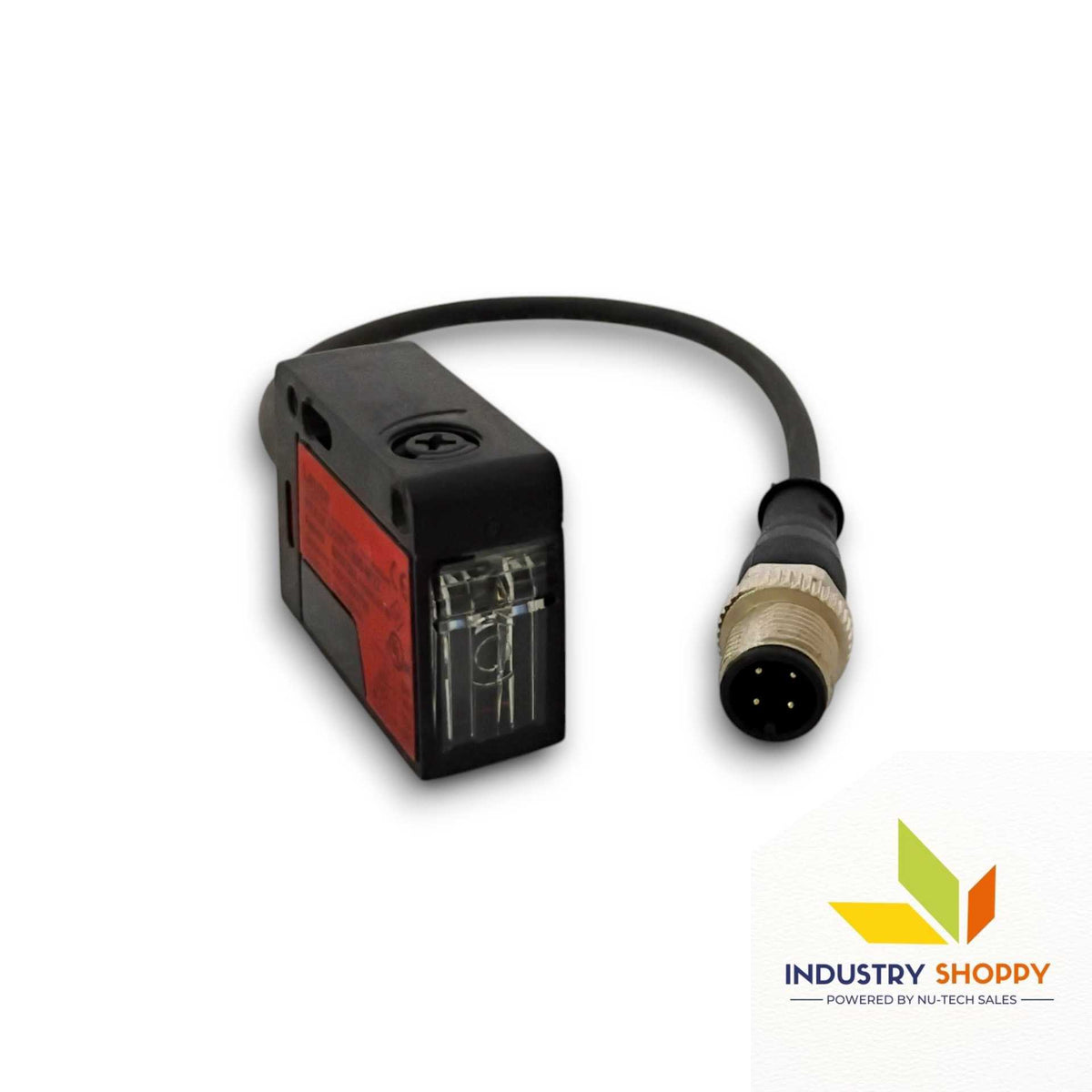

Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor

The Leuze PRK15.D1/PX-200-M12 Photoelectric Sensor (50137284) from Leuze electronic (Series 3C) is a high-performance retro-reflective sensor designed for reliable detection of stretch-wrapped and transparent objects in industrial environments.

Operating on the reflection principle with a reflector, it offers a long sensing range of up to 6 meters (guaranteed) and up to 8 meters typical range, ensuring consistent performance over extended distances. Equipped with a PNP output and dark switching mode, it delivers stable detection with a fast 1 ms response time.

The integrated M12 4-pin connector with 200 mm cable allows quick installation and secure connectivity. Built with a durable ABS housing and IP67 protection, it withstands dust, moisture, and harsh operating conditions. The 270° potentiometer enables precise sensitivity adjustment for optimized performance.


Applications

  • Detection of stretch-wrapped and transparent objects

  • Packaging and palletizing systems

  • Conveyor and logistics automation

  • Long-range object detection in warehouses


Technical Precautions

  • Detection of stretch-wrapped and transparent objects

  • Packaging and palletizing systems

  • Conveyor and logistics automation

  • Long-range object detection in warehouses



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandLEUZE
Product NumberPRK15.D1/PX-200-M12
Part Number50137284

Series

15
Operating principalReflection principle
ApplicationDetection of stretch-wrapped objects

Operating range

0.07 ... 6 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit0.05 ... 8 m (typical operating range), With reflector TK(S) 100x100
Light sourceLED, Red
Wavelength640 nm
Transmitted-signal shapePulsed
LED groupExempt group (in acc. with EN 62471)

Supply voltage UB

10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 20 mA

Number of digital switching outputs

1 Piece(s)

Type

Digital switching output

Switching element

Transistor, PNP
Switching principleDark switching

Switching frequency

500 Hz
Response time1 ms
Readiness delay300 ms

Number of connections

1 Piece(s)

Function

Signal OUT Voltage supply
Type of connectionCable with connector
Cable length200 mm
Sheathing materialPUR
Cable colorBlack
Wire cross section0.14 mm²
Thread sizeM12
TypeMale
MaterialPlastic
No. of pins4 -pin
EncodingA-coded

Dimension (W x H x L)

15 mm x 42.7 mm x 30 mm
Housing materialPlastic
Plastic housingABS
Lens cover materialPlastic
Housing colorBlack
Type of fasteningThrough-hole mounting Via optional mounting device
Recommended tightening torque for M3 fastening0.9 N·m
Recommended tightening torque for M4 fastening1.4 N·m

Type of display

LED
Number of LEDs2 Piece(s)
Operational controls270° potentiometer
Function of the operational controlSensitivity adjustment

Ambient temperature, operation

-40 ... 60 °C
Ambient temperature, storage-40 ... 70 °C

Degree of protection

IP 67
Protection classIII
Approvalsc UL US
Standards appliedIEC 60947-5-2
Country of originChina
