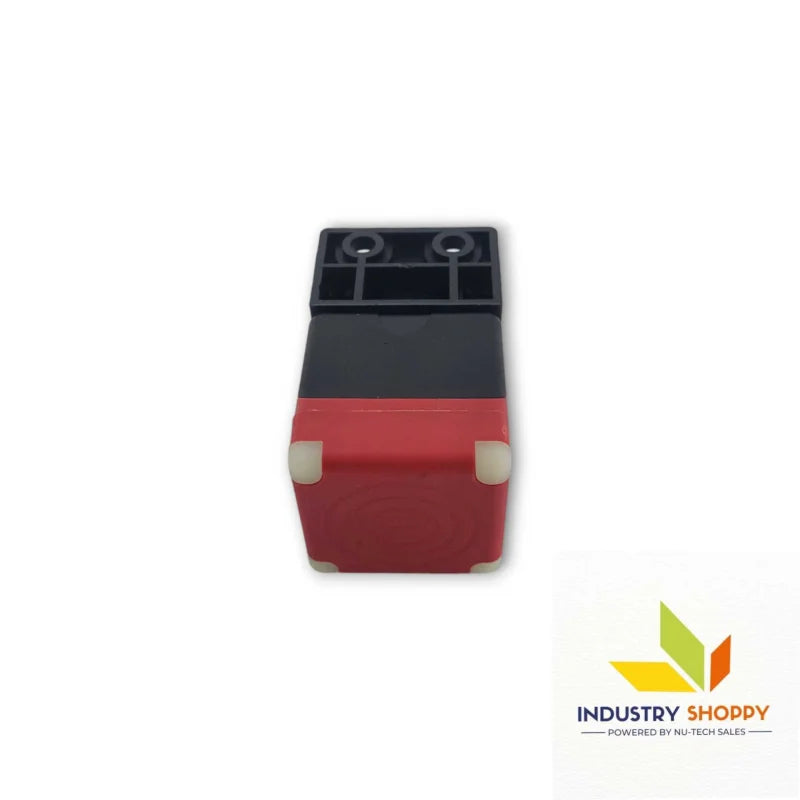

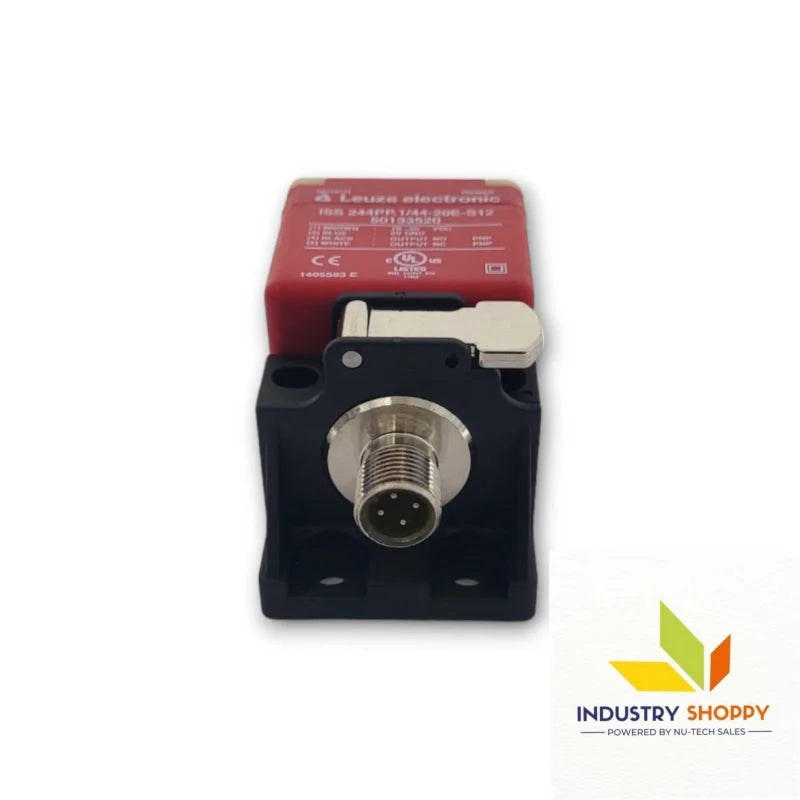

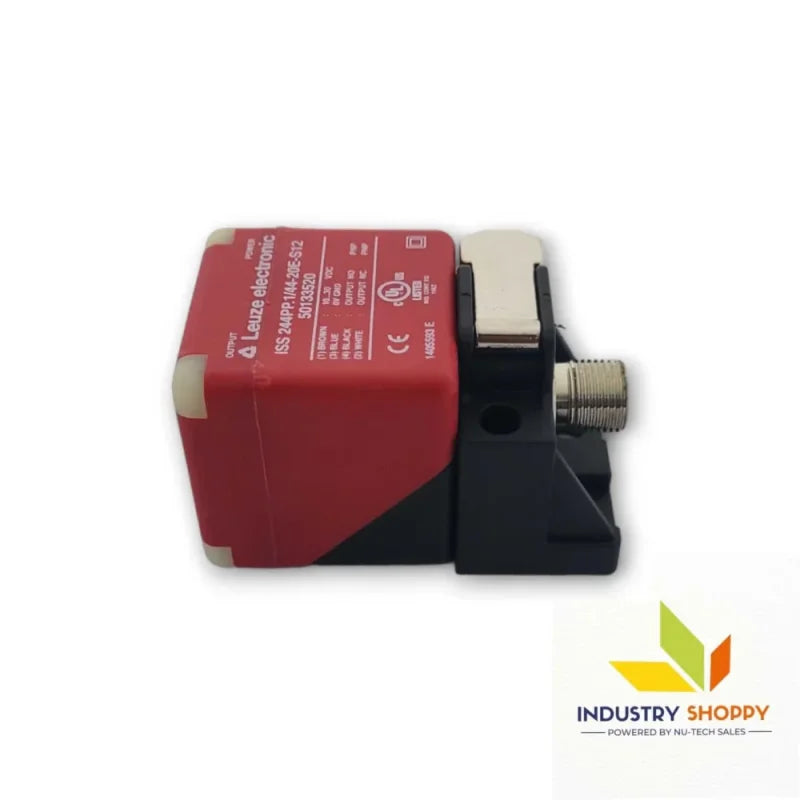

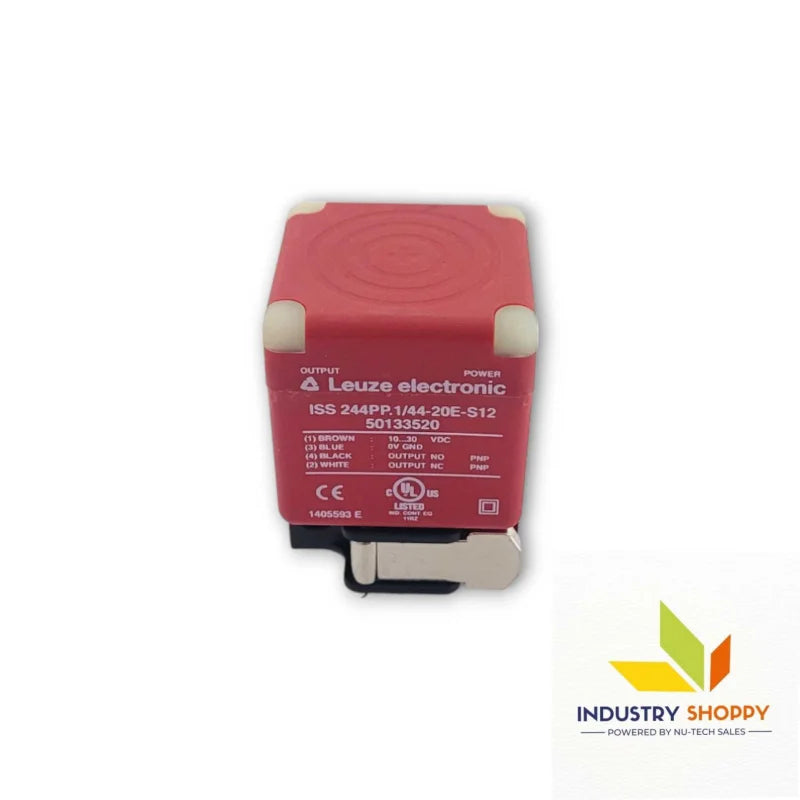

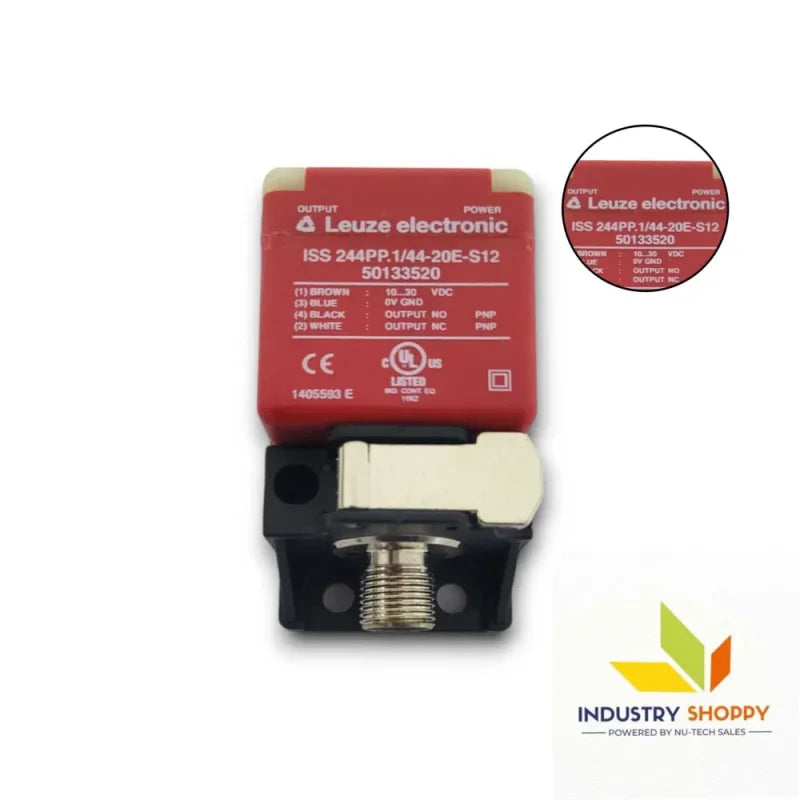

Leuze ISS244PP.1-44-20E-S12 Inductive Switch

Leuze ISS244PP.1-44-20E-S12 Inductive Switch

The Leuze ISS244PP.1-44-20E-S12 Inductive Switch is a high-performance sensor designed for precise position detection in various industrial applications. With an operating range limit of 20 mm and an operating range of 0 ... 16.2 mm, this switch offers high repeatability and reliability in critical environments. It operates with a supply voltage of 10 ... 30 V DC, with a maximum switching current of 200 mA and a residual current of just 0.01 mA, ensuring energy efficiency.

This sensor is equipped with a PNP transistor switching element, with a NO/NC contact antivalent switching principle, allowing it to switch with high precision. The unit's housing is made from plastic (PA 66), while the sensing face is crafted from durable polyamide (PA 66), offering a robust, cubic design ideal for embedded installations. With IP protection, LED display, and a temperature tolerance of -25 ... 85°C, it guarantees reliable operation in harsh conditions.

Key features :-

Applications :-

• Machine Automation & Position Sensing
  Detects metal parts or components accurately in conveyor, stamping, or CNC machinery setups.
• Compact Device Integration
  Its slim M8 body enables installation in densely packed control panels and robotic arms.
• High-Speed Part Counting & Detection
  With a 3,000 Hz switching frequency, it is perfect for tracking fast-moving metal parts.
• Embedded Installations in Industrial Equipment
  Designed for flush mounting in metal fixtures, maintaining accuracy and reliability under tough conditions.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
