Leuze ISS212MM/4NO-4E0-S12 Inductive Switch

Leuze ISS212MM/4NO-4E0-S12 Inductive Switch

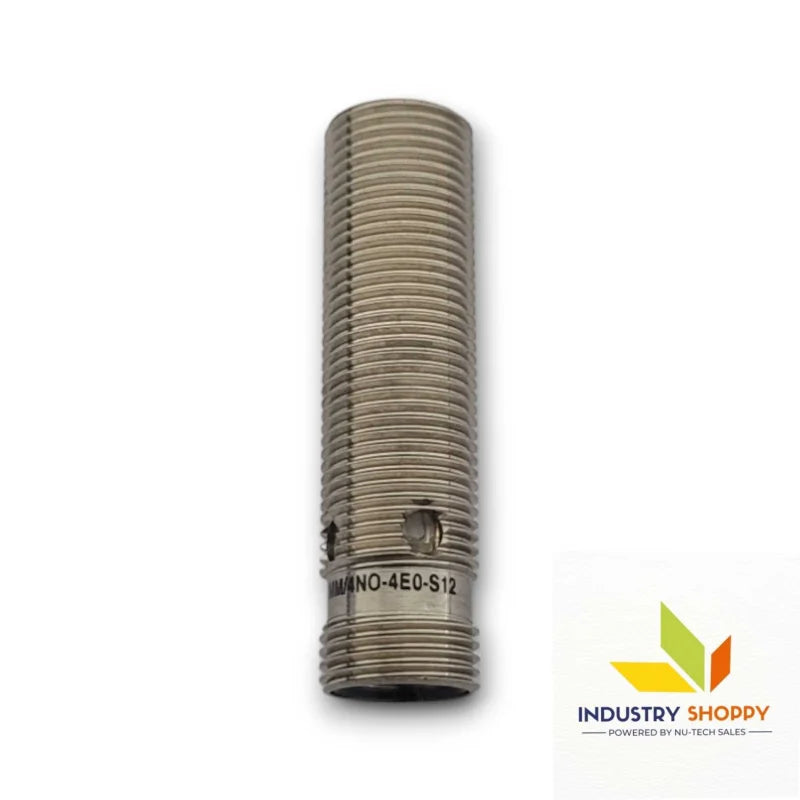

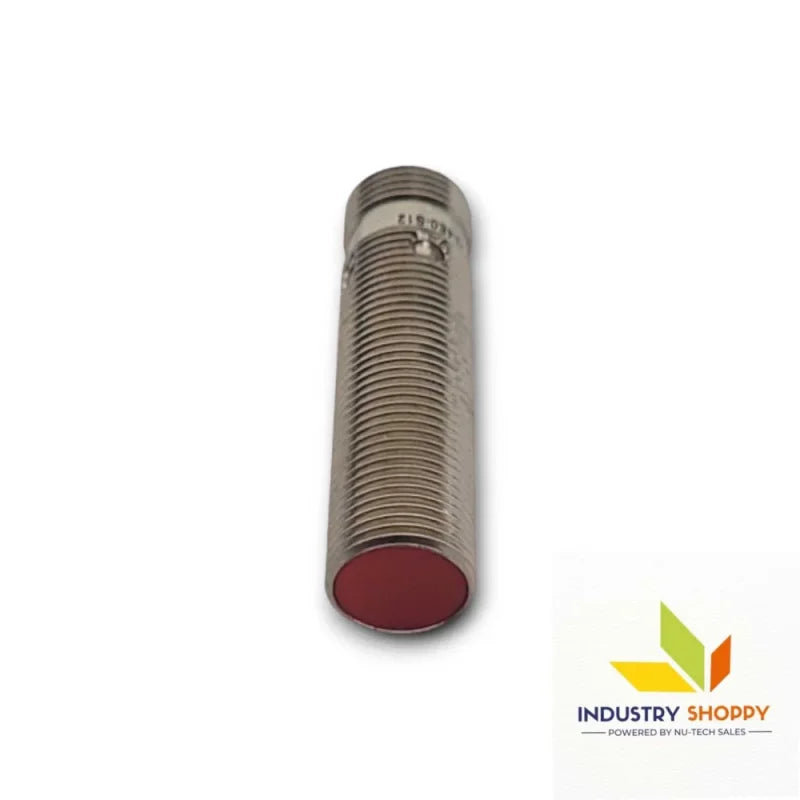

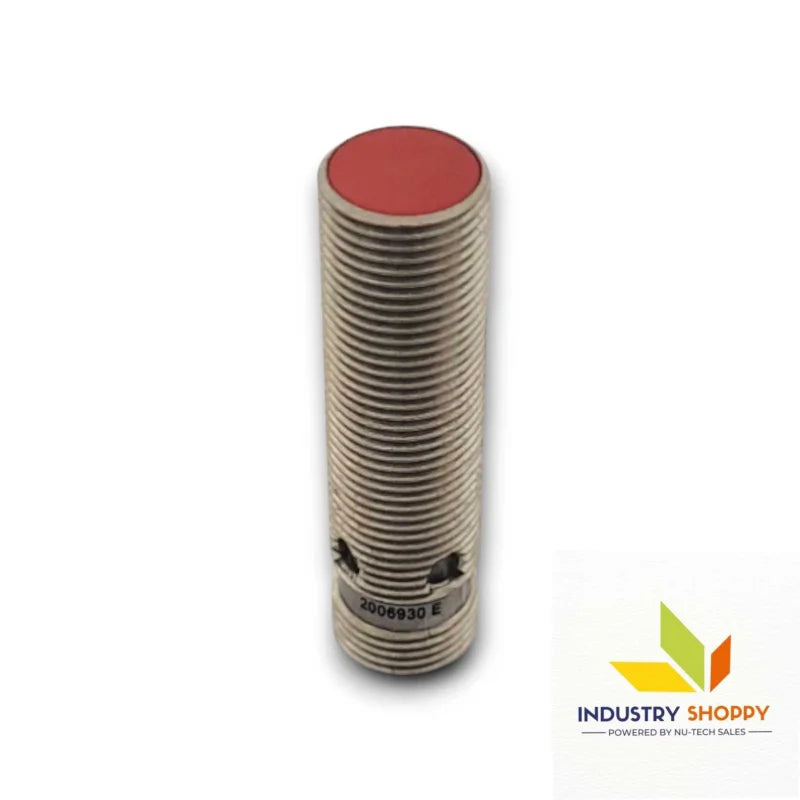

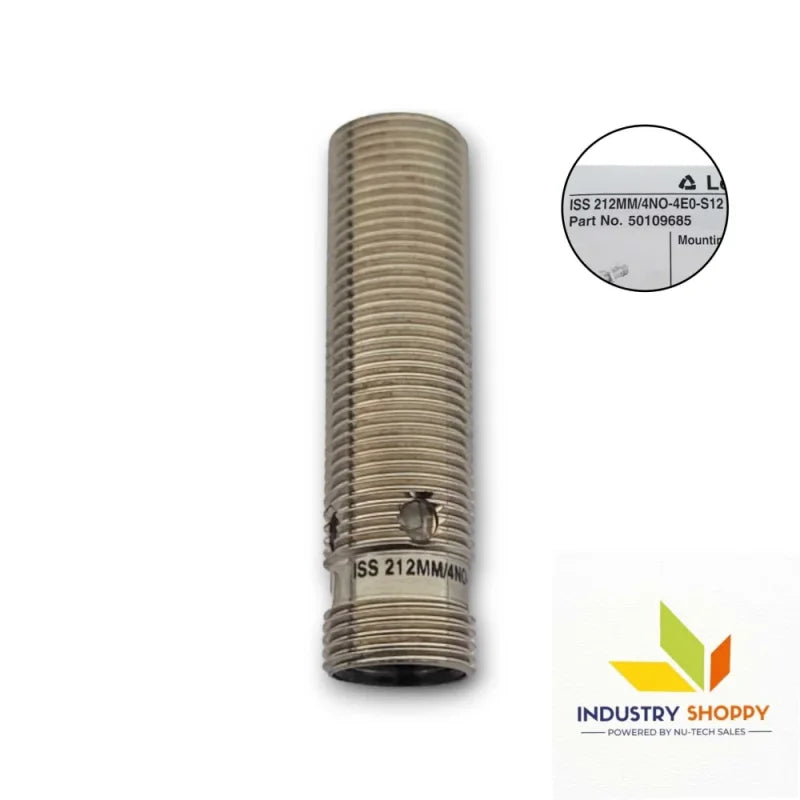

The Leuze ISS212MM/4NO-4E0-S12 is a compact, cylindrical inductive proximity sensor designed for non-contact metal detection in automation environments. With a 4 mm typical sensing range and PNP normally open (NO) switching output, it delivers high reliability and fast response at 2,500 Hz switching frequency. The M12 threaded metal housing ensures solid mounting and long service life in harsh industrial conditions, aided by its IP67 protection rating.

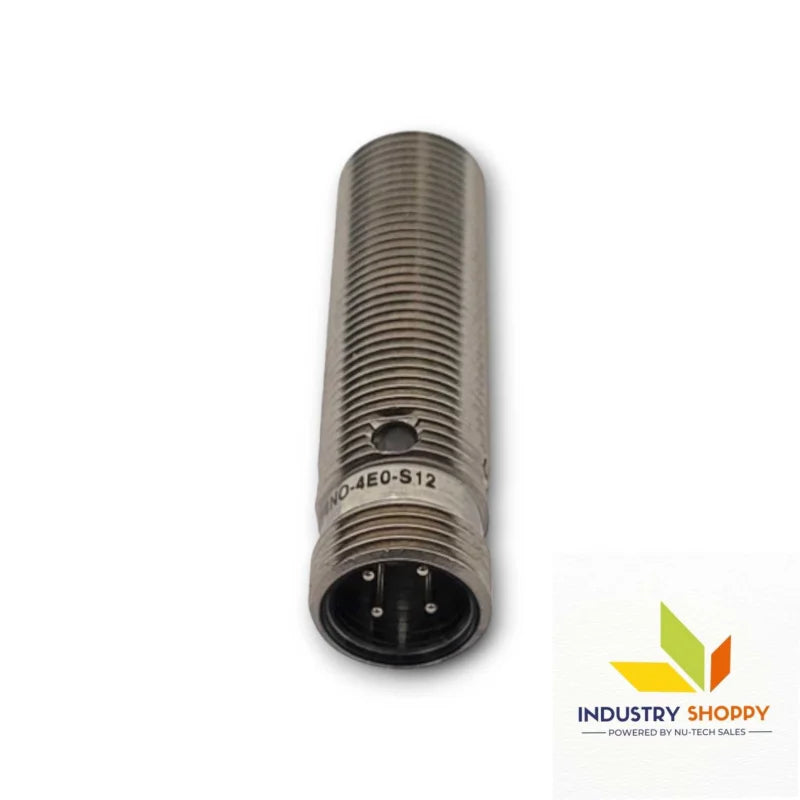

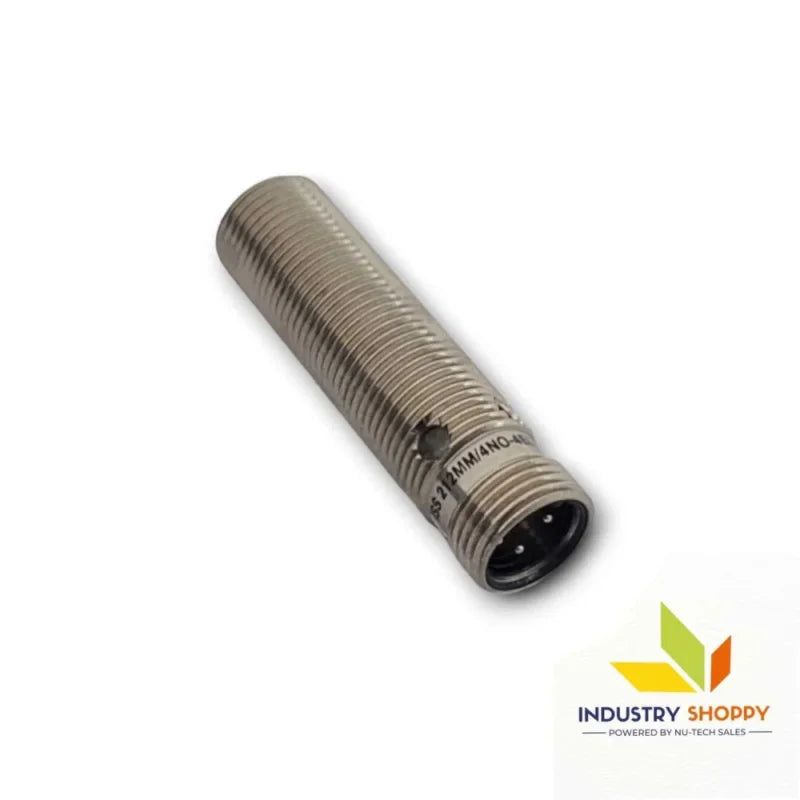

Its low temperature drift (10%) and tight repeatability (5%) ensure dependable operation across varying environments. The sensor connects via a 4-pin M12 A-coded male connector, offering seamless integration with standard control systems.

Key features :-

Applications :-

• Robotics and Automation Cells
  Enables detection of metal objects during pick-and-place or robotic positioning operations to maintain workflow accuracy.
• Factory Conveyors and Sorters
  Identifies presence or absence of metal parts on conveyor belts to trigger downstream automation actions.
• Packaging and Filling Machines
  Used to confirm the presence of metal components in packaging lines, ensuring precise filling and packing.
• Compact Machinery
  Ideal for applications with limited space where precise metal detection is required in tight machine compartments.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
