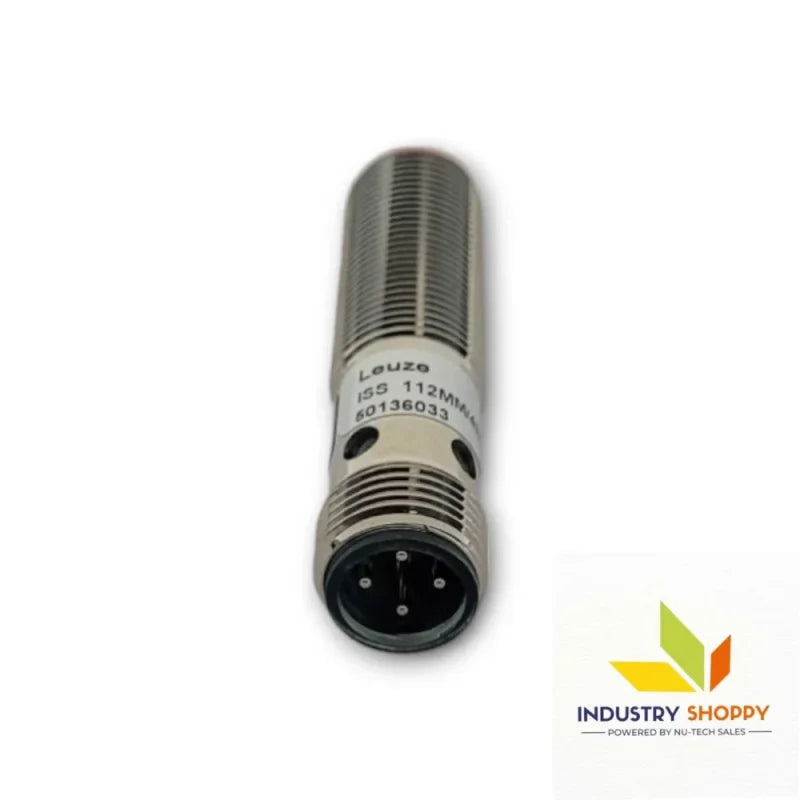

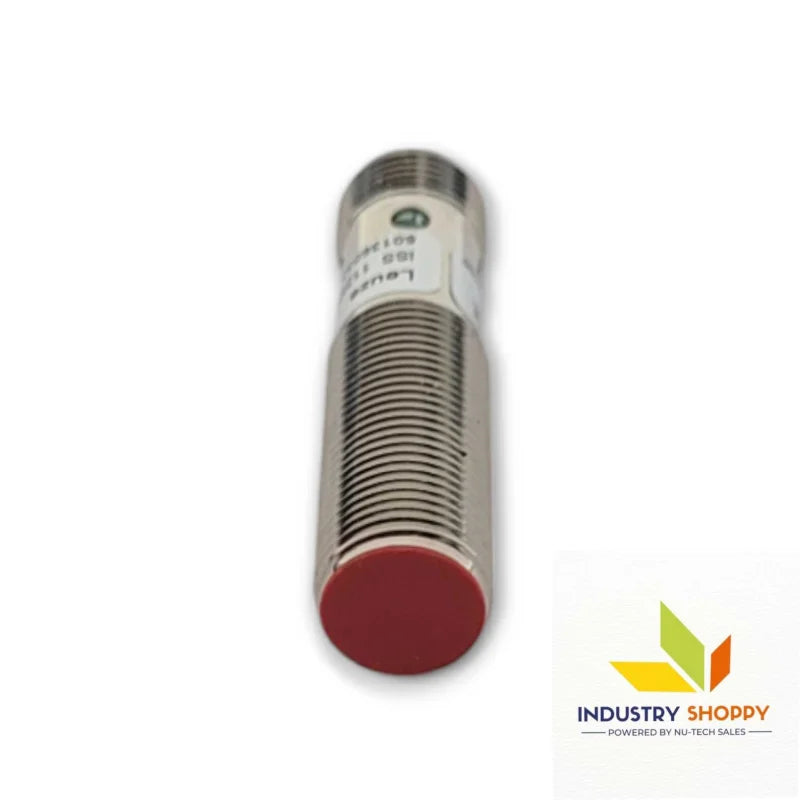

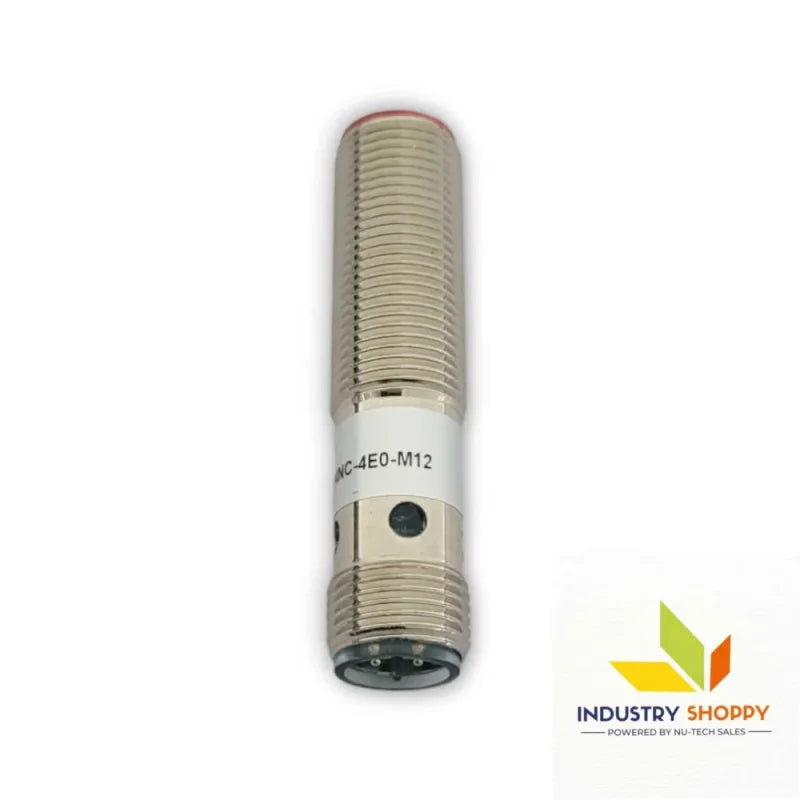

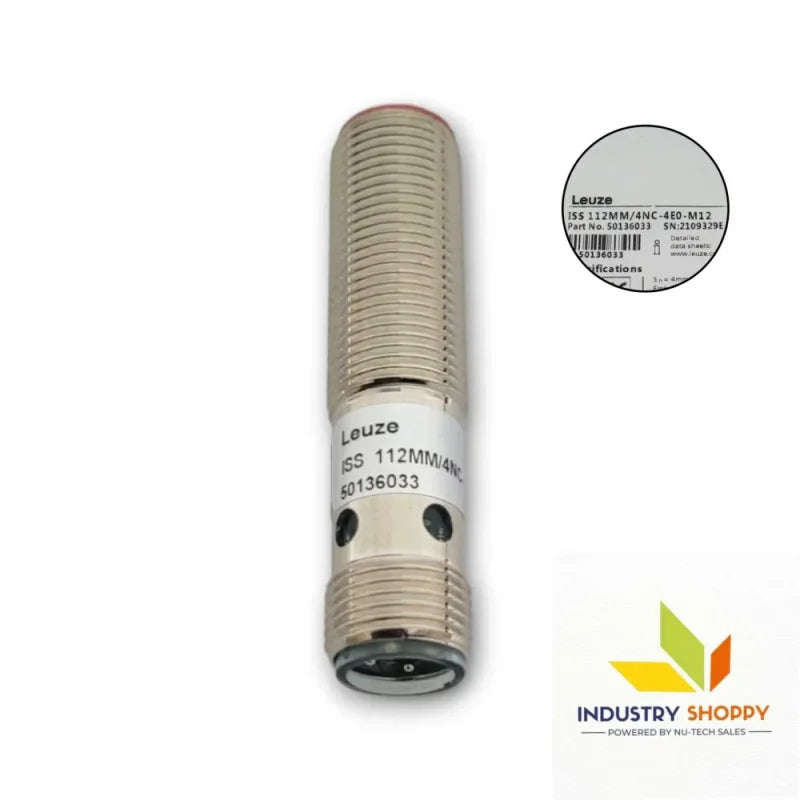

Leuze ISS112MM/4NC-4E0-M12 Inductive Switch

Leuze ISS112MM/4NC-4E0-M12 Inductive Switch

The Leuze ISS112MM/4NC-4E0-M12 Inductive Switch is designed for efficient and precise metal detection in industrial settings. Featuring a 4mm operating range and normally closed (NC) switching principle, this sensor is well-suited for a variety of automated processes. It offers a PNP transistor output, ensuring smooth integration into DC-powered systems with voltages ranging from 10-30 V DC.

With a switching frequency of 3,000 Hz, the ISS112MM/4NC-4E0-M12 ensures rapid response times, making it ideal for high-speed operations. The sensor’s nickel-plated brass housing and IP 67 protection class provide robust durability, protecting it from both dust and water in harsh industrial environments. The plastic sensing face material (Polybutylene - PBT) contributes to the sensor’s long lifespan and reliability. Additionally, it boasts an operating temperature range of -25°C to 70°C, ensuring performance across various temperature conditions. The M12 connector simplifies installation, ensuring easy setup and maintenance in industrial machinery.

Key features :-

Applications :-

• Automated Manufacturing Systems: Ideal for reliable metal detection in fast-paced assembly lines.
• Conveyor Systems: Detects metal objects to trigger automatic sorting or halting actions.
• Robotic Systems: Provides metal object detection for robotic arms in automated handling processes.
• Packaging Machines: Ensures precise metal detection in packaging machinery to prevent errors.
• Metal Sorting Systems: Efficiently sorts metallic parts by detecting and signaling their presence.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
