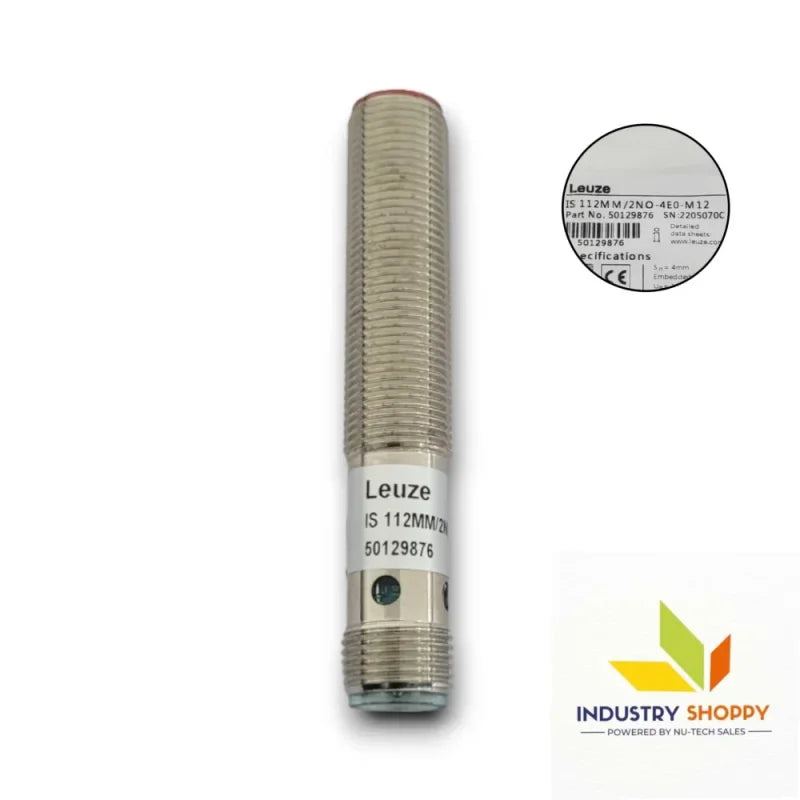

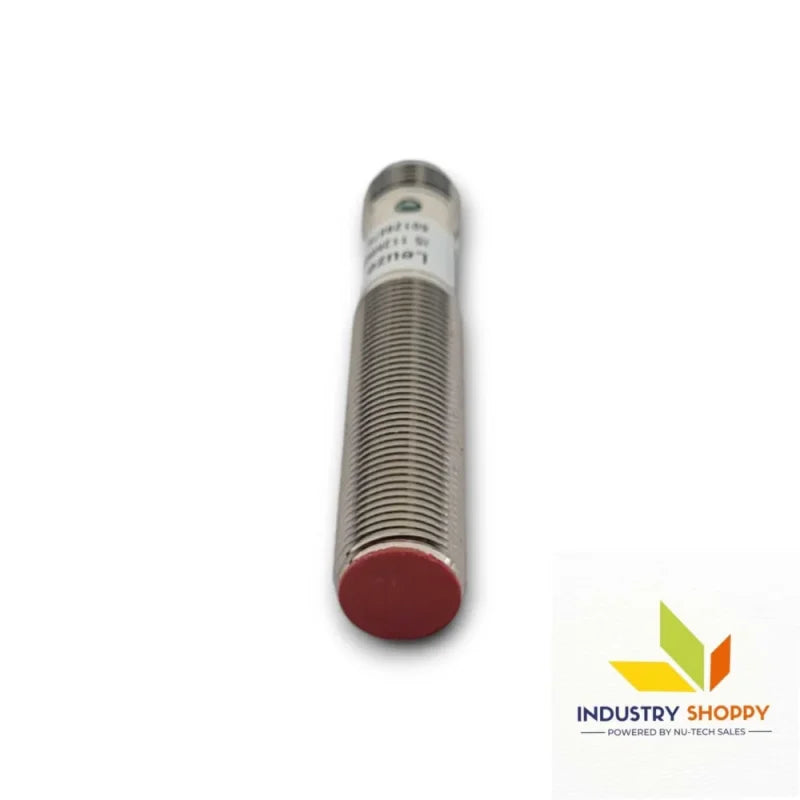

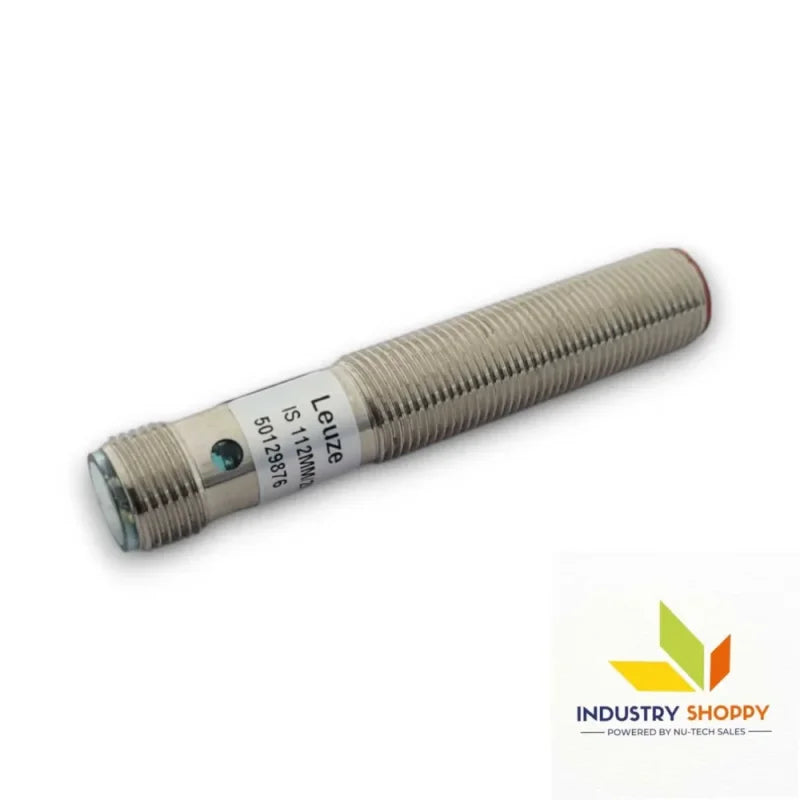

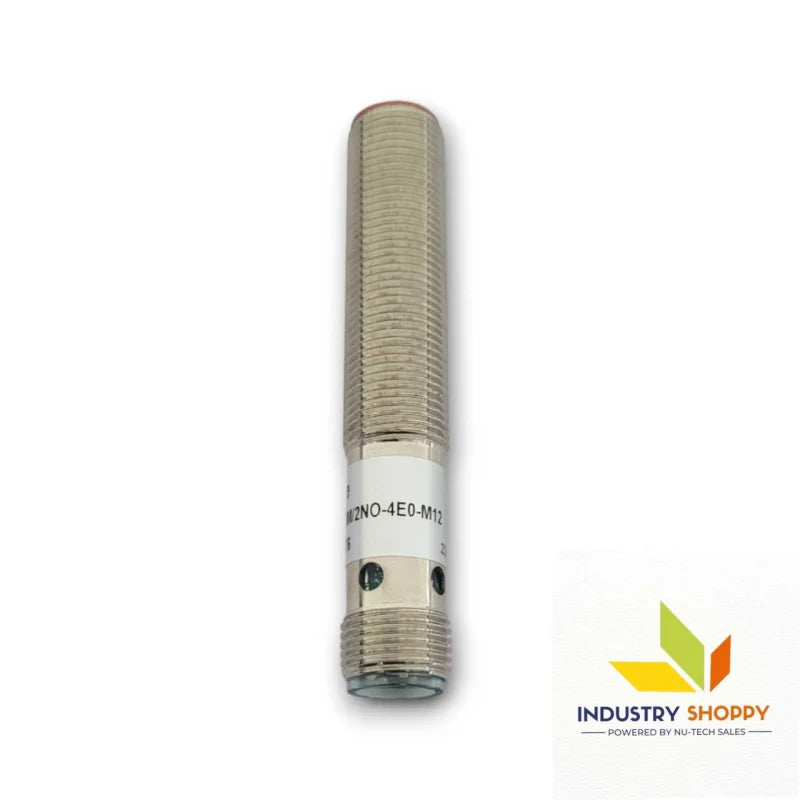

Leuze IS112MM/2NO-4E0-M12 Inductive Switch

Leuze IS112MM/2NO-4E0-M12 Inductive Switch

The Leuze IS112MM/2NO-4E0-M12 Inductive Switch is designed for precise metal object detection in demanding industrial environments. With a 4mm operating range and normally open (NO) switching principle, this sensor offers a PNP transistor output for reliable signaling. It has a switching frequency of 3,000 Hz, ensuring rapid and accurate detection in high-speed applications.

Built with a nickel-plated brass housing and a polybutylene (PBT) sensing face, this switch is durable, resistant to corrosion, and ideal for use in harsh conditions. The IP67 protection ensures that the sensor remains dust-tight and can withstand water immersion, making it perfect for outdoor or wash-down applications.

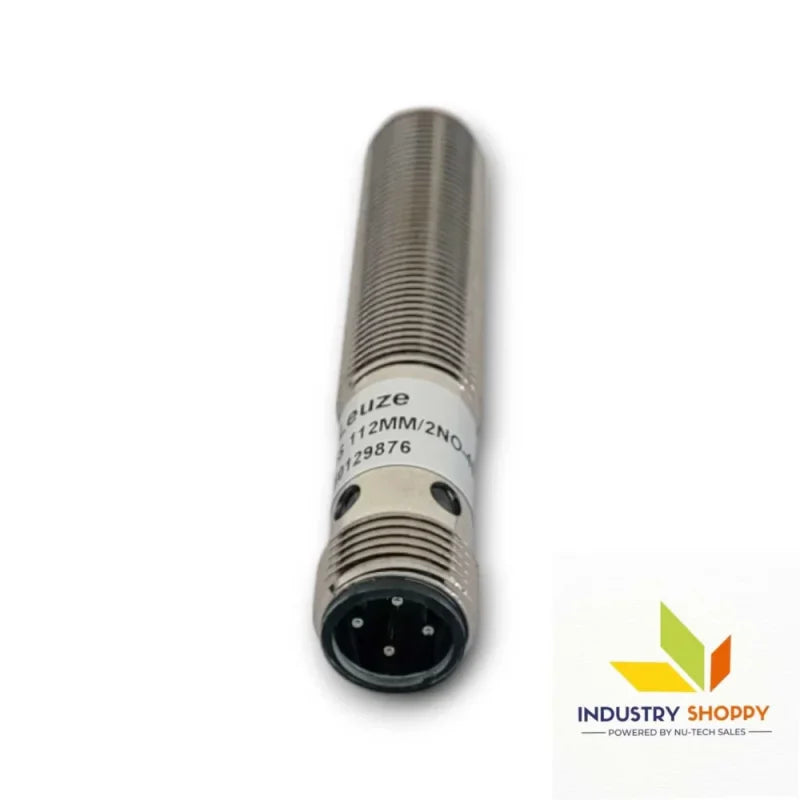

The M12 x 1 mm threaded design and 4-pin A-coded connector ensure secure installation and reliable electrical connections. With an operating temperature range of -25°C to 70°C, it is well-suited for a variety of environments. This sensor is ideal for automated systems, material handling, and industrial machinery where precise metal detection is required.

Key features :-

Applications :-

• Automation Systems: Detects metal objects in automated processes for quality control and sorting.
• Material Handling: Suitable for conveyor systems to track and position parts.
• Industrial Machinery: Used in machinery for metal detection and safety functions.
• Conveyor Belts: Provides accurate metal detection in conveyor systems for product tracking.
• Robotics: Ideal for robotic systems to detect metal objects in automated workflows.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
