Leuze HT3C/4P-M8 Diffuse sensor

Leuze HT3C/4P-M8 Diffuse sensor

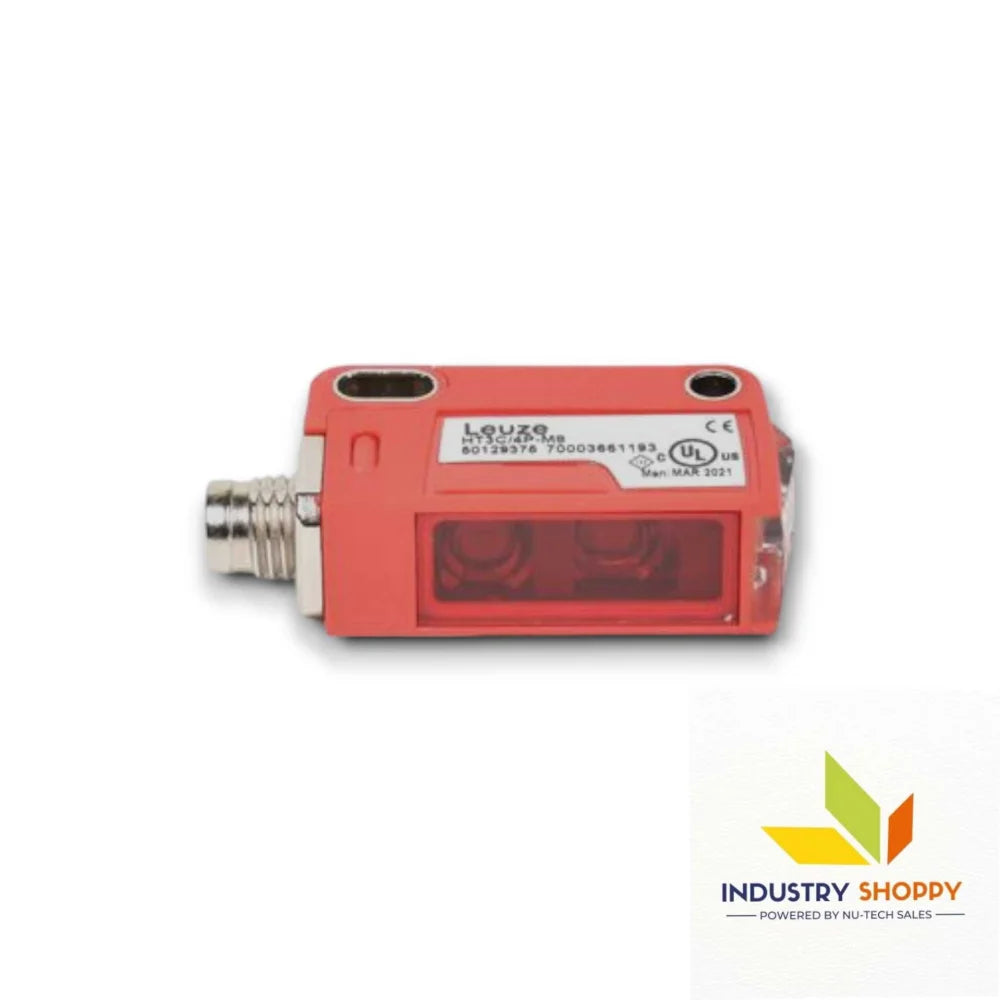

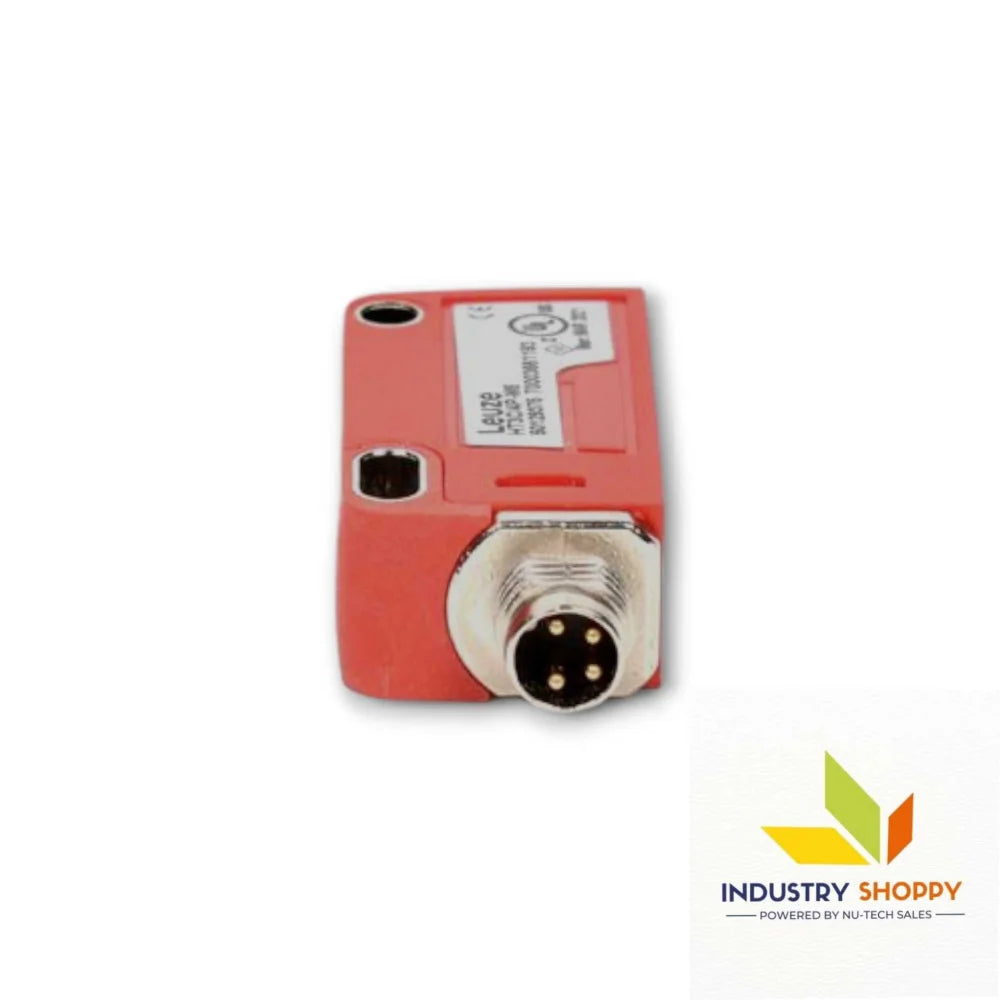

The Leuze HT3C/4P-M8 Diffuse Sensor (50129375) operates using the diffuse reflection principle with background suppression and features a red LED light source (633 nm) for precise detection. The sensor provides an operating range from 0.005 to 0.45 meters, with reliable performance across different object colors. It utilizes a square light spot geometry for focused detection and operates with a switching frequency of 1,000 Hz and a response time of 0.5 ms, ensuring fast and accurate detection.

This sensor is ideal for use in high-demand industrial applications, offering PNP light switching or dark switching options. The multiturn potentiometer allows easy range adjustment. Its IP67/IP69K protection ensures resilience in harsh environments, including water and dust exposure, while its wide operating temperature range of -40°C to 60°C makes it suitable for various industrial conditions.

Applications

• Automation: Detects objects in automated systems with high precision.


• Conveyor Systems: Ensures reliable object detection and sorting.


• Packaging: Monitors and adjusts positioning in packaging lines.


• Material Handling: Efficient detection of materials in storage or transit.


• Logistics: Ensures accuracy in warehouse sorting systems.

Precautions

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
