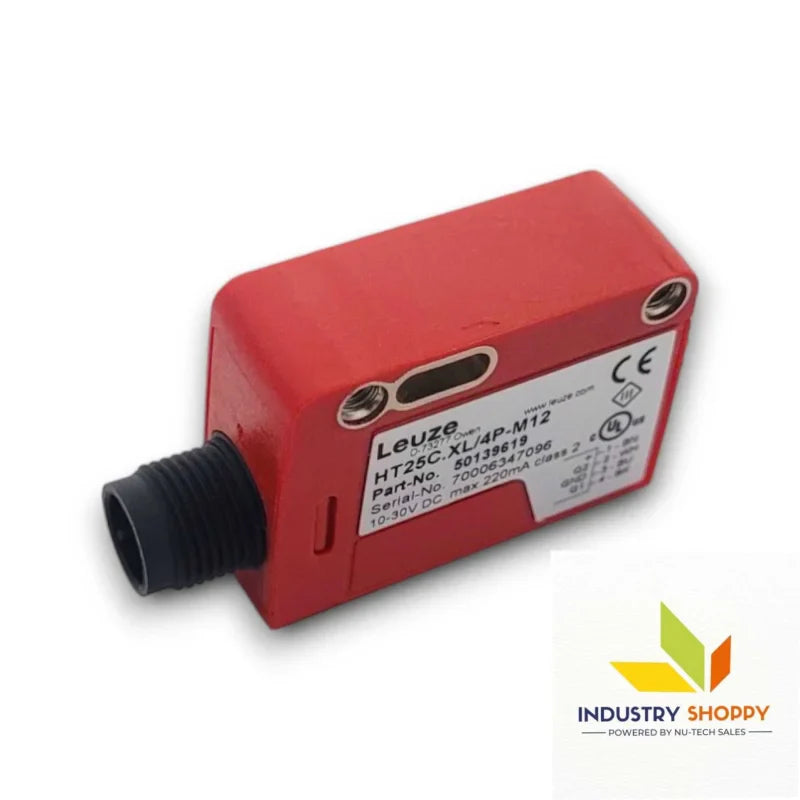

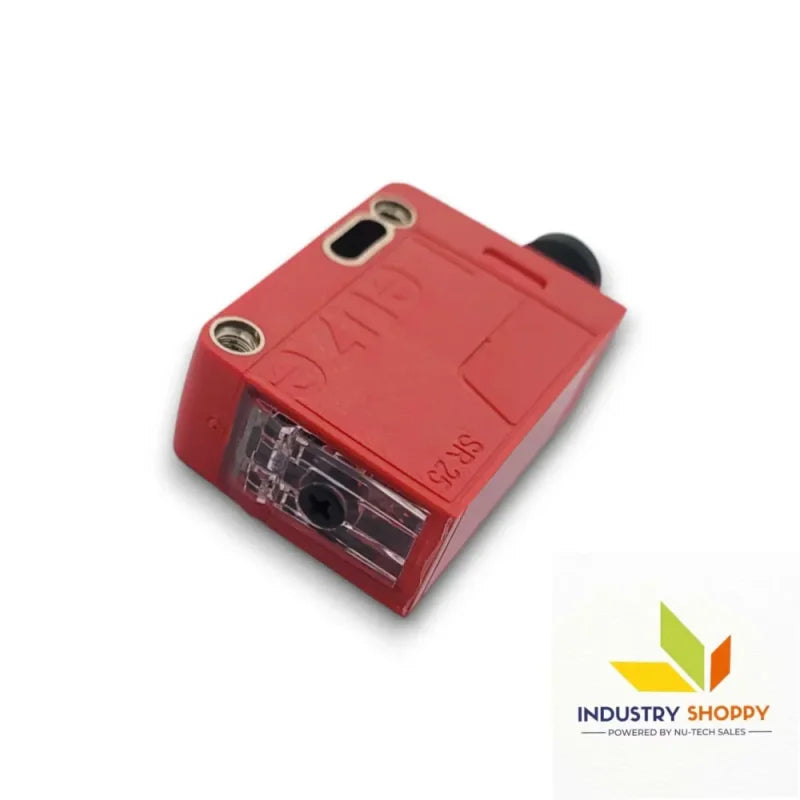

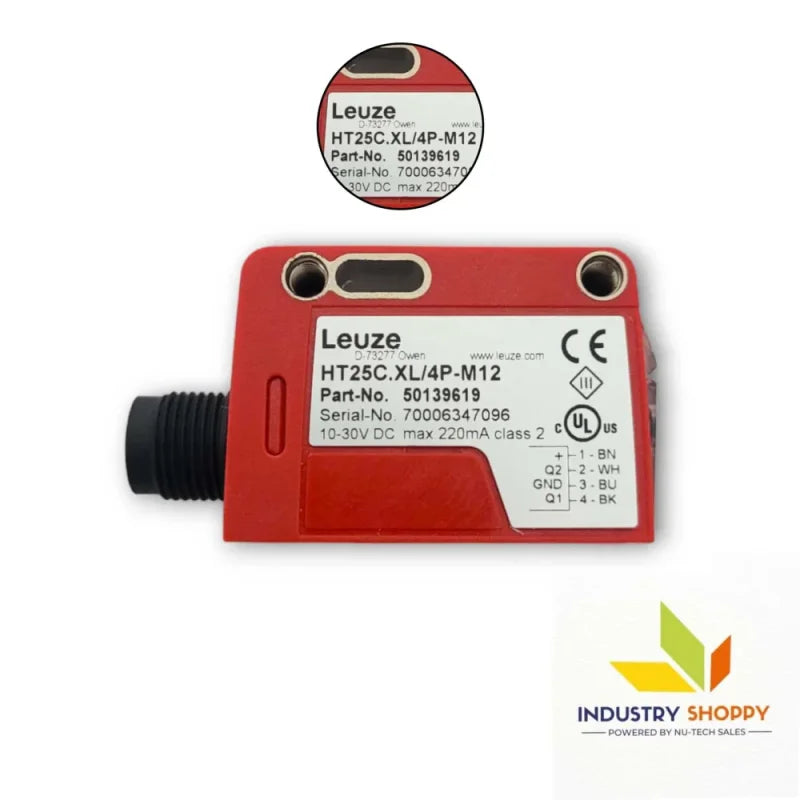

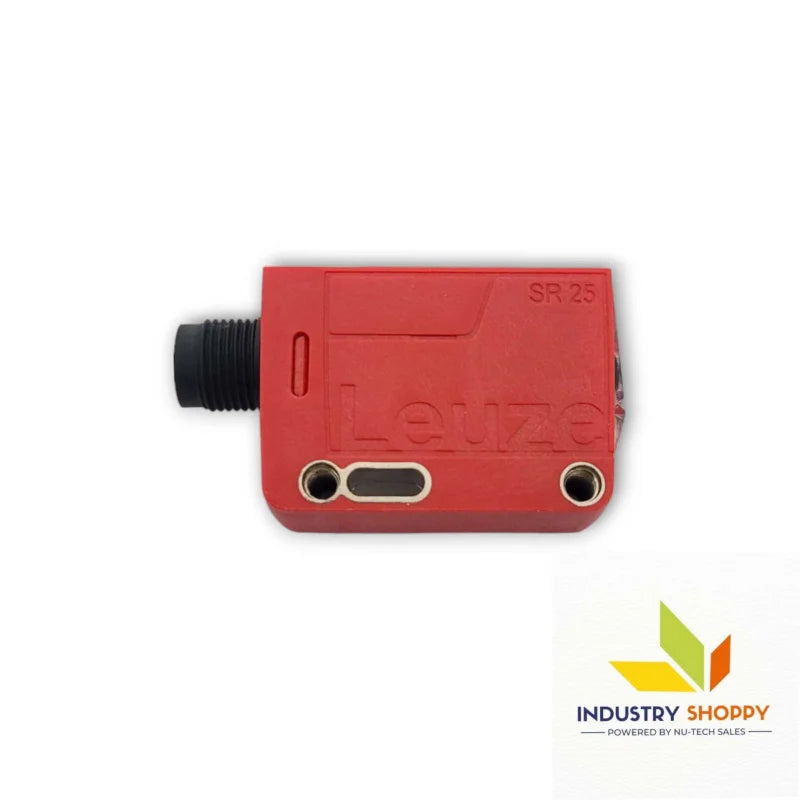

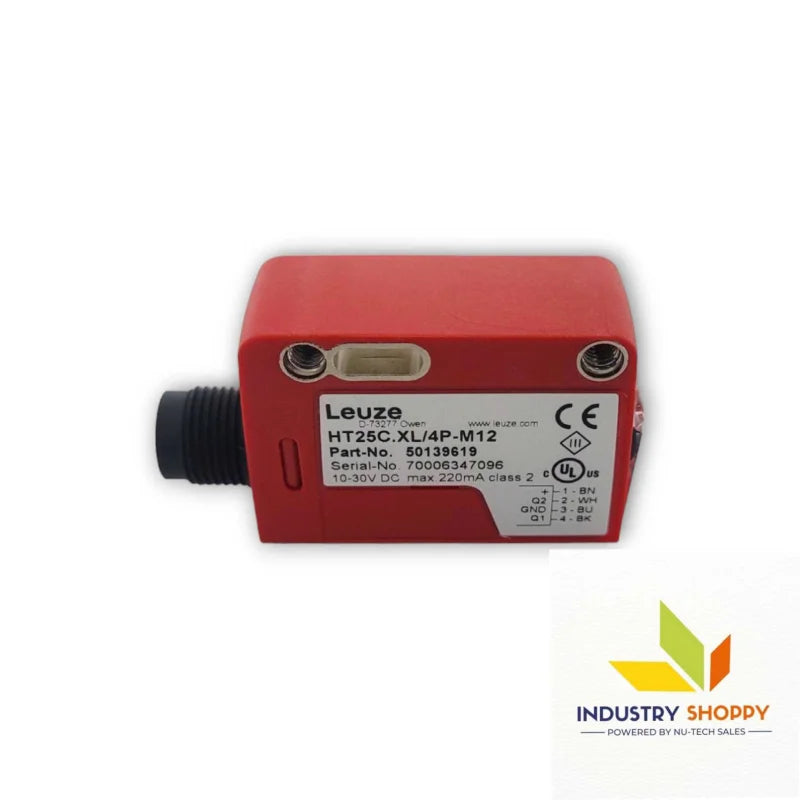

Leuze HT25C.XL/4P-M12 Diffuse Sensor

Leuze HT25C.XL/4P-M12 Diffuse Sensor with Background Suppression

The Leuze HT25C.XL/4P-M12 is a high-performance diffuse sensor with background suppression designed to accurately detect objects with varying surface colors and textures. Featuring an extra-long light spot, this sensor excels in applications requiring detection of larger areas with a consistent and reliable response. It is well-suited for industrial applications, providing excellent precision and durability.

Key Features:

• Part Number: 50139619
• Model Number: HT25C.XL/4P-M12
• Series: 25C
• Operating Principle: Diffuse reflection with background suppression
• Special Version: Extra long light spot (XL)
• Operating Range: White 90%: 0 ... 0.6 m, Gray 18%: 0.005 ... 0.5 m, Black 6%: 0.005 ... 0.45 m
• Adjustment Range: 50 ... 600 mm
• Black-White Error: < 10% up to 350 mm
• Beam Path: Divergent
• Light Source: LED, Red (Wavelength: 640 nm)
• Light Spot Size: 15 mm x 40 mm at 300 mm distance
• Light Spot Geometry: Rectangular
• Shift Angle: Typ. ± 2°
• Protective Circuits: Polarity reversal protection, short circuit protection
• Supply Voltage: 10 ... 30 V DC with residual ripple
• Switching Outputs: 2 digital outputs, Transistor, PNP
• Switching Principle: Light switching and dark switching
• Switching Frequency: 1,000 Hz
• Response Time: 0.5 ms

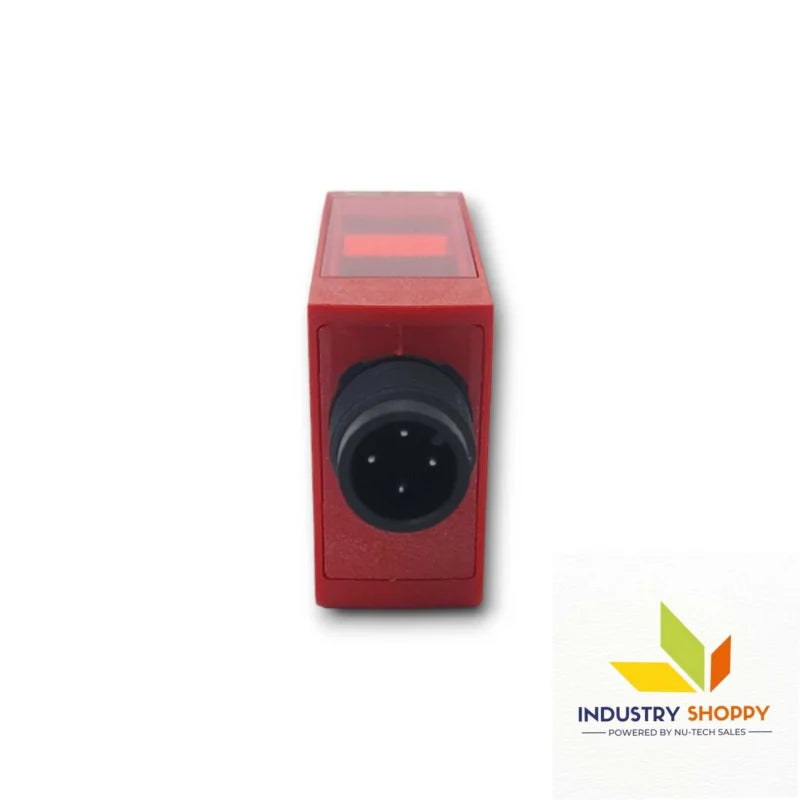

• Connection Type: M12 Connector, 4-pin, A-coded
• Dimensions: 15 mm x 42.7 mm x 30 mm
• Housing Material: Plastic (ABS), Lens cover: Plastic
• Weight: 22 g
• Display Type: LED for status indication
• Operational Controls: Multiturn potentiometer for range adjustment
• Operating Temperature: -40 to 60 °C
• Storage Temperature: -40 to 70 °C
• Protection Class: III
• Degree of Protection: IP 67, IP 69K
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2
• Compatibility of Materials: ECOLAB

Applications:

The HT25C.XL/4P-M12 is ideal for applications requiring precise detection over large areas, such as in manufacturing, material handling, and packaging industries. Its extra-long light spot and robust design make it suitable for challenging environments.

Technical Precautions:

• Ensure correct polarity when connecting the sensor to prevent damage.
• Protect the sensor from short circuits to maintain its longevity.
• Maintain the operating temperature within the specified range for optimal performance.
• Handle the sensor with care during installation to avoid physical damage.
• Follow the manufacturer's guidelines for mounting and connection to ensure accurate detection and operation.
