Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor
Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor
Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor
Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor
Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor
Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor
Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor
Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor
Gefran

Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor

Product SKU: NTSSEN00523
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand: Di-Soric
  • Article No.: KS-N-E-E-B25D-M-V625
  • Pressure Connections: G 1/4 gas male
  • Voltage supply range: 10... 30 VDC
  • Dielectric Strength: 250 V DC
  • Response Time: < 1 ms

Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$95.00
$200.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor

The Gefran KS-N-E-E-B25D-M-V625 Pressure Sensor is a high-precision and robust sensing device designed for accurate pressure measurement in demanding industrial applications. With a wide pressure range from 1 bar to 1000 bar, it ensures reliable performance across various processes.

Engineered for accuracy, it offers ≤ ±0.5% FS accuracy, excellent repeatability (±0.025% FS typ.), and low hysteresis, making it ideal for critical measurement tasks. The stainless steel-compatible design (AISI 430F & 17-4 PH) allows safe use with a wide range of industrial fluids. With a fast response time (< 1 ms) and 10–30 V DC supply, it delivers real-time and stable output.

Built to withstand harsh environments, the transmitter features IP65/IP67 protection, high resistance to shock (100 g) and vibration (20 g), and operates across extreme temperatures from -40°C to +125°C. The G1/4 gas pressure connection and 4-pin DIN electrical connector ensure easy and secure installation.



Applications

  • Hydraulic and pneumatic systems for pressure monitoring

  • Industrial machinery for process control

  • Oil and gas applications for high-pressure measurement

  • Manufacturing and automation for precise pressure sensing


Technical Precautions

  • Ensure compatibility of media with stainless steel materials
  • Use proper sealing for G1/4 pressure connection
  • Maintain stable 10–30 V DC power supply
  • Avoid overpressure conditions beyond rated limits


While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberKS-N-E-E-B25D-M-V625
BrandGefran
TypePressure Transmitter
Non-Linearity (BFSL) (max)±0.15% FS (typ), ±0.25% FS (max)
Hysteresis±0.1% FS (typ), ±0.15% FS (max)
Repeatability±0.025% FS (typ), ±0.05% FS (max)
Zero Offset Tolerance±0.15% FS (typ), ±0.25% FS (max)
Span Offset Tolerance±0.15% FS (typ), ±0.25% FS (max)
Accuracy at Room Temperature< ±0.5% FS
Pressure Ranges1 bar to 1000 bar
Pressure ConnectionsG 1/4 gas male

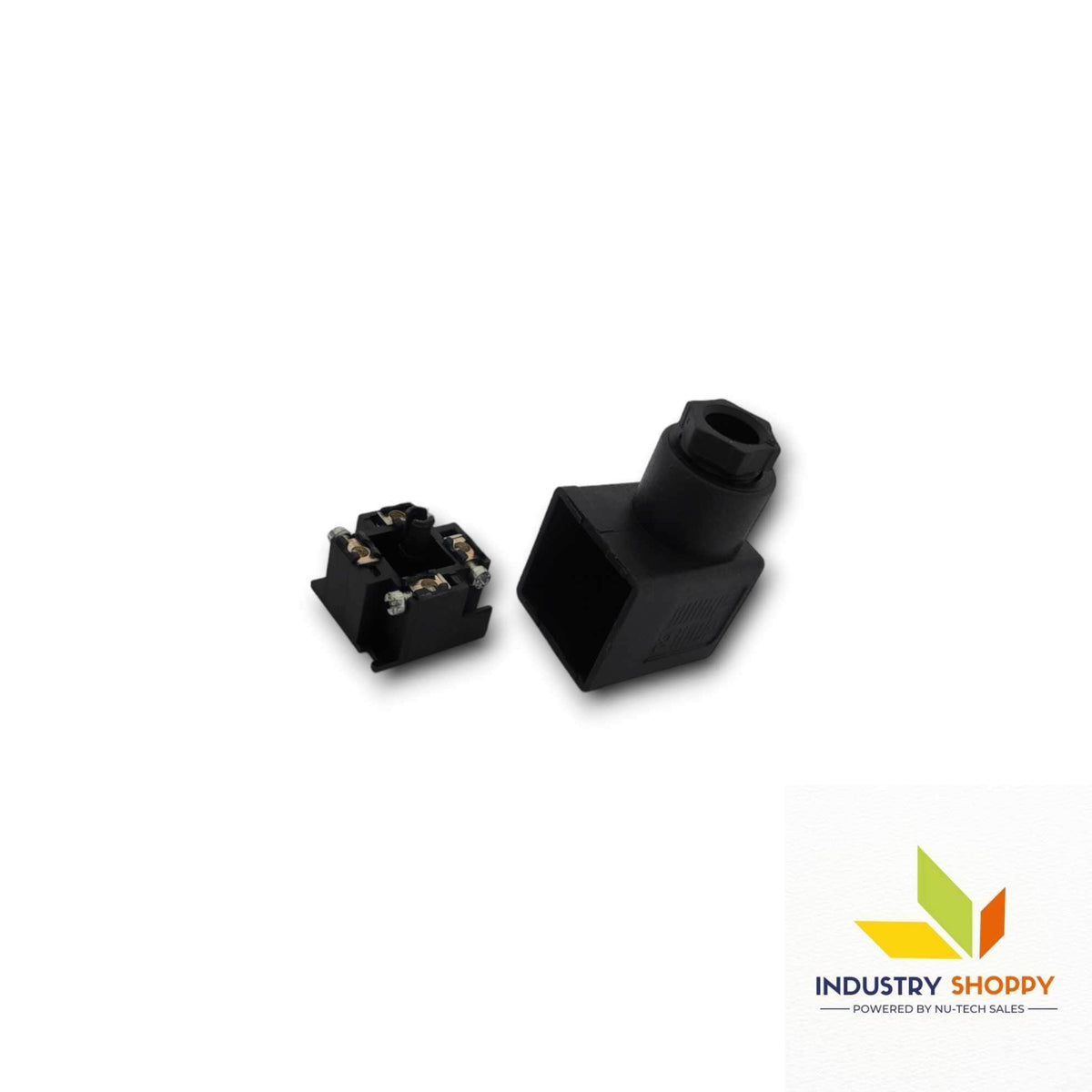

Electrical Connections4-pin connector DIN
ResolutionInfinite
Pressure MediaFluids compatible with Stainless Steel AISI 430F and 17-4 PH
Power Supply10...30 V DC
Max. Current Absorption15 mA
Dielectric Strength250 V DC
Allowed Load≥ 5 kΩ
Long-Term Stability< 0.2% FS per year
Operating Temperature Range (Process)-40...+125 °C (-40...+257 °F)
Operating Temperature Range (Ambient)-40...+105 °C (-40...+221 °F)
Compensated Temperature Range-20...+85 °C (-4...+185 °F)
Storage Temperature Range-40...+125 °C (-40...+257 °F)
Temperature Effects (Zero)±0.01% FS/°C typ. (±0.02% FS/°C max.)
Response Time (10...90% FS)< 1 ms
Warm-up Time< 30 s
Mounting Position EffectsNegligible
HumidityUp to 100% RH (non-condensing)
Mechanical Shock100 g / 11 ms (IEC 60068-2-27)
Vibrations20 g max at 10...2000 Hz (IEC 60068-2-6)
Ingress ProtectionIP65 / IP67 (M12 version, with female homologated connector; tightening torque 0.6 Nm + low strength threadlocker)

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
