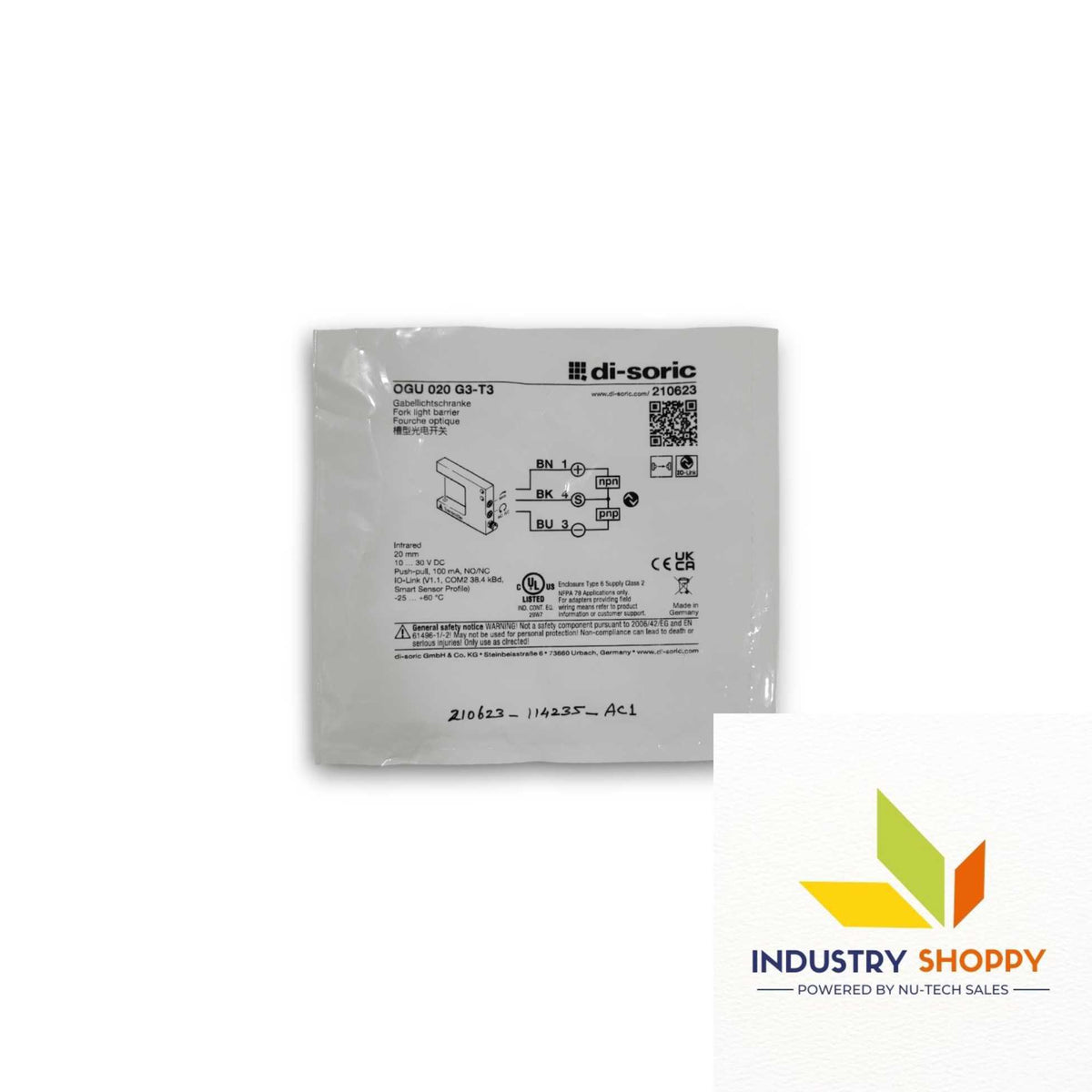

Di-Soric OGU020G3-T3 Optical Fiber Sensor
Di-Soric OGU020G3-T3 Optical Fiber Sensor
Di-Soric OGU020G3-T3 Optical Fiber Sensor
Di-Soric OGU020G3-T3 Optical Fiber Sensor
Di-Soric OGU020G3-T3 Optical Fiber Sensor
Di-Soric OGU020G3-T3 Optical Fiber Sensor
Di-Soric

Di-Soric OGU020G3-T3 Optical Fiber Sensor

Product SKU: NTSSEN00198
Available:
Only 3 items in stock
3 items in stock
In stock
Pre-order
Out of stock
  • Brand: Di-Soric
  • Article No.: OGU020G3-T3
  • Type: Optical Fiber Sensor
  • Voltage supply range: 10... 30 VDC
  • Insulation Voltage Endurance: 500 V
  • Housing material: Die-cast zinc (black, powder-coated)

Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$275.00
$425.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

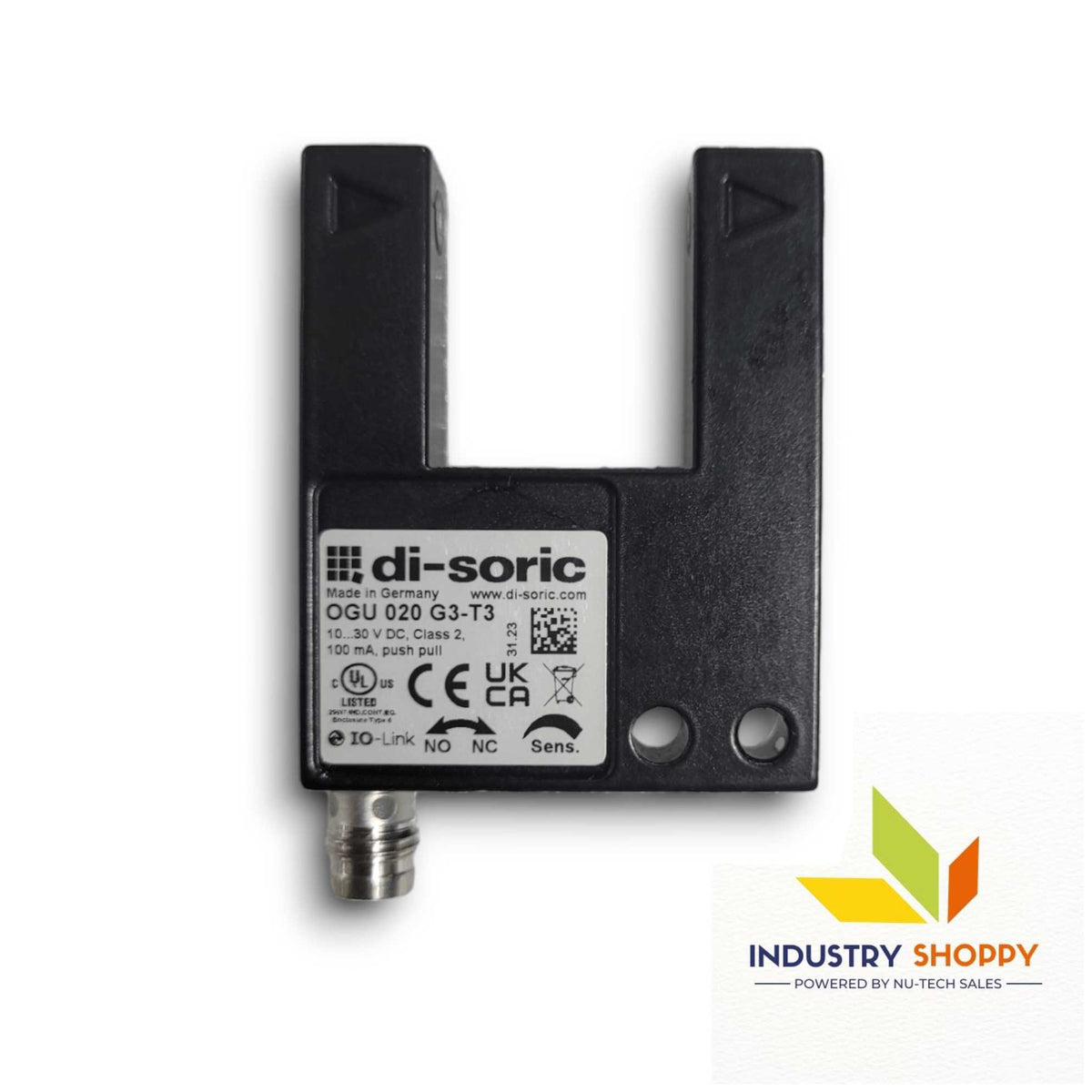

Di-Soric OGU020G3-T3 Optical Fiber Sensor

The Di-Soric OGU020G3-T3 Optical Fiber Sensor is a high-precision optical sensing solution designed for fast and accurate detection of small objects in industrial automation. With a 20 mm fork opening and infrared LED light source, it ensures reliable detection even in challenging environments.

The di-soric OGU 020 G3-T3 Sensor features push-pull switching output (NO/NC selectable) with up to 100 mA load capacity, offering flexible integration. Equipped with IO-Link (V1.1) and potentiometer adjustment, it allows easy configuration and advanced diagnostics.

Its exceptional resolution (up to 0.2 mm) and high switching frequency (up to 8000 Hz in speed mode) make it ideal for high-speed and precision applications. Built with a robust die-cast zinc housing and IP67 protection, the sensor is highly durable and suitable for harsh industrial conditions. The compact fork design enables quick installation for applications requiring precise positioning and detection.


Applications

  • Small part detection in high-speed assembly lines

  • Label and edge detection in packaging systems

  • Counting and positioning in conveyor systems

  • Precision automation requiring high accuracy



Technical Precautions

  • Ensure proper alignment within fork opening for accurate sensing

  • Keep optical path clean from dust and contaminants

  • Maintain stable 10–30 V DC power supply

  • Configure IO-Link parameters correctly for optimal performance



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandDi-Soric
Product NumberOGU020G3-T3
TypeOptical Fiber Sensor
Operating PrincipleOptical
DesignFork
Service Voltage10 … 30 V DC
No-Load Current (max.)30 mA
Insulation Voltage Endurance500 V
Protection ClassIII (operation on protective low voltage)
EvaluationDigital
Switching OutputPush-pull, 100 mA, NO/NC switchable
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light SourceLED
Light ColorInfrared
ModulationClocked
Fork Opening20 mm
Housing Dimensions (H × L × W)40 × 50 × 10 mm
Housing MaterialDie-cast zinc (black, powder-coated)
Leg Length (internal)25 mm
Resolution – STANDARD0.3 mm
Reproducibility – STANDARD0.02 mm
Resolution – HIGH RESOLUTION0.2 mm
Reproducibility – HIGH RESOLUTION0.02 mm
Resolution – POWER1 mm
Reproducibility – POWER0.02 mm
Resolution – SPEED0.3 mm
Reproducibility – SPEED0.02 mm
Sensitivity AdjustmentPotentiometer or IO-Link
Switching Frequency – STANDARD5000 Hz
Switching Frequency – HIGH RESOLUTION1500 Hz
Switching Frequency – POWER250 Hz
Switching Frequency – SPEED8000 Hz
Ambient Operating Temperature–25 … +60 °C
Protection TypeIP67

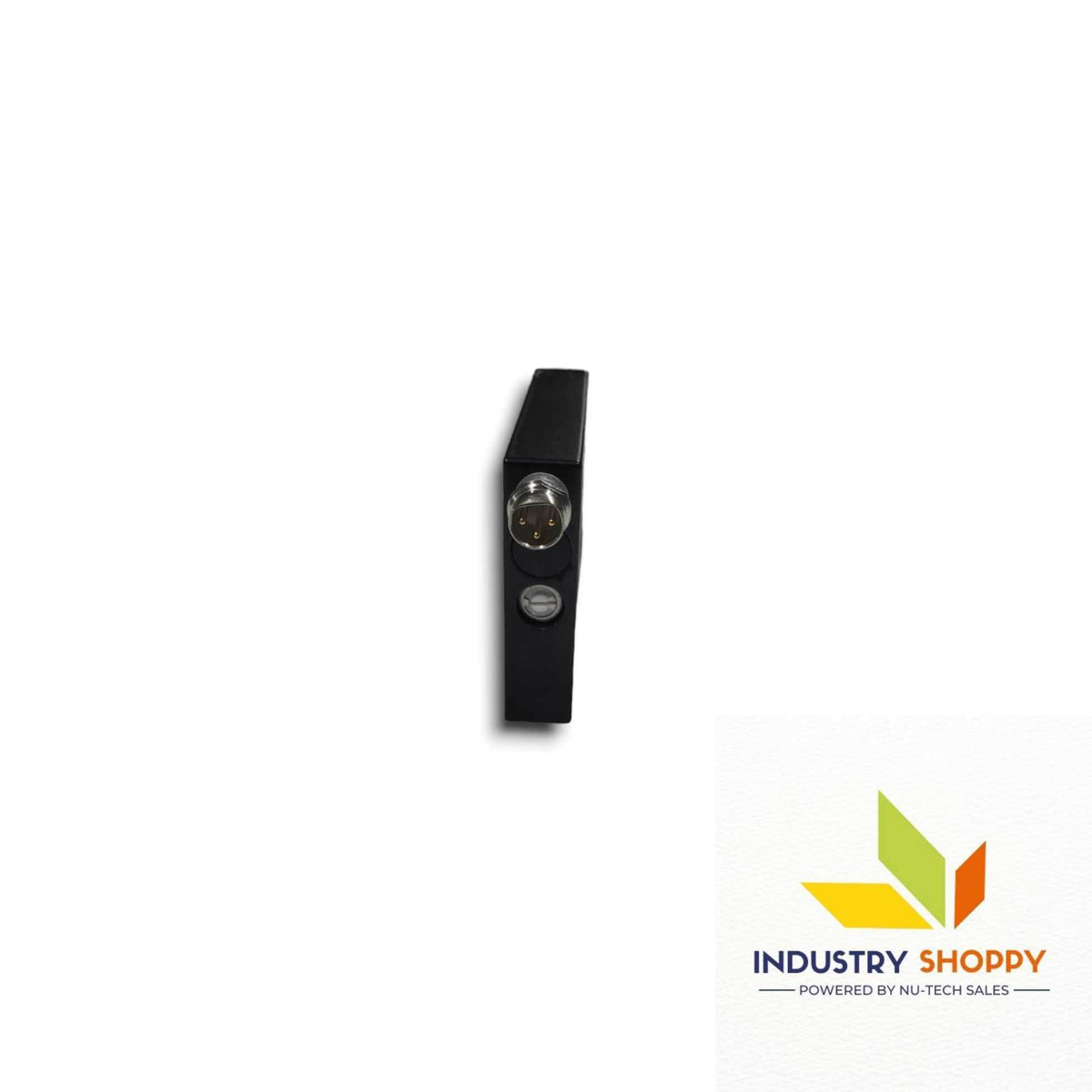

ConnectionM8 connector, 3-pin
Country of OriginGermany

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
