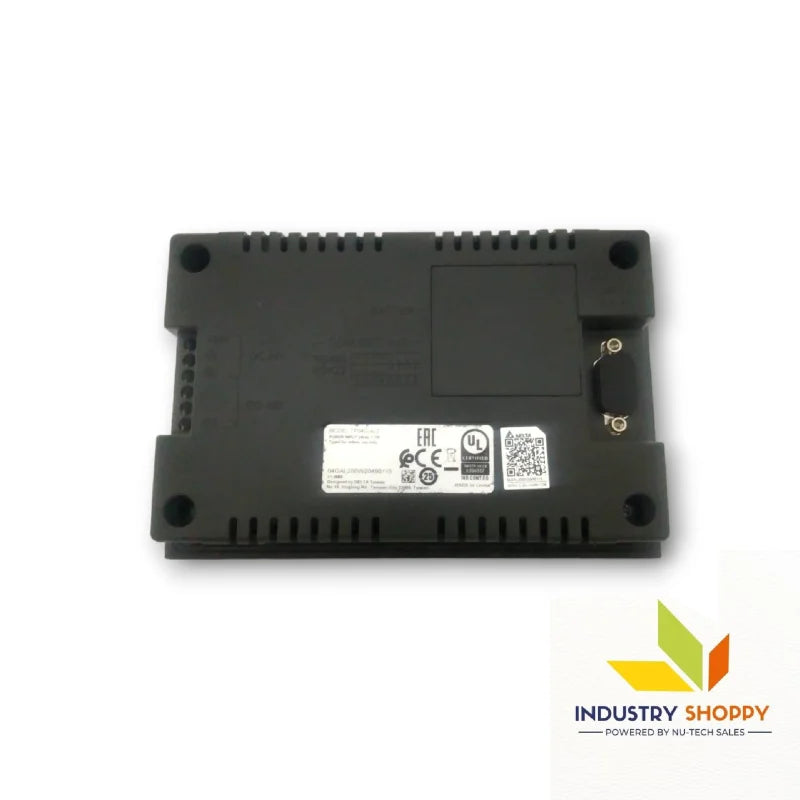

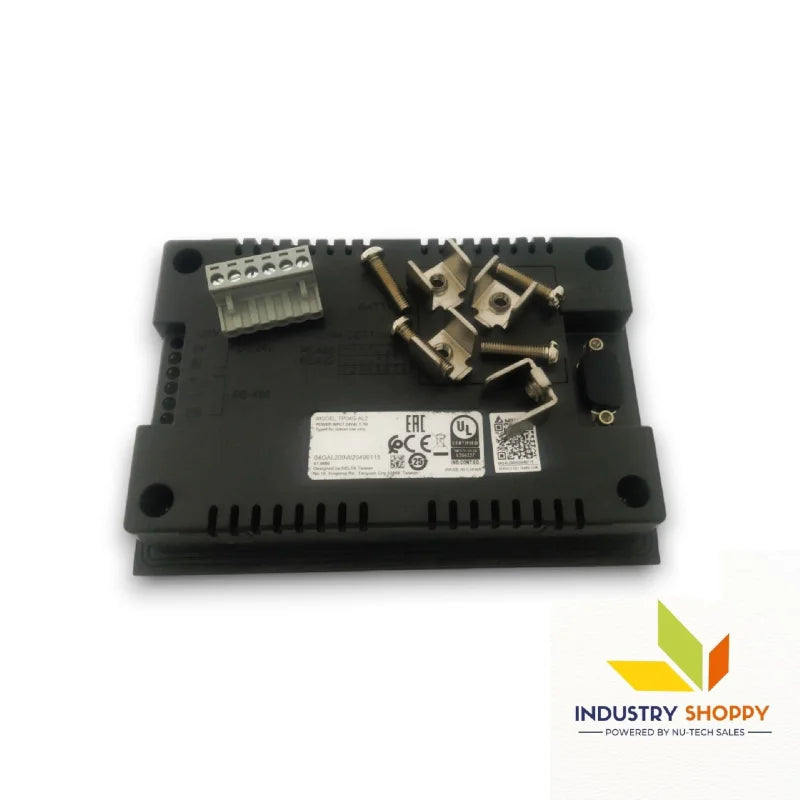

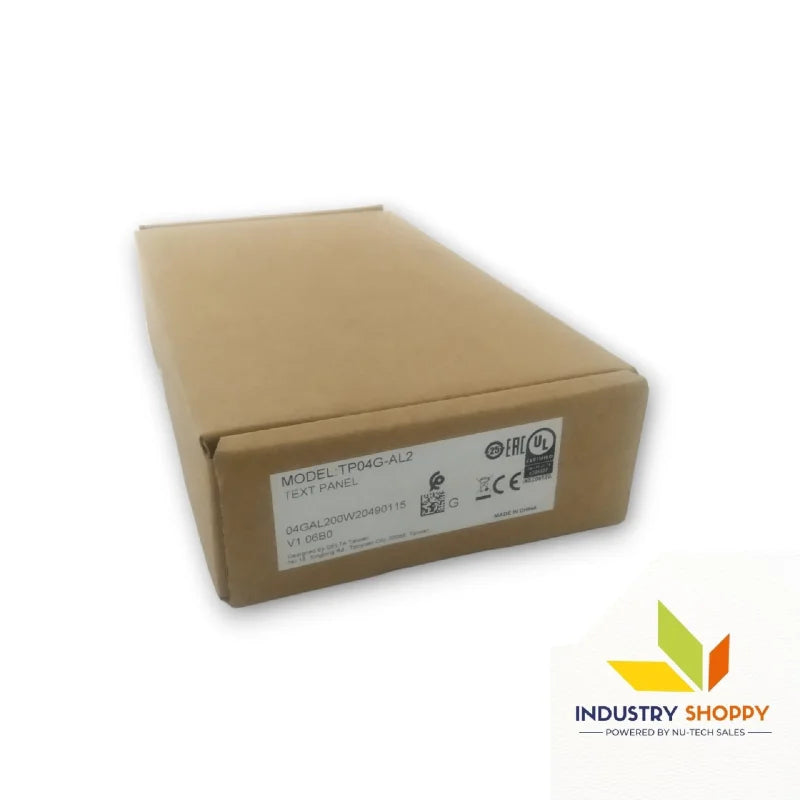

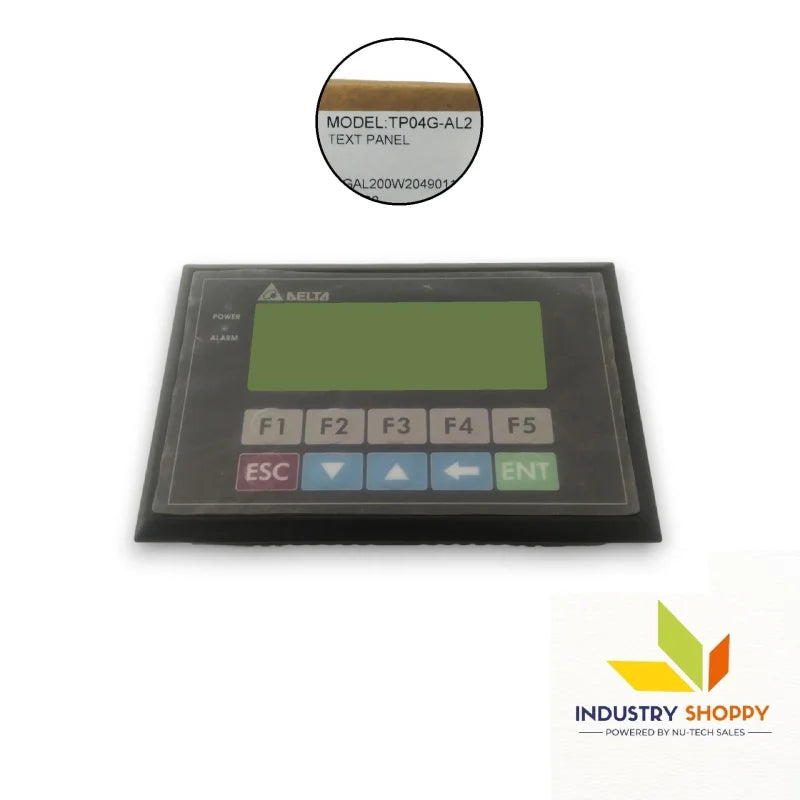

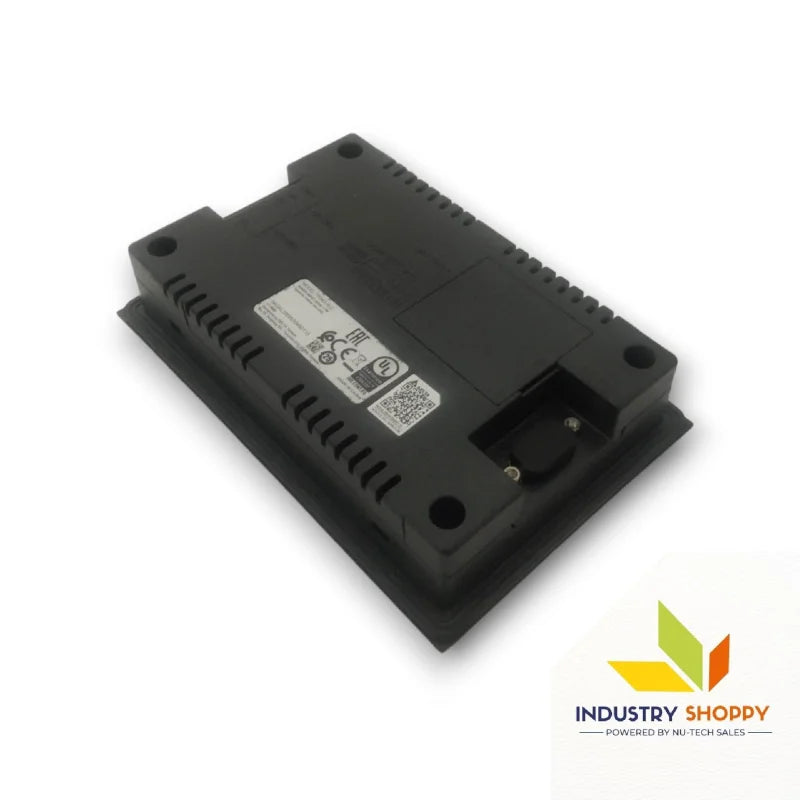

The Delta TP04G-AL2 HMI Panel is a compact, user-friendly operator interface designed to enhance control and visibility in industrial environments. With a 4.1" STN-LCD monochrome screen offering versatile text layouts, this panel is optimized for both readability and efficient space usage.

Equipped with 10 function keys and supporting RS232, RS422, and RS485 communication, the TP04G-AL2 ensures seamless integration into diverse systems. Its 256K memory capacity and 16K system RAM allow for flexible and reliable process handling.

Built to withstand harsh environments, the front panel meets IP66 / NEMA4 standards, providing excellent resistance to dust and water ingress. The panel is also compliant with industrial vibration and shock standards, ensuring dependable operation under physical stress.

The natural air cooling system eliminates the need for additional fans, reducing maintenance concerns while maximizing uptime. Whether for monitoring, control, or diagnostics, this HMI panel offers a rugged, cost-effective solution for industrial automation.

Key features :-

Applications :-

• Equipment Control: Displays machine status and allows quick parameter changes.
• System Alerts: Efficiently shows alarms and error logs in real time.
• Data Input: Enables manual setting adjustments via function keys.
• Communication Gateway: Links PLCs and controllers via RS232/RS485.
• Factory Monitoring: Supports operators with reliable real-time displays.

Precautions:

• Power Supply: Use a stable 24VDC source with proper grounding to prevent damage.
• Installation Environment: Avoid exposure to direct sunlight, excessive dust, or corrosive gases.
• Temperature & Humidity: Operate only within the specified 0°C–45°C temperature and 5%–90% humidity range.
• Wiring: Ensure all communication and power cables are properly shielded to avoid interference.
• Maintenance: Disconnect power before cleaning or performing any hardware adjustments.
