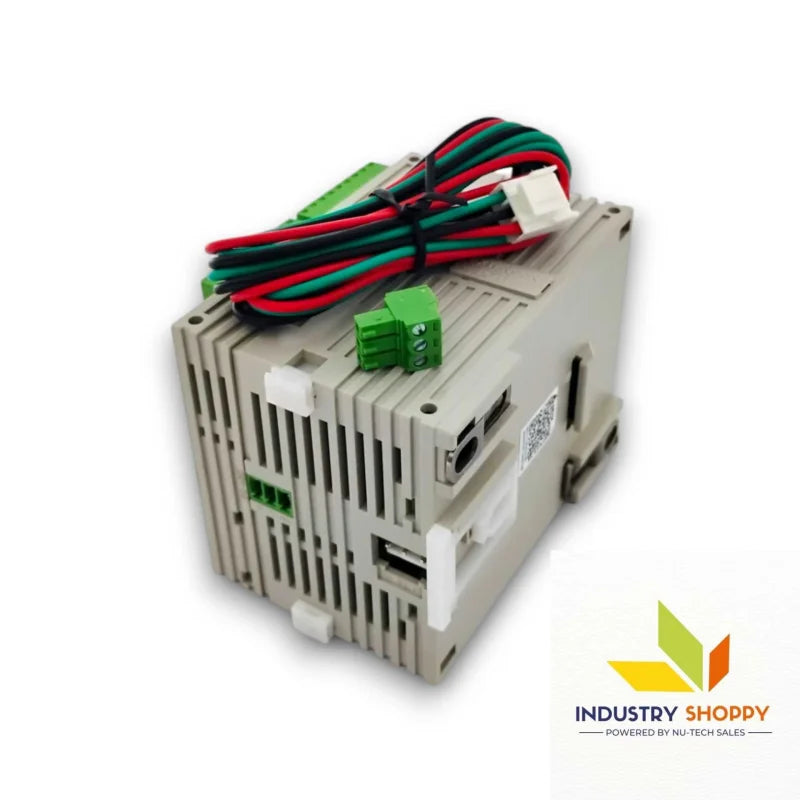

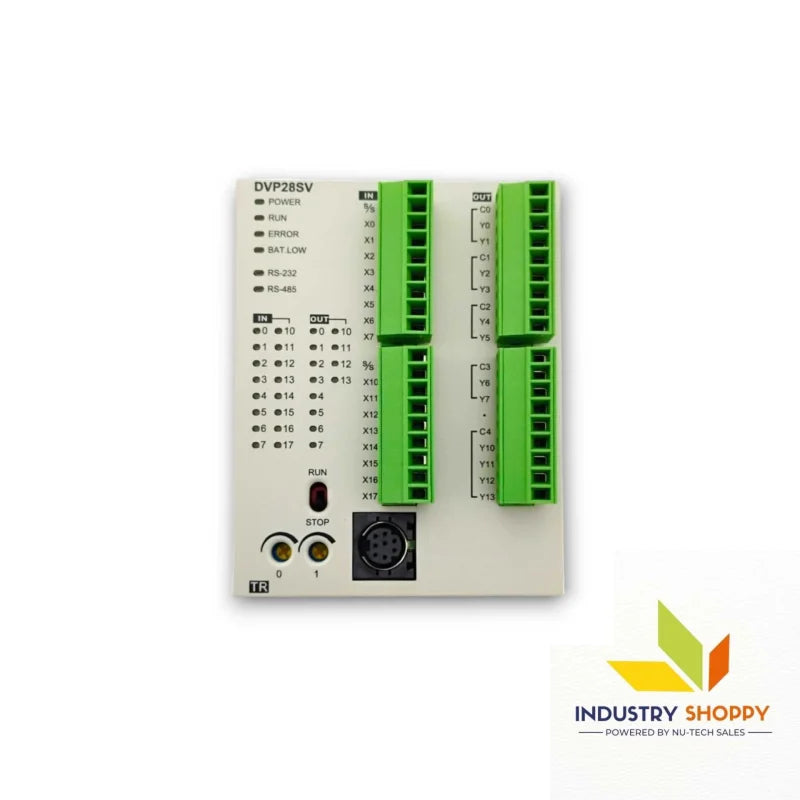

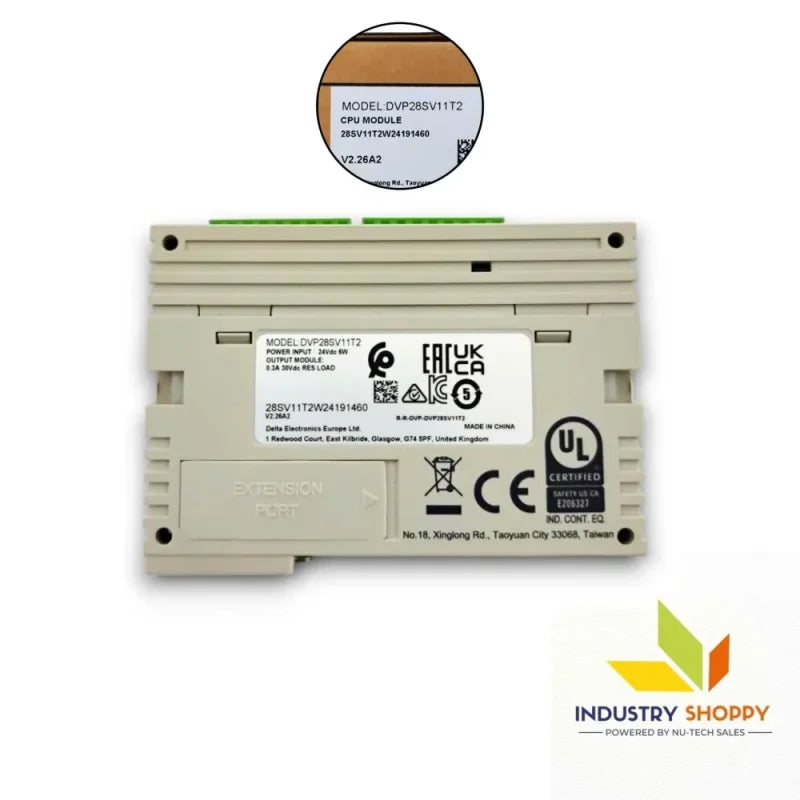

Delta DVP28SV11T2 PLC Module

Delta DVP28SV11T2 PLC Module

The Delta DVP28SV11T2 PLC Module is engineered for precision control in modern industrial systems. Equipped with 16 digital inputs and 12 transistor PNP outputs, it offers flexible and reliable connectivity to suit a wide range of automation applications.

This module supports an impressive 30K steps program capacity and 12K words of data register, making it perfect for handling complex operations with efficiency. Built to withstand harsh environments, it offers superior spike voltage durability and meets international standards for noise immunity.

Its ultra-fast switching times — 0.5μs OFF→ON and 2.5μs ON→OFF — enable it to handle high-frequency tasks with ease. Designed for use in tight spaces, the DIN rail mounting ensures straightforward installation.

Rugged design, combined with operating temperature tolerance from 0°C to 55°C and dependable ESD and EFT resistance, makes this module a highly durable and dependable choice for modern automation systems.

Key features :-

• Brand: Delta
• Series: DVP
• Model No: DVP28SV11T2
• Output Type: Transistor PNP
• Power Supply Voltage: 24VDC (-15% ~ 20%)
• Fuse Capacity: 2A/250VAC; SV: 2.5A/30VDC
• Data Register: 12K Words
• Program Capacity: 30K Steps
• Number of Inputs and Type: 16 – Digital
• Number of Outputs and Type: 12 – Transistor
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O point-to-ground: 500VDC)
• Noise Immunity: ESD: 8kV Air Discharge, EFT: Power Line 2kV, Digital I/O 1kV
• Earth: Ground wire diameter not shorter than power supply cable
• Storage / Operation Temperature: Storage: -25ºC ~70ºC | Operation: 0ºC ~55ºC
• Storage / Operation Humidity: 5% ~ 95% (non-condensing); pollution degree 2
• Max. Input Frequency: 200kHz
• Input Signal Voltage: 24VDC ±10% (5mA)
• Response Time: OFF→ON: 0.5μs | ON→OFF: 2.5μs
• Termination Style: DIN Rail

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
