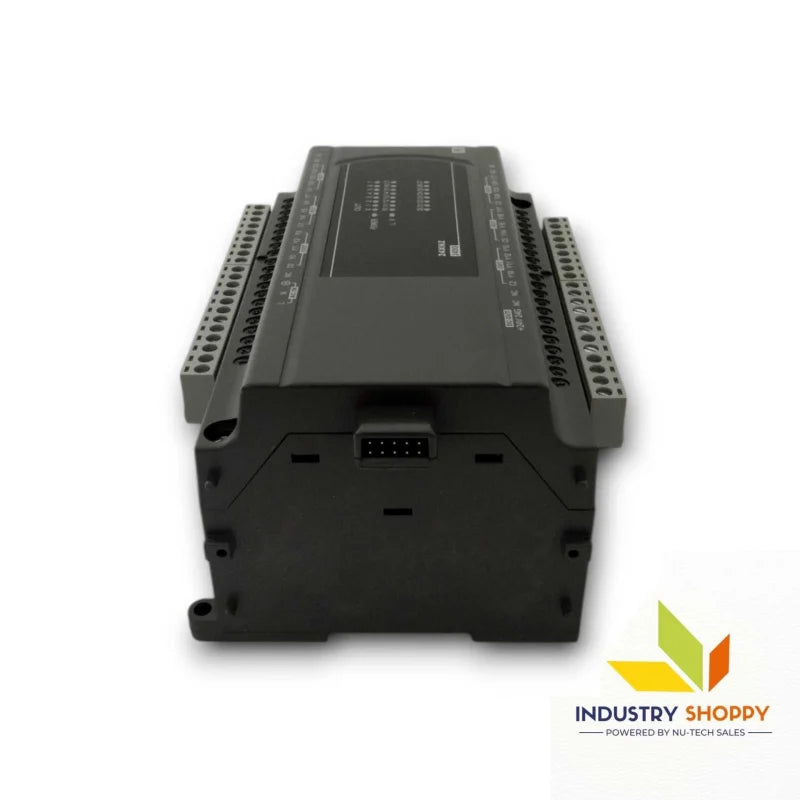

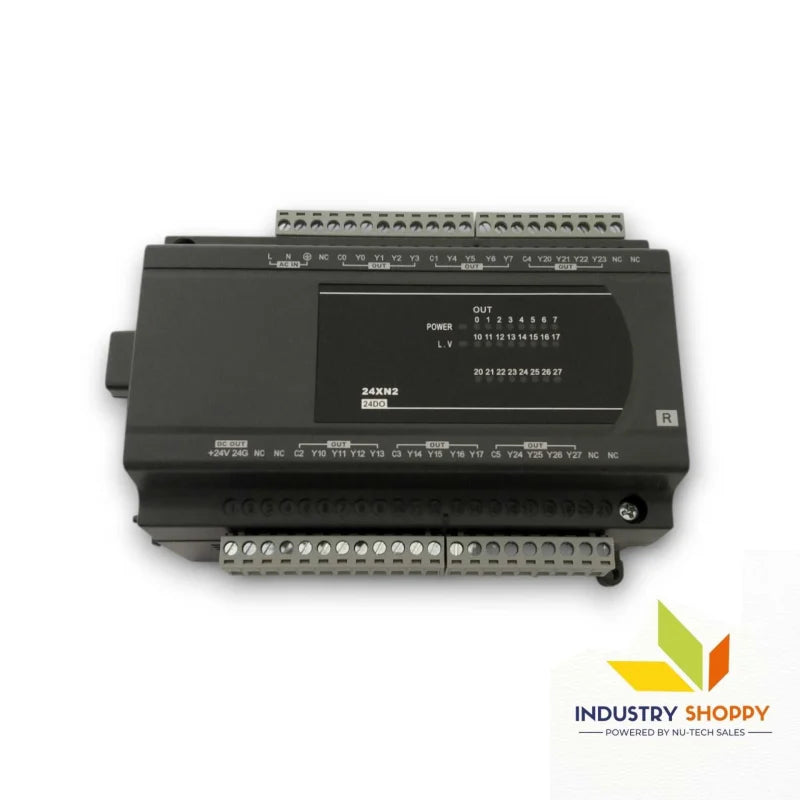

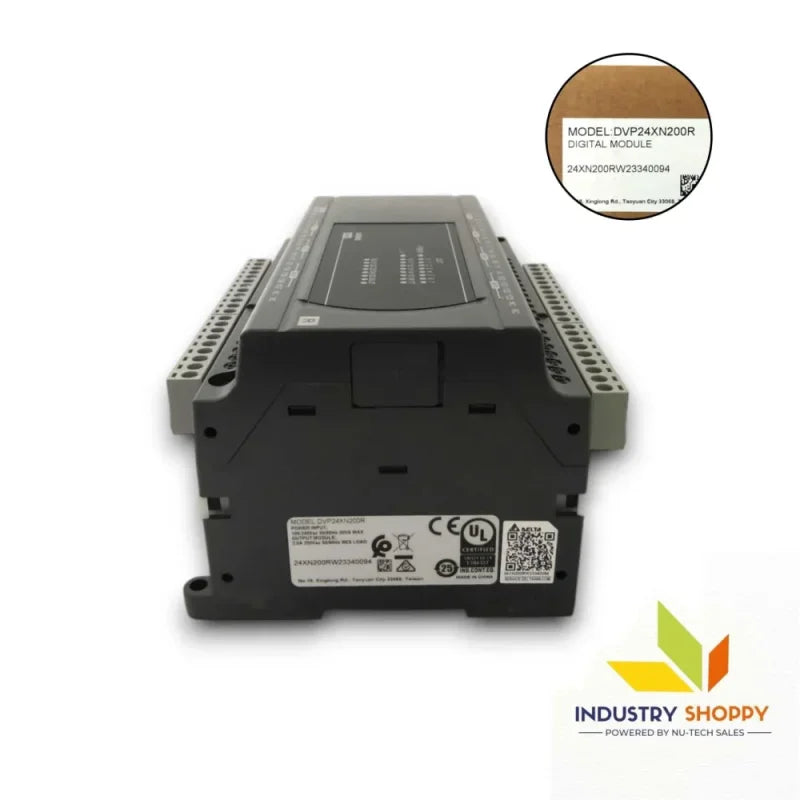

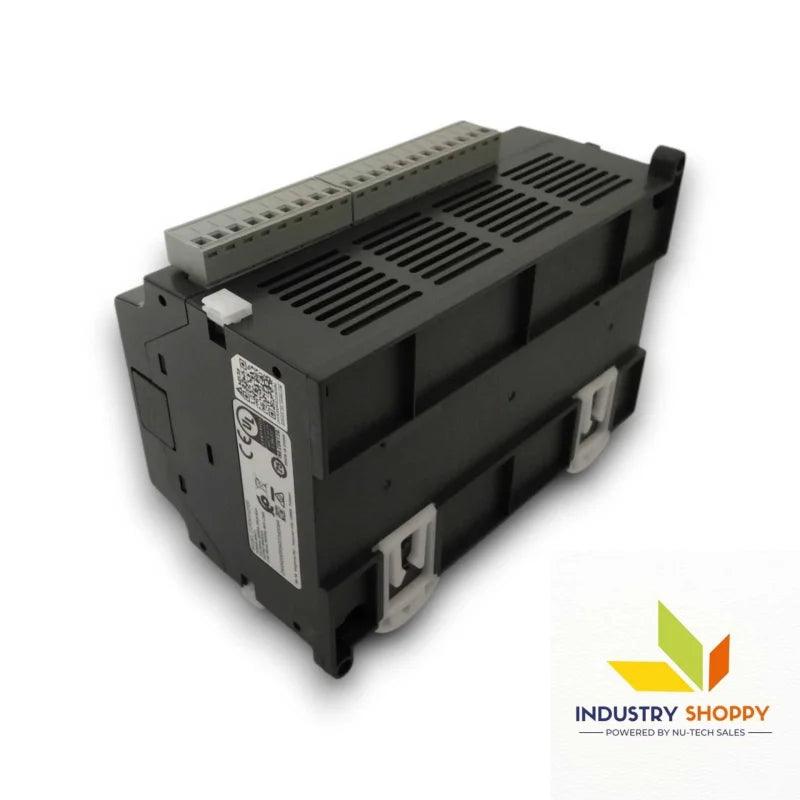

Delta DVP24XN200R PLC Module

Delta DVP24XN200R PLC Module

The Delta DVP24XN200R PLC Module is built for versatility and reliable performance in industrial automation tasks. Designed with 24 relay outputs, it ensures efficient signal switching for a variety of applications, offering flexibility and dependable control for machines and systems.

This unit supports a wide 100~240VAC power supply range, making it adaptable to global electrical standards. The 16K steps program capacity allows for the development of complex logic and control schemes, ensuring smooth operation even in demanding environments.

It boasts excellent resilience, featuring spike voltage durability up to 1500VAC and noise immunity protections that meet international standards. Its 10ms response time ensures consistent performance in real-time control environments.

Designed for longevity, it offers robust resistance to shock, vibration, and electrostatic discharge, complying with IEC61131-2 standards. Whether mounted in control panels or embedded within industrial systems, the DVP24XN200R is engineered for stability and dependability.

Key features :-

• Brand: Delta
• Series: DVP
• Model No: DVP24XN200R
• Output Method: Relay
• Power Supply: 100 ~ 240VAC (-15% ~ 10%); 50/60Hz ±5%
• Number of Outputs and Type: 24 - Relay
• Fuse Capacity: 2A / 250VAC
• Power Consumption: 2.4W
• Program Capacity: 16K Steps
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O point-to-ground: 500VDC)
• Noise Immunity: ESD: 8kV Air Discharge, EFT: Power Line 2kV, Digital I/O 1kV, RS: 10V/m
• Earth: Ground wire diameter not shorter than power supply cable
• Storage / Operation Temperature: Storage: -25ºC ~ 70ºC | Operation: 0ºC ~ 55ºC
• Storage / Operation Humidity: 5% ~ 95% (non-condensing)
• Response Time: 10ms
• Vibration/ Shock Resistance: IEC61131-2, IEC 68-2-6 (TEST Fc) / IEC 68-2-27 (TEST Ea)
• Input Signal Voltage: 24VDC ±10% (5 mA)

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
