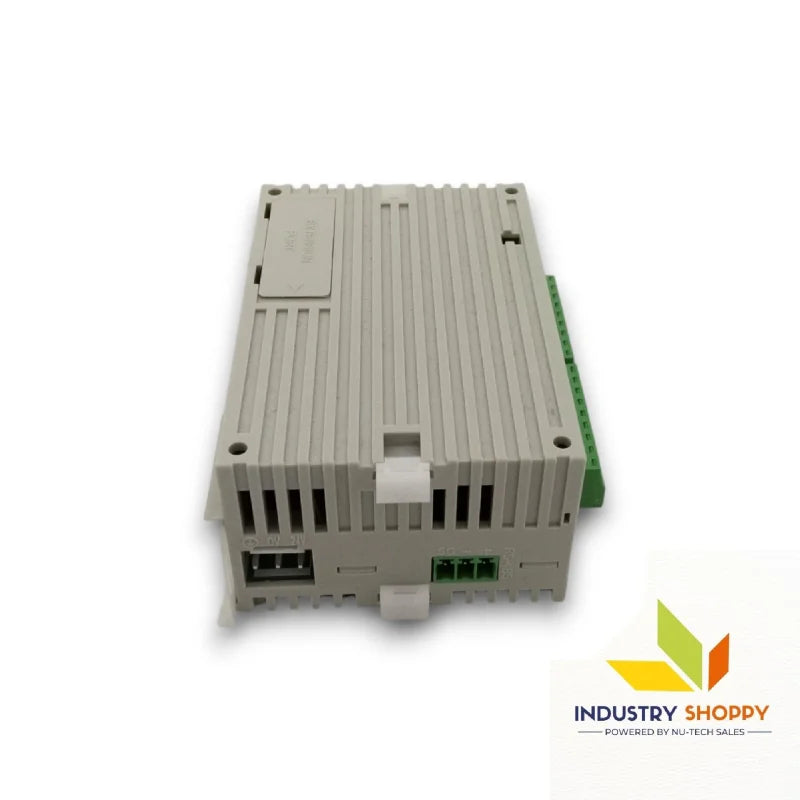

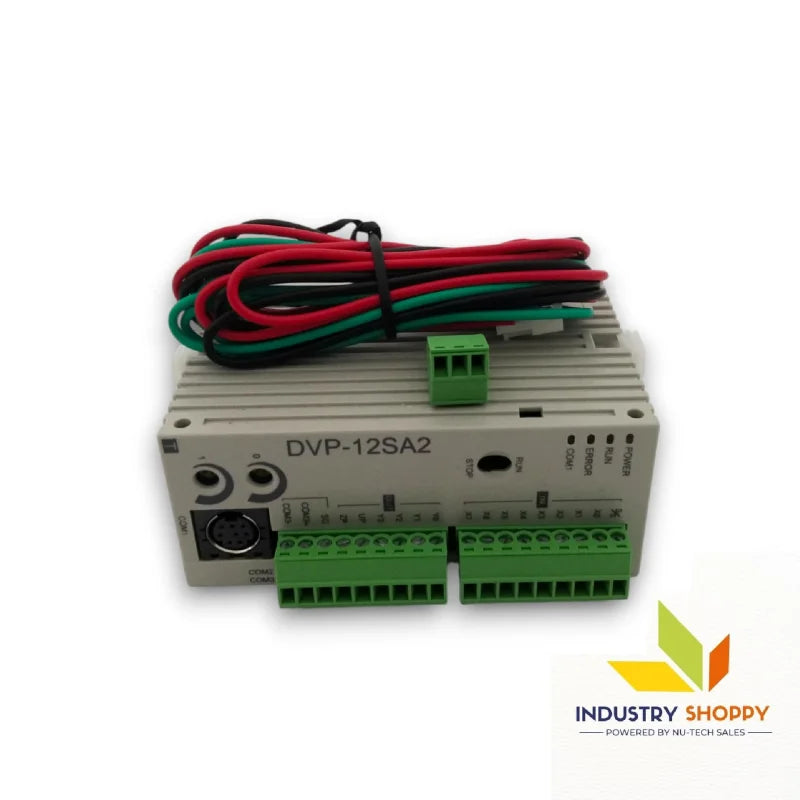

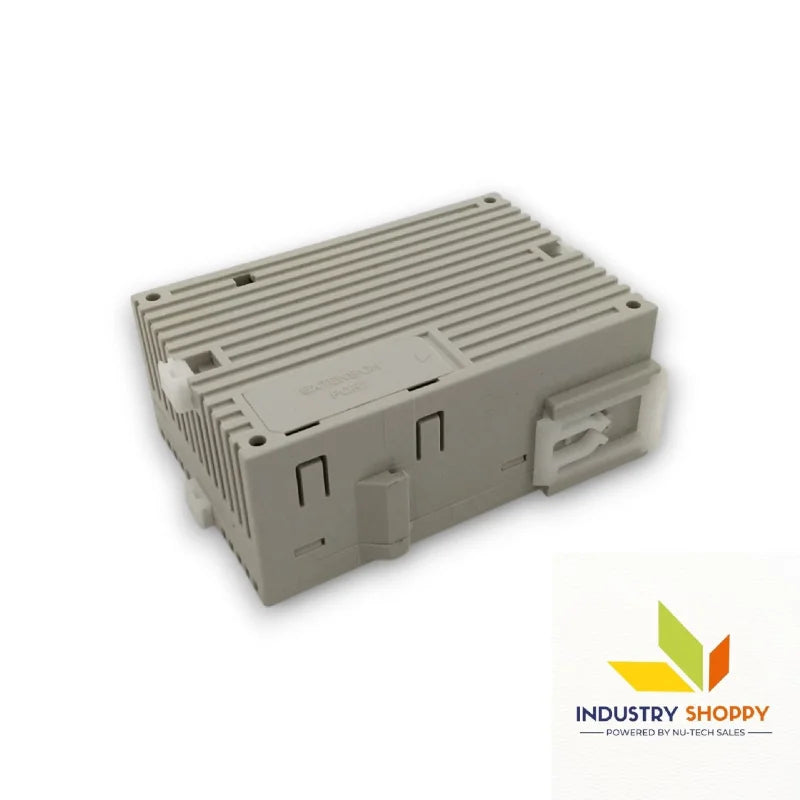

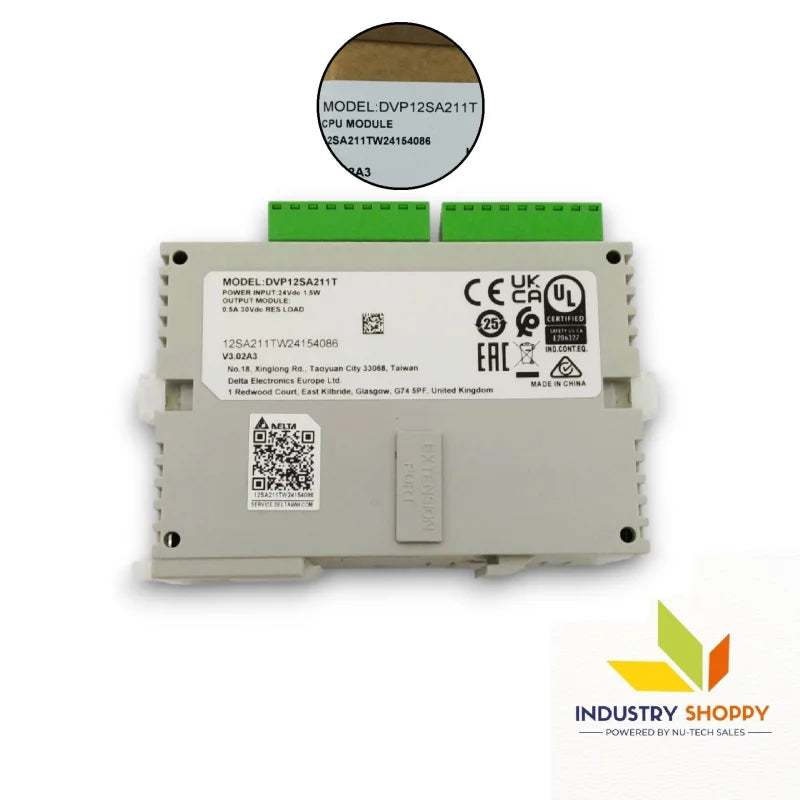

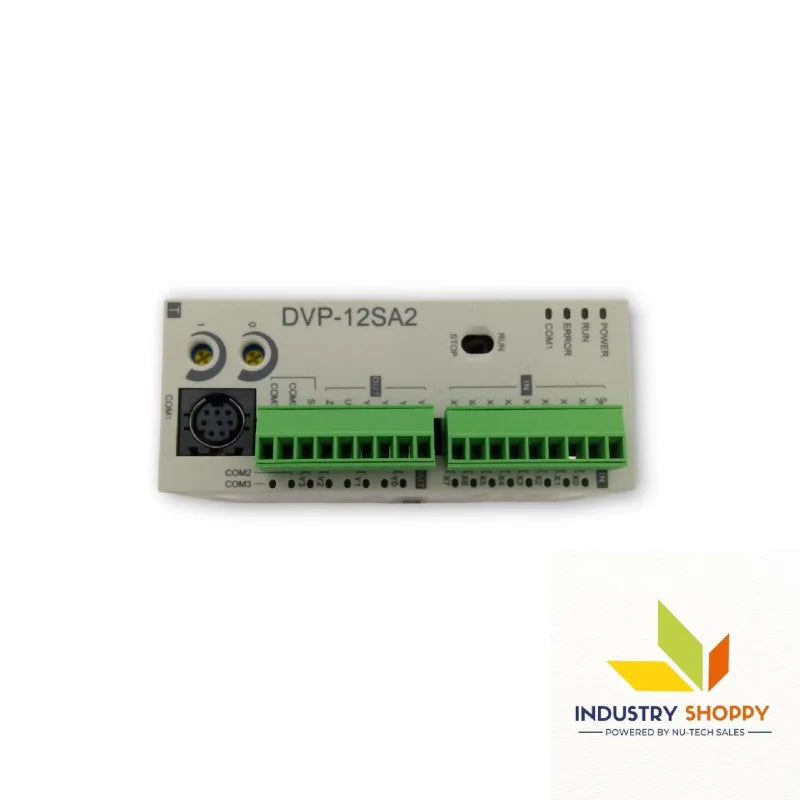

Delta DVP12SA211T PLC Module

Delta DVP12SA211T PLC Module

The Delta DVP12SA211T PLC Module is a reliable and high-speed control unit built for modern automation systems. It offers 8 digital inputs and 4 NPN transistor outputs, making it ideal for precise and efficient output switching in advanced control applications.

With a 24VDC power supply and built-in protections, this module is engineered to operate safely and consistently even under challenging conditions. The fast response time (OFF→ON: 2μs / ON→OFF: 3μs) makes it perfect for applications requiring rapid signal processing and control.

Designed for longevity and stability, the DVP12SA211T meets stringent standards for noise immunity, insulation impedance, and spike voltage durability, providing solid protection against electrical disturbances. It also supports a maximum input frequency of 100kHz, ensuring reliable performance in fast-paced automation environments.

The unit’s compact build, combined with robust surge protection and grounding design, allows seamless integration into a wide range of machine control, factory automation, and energy management systems.

Key features :-

• Brand: Delta
• Series: DVP
• Model No.: DVP12SA211T
• Output Method: Transistor NPN
• Power Supply: 24VDC (-15% ~ 20%)
• Number of Inputs and Type: 8 – Digital
• Number of Outputs and Type: 4
• Fuse Capacity: 2.5A / 30VDC, Polyswitch
• Power Consumption: 1.5W
• Inrush Current: Max. 7.5A @ 24VDC
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O points to ground: 500VDC)
• Noise Immunity: ESD: 8kV Air; EFT: Power Line 2kV; Digital I/O 1kV; Analog & Communication I/O compliant
• Earth: Grounding wire must not be thinner than power supply cable; ensure all PLCs are properly grounded when used in multiples
• Storage / Operation Temperature: Storage: -25ºC ~ 70ºC; Operation: 0ºC ~ 55ºC
• Storage / Operation Humidity: 5%~95% (Pollution degree 2)
• Response Time: OFF→ON: 2μs; ON→OFF: 3μs
• Max. Frequency: 100kHz
• Working Voltage: 5 ~ 30VDC
• Input Impedance: 4.7kΩ

Applications :-

• Factory Automation: Controls fast-switching devices in production systems.
• Machine Automation: Perfect for motor drives, actuators, and signal feedback.
• Building Automation: Manages lighting, sensors, and security circuits.
• Energy Management: Handles relay-free switching and high-speed data control.
• Process Control: Offers real-time output switching for precision operations.

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
