Delta DVP12SA211R PLC Module

Delta DVP12SA211R PLC Module

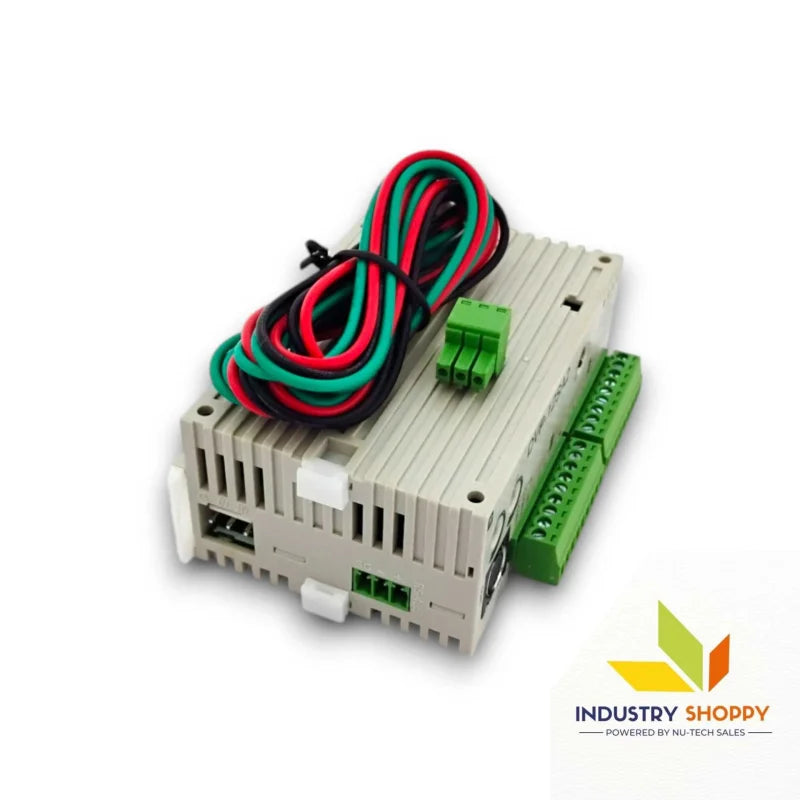

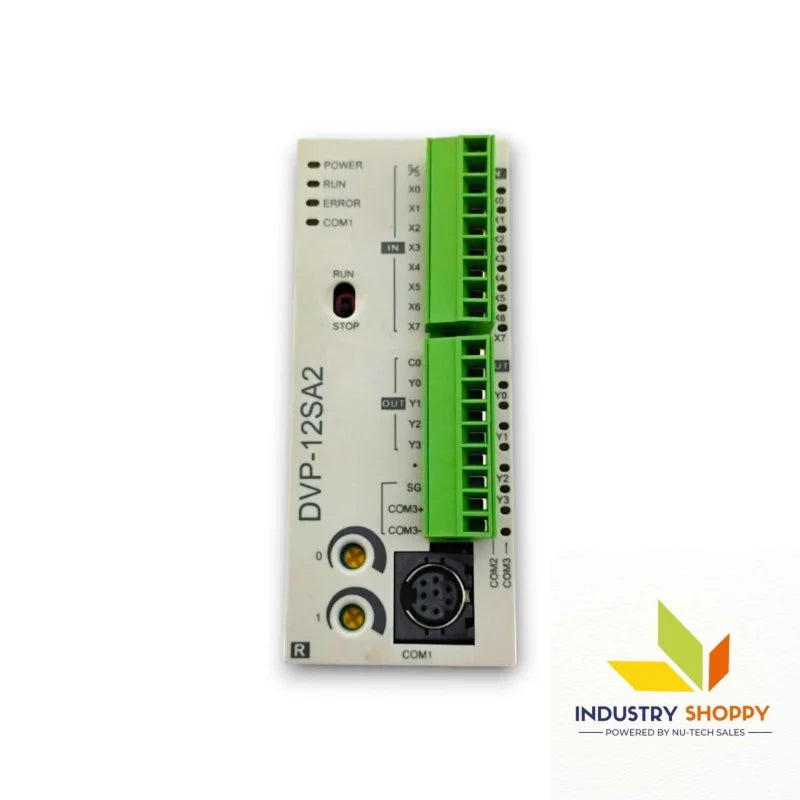

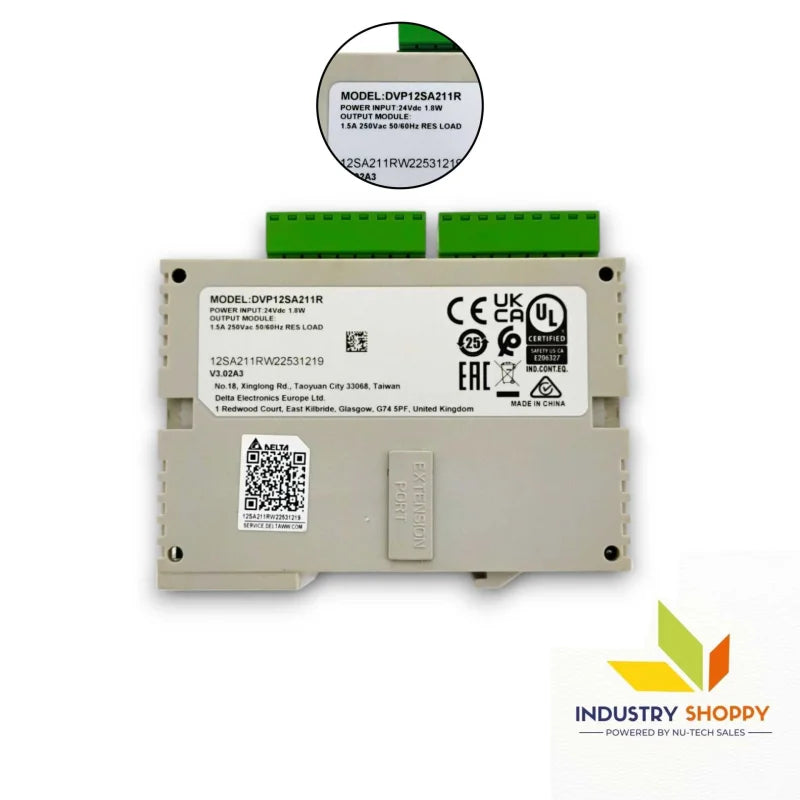

The Delta DVP12SA211R PLC Module is a versatile and compact control unit designed for flexible integration into various industrial automation systems. Equipped with 8 digital inputs and 4 relay outputs, this module offers precise control for both monitoring and actuation tasks.

Powered by 24VDC with built-in reverse polarity protection, the DVP12SA211R ensures safe operation even during unexpected wiring issues. Its design features superior insulation impedance and noise immunity that meet strict industrial standards, delivering stability in environments exposed to static discharge, surges, and electromagnetic interference.

The module's response time of 10ms guarantees smooth performance, while its maximum input frequency of 100KHz allows accurate handling of fast input signals. Engineered for endurance, the DVP12SA211R thrives in harsh operating conditions, supporting a wide temperature range and 5%~95% humidity.

Whether applied in process automation, machine control, or building systems, the Delta DVP12SA211R offers efficiency, safety, and reliability for your control architecture.

Key features :-

• Brand: Delta
• Series: DVP
• Model No.: DVP12SA211R
• Output Method: Relay
• Power Supply: 24VDC (-15%~20%)
• Number of Inputs and Type: 8 – Digital
• Number of Outputs and Type: 4 – Relay
• Fuse Capacity: 2.5A/30VDC, Polyswitch
• Power Consumption: 1.8W
• Inrush Current: 24VDC, 5mA
• Power Protection: Reverse polarity protection on DC input power
• Insulation Impedance: >5 MΩ (all I/O points to ground: 500VDC)
• Noise Immunity: ESD: 8kV Air; EFT: Power Line 2kV; Digital I/O 1kV; Analog & Communication I/O compliant
• Earth: Grounding wire must not be thinner than power supply cable
• Storage / Operation Temperature: Storage: -25ºC ~ 70ºC; Operation: 0ºC ~ 55ºC
• Storage / Operation Humidity: 5%~95% (Pollution degree 2)
• Response Time: 10ms
• Max. Frequency: 100KHz

Applications :-

• Factory Automation: Controls production line sensors and output devices efficiently.
• Building Automation: Supports HVAC, lighting, and alarm relay switching.
• Machine Automation: Manages motors, contactors, and signal feedback loops.
• Process Control: Handles discrete input monitoring and output control in industries.
• Energy Management: Integrates with power system monitoring and relay switching.

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
