Delta DVP08XN211R PLC Module

Delta DVP08XN211R PLC Module

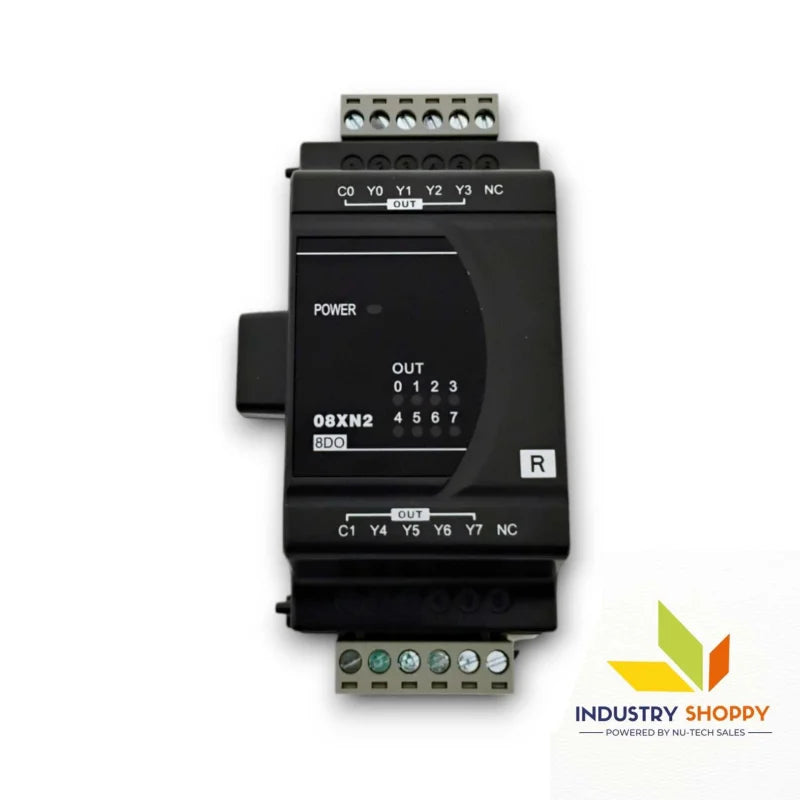

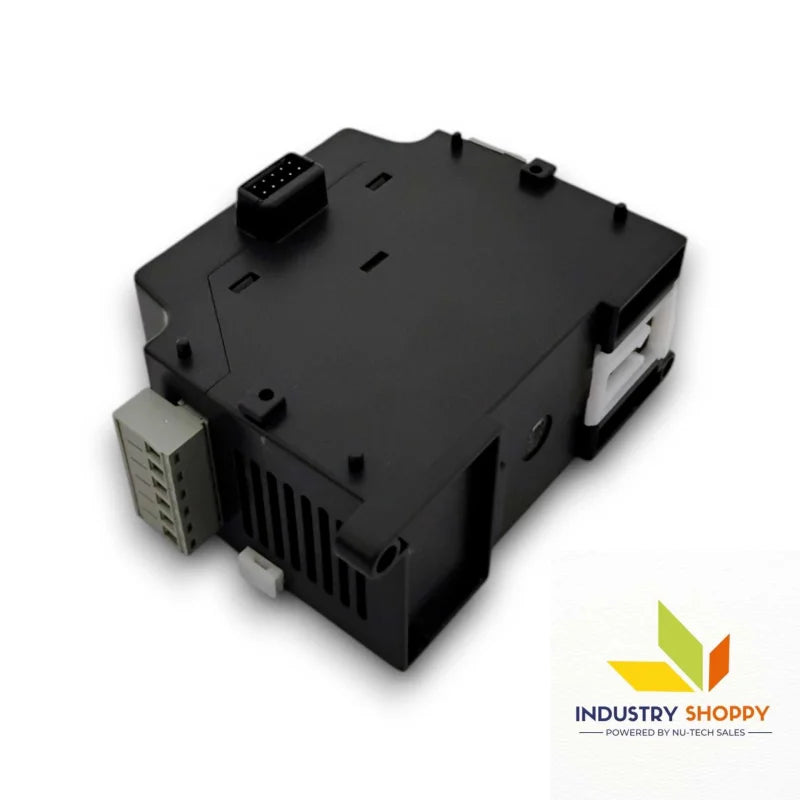

The Delta DVP08XN211R PLC Module is a powerful output extension unit designed to enhance control systems with 8 reliable relay output channels. Built to meet the rigorous demands of industrial automation, this module ensures consistent performance across a variety of applications.

Operating on a 24VDC power supply, the DVP08XN211R offers stable functionality in both standard and demanding environments. With a program capacity of 16k steps, it supports flexible logic handling while maintaining dependable control precision.

The module features robust spike voltage durability and insulation impedance, providing superior electrical protection and system longevity. Additionally, its noise immunity meets international standards, ensuring resistance against electrostatic discharge, transient surges, and RF interference.

With a response time of just 10ms and a fast OFF→ON switching time of 20μs, this unit ensures real-time reaction for critical control processes. Whether you're integrating new systems or upgrading existing ones, the Delta DVP08XN211R is a durable and efficient choice for relay output-based control tasks.

Key features :-

• Brand: Delta
• Series: DVP
• Model No.: DVP08XN211R
• Output Method: Relay
• Power Supply: 24VDC (-15%~20%)
• Number of Inputs and Type: Not Applicable
• Number of Outputs and Type: 8 - Relay
• Fuse Capacity: ES: 2A/250VAC; SV: 2.5A/30VDC
• Power Consumption: 1.2W
• Program Capacity: 16k Steps
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O points to ground: 500VDC)
• Noise Immunity: ESD: 8kV Air; EFT: Power Line 2kV, Digital I/O 1kV, Analog & Comm I/O 1kV; RS: 26 MHz~1GHz, 10V/m
• Earth: Grounding wire must be no thinner than power supply cable; each PLC must be grounded properly when used in multiples
• Storage / Operation Temperature: Storage: -25ºC ~ 70ºC; Operation: 0ºC ~ 55ºC
• Storage / Operation Humidity: Storage: -25ºC ~ 70ºC; Operation: 0ºC ~ 55ºC
• Response Time: 10ms; OFF→ON time: 20μs
• Vibration / Shock Resistance: IEC61131-2, IEC 68-2-6 (TEST Fc); IEC61131-2 & IEC 68-2-27 (TEST Ea)
• Input Signal Voltage: 24VDC ±10% (5 mA)

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
