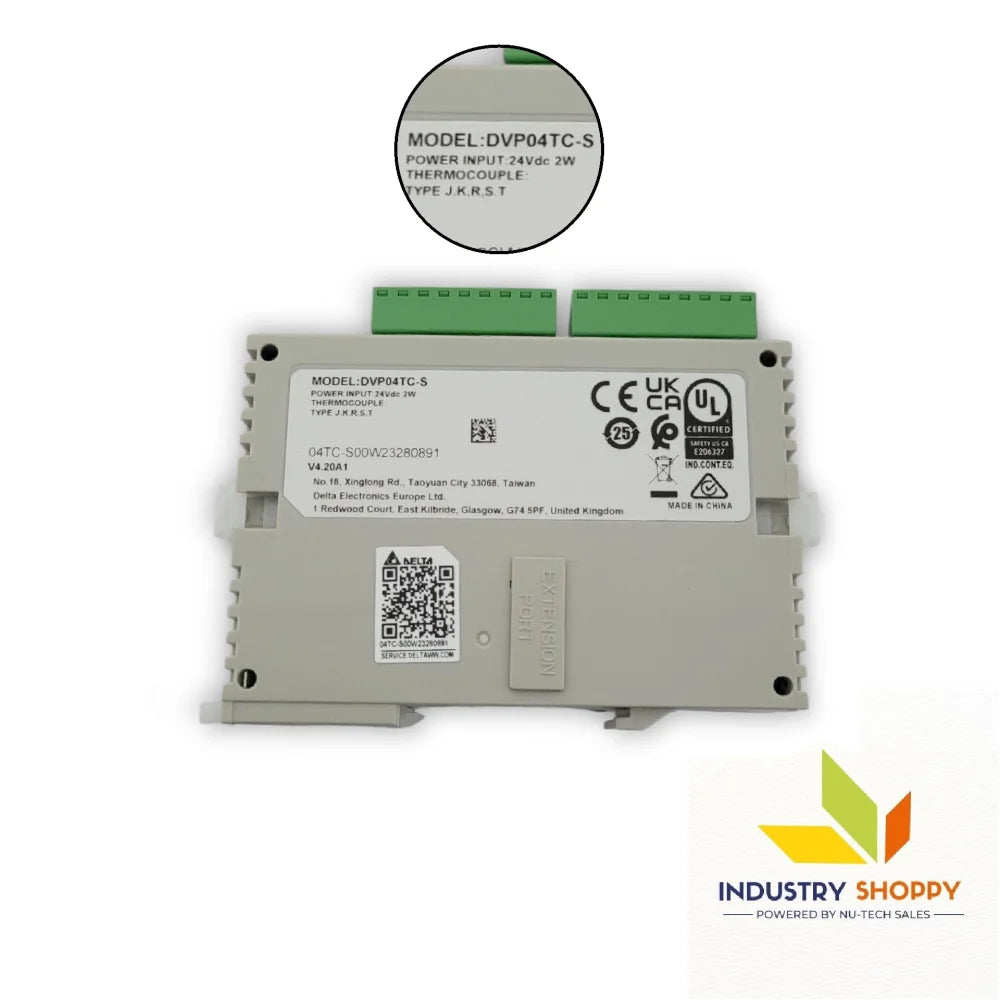

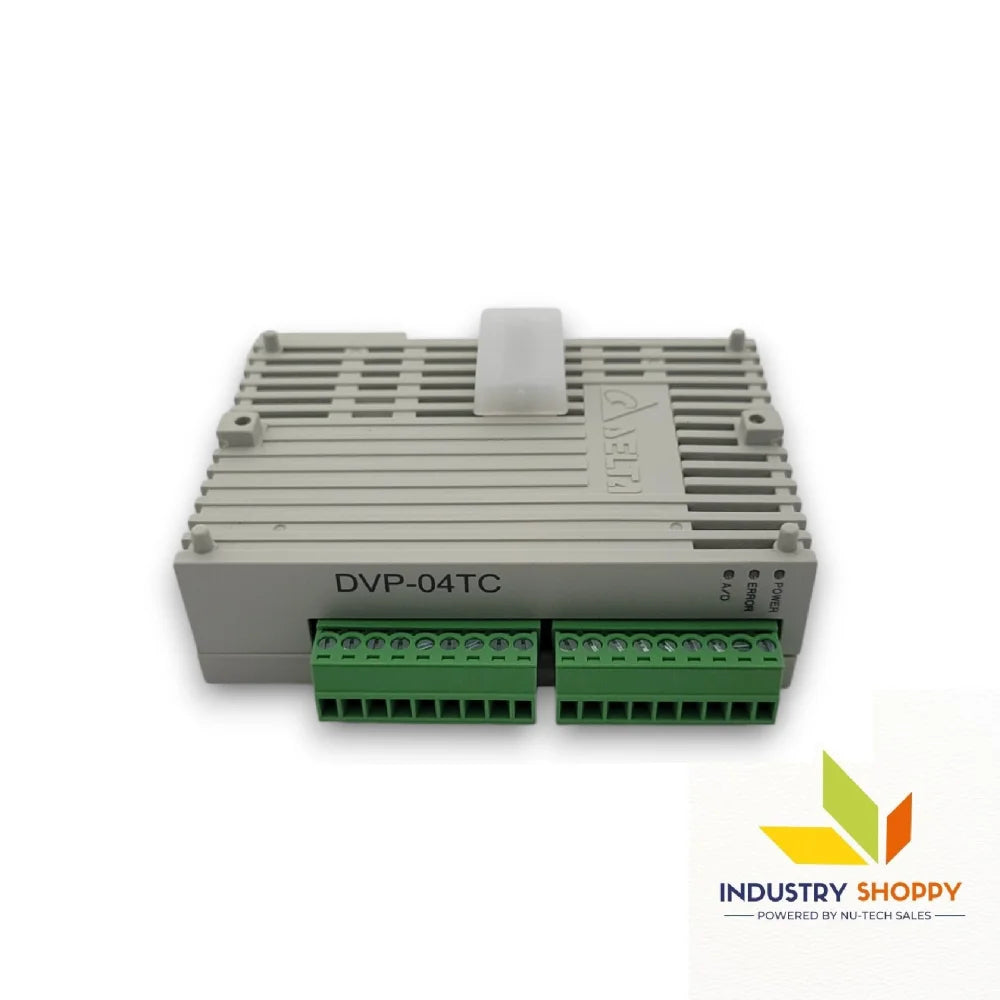

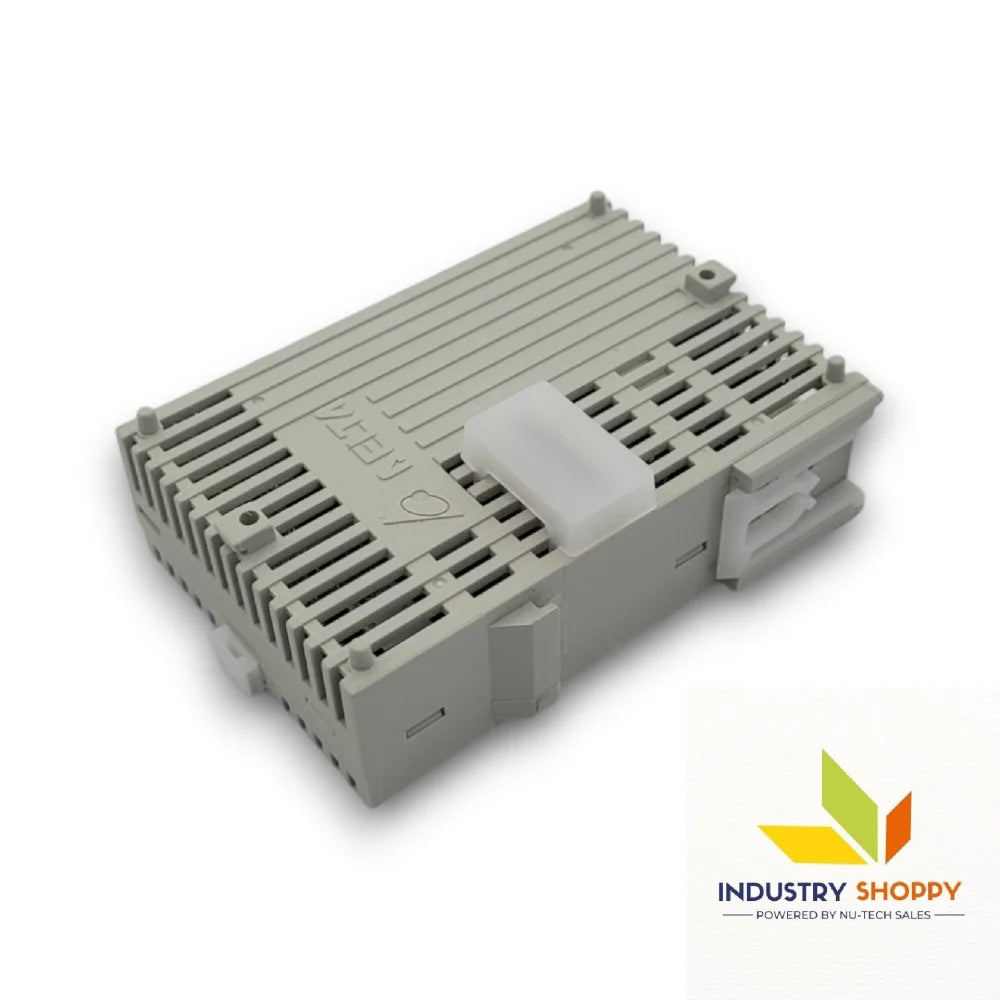

Delta DVP04TC-S PLC Module

Delta DVP04TC-S PLC Module

The Delta DVP04TC-S PLC Module is designed for precision temperature monitoring and control in industrial environments. Equipped with 4 analog input channels, this temperature control module supports a wide range of sensor types including RTD and thermocouples such as J, K, R, S, and T.

With its compact design and DIN rail mounting, the DVP04TC-S seamlessly integrates into Delta’s DVP series systems, providing reliable and stable input conversion. The module operates with both 100~240VAC or 24VDC power supply, making it highly adaptable to varying industrial setups.

The response time of 200ms per channel ensures real-time data processing, enabling faster system reactions to temperature changes. Its pluggable screw terminal offers convenient installation and maintenance, while CE and cULus approvals confirm adherence to global safety and performance standards.

Ideal for temperature-dependent applications, the DVP04TC-S enhances the accuracy and stability of your control systems, helping maintain optimum process conditions.

Key features :-

• Brand: Delta
• Series: DVP
• Model No: DVP04TC-S
• Number of Inputs and Type: 4 - Analog
• Number of Outputs and Type: -
• Type: Temperature Control Module
• Voltage - Supply: 100 ~ 240VAC, 24VDC
• Features: RTD, Type J, K, R, S, T
• Max. Rated Power Consumption: 2W (supplied by external power)
• Termination Style: Pluggable Screw Terminal
• Mounting Type: DIN Rail
• Operating Temperature: 0°C ~ 55°C
• Approval Agency: CE, cULus
• Response Time: 200ms × channels

Applications :-

• Temperature Monitoring Supports RTD and thermocouple types for precise measurements.
• Industrial Ovens Ensures real-time temperature feedback and control.
• HVAC Systems Integrates accurate sensor input for heating/cooling control.
• Food & Beverage Processing Maintains temperature-critical production stability.
• Plastic Injection Molding Enables precise mold temperature regulation.

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
