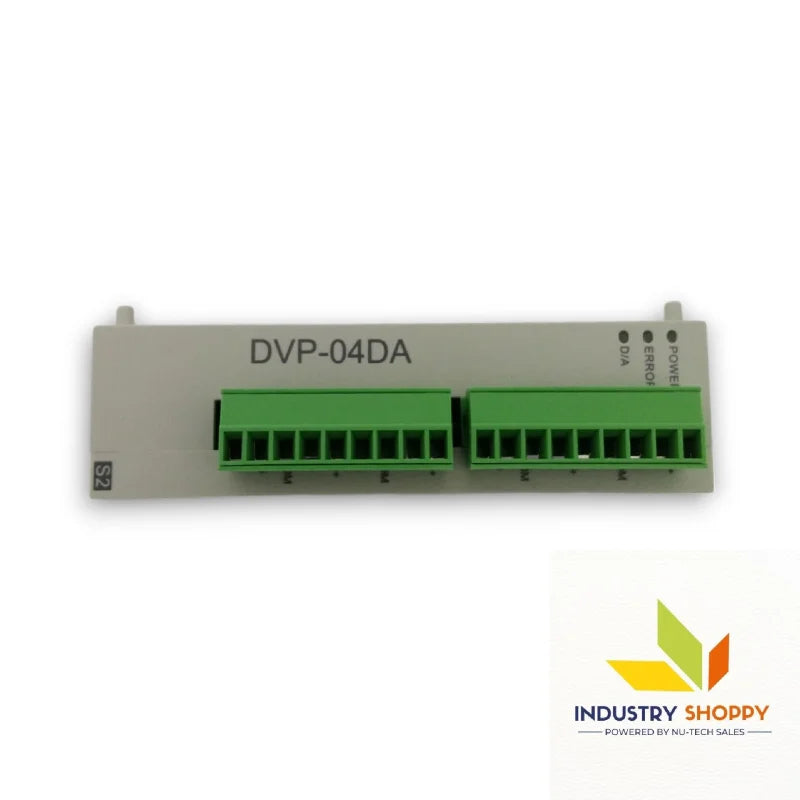

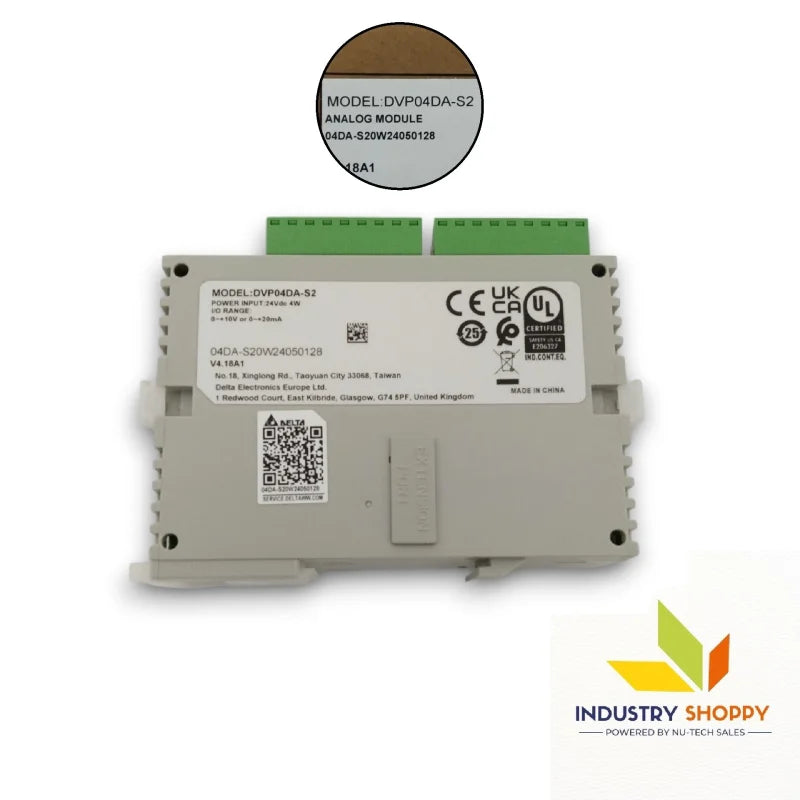

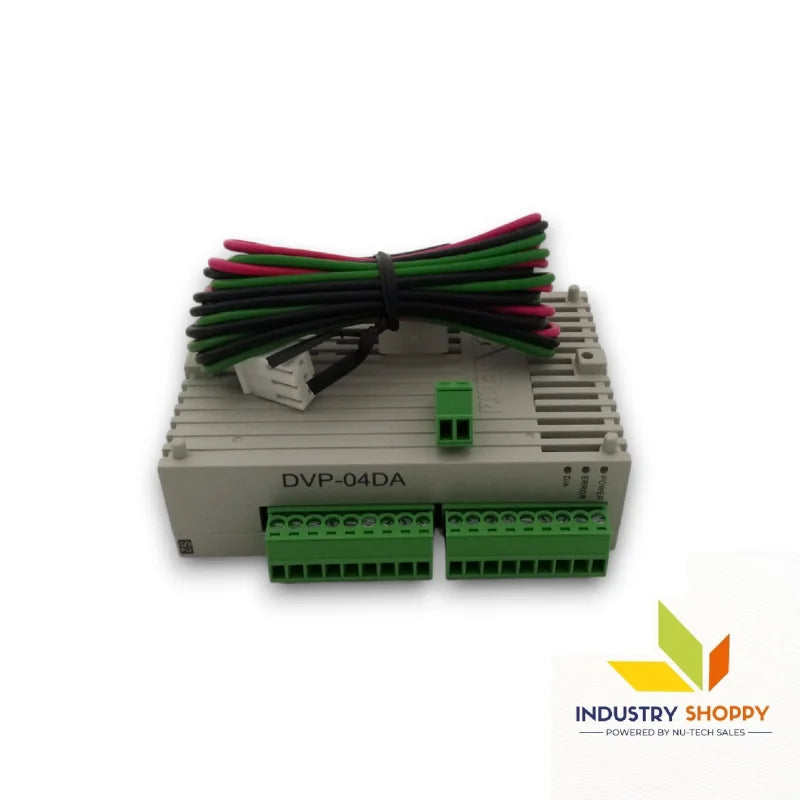

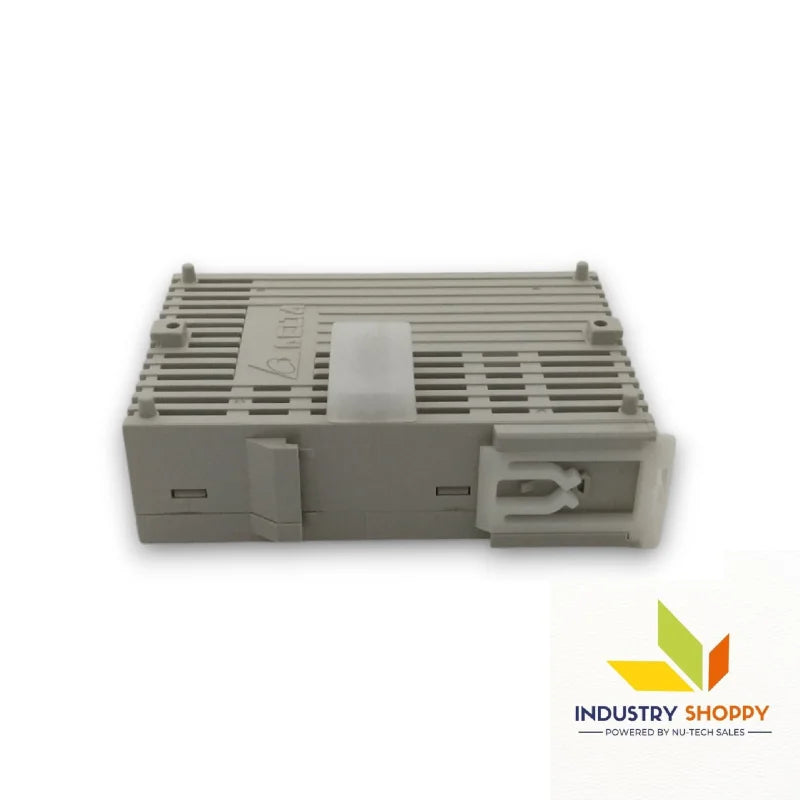

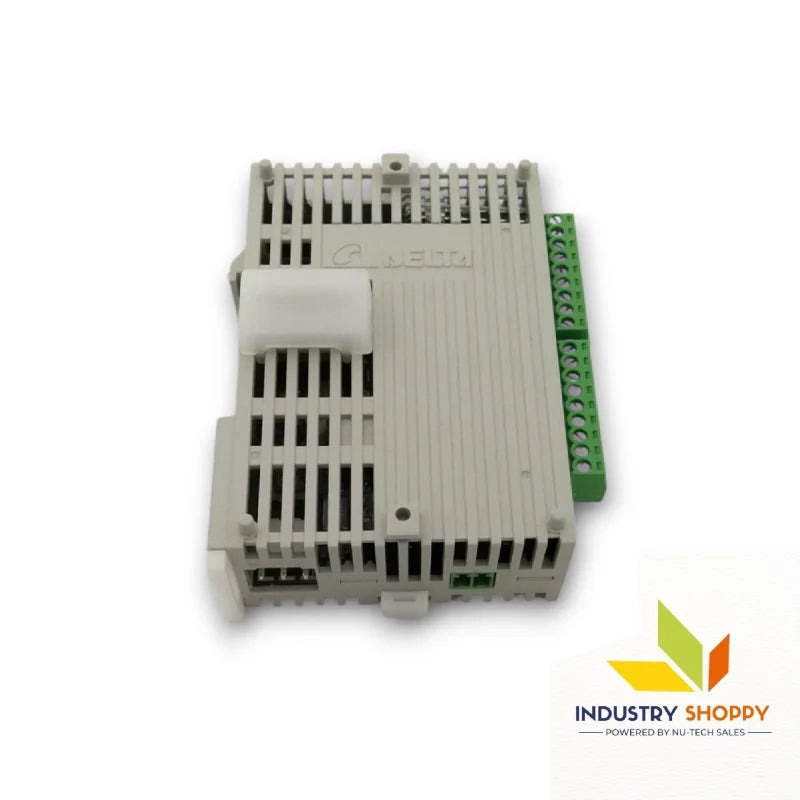

Delta DVP04DA-S2 PLC Module

Delta DVP04DA-S2 PLC Module

The Delta DVP04DA-S2 PLC Module is designed for precise analog signal output in automation systems, delivering stable and efficient performance. Featuring 4 analog output channels with 12-bit resolution, it ensures smooth and accurate conversion of digital signals into voltage or current outputs, supporting ranges of 0~10V for voltage and 0~20mA for current.

With a built-in RS-485 interface, the module enables reliable data communication across devices and PLC networks, enhancing integration flexibility. Its fast 3ms per channel response time ensures quick reaction to system changes, perfect for real-time control applications.

Built to withstand industrial conditions, the DVP04DA-S2 offers robust noise immunity, excellent spike voltage durability, and complies with CE safety standards. The module’s compact design allows for easy installation on DIN rails, while its earth grounding recommendations improve operational stability.

Engineered to deliver high-accuracy analog outputs, the DVP04DA-S2 is an excellent solution for advanced industrial control and automation tasks.

Key features :-

• Brand: Delta
• Series: DVP
• Model No: DVP04DA-S2
• Built-in: RS-485 interface
• Power Supply Voltage: 24VDC (-15%~20%)
• Resolution: 12-bit
• Analog I/O Modules: 4 points of analog
• Fuse Capacity: ES: 2A/250VAC; SV: 2.5A/30VDC
• Power Consumption: 4W
• Voltage Input/Output: Output voltage (0V ~ +10V)
• Current Input/Output: Output current (0mA ~ +20mA)
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O point-to-ground: 500VDC)
• Noise Immunity: ESD 8 kV Air Discharge, EFT Power Line 2 kV, Digital I/O 1 kV, Analog & Communication I/O 1 kV, RS 26 MHz~1GHz 10V/m
• Earth: Ground wire diameter must not be shorter than the power supply cable
• Storage / Operation Temperature: Storage: -25ºC ~70ºC / Operation: 0ºC ~55ºC
• Storage / Operation Humidity: 5%~95% (non-condensing)
• Response Time: 3ms per channel
• Input Signal Voltage: 24VDC ±10% (5 mA)

Applications :-

• Analog Signal Output Converts digital data to precise analog voltage or current.
• Process Control Systems Controls actuators and equipment in real-time.
• Automation Equipment Delivers smooth analog output for industrial operations.
• Machine Control Supports stable signal conversion for machine communication.
• Energy Management Systems Provides precise analog outputs for monitoring devices.

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
