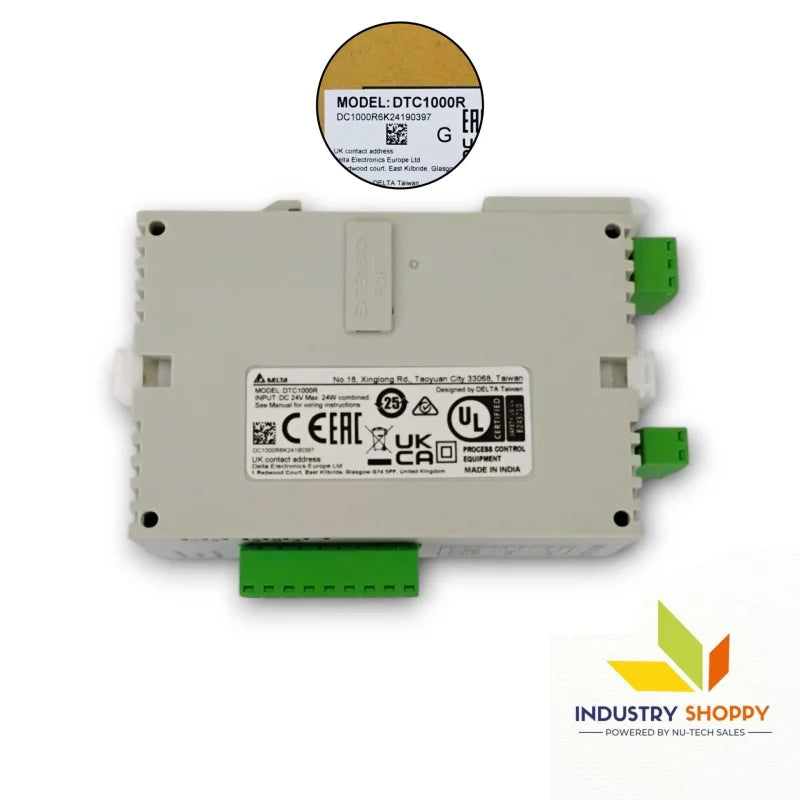

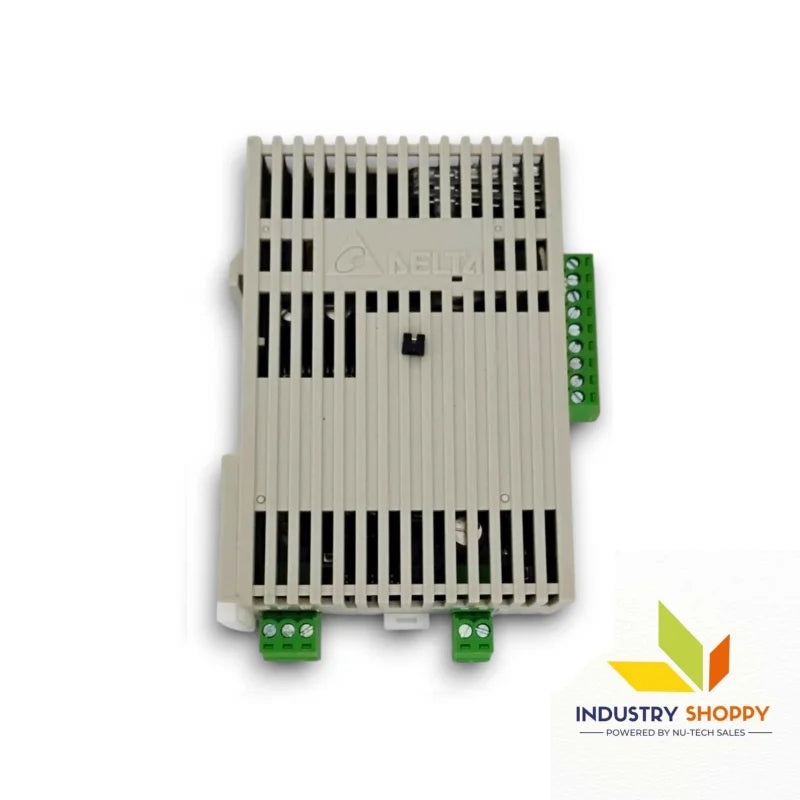

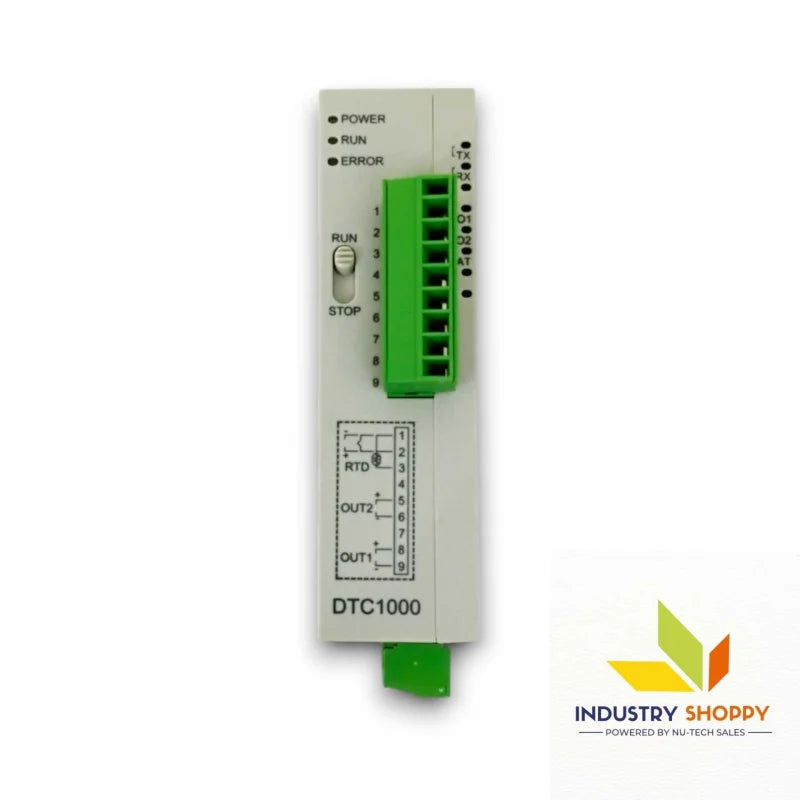

Delta DTC1000R PLC Module

Delta DTC1000R PLC Module

The Delta DTC1000R PLC Module is an intelligent, compact controller built for precise temperature and process regulation in a wide range of industrial environments. Featuring a universal input range of -200°C to 1800°C, along with support for current (0-20mA) and voltage (0-10VDC) signals, it provides excellent flexibility for diverse sensing applications.

Equipped with a relay output type, this module easily interfaces with a variety of industrial actuators, making it a reliable choice for systems requiring discrete switching. Its advanced control modes — including Manual, ON-OFF, PID, and Program — deliver adaptable solutions to meet dynamic process demands.

Designed for DIN rail installation, the DTC1000R runs on a secure 24VDC power supply and includes alarm output and retransmission output for efficient system monitoring and real-time alerts. With built-in communication support, this module ensures seamless integration with PLCs, HMIs, and SCADA systems. Whether applied in heating, cooling, or automated control loops, it promises stability and performance.

Key features :-

• Brand: Delta
• Series: DT
• Model No: DTC1000R
• Output Type: Relay
• Module Type: CPU
• Display Type: N/A
• Voltage Class: 24VDC
• Size: DIN Rail Mount
• Input Type: Universal
• Alarm Output: 1
• Communication: Yes
• Retransmission Output: Yes
• Control Mode: Manual / ON-OFF / PID / Program
• Input Range: -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV
• Voltage - Supply: 24VDC
• Operation Voltage: 85% to 110% of rated
• Operating Temperature: 0°C ~ 50°C

Applications :-

• Temperature Control Offers precise PID, ON-OFF, and manual regulation for process environments.
• Process Automation Universal input allows flexible sensor integration across industries.
• System Monitoring Retransmission output for live process feedback and system communication.
• Safety Assurance Relay alarm output enables immediate fault alerts and protection.
• Industrial Integration Communication-ready for connection with PLC, HMI, and SCADA systems.

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
