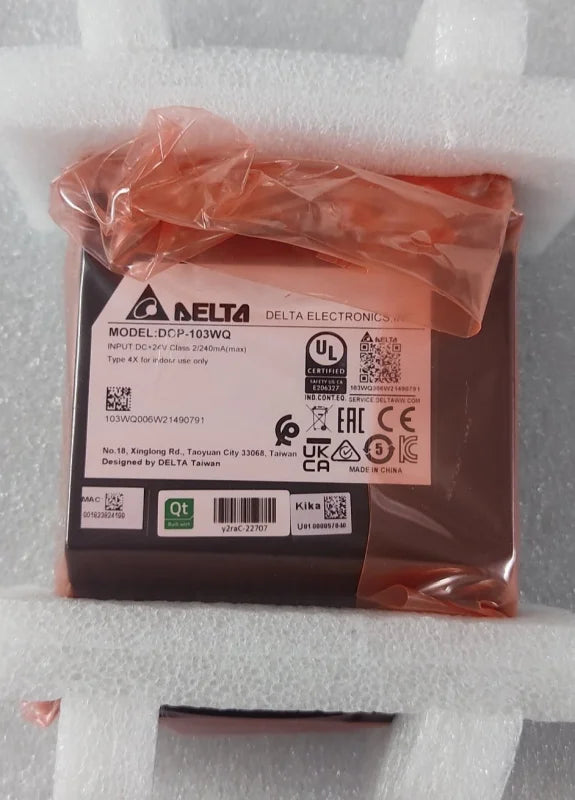

Delta DOP-103WQ HMI Panel

Delta DOP-103WQ HMI Panel

The Delta DOP-103WQ HMI Panel is designed to enhance industrial communication with superior performance and compact form. It features a 4.3-inch TFT LCD with 480x272 resolution and 16-bit color depth for bright, clear, and detailed visualization.

This unit is powered by an ARM Cortex-A8 800MHz processor and boasts 512MB RAM alongside 256MB Flash ROM, ensuring smooth real-time operations even under complex process conditions. The resistive touch panel is tested for over 10 million presses, providing reliable operation for long-term industrial deployment.

With its built-in Ethernet port, USB Host/Slave, and RS-232/RS-485/RS-422 serial ports, the DOP-103WQ guarantees seamless integration into automation systems. The panel is fully compliant with CE, UL, IP65, and NEMA4 indoor protection standards to ensure safety and durability.

This HMI provides natural air circulation cooling for quiet, efficient operation, and its design is optimized for user-friendly installation and maintenance.

Key features :-

Applications :-

• Machine Control: Enables intuitive machine status monitoring and parameter adjustment.
• System Visualization: Displays real-time data for efficient system supervision.
• Industrial Networking: Facilitates reliable connections to PLCs and industrial equipment.
• Facility Automation: Simplifies control and supervision in smart buildings.
• Energy Efficiency: Helps manage power systems with clear, organized interfaces.

Precautions:

• Power Supply: Use a stable 24VDC source with proper grounding to prevent damage.
• Installation Environment: Avoid exposure to direct sunlight, excessive dust, or corrosive gases.
• Temperature & Humidity: Operate only within the specified 0°C–45°C temperature and 5%–90% humidity range.
• Wiring: Ensure all communication and power cables are properly shielded to avoid interference.
• Maintenance: Disconnect power before cleaning or performing any hardware adjustments.
