Datalogic TLu-515C Contrast Sensor

Datalogic TLu-515C Contrast Sensor

The Datalogic TLu-515C Contrast Sensor is a versatile, high-performance sensor designed for contrast mark detection in automated systems. This sensor operates with a nominal sensing distance of 9 mm and utilizes a circular spot of Ø 3 mm to accurately detect contrast marks. With a response time of 0.025 ms (20 kHz), it ensures fast and reliable performance in high-speed applications.

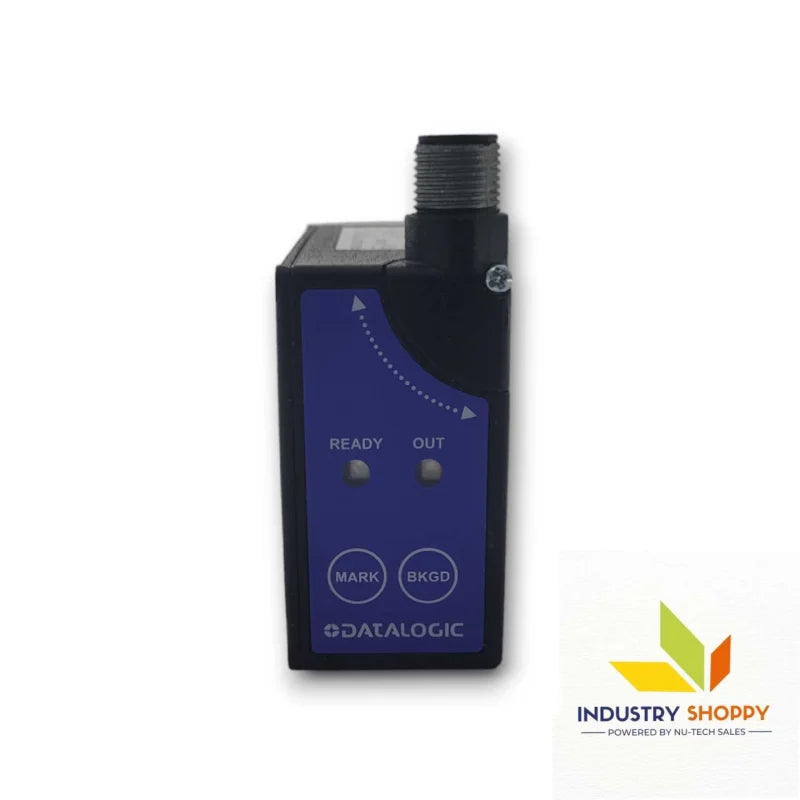

The PNP L/D selectable output offers flexible integration with various control systems, and the sensor's Teach-in sensitivity adjustment simplifies setup and calibration. LED indicators provide clear status feedback: red for output and green for readiness.

The TLu-515C features robust protection mechanisms, including short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, ensuring durability and reliability in challenging environments. The IP67-rated metal housing (Zamak) and glass active head material make it ideal for industrial environments subject to dust and moisture.

With an operating temperature range of -10°C to 55°C, this sensor is perfect for a wide range of applications, including packaging, material handling, and automation systems.

Key features :-

Applications :-

• Contrast Mark Detection
  Accurately detects printed or marked objects with high contrast, ideal for packaging and labeling applications.
• Flexible Integration
  PNP output and Teach-in sensitivity adjustment make it easy to integrate into a variety of automated systems.
• High-Speed Detection
  20 kHz response time ensures reliable detection in high-speed manufacturing processes.
• Environmental Resistance
  IP67-rated housing provides protection against dust and water, making it suitable for use in harsh industrial environments.
• Ease of Use
  LED indicators and Teach-in adjustment allow for straightforward installation and setup, reducing downtime.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
