Datalogic TL50-W-815 Color Mark Sensor

Datalogic TL50-W-815 Color Mark Sensor

The Datalogic TL50-W-815 Color Mark Sensor is a high-performance sensor designed for contrast mark detection in various industrial applications, offering a nominal sensing distance of 9mm with a spot size of 1.5 x 5mm. This sensor is ideal for applications requiring precise detection of color marks, enabling reliable differentiation between contrasting objects. Its RGB LED emission ensures superior contrast detection, even in dynamic lighting conditions.

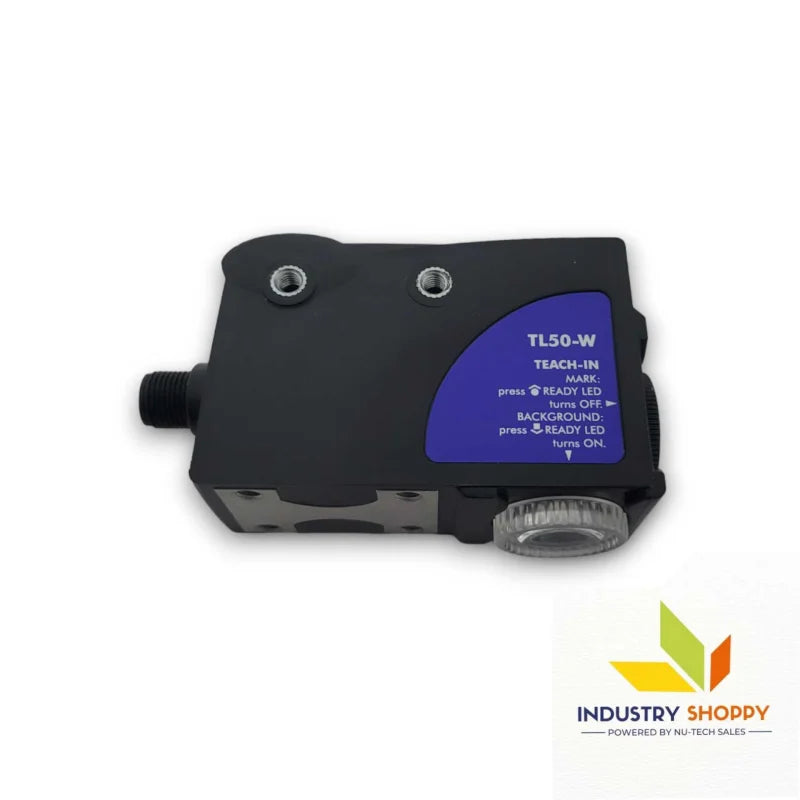

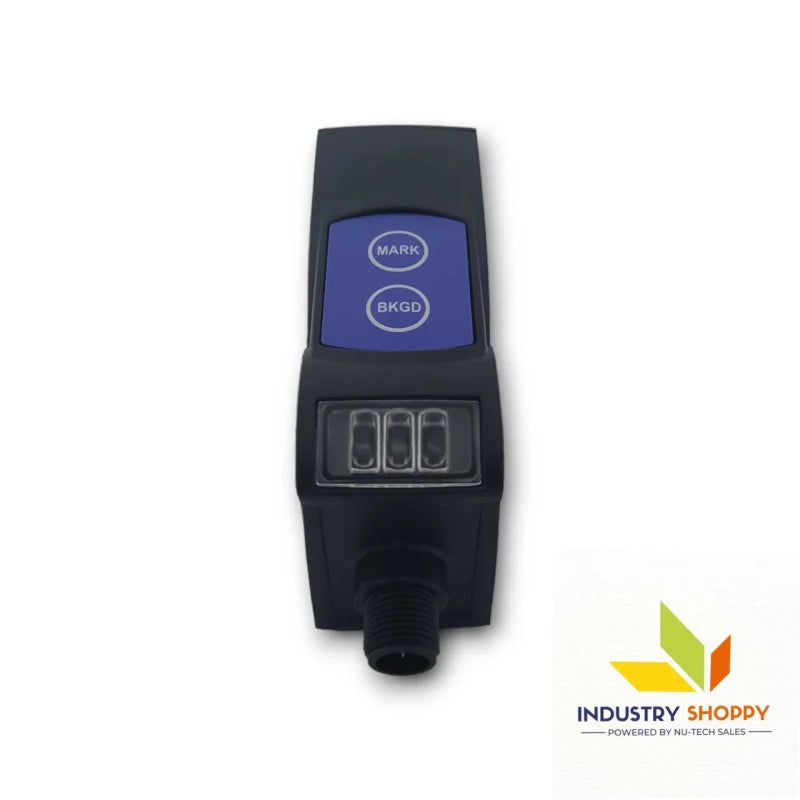

This sensor provides teach-in sensitivity adjustment, allowing for easy setup and customization to suit different applications. The NPN/PNP output with Dark/Light select functionality provides flexible output options to meet specific operational needs. The response time of 33 µs (at 15 kHz) and a switching frequency of 15 kHz make it suitable for high-speed detection in fast-moving processes.

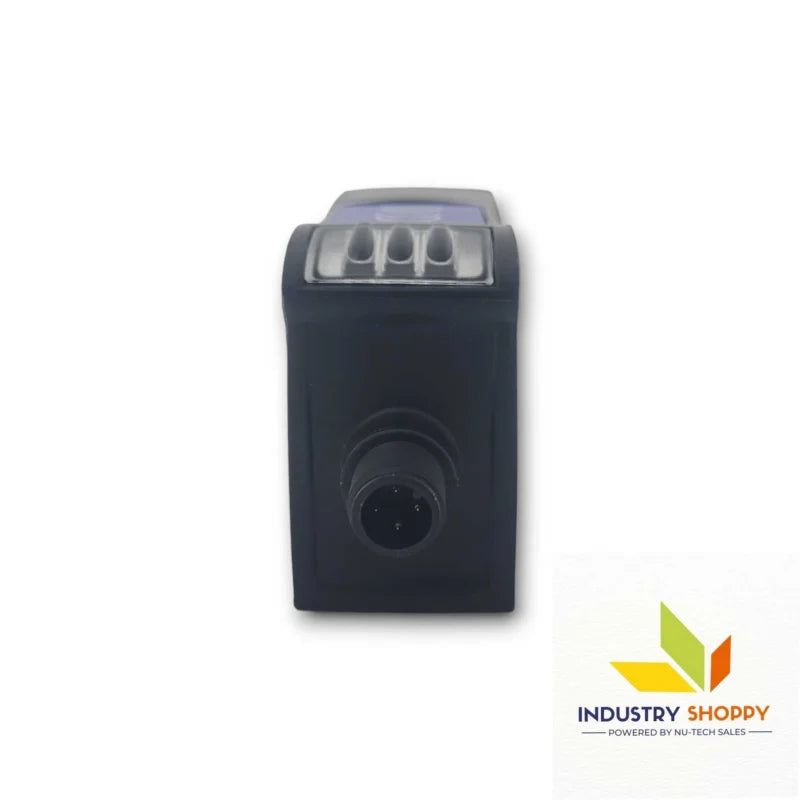

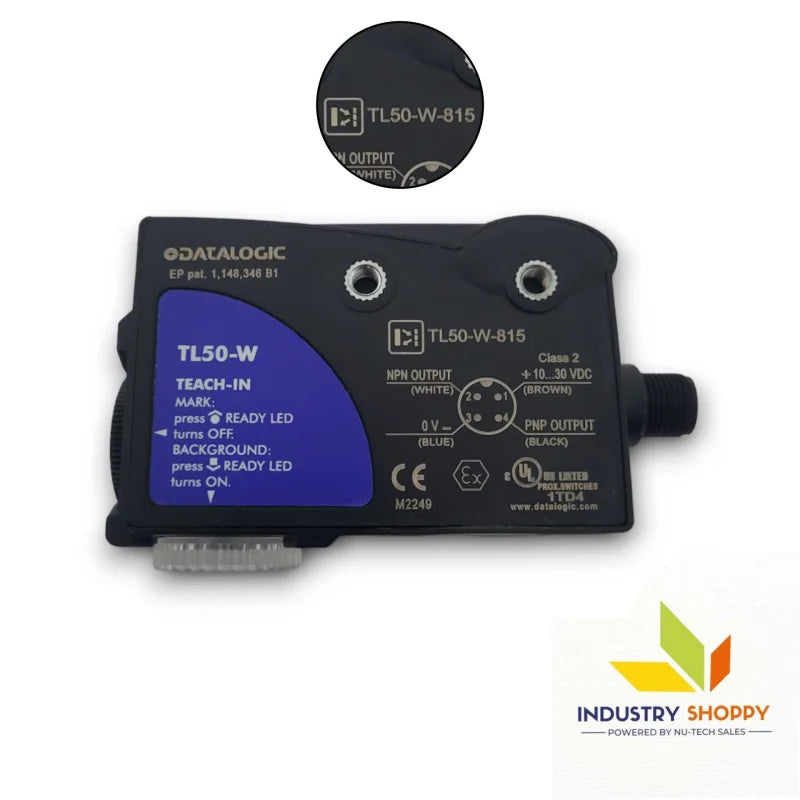

Housed in a plastic ABS/PMMA case, the sensor is built to withstand harsh environments, offering IP67 protection, making it resistant to dust, moisture, and other environmental factors. The M12 plug connection ensures straightforward integration, while the yellow (output state), green (ready), and orange (delay) LED indicators provide clear status feedback. The reverse polarity protection and short-circuit protection further enhance the sensor's durability and reliability.

Key features :-

Applications :-

• Packaging and Labeling: Perfect for detecting contrast marks on printed labels, ensuring precise alignment and registration during packaging processes.
• Quality Control: Used in automated quality control systems to detect color contrasts between products or components, ensuring accuracy and uniformity.
• Printing Industry: Ideal for high-speed printing applications where color mark detection is crucial for correct alignment and consistent output.
• Material Handling: Suitable for systems where color marking or contrast marking is used for sorting or positioning items on conveyor belts.
• Manufacturing Automation: Essential in automated production environments requiring fast response times, high switching frequencies, and reliable mark detection for continuous operations.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
