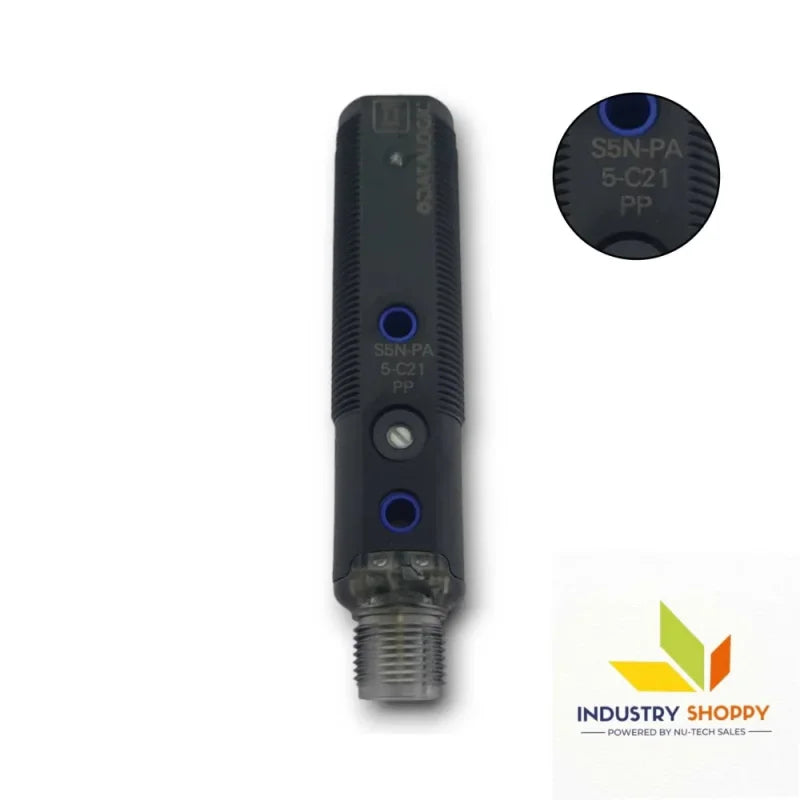

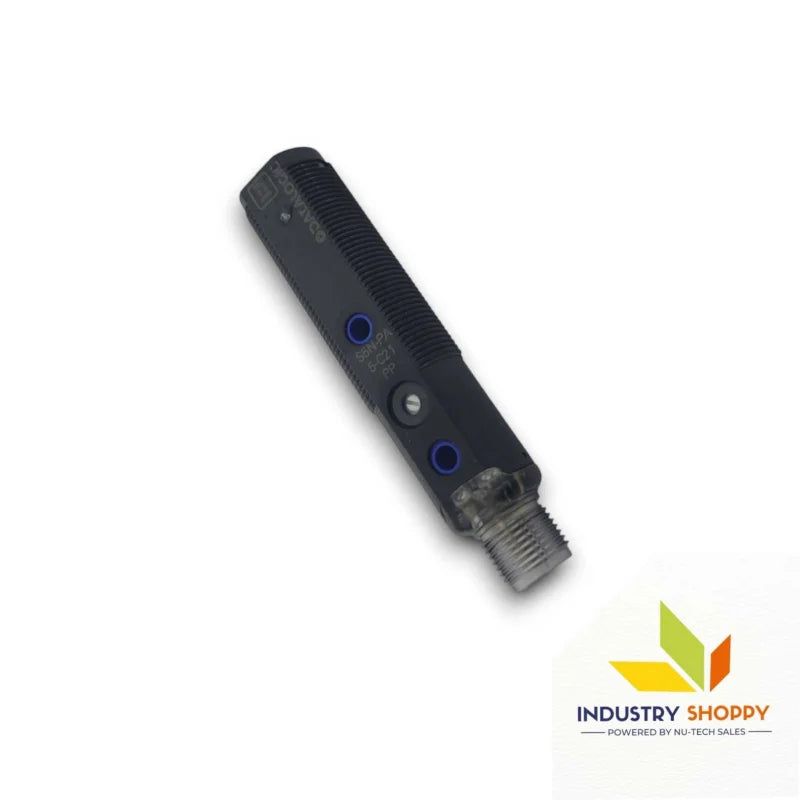

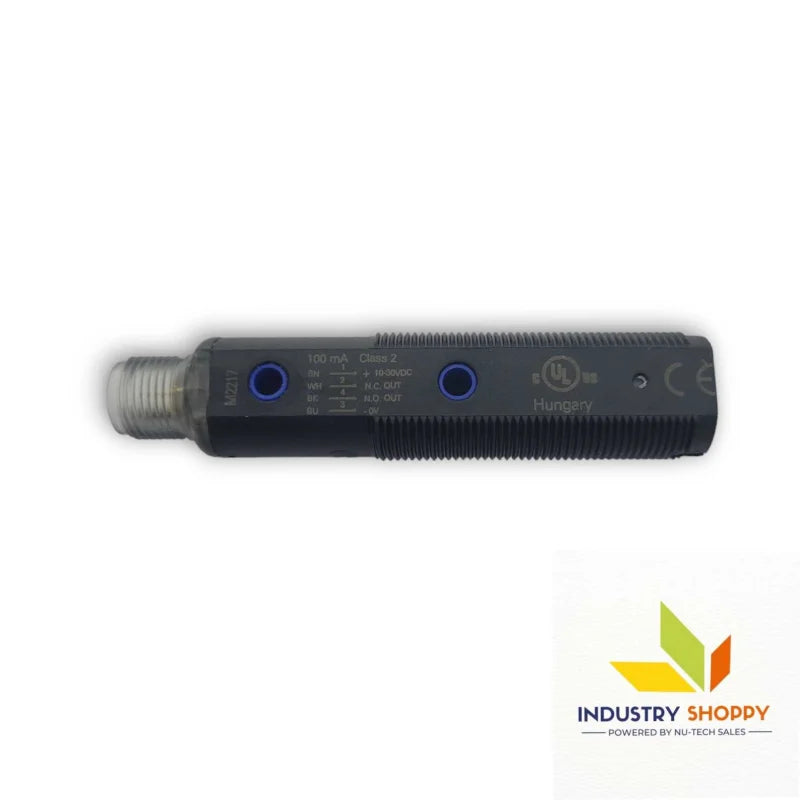

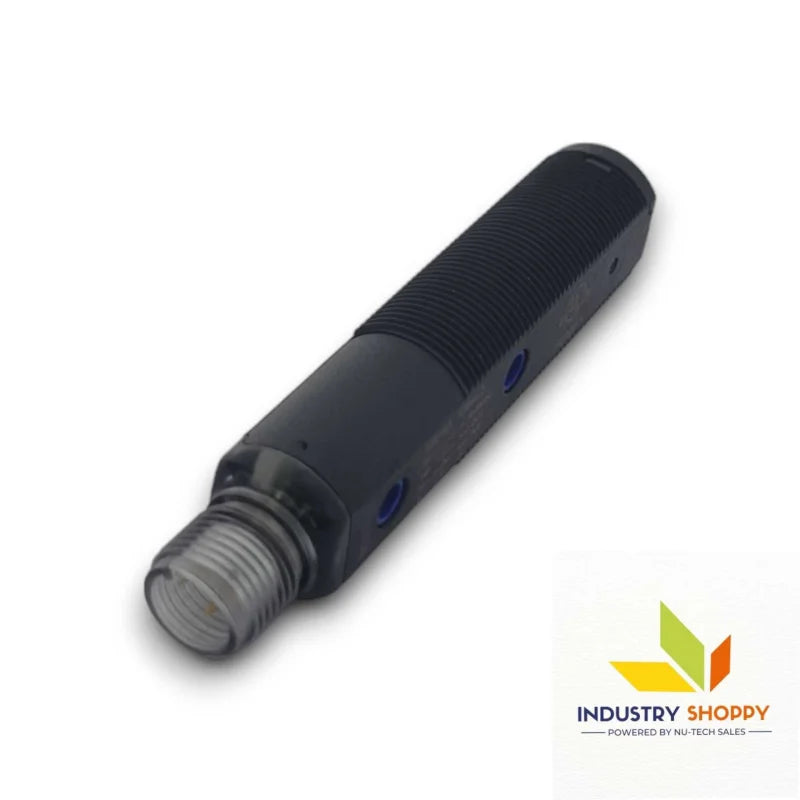

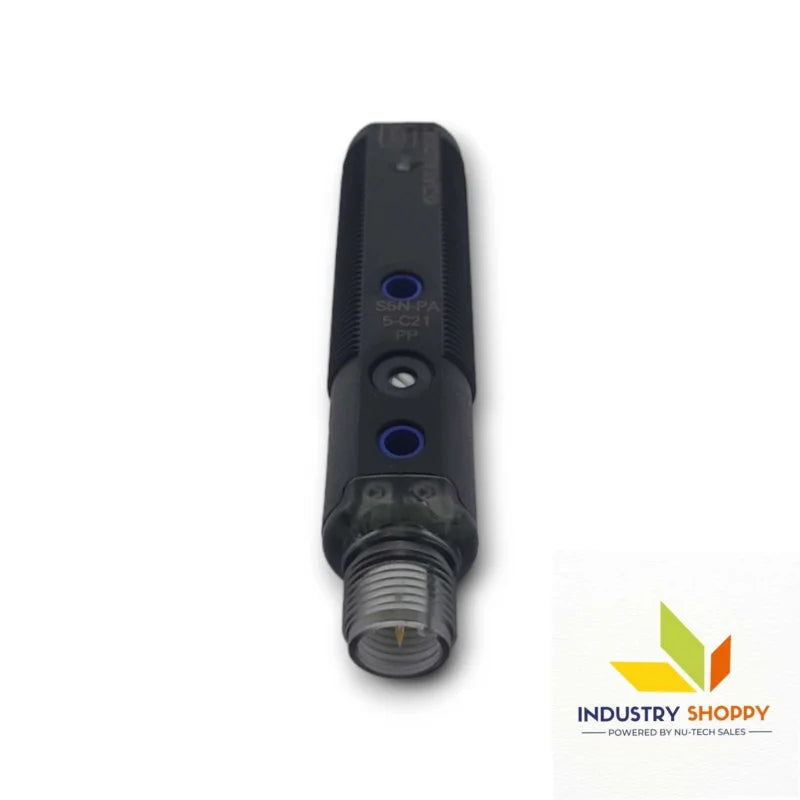

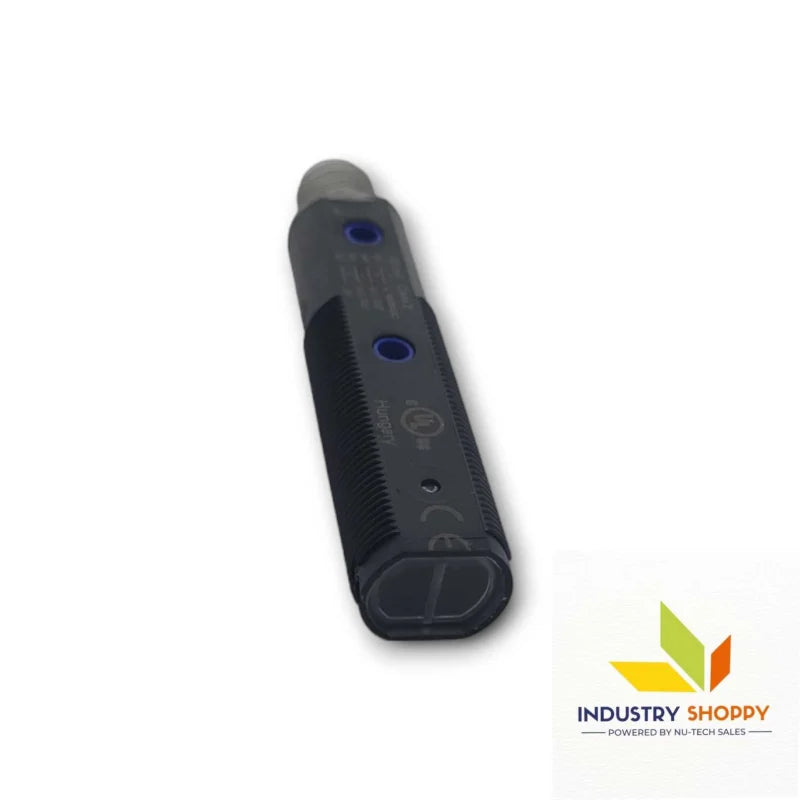

Datalogic S5N-PA-5-C21-PP Photoelectric Sensor

Datalogic S5N-PA-5-C21-PP Photoelectric Sensor

The Datalogic S5N-PA-5-C21-PP Photoelectric Sensor (Product No. S5N-PA-5-C21-PP, Part No. 952002181) is a compact, high-reliability sensor designed for medium-range diffuse proximity detection. With a sensing range of 0–400 mm, it uses a white LED emitter (400–700 nm) to deliver stable performance across a wide variety of materials and surface colors. The M12 connector and PNP output ensure seamless integration into modern industrial automation systems.

Operating on 10–30 VDC and drawing ≤ 35 mA, the sensor provides quick response times (1 ms) and a switching frequency of 500 Hz, suitable for general-purpose object detection. Built with a durable PBT and nickel-plated brass housing and a PMMA lens, it is rated IP67, offering protection against dust and water. It also includes vibration and shock resistance as per EN standards, ensuring dependable performance in demanding environments.

With robust electrical protections including short-circuit, reverse polarity, and overvoltage, the S5N-PA-5-C21-PP is ideal for material handling, packaging, and assembly line automation.

Key features :-

Applications :-

• Automated Object Detection
  Ideal for detecting a wide variety of surfaces on conveyors and robotic arms.
• Packaging and Sorting Lines
  Fast and reliable detection supports rapid throughput in material handling.
• Versatile Industrial Use
  Handles both light and dark targets with its white LED emission.
• Compact Machine Integration
  M12 connector and compact body ensure easy fit into tight spaces.
• Harsh Environments
  Withstands vibration, shock, and water exposure with IP67 protection.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
