Datalogic S5N-PA-2-C21-NN Photoelectric Sensor

Datalogic S5N-PA-2-C21-NN Photoelectric Sensor

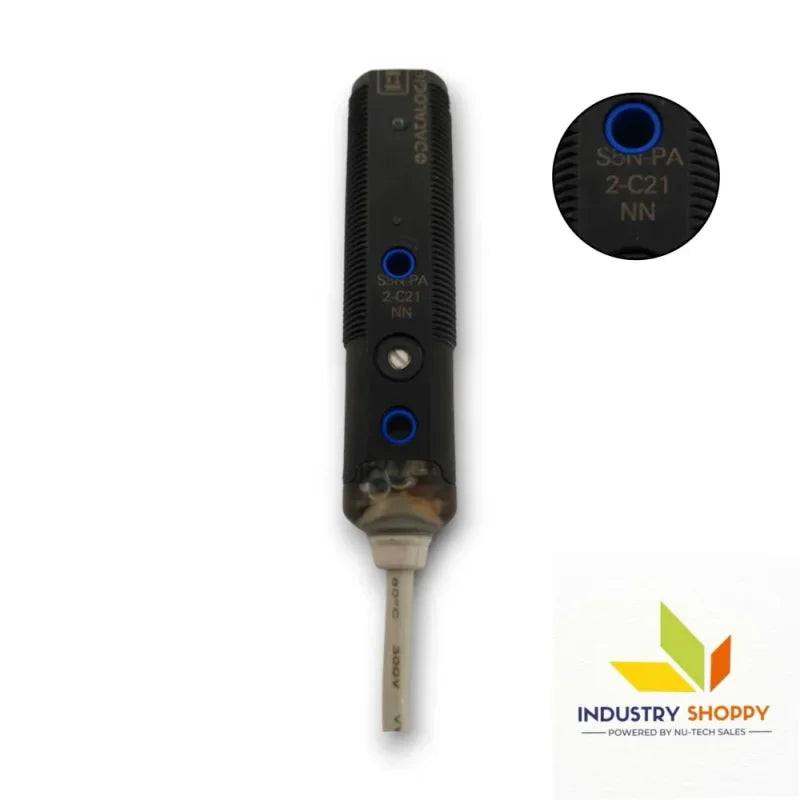

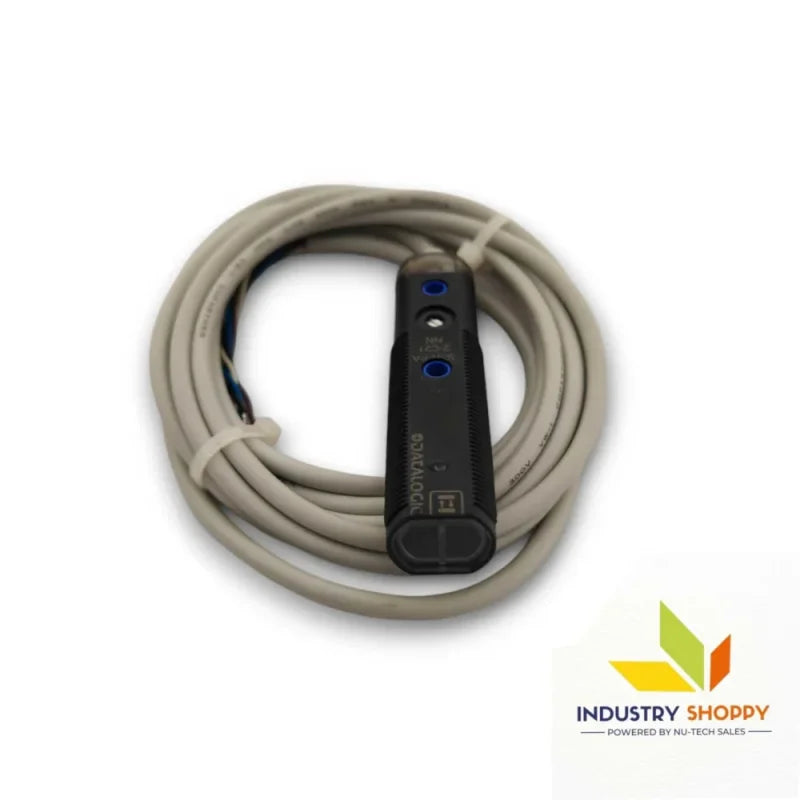

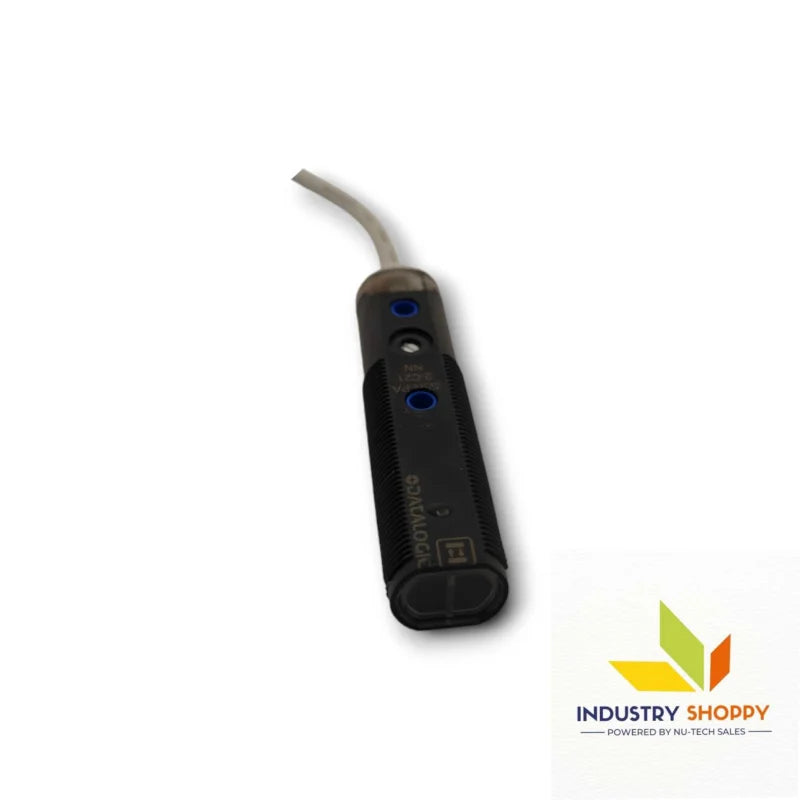

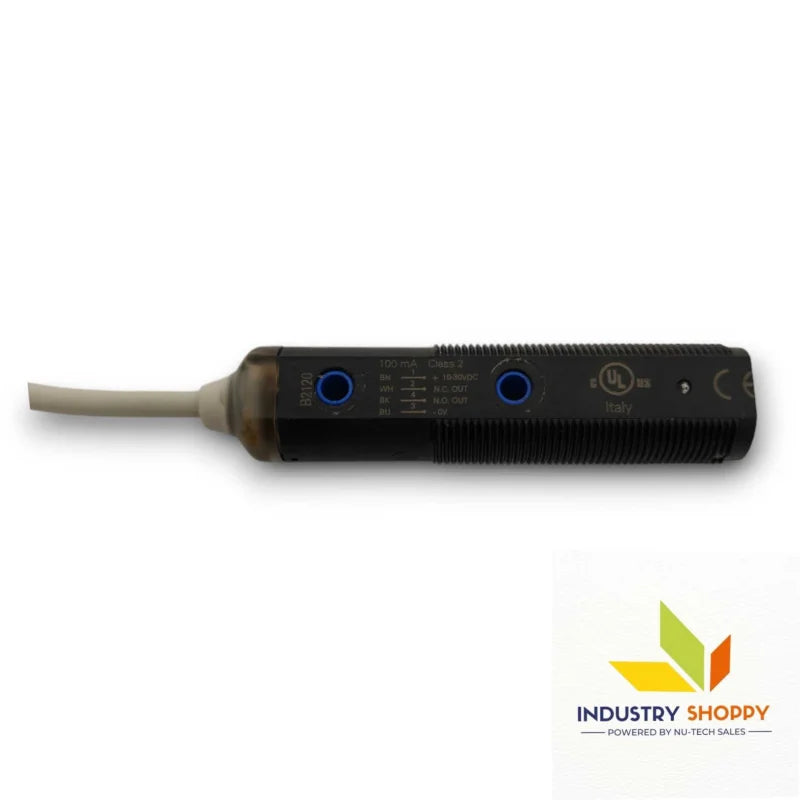

The Datalogic S5N-PA-2-C21-NN is a compact and precise diffuse beam photoelectric sensor designed for reliable short-range detection. With a nominal sensing distance of 400 mm, it offers accurate object detection using infrared LED emission, making it suitable for various industrial environments.

Equipped with NPN NO+NC outputs, it provides fast and consistent performance with a response time of just 500µs and a 1kHz switching frequency. A built-in trimmer allows easy sensitivity adjustment, while dual LED indicators (yellow for output, green for stability) enable clear status feedback during operation.

Housed in a robust M18 plastic body with IP67 protection, this sensor withstands harsh conditions, including vibration and temperature extremes. Features such as reverse polarity, short-circuit, and overvoltage protection ensure long-lasting and safe usage in automation systems.

Key features :-

Applications :-

• Assembly Line Automation: Detects parts or components on fast-moving conveyor systems with high accuracy.
• Material Sorting: Ideal for distinguishing different surfaces or objects with varying reflectivity.
• Packaging Detection: Identifies the presence or absence of items during packing or sealing operations.
• Machine Positioning Feedback: Supports machine alignment and object positioning with high precision.
• Compact Industrial Equipment: Its small size and radial optic design make it perfect for tight-space installations.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
