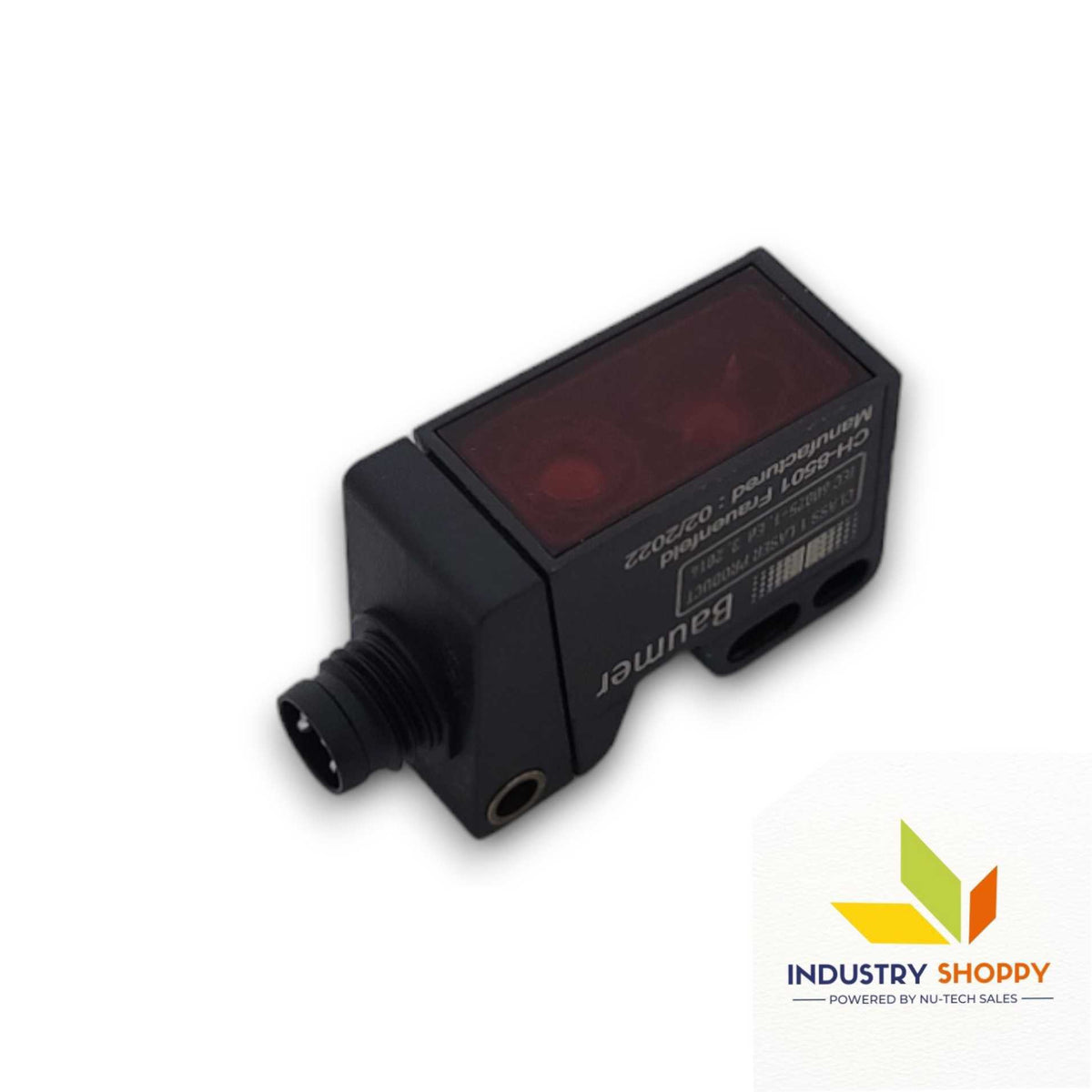

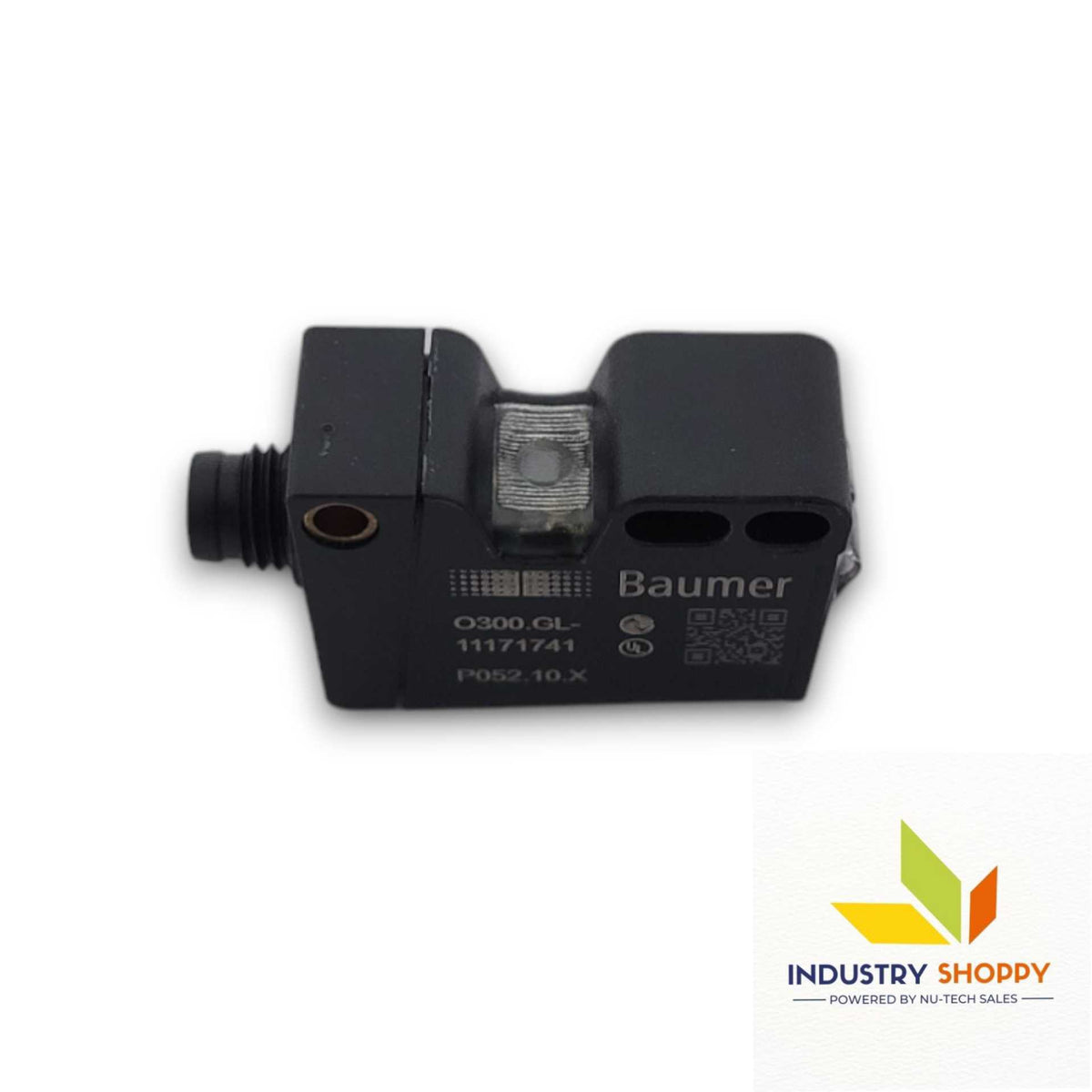

Baumer O300.GL-11171741 Photoelectric Sensor
The Baumer O300.GL-11171741 Photoelectric Sensor with background suppression provides precise detection with a sensing distance of 30 to 250 mm and a sensing range of 15 to 250 mm. Utilizing a pulsed red laser diode with a wavelength of 656 nm, it ensures accurate and reliable performance. The sensor features a laser class 1 designation, making it safe for industrial environments.
General Data:
- Part Number: 11171741
- Model Number: O300.GL-GW1J.72N
- Type: Background suppression
- Sensing Distance (Tw): 30 to 250 mm
- Sensing Range (Tb): 15 to 250 mm
- Repeat Accuracy: < 0.1 mm at laser focus
- Power On Indication: LED green
- Light Indicator: LED yellow
- Sensing Distance Adjustment: Teach-in and IO-Link
- Distance to Focus: 80 mm
- Suppression of Reciprocal Influence: Yes
- Alignment Optical Axis: < 2°
Light Source:
- Light Source: Pulsed red laser diode
- Laser Class: 1
- Wavelength: 656 nm
Electrical Data:
- Response Time / Release Time: < 0.25 ms
- Voltage Supply Range (+Vs): 11 to 30 VDC
- Current Consumption Max. (No Load): 30 mA
- Current Consumption Typ.: 25 mA
- Voltage Drop (Vd): < 2.5 VDC
- Output Function: Light / dark operate
- Output Circuit: Push-pull
- Output Current: 100 mA
- Short Circuit Protection: Yes
- Reverse Polarity Protection: Yes
Mechanical Data:
- Width / Diameter: 12.9 mm
- Height / Length: 32.3 mm
- Depth: 23 mm
- Design: Rectangular
- Housing Material: Plastic (ASA, PMMA)
- Front (Optics): PMMA

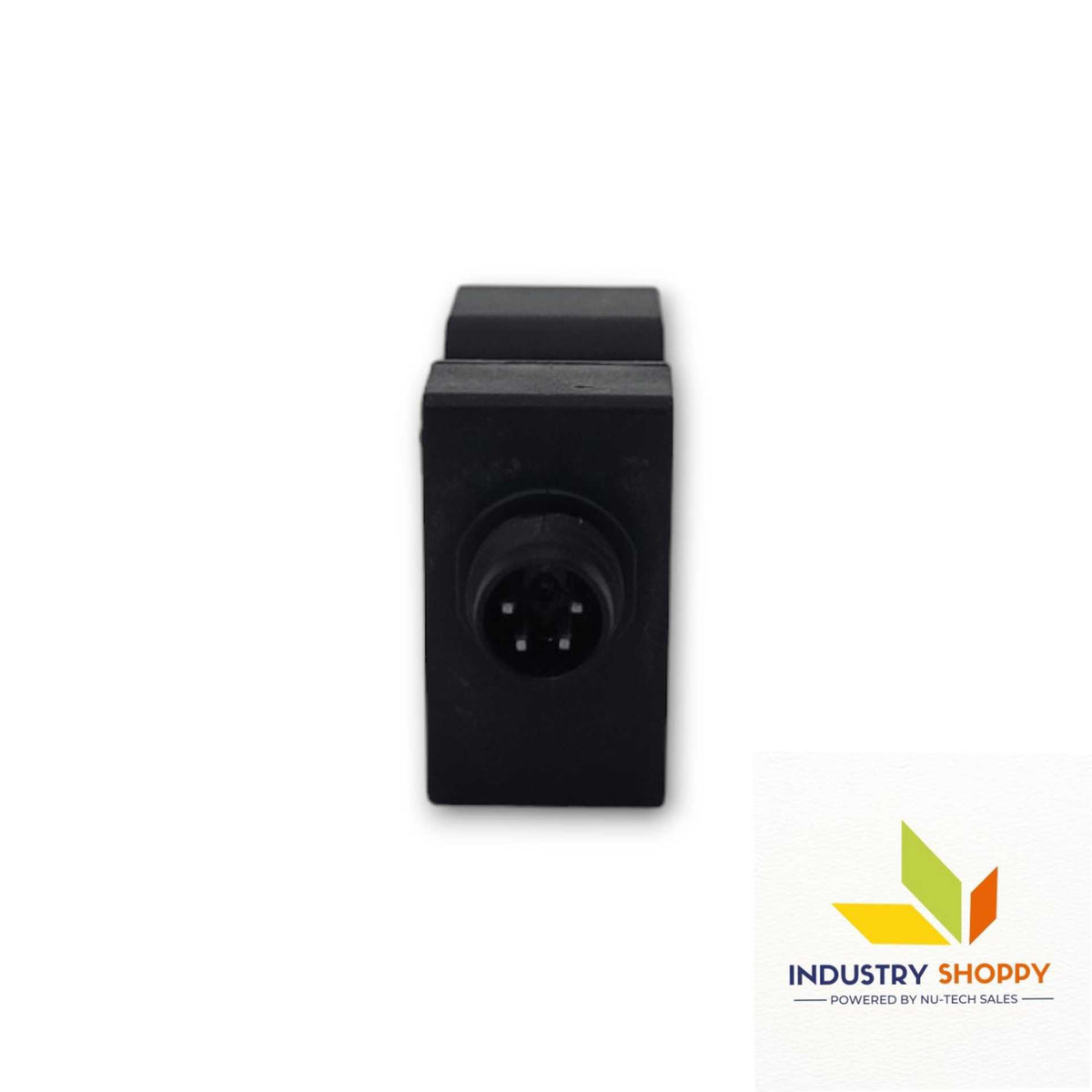

- Connection Types: Connector M8 4 pin
Ambient Conditions:
- Protection Class: IP67
- Operating Temperature: -10 to +60 °C
Applications: Ideal for automation, quality control, and assembly line monitoring, the Baumer O300.GL-11171741 is designed to meet the demanding needs of industrial professionals.
Technical Precautions:
- Ensure proper installation and secure connection to avoid any operational issues.
- Always handle the sensor carefully to prevent damage to the cable and sensor body.
- Regularly check the sensor for any signs of wear and tear, especially in demanding environments.
- Maintain the sensor within the specified operating temperature range for optimal performance.
- Ensure the sensor's IP67 rating is maintained by keeping it clean and free from contaminants.
