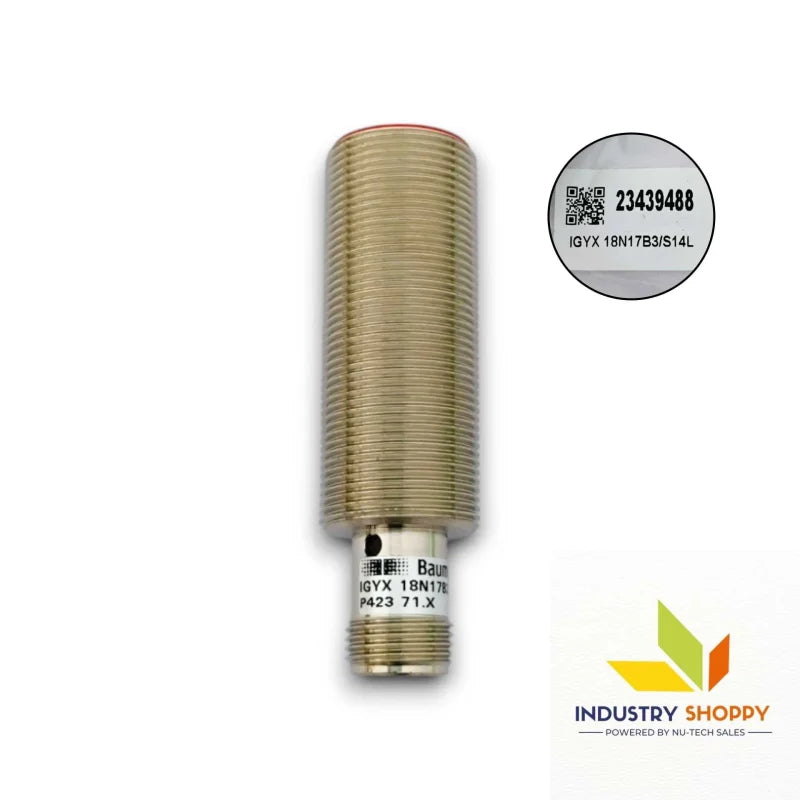

Baumer IGYX18N17B3/S14L Proximity Sensor

Baumer IGYX18N17B3/S14L Proximity Sensor

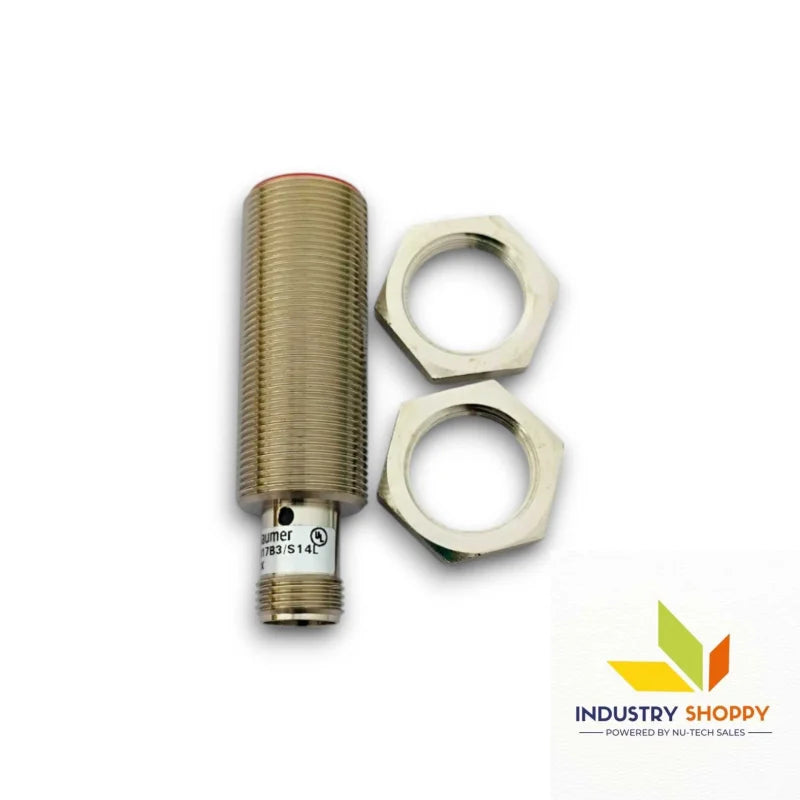

The Baumer IGYX18N17B3/S14L Proximity Sensor is a cylindrical, quasi-flush inductive sensor designed for reliable object detection in industrial applications. With a nominal sensing distance of 8 mm and an assured range of 6.4 mm, it provides accurate operation even in tight mounting conditions. The sensor is equipped with an NPN normally open (NO) output and 400 Hz switching frequency, enabling fast and responsive detection.

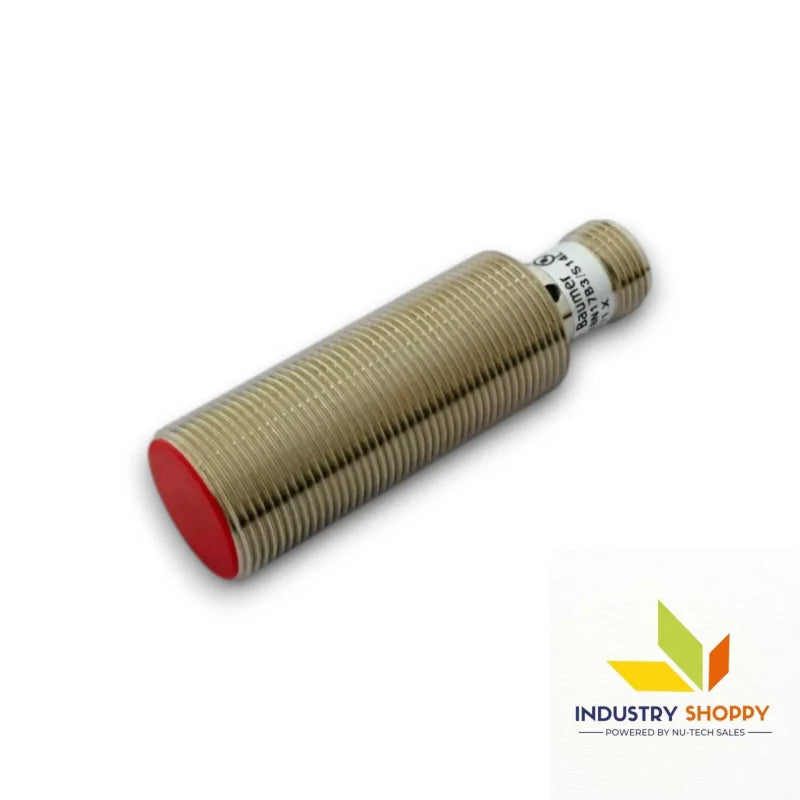

Its brass nickel-plated housing and PBT red sensing face ensure durability and chemical resistance in demanding environments. An integrated red LED indicator provides quick visual confirmation of operation. The unit is also protected against short circuits and reverse polarity, ensuring reliable performance in automated systems.

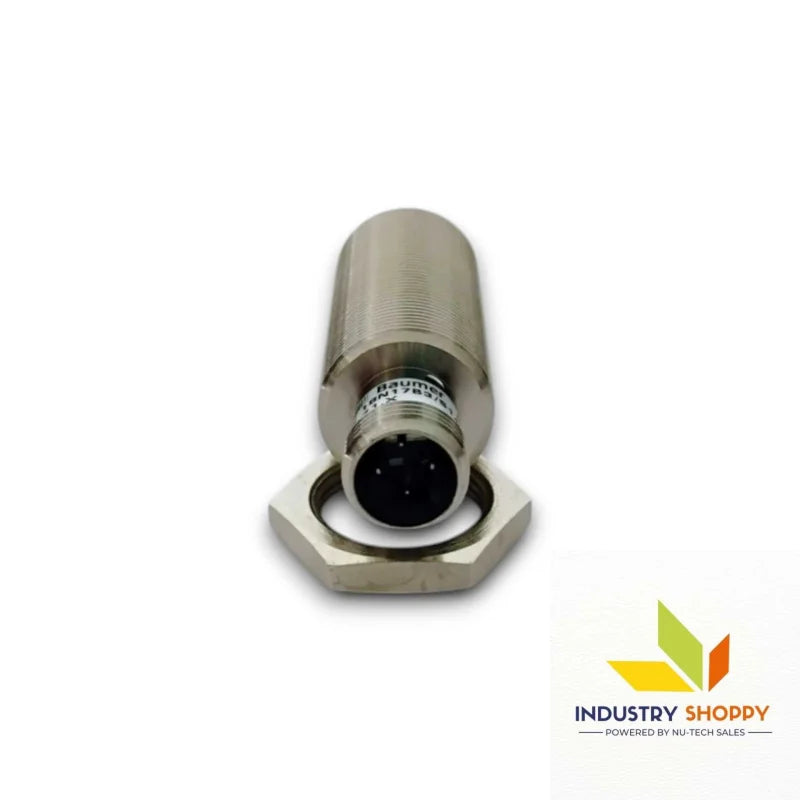

The M12 connector interface allows for quick and secure installation, and the sensor is capable of withstanding up to 25 Nm tightening torque. Operating in a wide temperature range from -25 to +75 °C, and rated IP67, this sensor performs consistently in varied environmental conditions across manufacturing, automation, and logistics setups.

Key features :-

Applications :-

• Part Presence Detection: Detects small components on conveyors or fixtures with consistent 8 mm sensing precision.
• Automated Machine Feedback: Sends real-time signals for machine status or object arrival using a fast 400 Hz response.
• Rotary or Linear Positioning: Verifies the end-of-travel positions in actuators or slides during motion control tasks.
• Robotics Integration: Senses metal components in robotic pick-and-place or loading operations with reliable feedback.
• Harsh Industrial Environments: Performs reliably in dusty, oily, or high-vibration zones thanks to IP67 and a rugged brass housing.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
