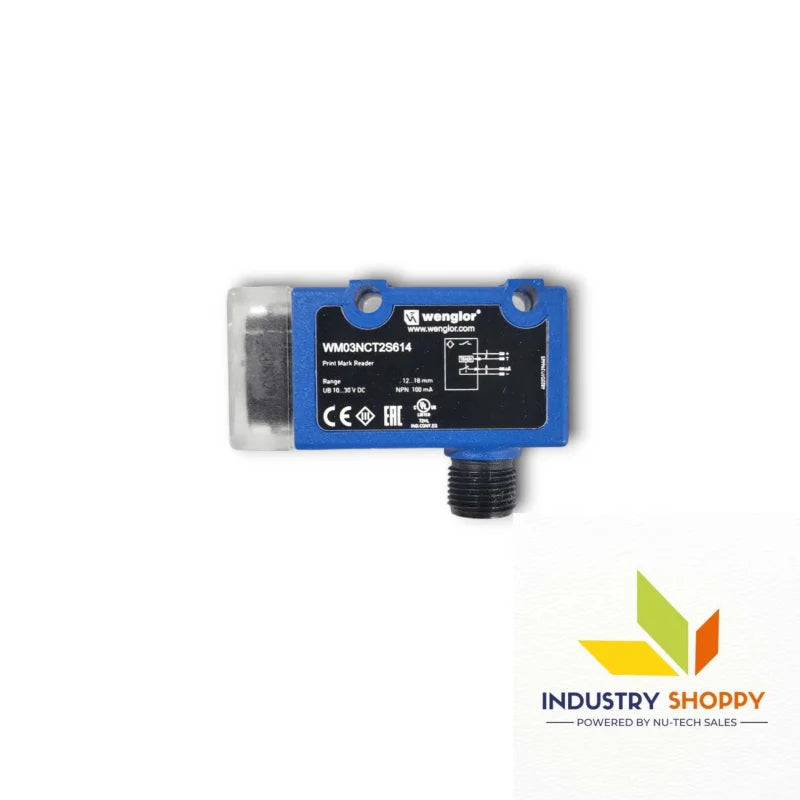

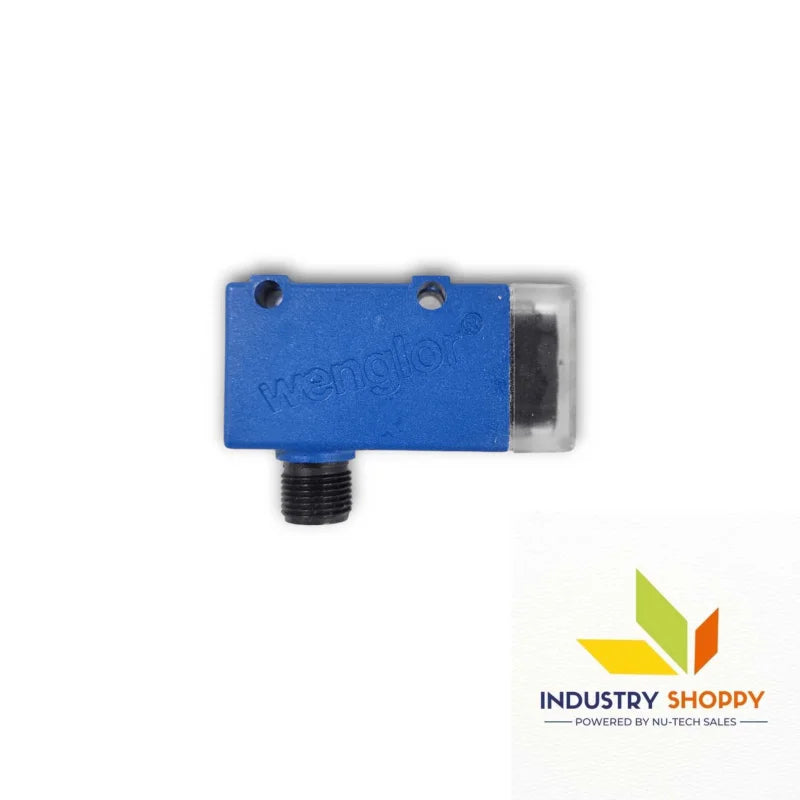

Wenglor WM03NCT2S614 Color Mark Sensor

Wenglor WM03NCT2S614 Color Mark Sensor

The Wenglor WM03NCT2S614 Color Mark Sensor delivers precise and rapid detection of color contrasts, making it an essential component for automated production lines. It offers a working range of 12 to 18 mm and a fixed working distance of 15 mm, ensuring optimal mark detection on varied surfaces.

This sensor employs a white light source across 400 to 700 nm to accurately detect color differences, even in variable lighting. With a compact 1.5 × 2.5 mm light spot and gray scale resolution of 20, it identifies subtle contrast changes with exceptional reliability.

The sensor offers a swift 10 kHz switching frequency and 50 µs response time to handle high-speed industrial processes. Its NPN NO/NC output ensures versatile connection to control systems, while Teach-In modes simplify setup.

The IP67-rated plastic housing guarantees resilience against dust and moisture, making it suitable for harsh production environments. Built-in short circuit, reverse polarity, and overload protection complete this sensor’s dependable, industry-ready design.

Key features :-

• Color Mark Detection: Perfect for detecting color marks on labels, products, and packaging materials in automated systems, ensuring proper identification and orientation.
• Sorting and Classification: Widely used in sorting systems to sort products based on their color, such as in packaging lines, material handling, and production lines.
• Labeling and Packaging: Ideal for ensuring accurate color coding and alignment in labeling and packaging systems, preventing errors in the production process.
• Quality Control: Applied in quality control systems to verify that color marks on products are correctly placed and to detect any color-related defects.
• Automated Assembly: Used in automated assembly systems where color coding helps ensure the correct placement of components or products.
• Product Identification: Frequently used in manufacturing environments to identify and verify color-marked components or materials, ensuring they are correctly processed or routed.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
