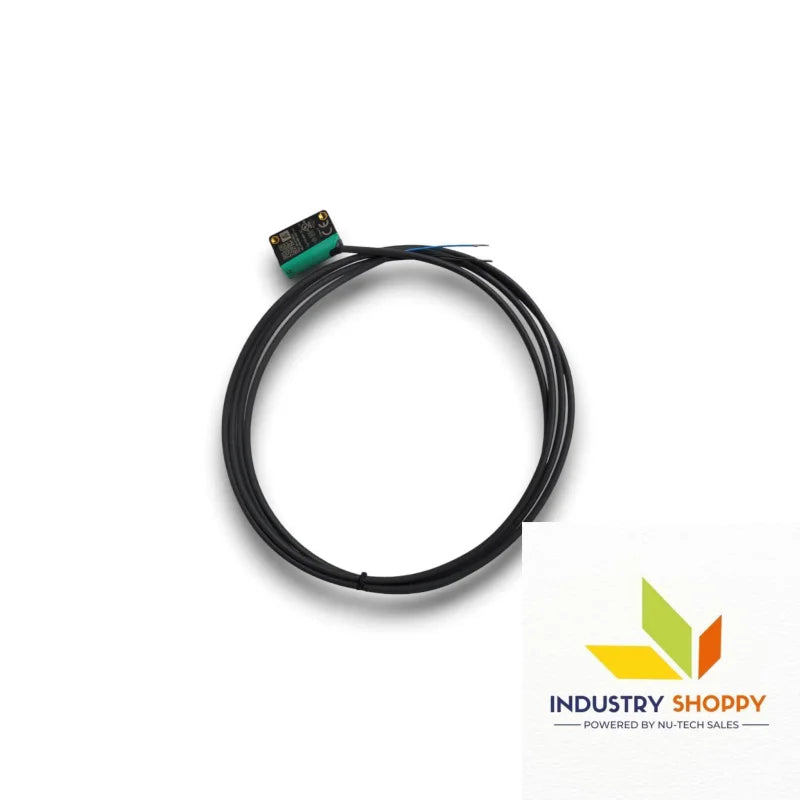

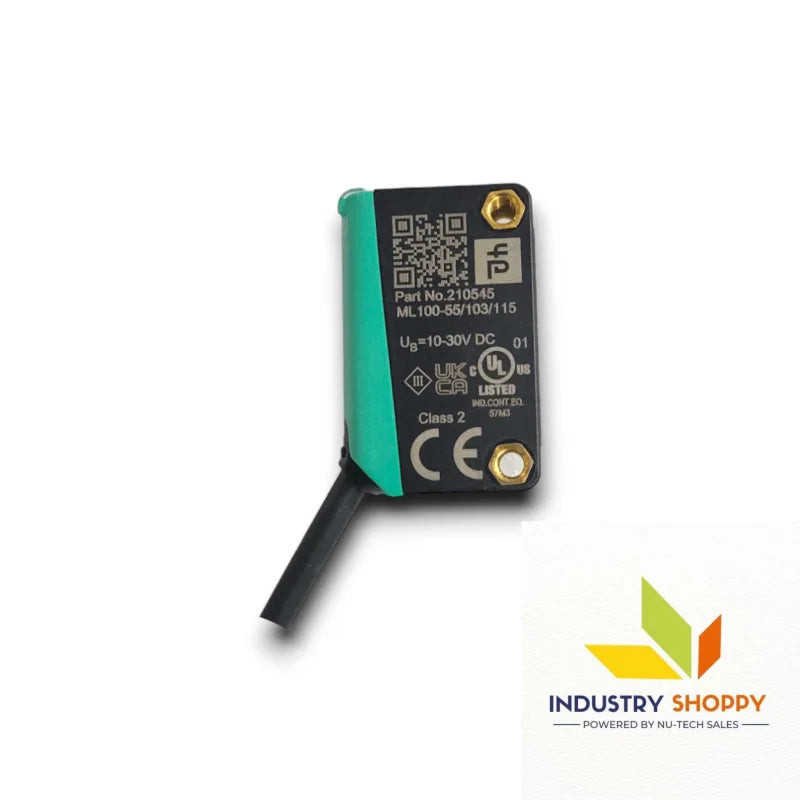

Pepperl + Fuchs ML100-55/103/115 Retroreflective Sensor
Pepperl + Fuchs ML100-55/103/115 Retroreflective Sensor
Pepperl + Fuchs ML100-55/103/115 Retroreflective Sensor
Pepperl + Fuchs ML100-55/103/115 Retroreflective Sensor
Pepperl+Fuchs

Pepperl+Fuchs ML100-55/103/115 Retroreflective Sensor

Product SKU: NTSSEN00045
Available:
Only 19 items in stock
19 items in stock
In stock
Pre-order
Out of stock
  • Brand:  Pepperl+Fuchs
  • Part Number: 210545
  • Output Type: PNP
  • Switching current: max. 100 mA , resistive load
  • Operating voltage: 10 ... 30 V DC
$58.00
$88.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Pepperl+Fuchs ML100-55/103/115 Retroreflective Sensor :

The Pepperl+Fuchs ML100-55/103/115 Retroreflective Sensor is a compact and reliable retro-reflective photoelectric sensor, designed for long-range object detection in industrial automation. With an effective detection range of up to 5 meters (and threshold up to 7 meters), it ensures dependable sensing when used with an H50 reflector.

This sensor utilizes a modulated visible red LED light source with a polarization filter, enabling accurate detection of objects—including reflective surfaces—while minimizing false signals. It offers a fast response time of 0.5 ms and a switching frequency of up to 1000 Hz, making it suitable for high-speed operations.

Equipped with a PNP open-collector output, the ML100 allows Light-ON/Dark-ON switching, along with a sensitivity adjustment control for fine-tuning performance. The LED indicators (green for power, yellow for signal status) provide clear visual feedback for setup and operation.

Built with a durable polycarbonate housing and rated IP67, this sensor performs reliably in harsh industrial environments. It operates on a 10–30 V DC supply, includes short-circuit and reverse polarity protection, and supports stable performance under varying ambient conditions.


Applications

  • Conveyor and packaging systems

  • Object detection over long distances

  • Sorting and counting applications

  • Industrial automation and material handling


Technical Precautions

  • Use with H50 reflector for optimal performance.

  • Adjust sensitivity settings carefully during installation.

  • Avoid excessive ambient light interference.

  • Ensure operation within 10–30 V DC supply range.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberML100-55/103/115
Part Number210545
Effective Detection Range0 … 5 m
Reflector Distance0.01 … 5 m
Threshold Detection Range7 m
Reference TargetH50 reflector
Light SourceLED
Light TypeModulated visible red light
Polarization FilterYes
Diameter of Light SpotApprox. 500 mm at 7 m
Opening AngleApprox. 4°
Optical FaceFrontal, PMMA
Ambient Light LimitEN 60947-5-2:2007+A1:2012
MTTFd860 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0%
Operation IndicatorLED green: power on
Function IndicatorLED yellow: lights up when receiving beam; flashes when below operating reserve; off when light beam interrupted
Control ElementsSensitivity adjustment; Light-on/dark-on changeover switch
Operating Voltage10 … 30 V DC
RippleMax. 10 %
No-Load Supply Current< 20 mA
Switching TypeAdjustable (default: light-on)
Signal Output1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching VoltageMax. 30 V DC
Switching CurrentMax. 100 mA (resistive load)
Voltage Drop≤ 1.5 V DC
Switching Frequency1000 Hz
Response Time0.5 ms
Product StandardEN 60947-5-2
UL ApprovalcULus Listed, Class 2 Power Source or limited voltage output (max. 3.3 A), Type 1 enclosure
CCC ApprovalNot required for products rated ≤36 V
Ambient Temperature-30 … 60 °C (-22 … 140 °F)
Storage Temperature-40 … 70 °C (-40 … 158 °F)
Degree of ProtectionIP67
Connection2 m fixed cable
HousingPC (Polycarbonate)
Tightening Torque, Fastening Screws0.6 Nm
Height31 mm
Width11 mm
Depth20 mm
Cable Length2 m
