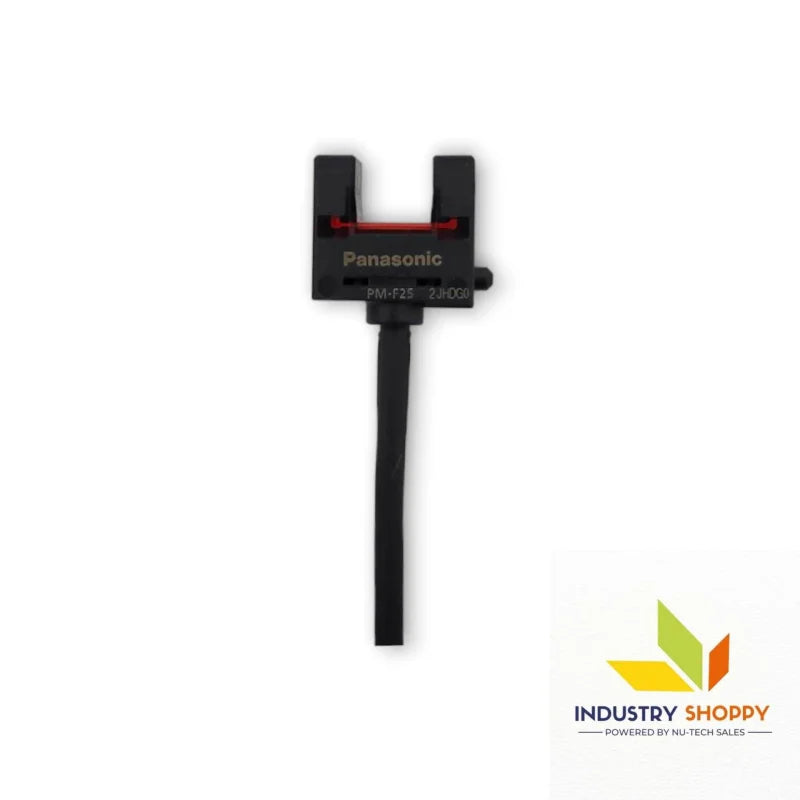

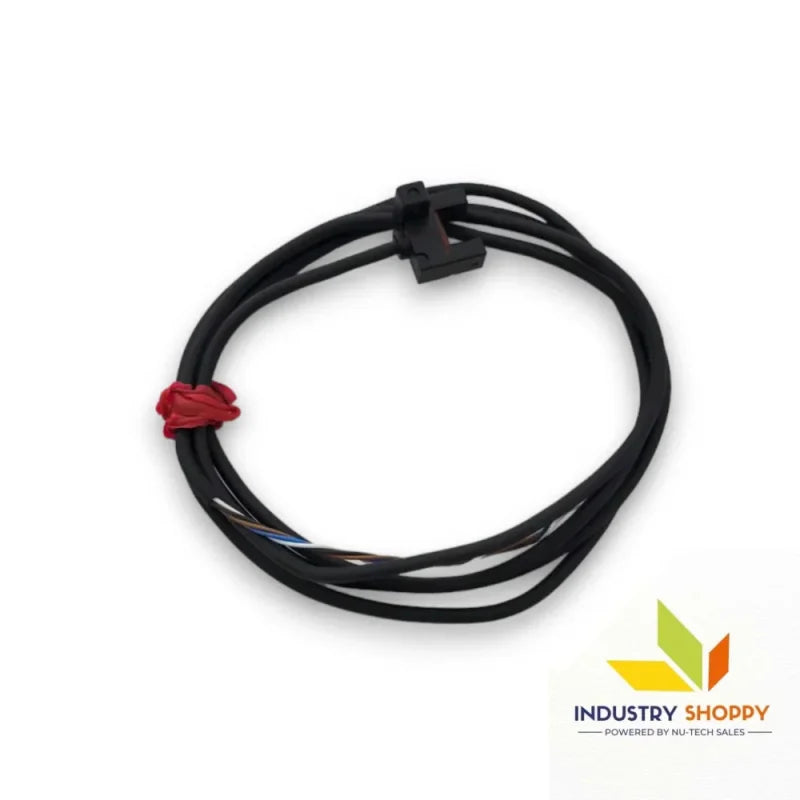

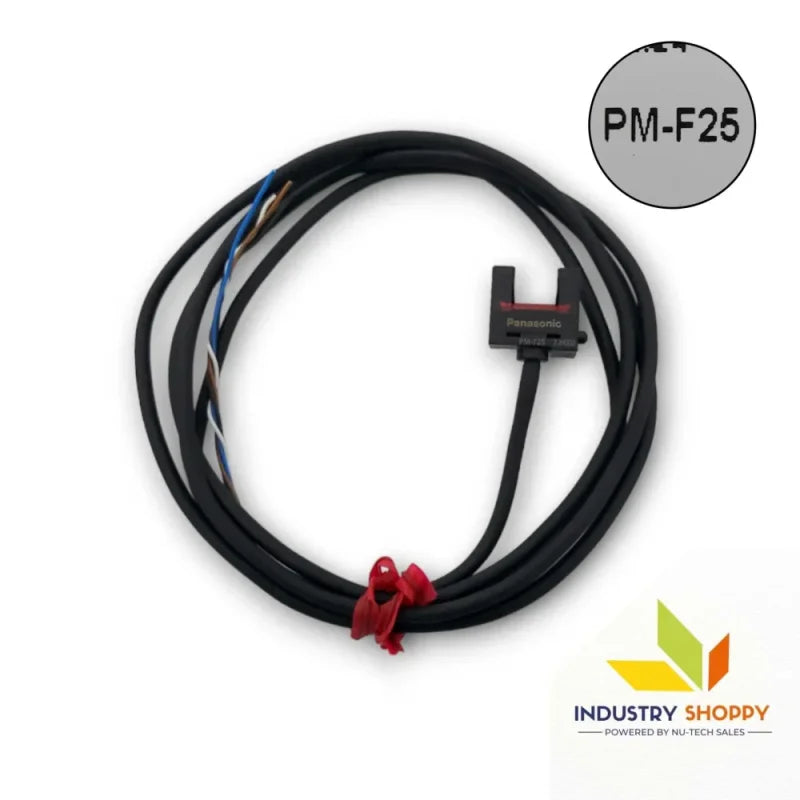

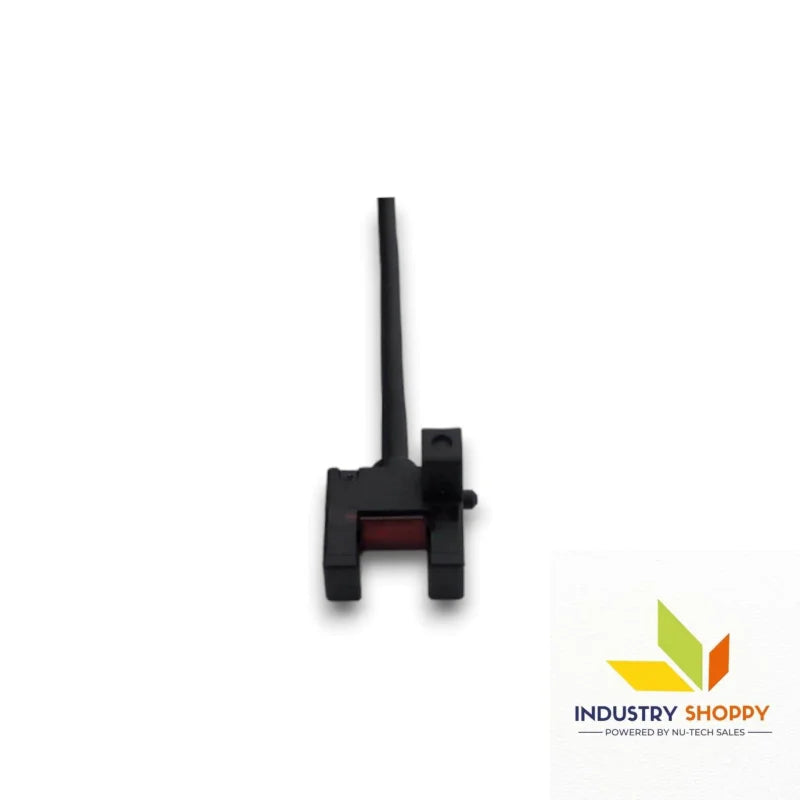

Panasonic PM-F25 Photoelectric Sensor

The Panasonic PM-F25 is a high-performance photoelectric sensor designed to provide precise and reliable object detection in various industrial environments. With a sensing range of up to 2 meters, it is ideal for short to medium-range detection tasks. This sensor uses retro-reflective technology, making it effective for detecting objects on reflective surfaces or in environments with transparent or shiny materials.

The PM-F25 features an NPN output and offers a response time of less than 1 ms, ensuring quick and accurate detection, even in high-speed operations. It operates within a voltage range of 10-30 VDC and supports both light and dark operation. The IP67-rated housing ensures the sensor is protected against dust and water, making it durable and reliable in harsh industrial environments. The M8 3-pin connector ensures easy and secure installation.

The Panasonic PM-F25 is an ideal solution for industries that require reliable, fast, and precise detection in medium-range applications.

Key features :-

Product Number PM-F25
Part Number UPMF25
CE Marking Directives EMC Directive, RoHS Directive
Sensing Range 6 mm 0.236 in (fixed)
Minimum Sensing Object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis 0.05 mm 0.002 in or less
Repeatability 0.01 mm 0.0004 in or less
Supply Voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current Consumption 15 mA or less
Output NPN open-collector transistor
・Maximum sink current: 50 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Incorporated with 2 outputs: Light-ON / Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time Under light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz)(Note)
(Note) : The response frequency is the value when the disc, given in the figure below, is rotated.
Operation Indicator Orange LED (lights up under light received condition)
Pollution Degree 3
Protection IP64 (IEC)
Ambient Temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉
(Note) : In case is used at an ambient temperature of +50 ℃ +122 ℉, or more, make sure to mount it on a metal body.
Ambient Humidity 5 to 85 % RH, Storage: 5 to 95 % RH
Ambient Illuminance Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage Withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock Resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Material Enclosure: PBT
Display section: Polycarbonate
Cable 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long
Wiring Length

Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.
(Note 2) : For safety applications, do not exceed 30 m 98.425 ft.



Applications :-

  • Industrial Automation: Ideal for detecting objects in automated production lines, improving sorting, positioning, and system control.
  • Material Handling: Perfect for detecting objects on conveyor systems, enhancing sorting, tracking, and material handling efficiency.
  • Packaging Industry: Ensures precise detection of items during packaging processes, improving operational speed and accuracy.
  • Quality Control: Used for detecting objects in quality inspection systems, ensuring consistent product quality in manufacturing lines.
  • Logistics and Warehouse: Enhances material sorting and handling in warehouse systems, optimizing logistics operations and material tracking.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
